AUTOMATIC TRANSMISSION (4L30–E)

4. Press down claws and disconnect cable assembly.

A07RW017

5. Disconnect PCM harness connectors and remove

nuts that fasten grommet in select cable assembly.

6. Disconnect inner cable.

(V6)

210RW013

7A–33

AUTOMATIC TRANSMISSION (4L30–E)

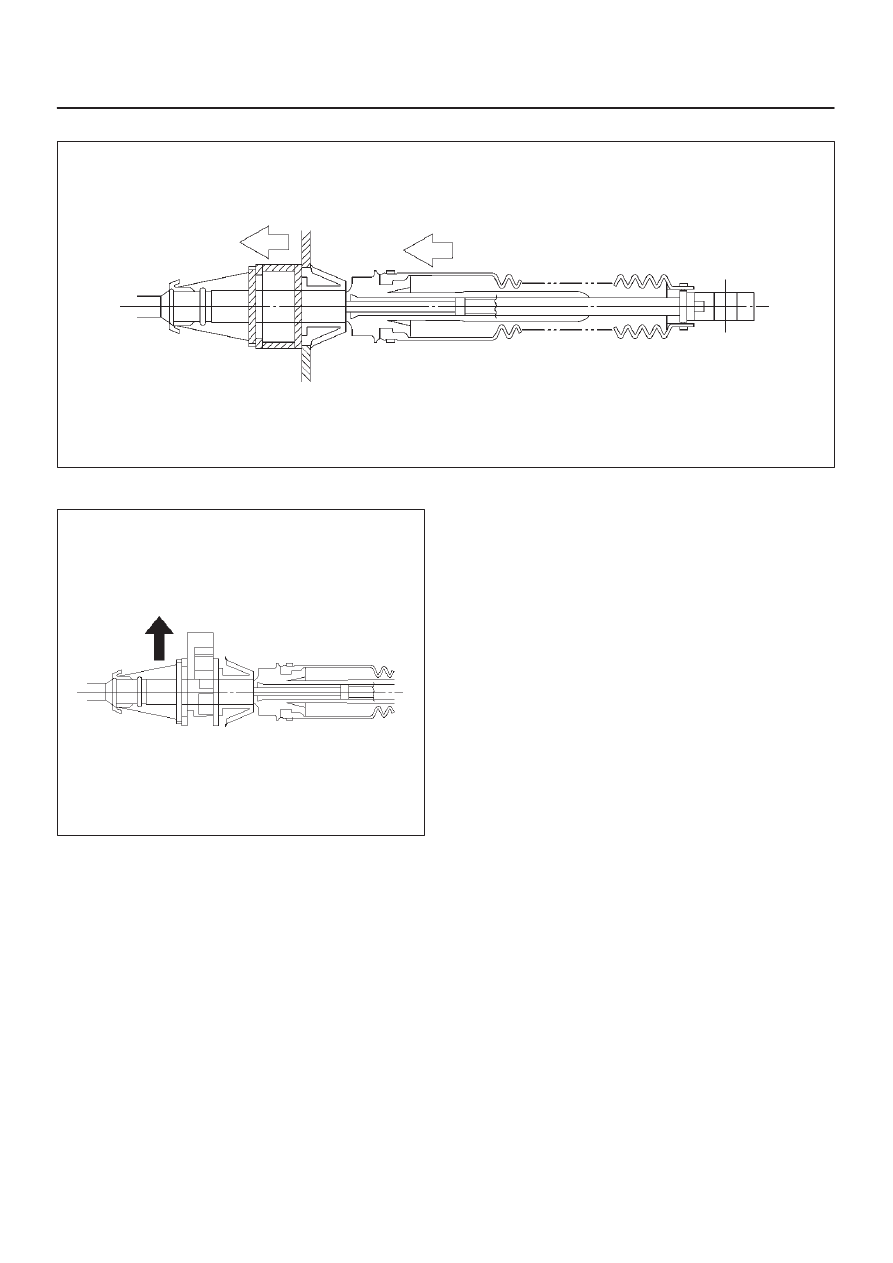

7. Slide sleeve and disconnect cable assembly.

A07RW082

8. Pull lock.

A07RW015

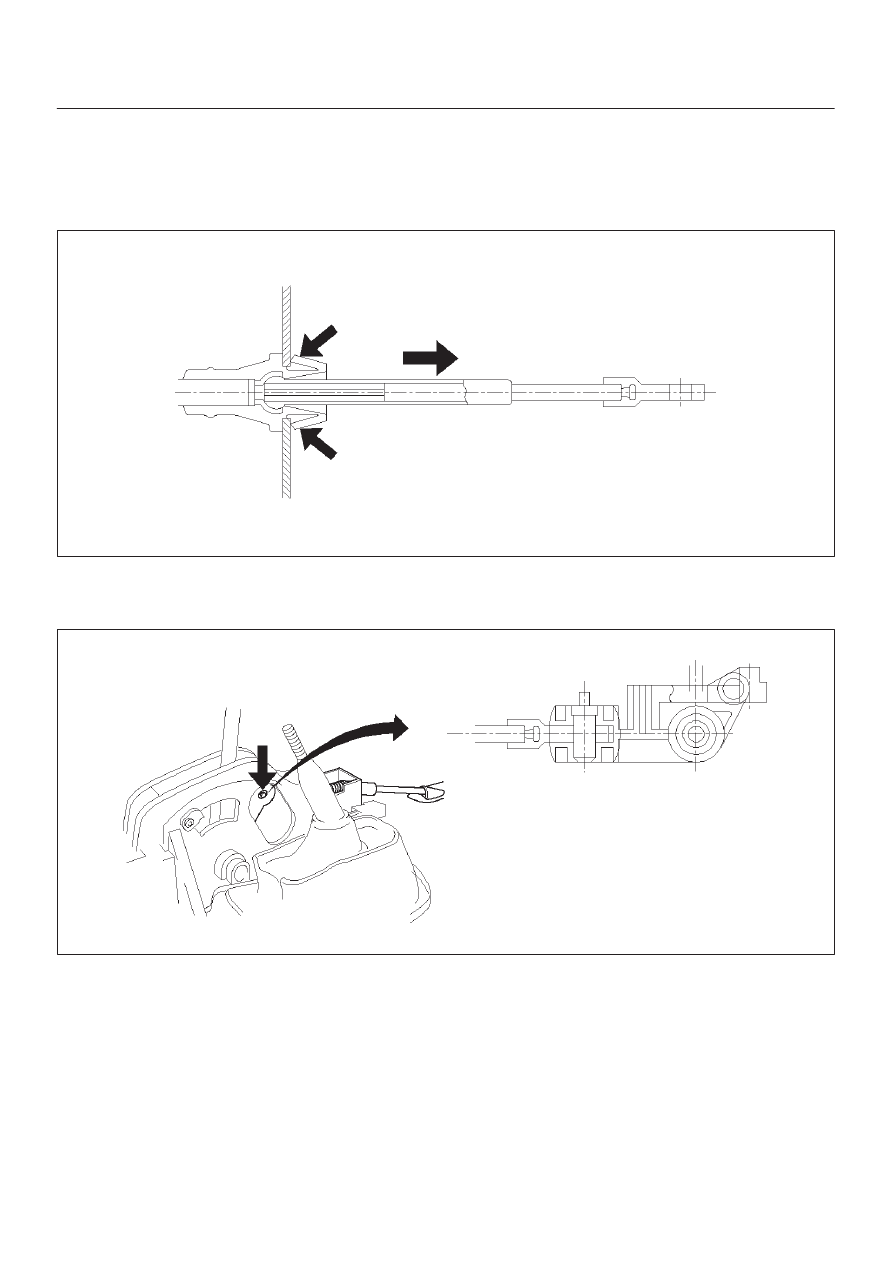

9. Draw select cable assembly into the interior side.

7A–34

AUTOMATIC TRANSMISSION (4L30–E)

Installation

1. Set selector lever in “P” position.

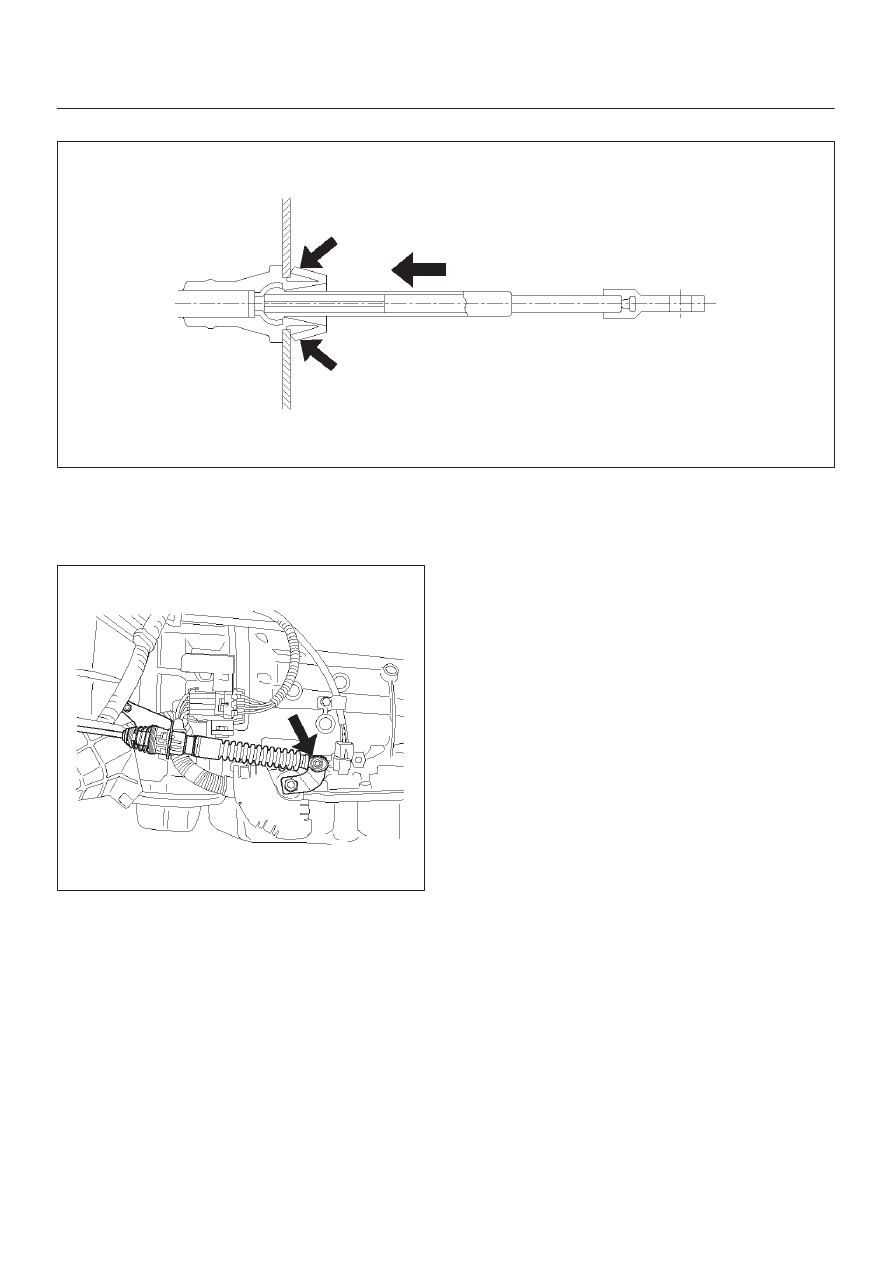

2. Let out select cable transmission side end from floor

hole.

3. Fit outer cable into bracket in selector lever assembly.

A07RW016

4. Set inner cable end in selector lever and push pin into

selector lever hole and inner cable end.

(4

×

4)

256RW023

7A–35

AUTOMATIC TRANSMISSION (4L30–E)

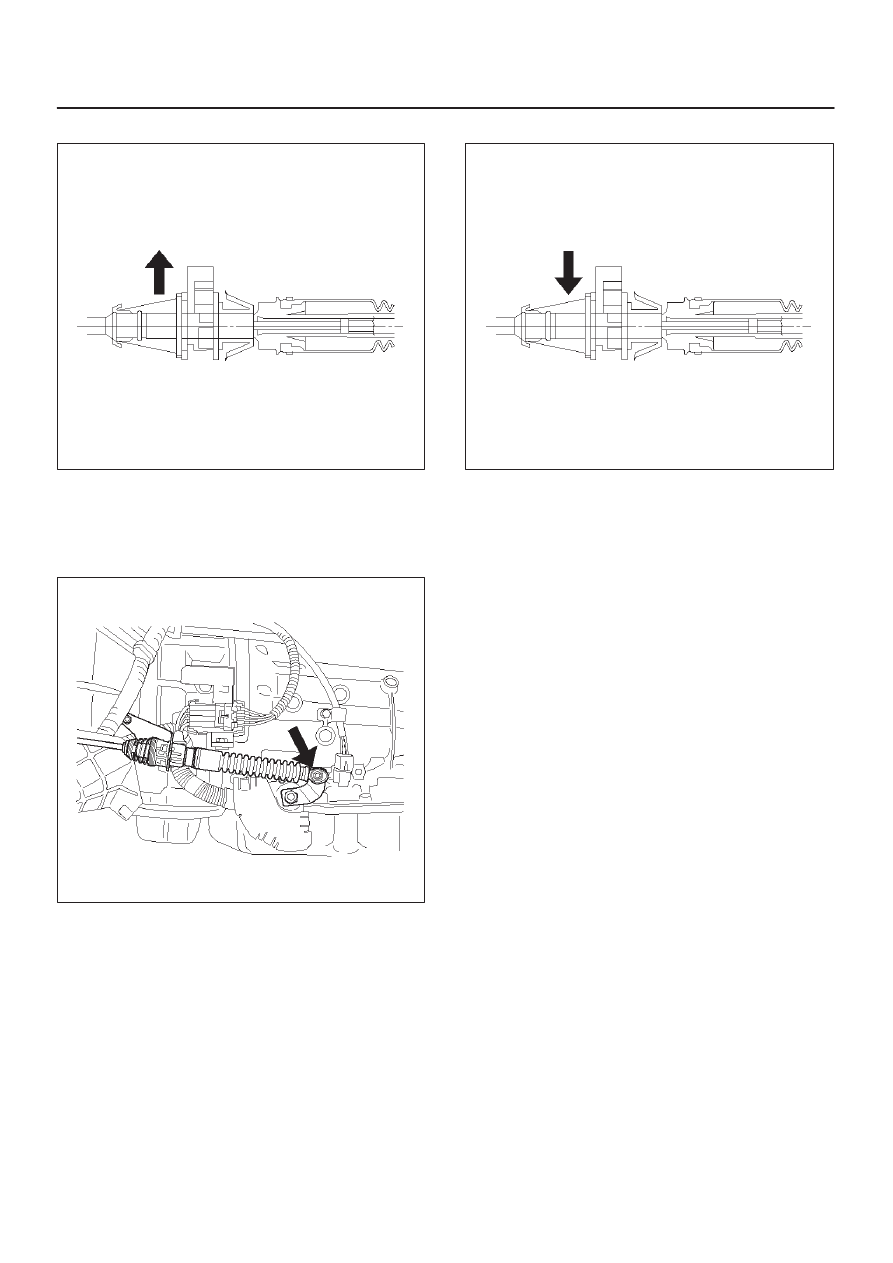

5. Check that lock projects.

A07RW015

6. Connect adjust end fitting attachment to the bracket

on transmission.

7. Set select lever “P” position and connect inner cable

to select lever.

(V6)

210RW013

8. Push lock into adjust end fitting attachment.

A07RW014

9. Install grommet.

10. About following installation steps, refer to

Selector

Lever in this section.
