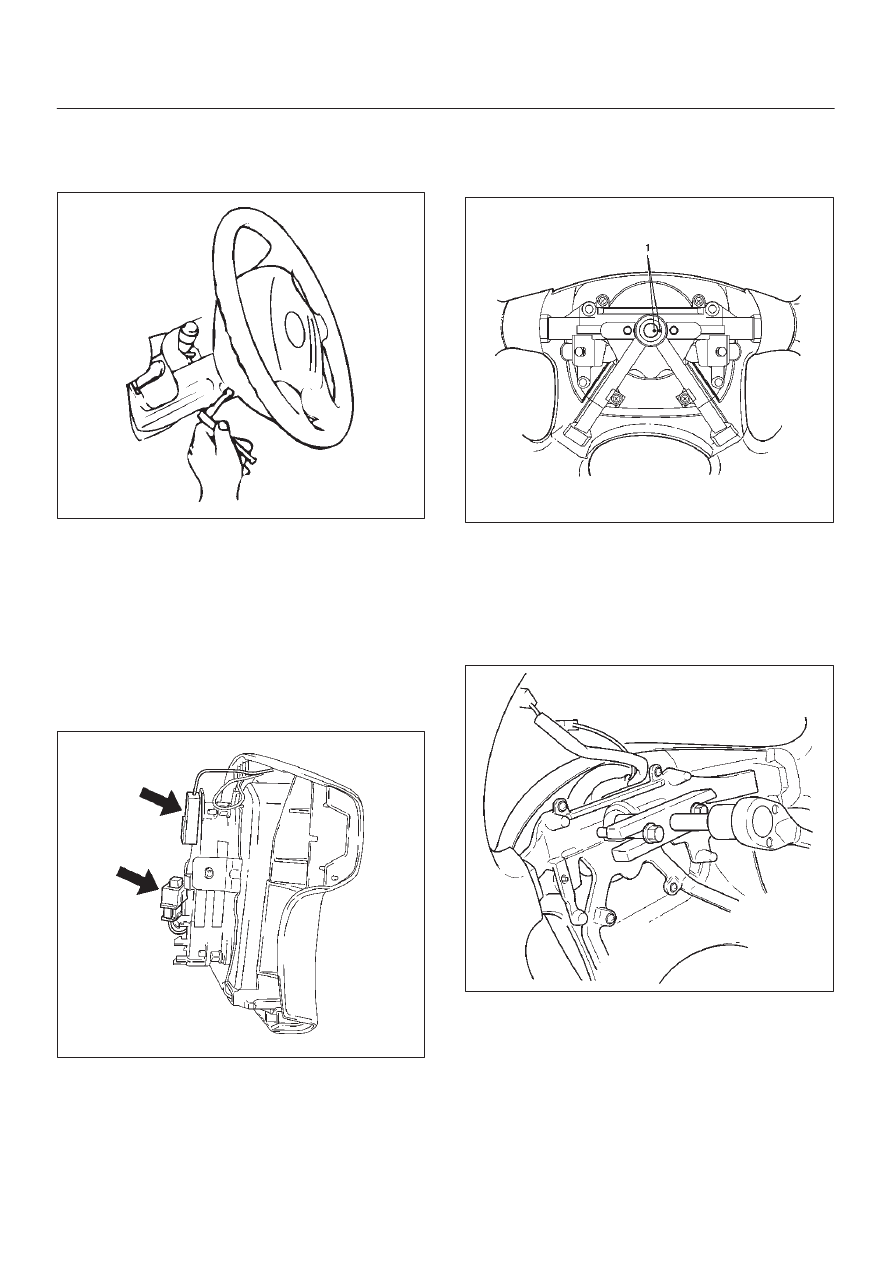

2A–34 POWER–ASSISTED STEERING SYSTEM

5. Loosen the inflator module fixing bolt from behind the

steering wheel assembly using a TORX



driver or

equivalent until the inflator module can be released
from steering assembly.

827RW070

6. Disconnect the yellow 2-way SRS connector located

behind the inflator module.

WARNING: THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE TRIM COVER
AWAY FROM YOUR BODY AND SHOULD ALWAYS
BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP. THIS IS NECESSARY
BECAUSE FREE SPACE IS PROVIDED TO ALLOW
THE AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT.

827RW073

7. Disconnect horn lead.

8. Remove steering wheel fixing nut.
9. Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their original
position, then remove steering wheel.

430RW021

10. Move the front wheels to the straight ahead position,

then use steering wheel remover J–29752 to remove
the steering wheel.

CAUTION: Never apply force to the steering wheel
shaft using a hammer or other impact tools in an
attempt to remove the steering wheel. The steering
shaft is designed as an energy absorbing unit.

430RX005

POWER–ASSISTED STEERING SYSTEM

2A–35

Installation

1. Install steering wheel by aligning the setting marks

made when removing.

CAUTION: Never apply force to the steering wheel
shaft using a hammer or other impact tools in an
attempt to remove the steering wheel. The steering
shaft is designed as an energy absorbing unit.

2. Tighten the steering wheel fixing nut to the specified

torque.

Torque: 34 N·m (25 lb ft)

3. Connect horn lead.
4. Support the module and carefully connect the SRS

connector.

NOTE: Pass the lead wire through the tabs on the plastic
cover (wire protector) of inflator to prevent lead wire from
being pinches.

5. Tighten bolts to specified torque.

Torque: 9 N·m (78 lb in)

6. Connect the yellow 2-way SRS connector located

under the steering column.

7. Connect the battery “–” terminal cable.
8. Turn the ignition switch to the “ON” position and

observe the warning lamp. The lamp should flash 7
times. If the lamp does not operate correctly, refer to
Restraints section.

2A–36 POWER–ASSISTED STEERING SYSTEM

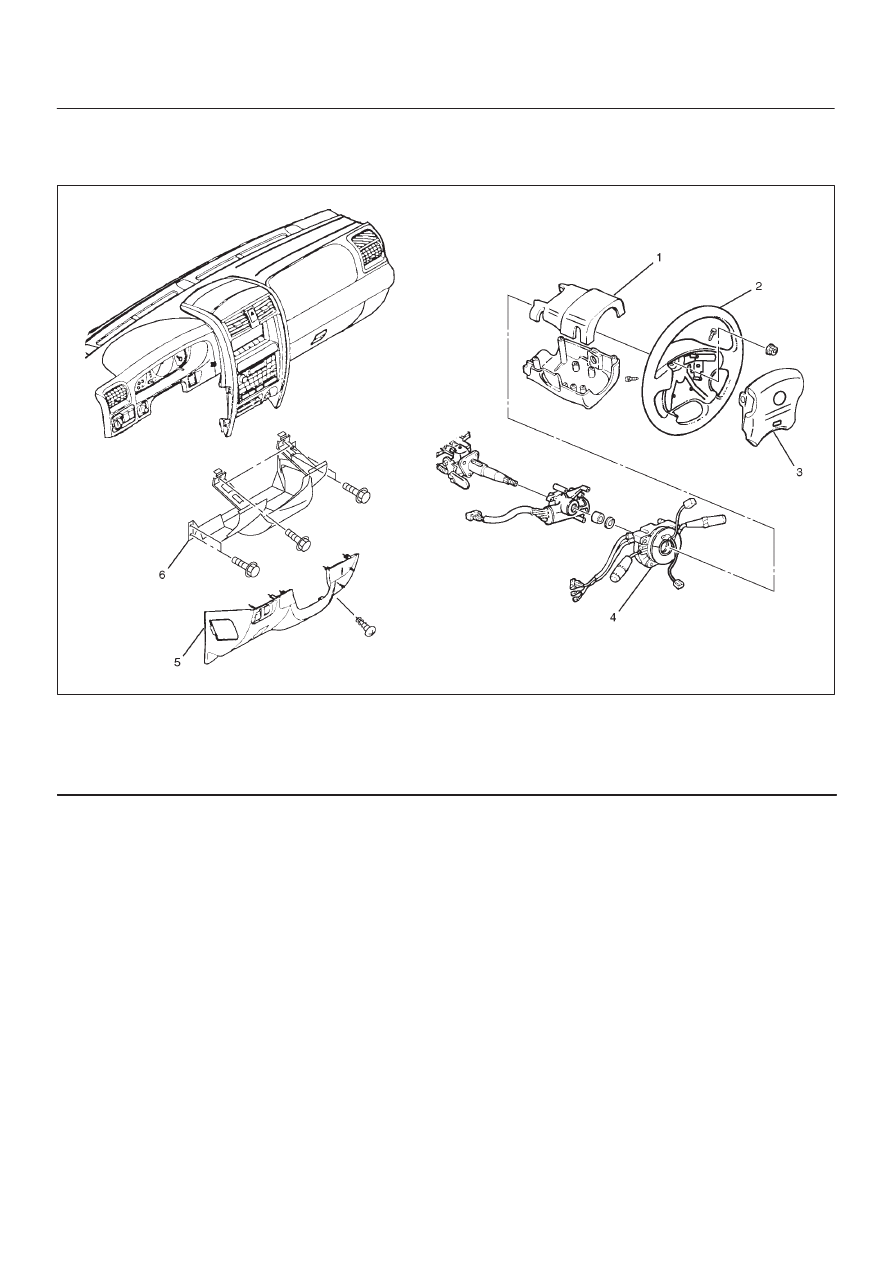

Combination Switch

Combination Switch and Associated Parts

431R200003

Legend

(1) Steering Column Cover
(2) Steering Wheel
(3) Inflator Module

(4) Combination Switch and SRS Coil Assembly
(5) Instrument Panel Lower Cover
(6) Driver Knee Bolster (reinforcement)

Removal

1. Turn the steering wheel so that the vehicle’s wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK”.
3. Disconnect the battery ground cable, and wait at least

5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

CAUTION: The wheels of the vehicle must be
straight ahead and the steering column in the
“LOCK” position before disconnecting the steering
wheel. Failure to do so will cause the coil assembly
to become uncentered which will cause damage to
the coil assembly.

5. Remove the engine hood opening lever, then remove

instrument panel lower cover.

6. Remove the driver knee bolster (reinforcement).

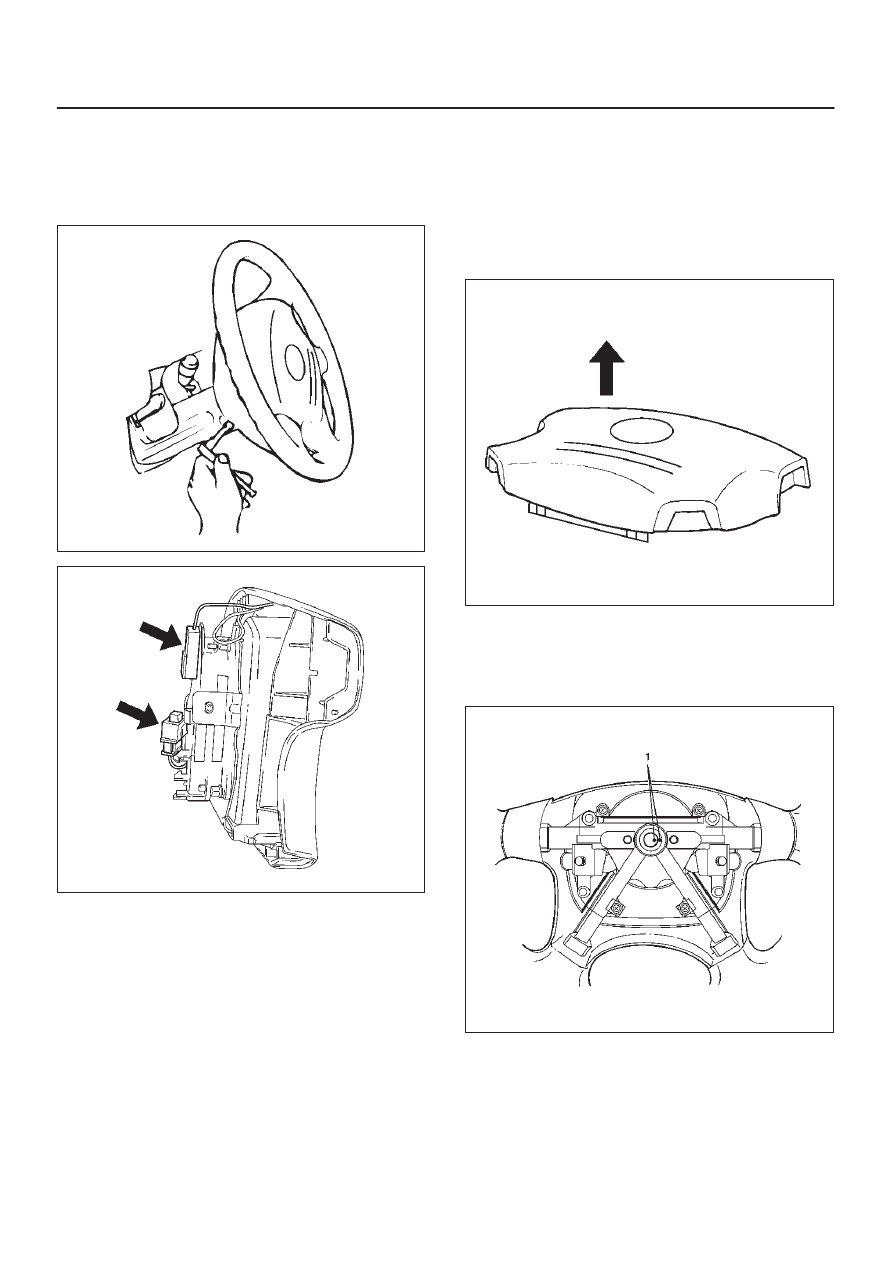

POWER–ASSISTED STEERING SYSTEM

2A–37

7. Loosen the inflator module fixing bolt from behind the

steering wheel assembly using a TORX



driver or

equivalent until the inflator module can be released
from steering assembly. Disconnect the yellow 2-way
SRS connector and horn lead located behind the
inflator module, then remove inflator module.

827RW070

827RW073

827RW072

8. Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their original
position. Move the front wheels to the straight ahead
position, then use steering wheel remover J–29752 to
remove the steering wheel.

430RW021
