UNIT REPAIR (JR405E)  7A4-83





SERVICE STANDARD



Name

BESCO ATF III

ATF

Quantity

L (US gal/Imp gal)

9.2 – 9.6 (2.43-2.54/2.02-2.11)

Seal ring clearance

mm (in) 0.10 – 0.25

(0.0039 – 0.0098)

Housing and inner rotor side clearance

mm (in) 0.02 – 0.04

(0.0008 – 0.0016)

Oil pump

Outer rotor and crescent clearance

mm (in) 0.02 – 0.15

(0.0008 – 0.0059)

Number of drive plates / driven plates

7/7

Standard mm

(in)

2.0

(0.079)

Drive plate facing thickness

Limit mm

(in)

1.8

(0.071)

Retaining plate and snap ring clearance

mm (in)

0.9 – 1.3

(0.035 – 0.051)

3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)

Available low clutch retaining plate thickness

mm (in)

4.8 (0.189)

Number of coils

9.9

Outside diameter

mm (in)

9.7

(0.382)

Free length

mm (in)

36.4

(1.433)

Low clutch

Return spring

Linear diameter

mm (in)

1.2

(0.047)

Number of drive plates / driven plates

5/5

Standard mm

(in)

2.0

(0.079)

Drive plate facing thickness

Limit mm

(in)

1.8

(0.071)

Retaining plate and snap ring clearance

mm (in)

1.2 – 1.6

(0.047 – 0.063)

4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

Available high clutch retaining plate thickness

mm (in)

5.4 (0.213)

Number of coils

10.2

Outside diameter

mm (in)

8.0

(0.315)

Free length

mm (in)

27.1

(1.067)

High clutch

Return spring

Linear diameter

mm (in)

1.1

(0.043)

Number of drive plates / driven plates

2/2

Standard mm

(in)

2.0

(0.079)

Drive plate facing thickness

Limit mm

(in)

1.8

(0.071)

Retaining plate and snap ring clearance

mm (in)

0.6 – 0.9

(0.024 – 0.035)

4.8 (0.189)
5.0 (0.197)
5.2 (0.205)

Reverse clutch

Available reverse clutch retaining plate thickness

mm (in)

5.4 (0.213)

Low one-way
clutch

Seal ring clearance

mm (in) 0.10 – 0.25

(0.0039 – 0.0098)

Number of drive plates / driven plates

6/6

Standard mm

(in)

2.0

(0.079)

Drive plate facing thickness

Limit mm

(in)

1.8

(0.071)

Retaining plate and snap ring clearance

mm (in)

0.7 – 1.1

(0.028 – 0.043)

5.2 (0.205)
5.4 (0.213)
5.6 (0.220)
5.8 (0.228)

Low & reverse
brake

Available low & reverse brake retaining plate
thickness

mm (in)

6.0 (0.236)

7A4-84  UNIT REPAIR (JR405E)





SERVICE STANDARD (Cont’d)



Number of coils

4.8

Outside diameter

mm (in)

11.2

(0.441)

Free length

mm (in)

22.3

(0.878)

 Return

spring

Linear diameter

mm (in)

1.1

(0.043)

Number of drives / driven plates

5/5

Standard mm

(in)

2.0

(0.079)

Drive plate facing thickness

Limit mm

(in)

1.8

(0.071)

Retaining plate and retaining plate clearance

mm (in)

1.0 – 1.4

(0.039 – 0.055)

5.4 (0.213)
5.6 (0.220)
5.8 (0.228)
6.0 (0.236)
6.2 (0.244)

Available 2-4 brake retaining plate thickness

mm (in)

6.4 (0.252)

Number of coils

10.2

Outside diameter

mm (in)

6.9

(0.272)

Free length

mm (in)

22.5

(0.886)

2-4 brake

Return spring

Linear diameter

mm (in)

1.1

(0.043)

Output shaft

Seal ring clearance

mm (in) 0.10 – 0.25

(0.0039 – 0.0098)

Total end play

mm (in) 0.25 – 0.55

(0.0098 – 0.0217)

1.4 (0.055)
1.6 (0.063)
1.8 (0.071)
2.0 (0.079)
2.2 (0.087)

Total end play

Available oil pump bearing race thickness

mm (in)

2.4 (0.094)

Torque converter end play

mm (in)

67.0

(2.638)



UNIT REPAIR (JR405E)  7A4-85

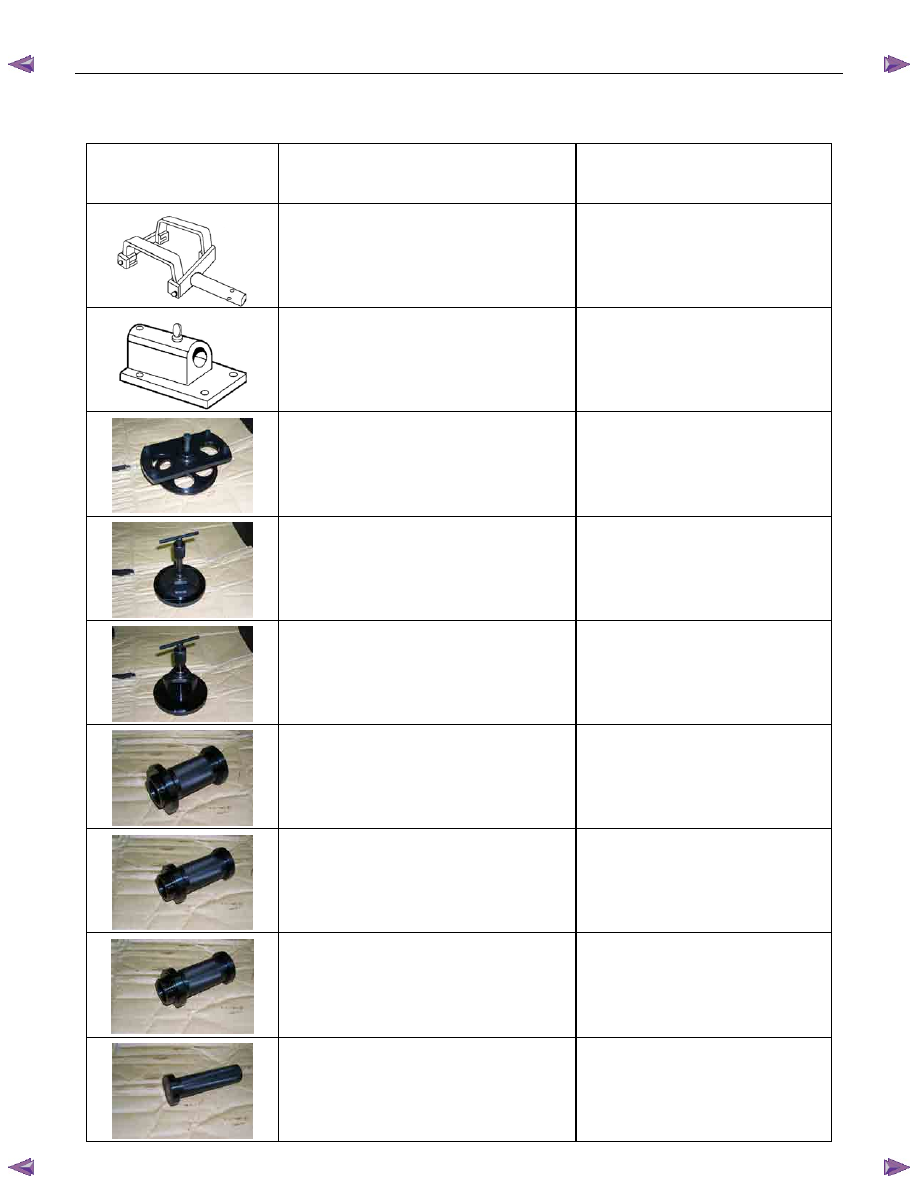

SPECIAL SERVICE TOOL

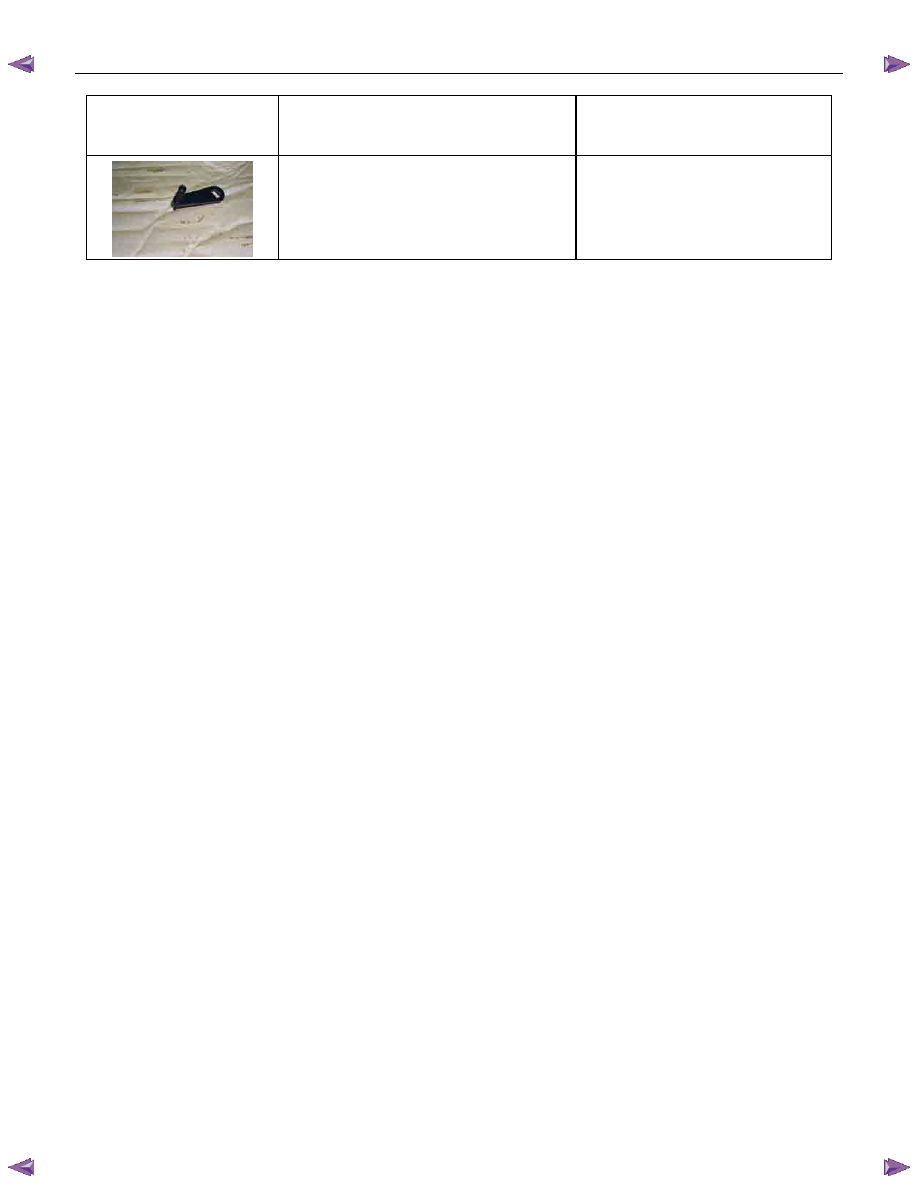

ILLUSTRATION

PART NO.

PART NAME







5-8841-0841-0







Holding Fixture







5-8840-0003-0







Holding Fixture Base







5-8840-2764-0







2-4 Brake Spring Compressor







5-8840-2767-0







High Clutch Spring Compressor







5-8840-2759-0







Low Clutch Spring Compressor







5-8840-2761-0







Oil Pump Oil Seal Installer







5-8840-2769-0







Rear Extension Oil Seal Installer







5-8840-2770-0







Rear Adapter Oil Seal Installer







5-8840-2758-0







Manual Shaft Oil Seal Installer

7A4-86  UNIT REPAIR (JR405E)

ILLUSTRATION

PART NO.

PART NAME







5-8840-2763-0







Inhibitor Switch Set Plate
