UNIT REPAIR (JR405E)  7A4-75



24ASSY047

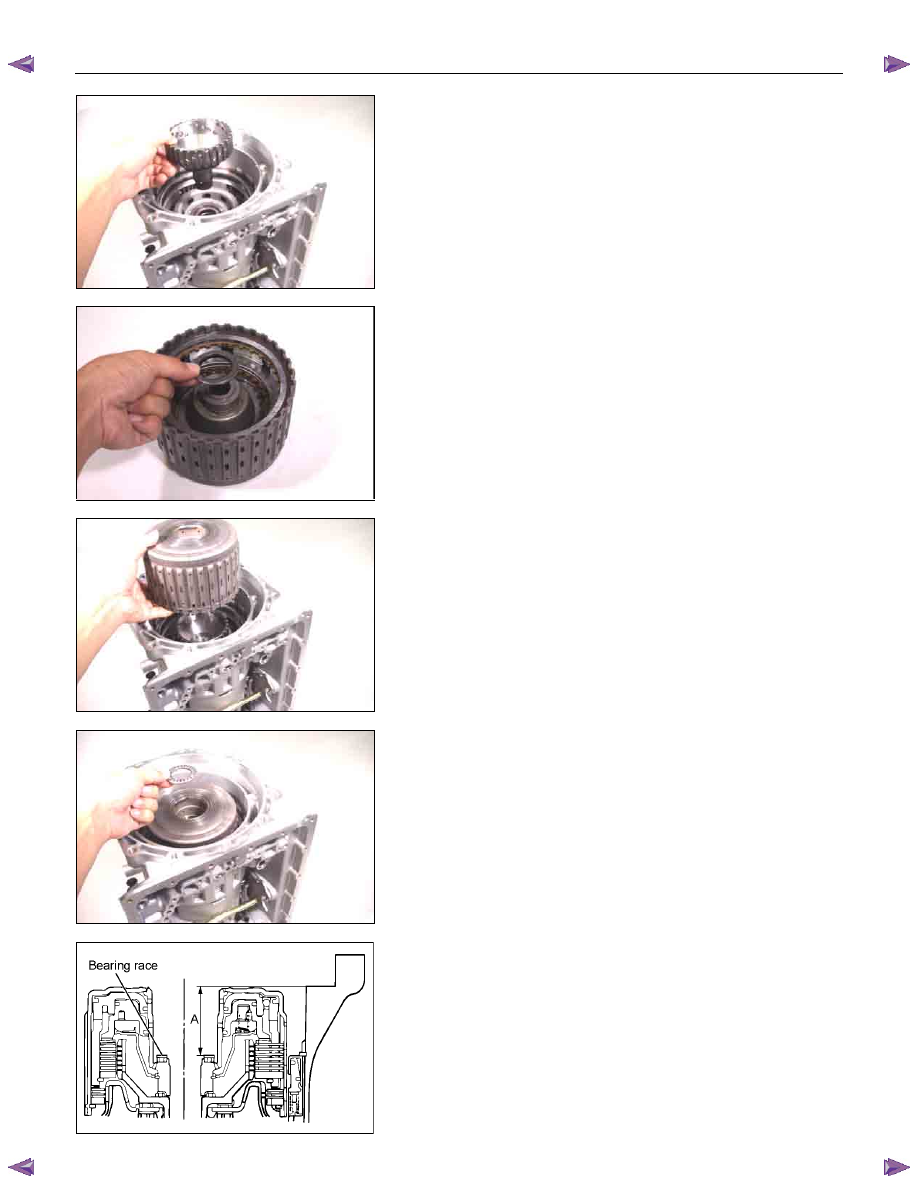

•  Install the high clutch hub and the bearing race to the

transmission case.





25R&H42




11.Clutch pack (reverse and high clutch assembly)

•  Install the bearing (with bearing race) to the clutch pack.

NOTE:

••••  The black side (bearing race) of the bearing must

contact the clutch pack.

••••  Apply Vaseline to the bearing.




26ASSY049




•  Install the clutch pack and bearing to the transmission

case.







27ASSY051




•  Install the bearing to the clutch pack.

NOTE:
Apply Vaseline to the bearing.









RTW47ASH000101




Total end play measurement

•  Install the bearing race (oil pump) to the clutch pack.
• Measure the distance (A) between the oil pump

installation surface and the bearing race.



7A4-76  UNIT REPAIR (JR405E)







RTW47ASH000201

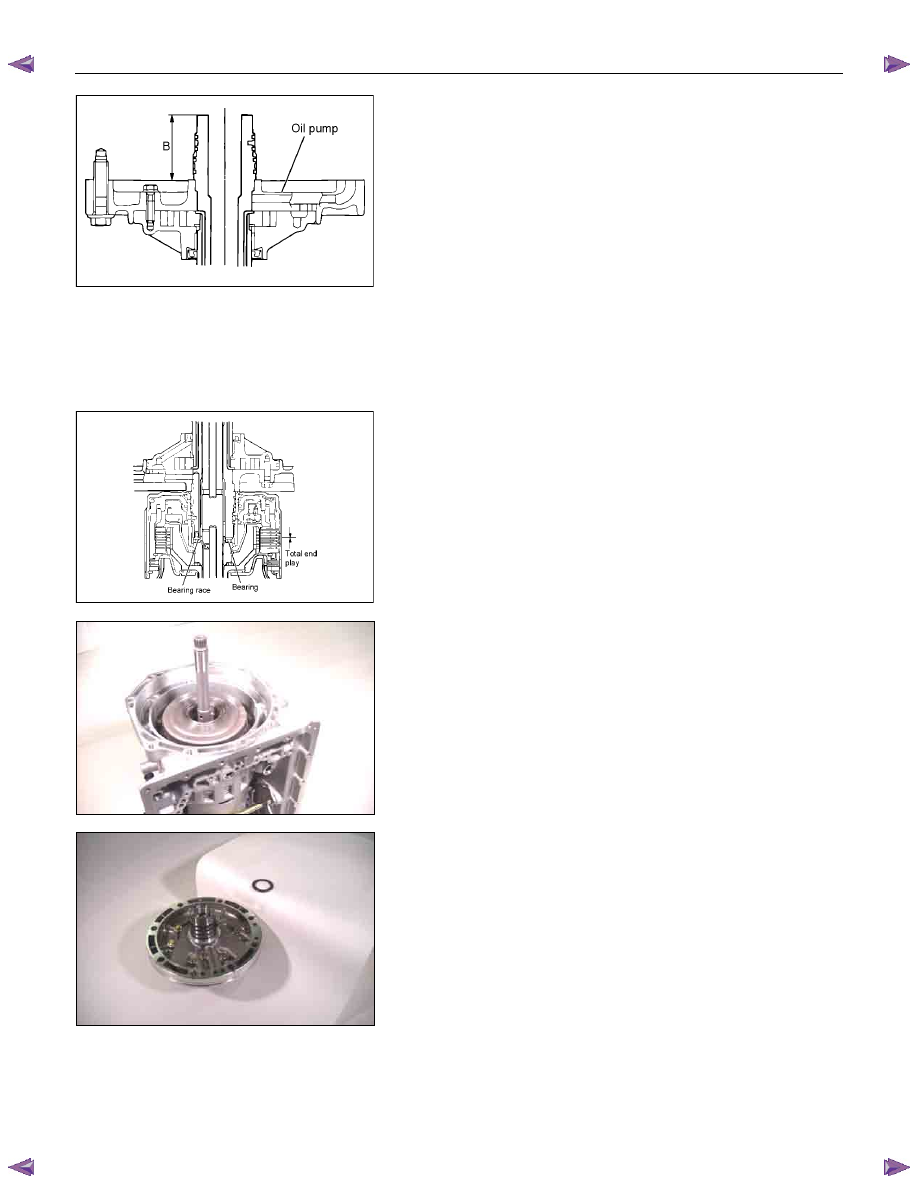

•  Measure the distance (B) between the bearing race

installation surface and the machined surface.

•  Calculate the total end play using the following formula.

Total end play = distance (A) – distance (B)

If the measured and calculated end play is outside the

specified range, replace the existing bearing race with a

bearing race of the proper size (thickness).

Total end play = 0.25~0.55 mm (0.0098~0.0217 in)

Available oil pump bearing race thicknesses

1.4 mm (0.055 in)

1.6 mm (0.063 in)

1.8 mm (0.071 in)

2.0 mm (0.079 in)

2.2 mm (0.087 in)

2.4 mm (0.094 in)







RTW47ASH000201







28ASSY058




12.Input shaft

Install the input shaft.





29PUMP02




13.Oil pump assembly

•  Install a new O-ring to the outside of the oil pump.
•  Install the bearing race to the oil pump.

NOTE:
Apply Vaseline to the bearing race.


UNIT REPAIR (JR405E)  7A4-77

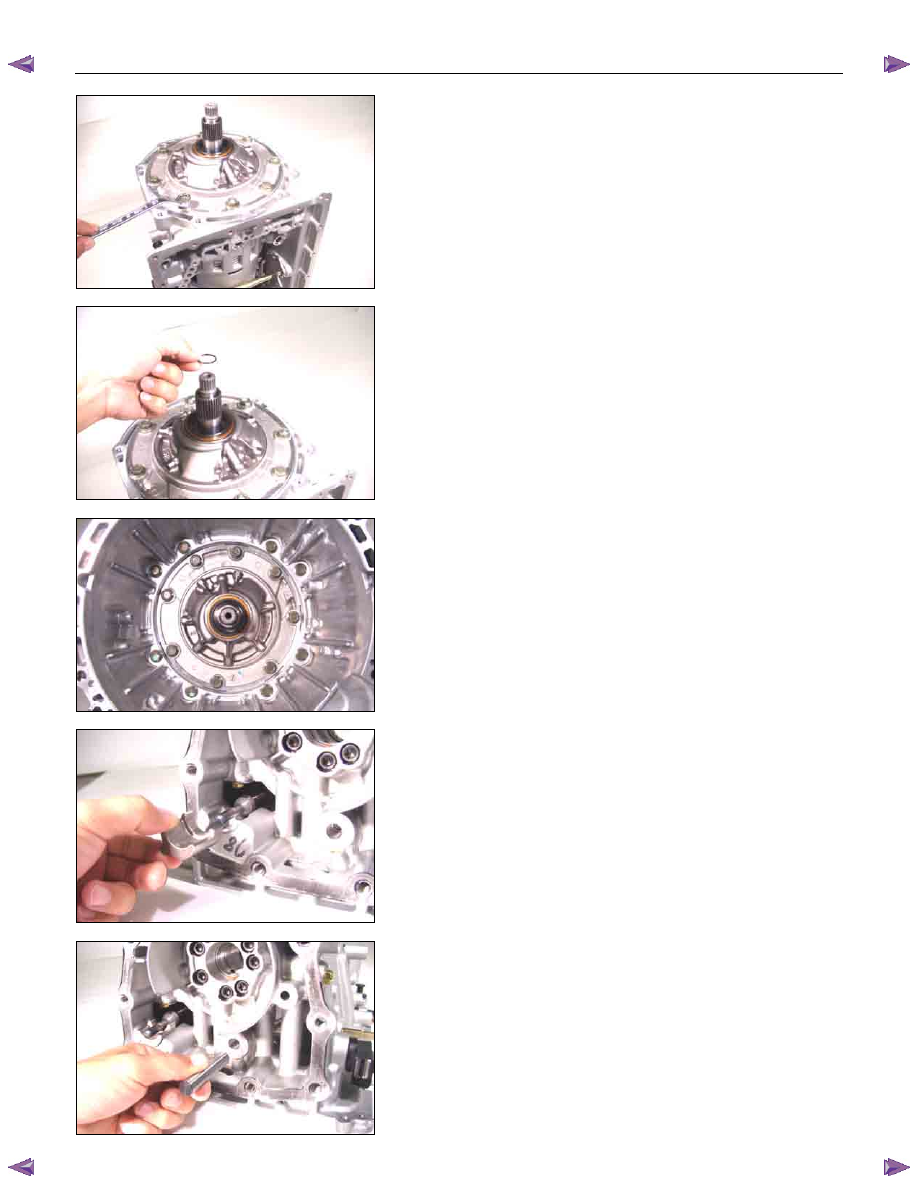

30ASSY067




•  Apply ATF to the O-ring at the outside of the oil pump.
•  Install the oil pump assembly to the transmission case.
•  Apply sealing agent (TB1215) to the threaded surfaces

of the 8 fixing bolts and tighten to the specified torque.

Torque: 58 N

⋅⋅⋅⋅m (5.9 kgf⋅⋅⋅⋅m/43 Ib⋅⋅⋅⋅ft)





31ASSY068




14.O-ring

Install a new O-ring to the input shaft.





32ASSY116




15.Converter housing

Install the converter housing and tighten the bolts to the

specified torque.

Torque: 53 N

⋅⋅⋅⋅m (5.4 kgf⋅⋅⋅⋅m/39 Ib⋅⋅⋅⋅ft)





33ASSY075




16.Actuator support

Install the actuator support.





34ASSY077




17.Parking pawl, shaft, spring, and spacer

Install the parking pawl, the shaft, the spring, and the

spacer.



7A4-78  UNIT REPAIR (JR405E)

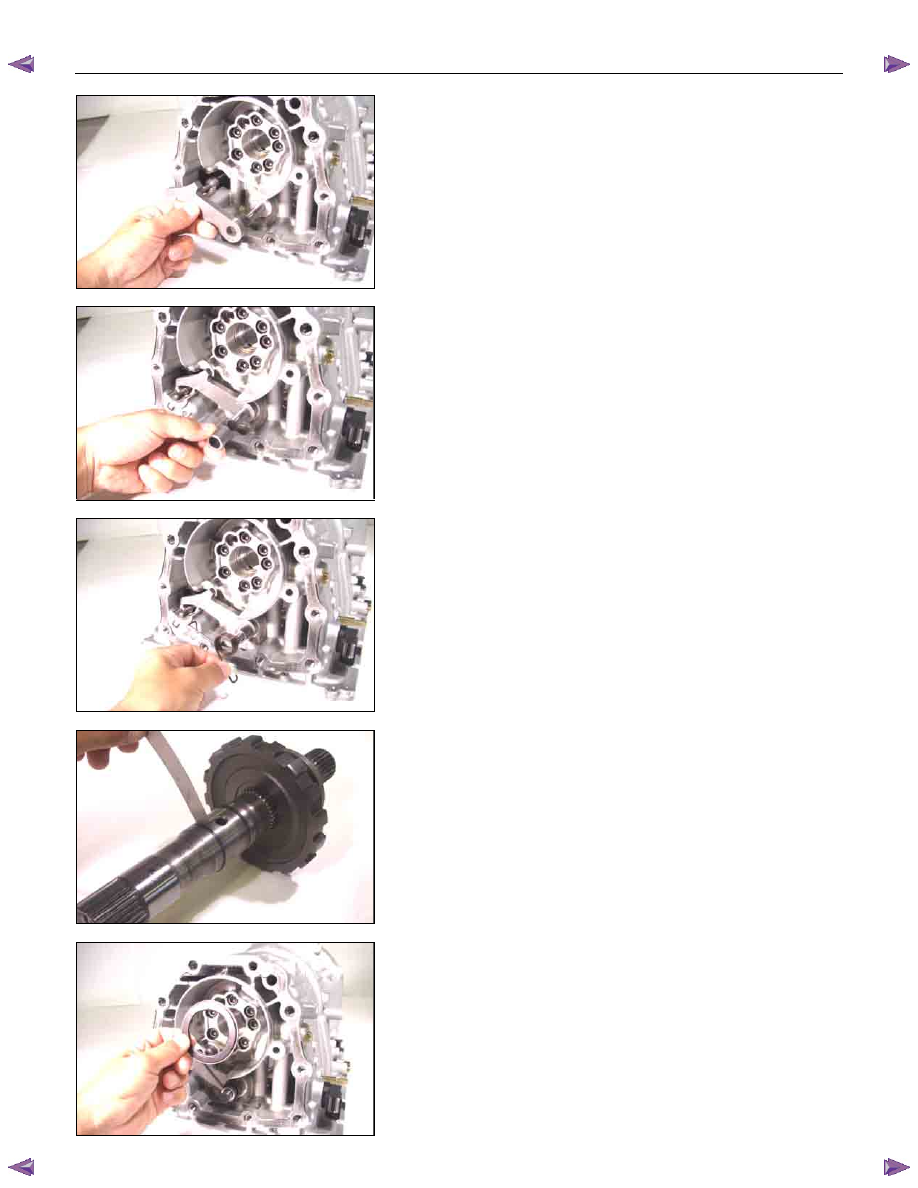

35ASSY082







36ASSY084







37ASSY086







38OUTPUT25






29ASSY089



18.Output shaft

•  Install a new seal ring to the output shaft assembly.
•  Measure the gap between the seal ring and the ring

groove.

If the gap is outside the specified range, the output shaft

must be replaced.

Seal ring and ring groove gap:

0.10~0.25 mm (0.0039~0.0098 in)

•  Install the bearing to the case.

NOTE:

••••  Apply Vaseline to the bearing (with bearing race).
••••  The black side (bearing race) of the bearing must be

visible.
