MSG MODEL  7B-1

SECTION 7B

MANUAL TRANSMISSION

(MSG)

TABLE OF CONTENTS

 PAGE

Main Data and Specifications.....................................................................................  7B -

2

General Description ....................................................................................................  7B -

3

Torque Specification ...................................................................................................  7B -

4

Repair Kit  ....................................................................................................................  7B -

6

Removal and Installation  ...........................................................................................  7B -

7

Disassembly ................................................................................................................  7B -   15

Inspection and Repair  ................................................................................................  7B -   25

Reassembly .................................................................................................................  7B -   29

Special Service Tool ...................................................................................................  7B -   42



7B-2  MSG MODEL

MAIN DATA AND SPECIFICATIONS



Transmission type

Fully synchronized 5-forward gears with a constant

mesh type reverse gear.







Transmission Control

Direct control with the gear shift lever on the floor.







Gear ratio

MSG5K

1st :

4.122

2nd :

2.493

3rd :

1.504

4th :

1.000

5th :

0.855

Rev :

3.720







Oil capacity

lit. (US gal.)

1.55(0.41)







Weight ; approx.

kg(lbs)

33.3(73.8)





MSG MODEL  7B-3

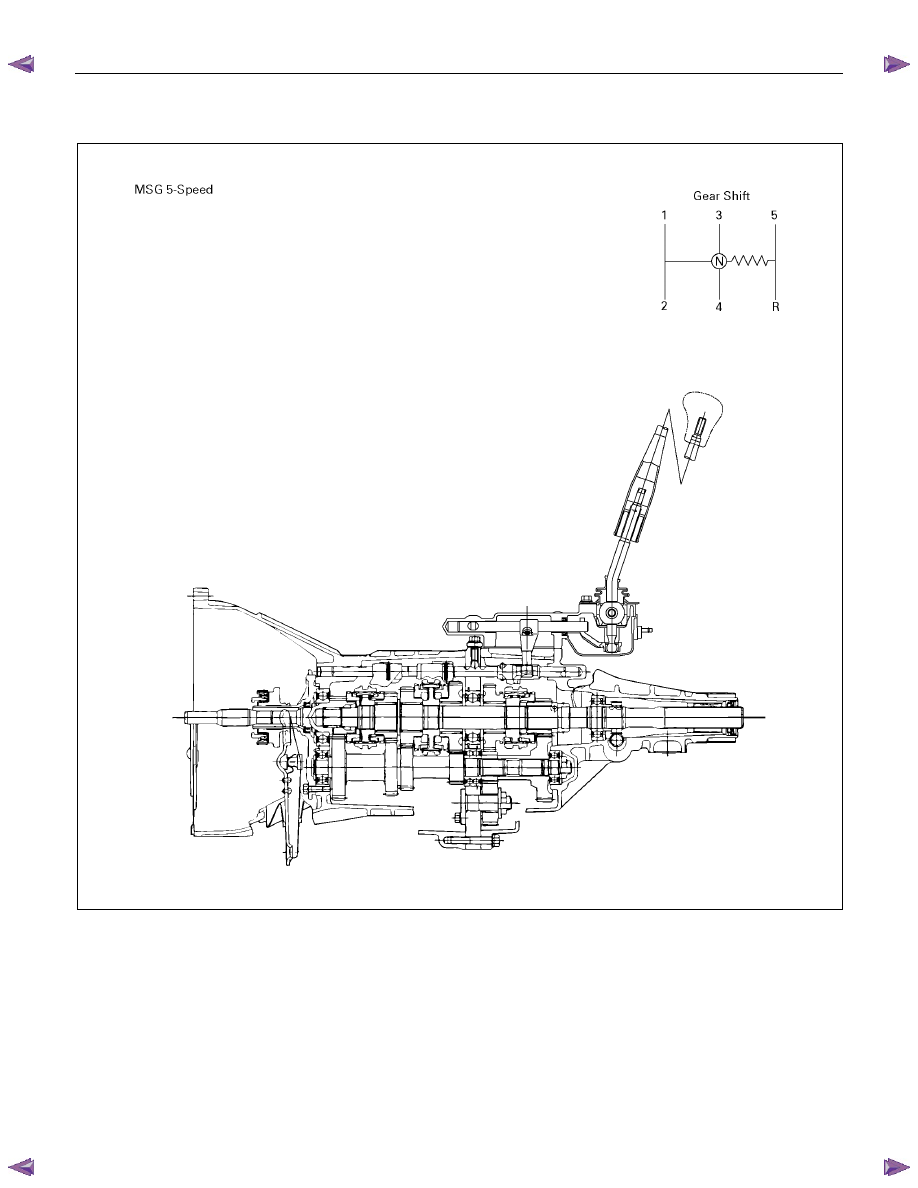

GENERAL DESCRIPTION




The MSG type transmission is fully synchronized 5-speed unit with blocking ring type synchronizers and a constant
mesh type reverse gear.
The unit consists principally of a case with an integral clutch housing, intermediate plate, rear cover and gears.
The top of the rear cover is a quadrant box containing the transmission control mechanism.
The case and rear cover are cast aluminum alloy to reduce weight.
