Diagnostic Procedure

NBTF0021

1

CHECK 2-4WD SHIFT SOLENOID VALVE AND 4WD SHIFT SWITCH

Refer to “2-4WD Shift Solenoid Valve and Transfer Fluid Temperature Sensor”, “COMPONENT INSPECTION”, TF-111.

SMT778D

OK or NG

OK

©

GO TO 2.

NG

©

Check the following. If OK, repair or replace 2-4WD shift solenoid valve and 4WD
shift switch.

I

Continuity of transfer sub-harness
Refer to “TRANSFER TERMINAL CORD ASSEMBLY SUB-HARNESS CONNECTOR”,
“COMPONENT INSPECTION”, TF-114.

2-4WD SHIFT SOLENOID VALVE AND 4WD SHIFT SWITCH

Diagnostic Procedure

TF-66

2

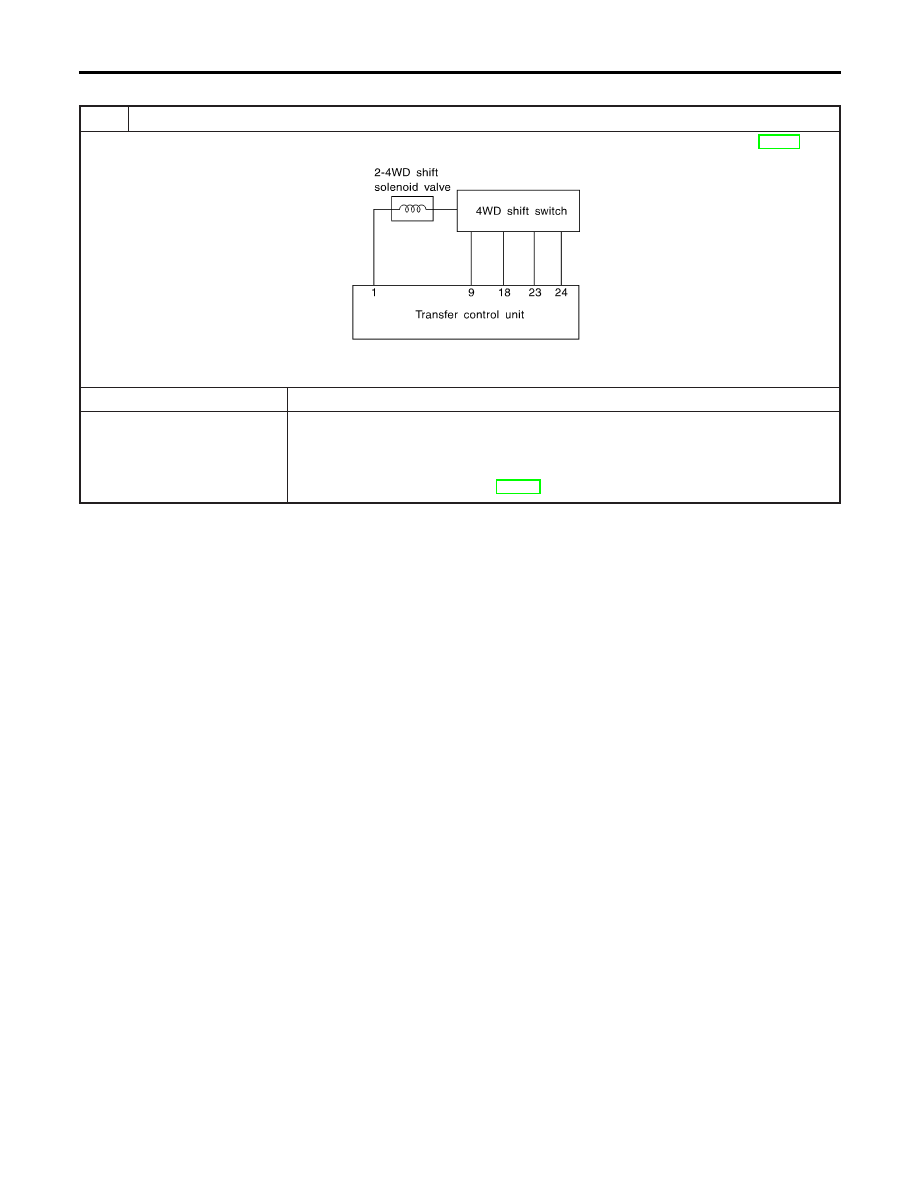

CHECK INPUT SIGNAL

With CONSULT-II

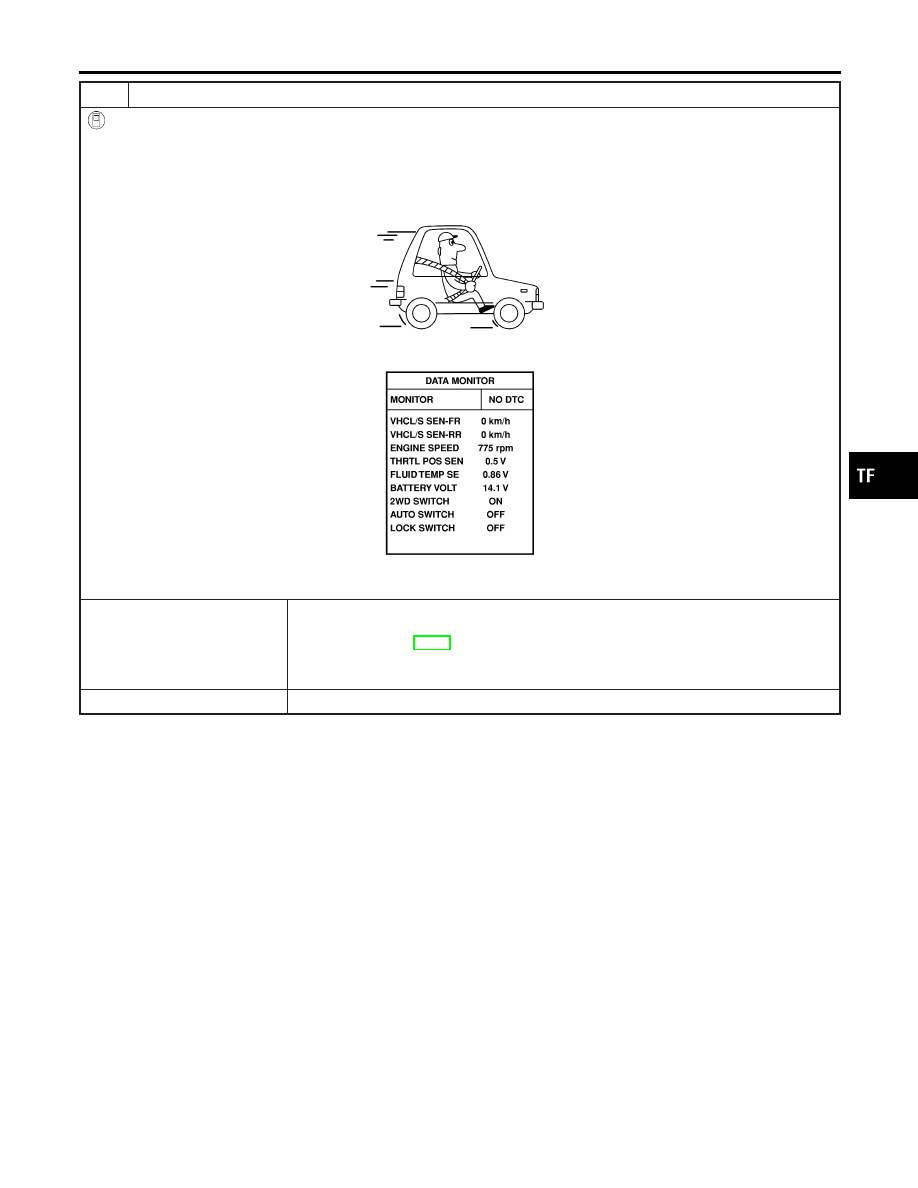

1. Select “ECU INPUT SIGNALS” in Data Monitor.
2. Read out ON/OFF status of “2WD SW” and “LOCK SWITCH”.

SMT974D

OK or NG

OK

©

1. Perform transfer control unit input/output signal inspection. Refer to “TRANSFER

CONTROL UNIT INSPECTION TABLE”, “TROUBLE DIAGNOSIS — GENERAL
DESCRIPTION”, TF-55.

2. If NG, recheck transfer control unit pin terminals for damage or loose connection with

harness connector.

NG

©

GO TO 3.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

2-4WD SHIFT SOLENOID VALVE AND 4WD SHIFT SWITCH

Diagnostic Procedure (Cont’d)

TF-67

3

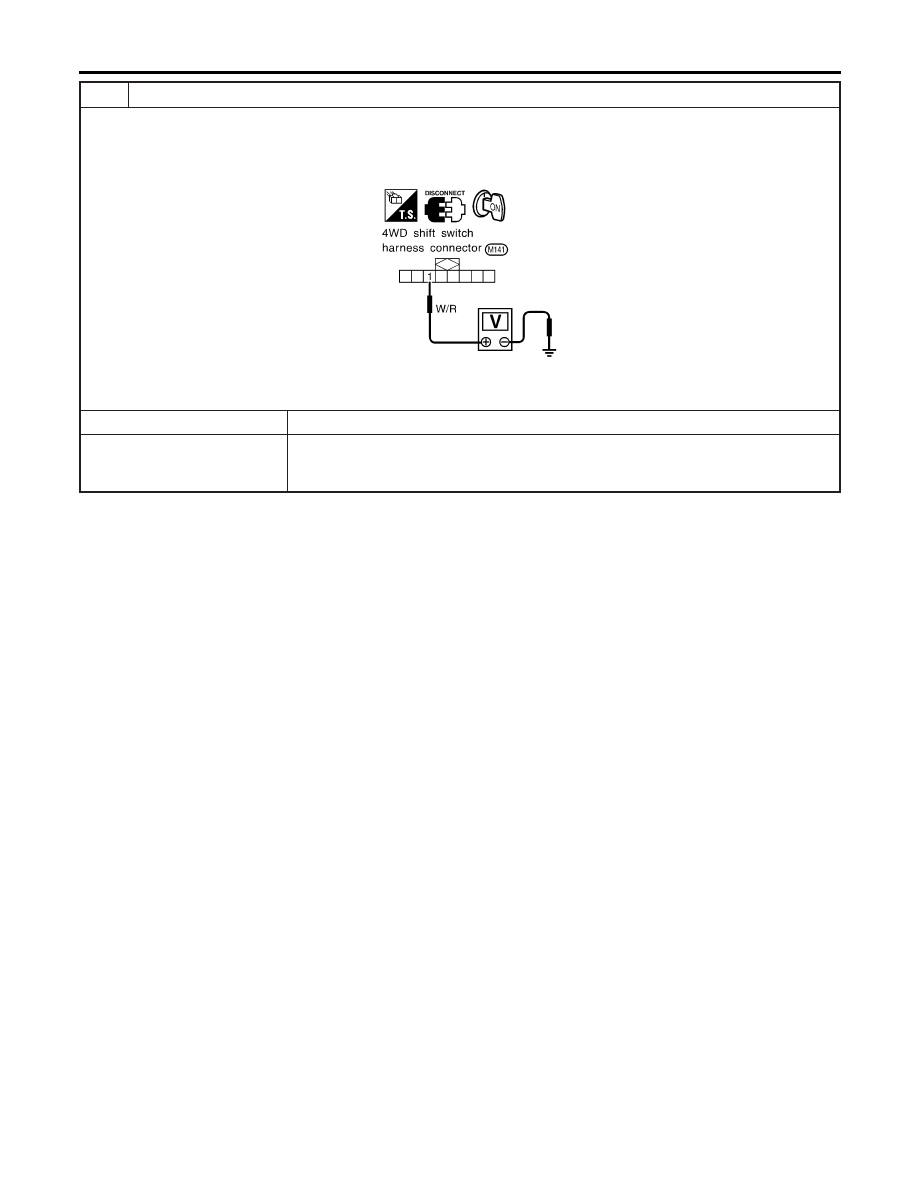

CHECK 4WD SHIFT SWITCH POWER SOURCE

1. Disconnect 4WD shift switch harness connector.
2. Turn ignition switch to “ON” position.
3. Check voltage between 4WD shift switch harness connector terminal 1 and body ground.

Voltage: Battery voltage

SMT852D

OK or NG

OK

©

GO TO 4.

NG

©

Check the following.

I

No. 18 fuse (10A)

I

Continuity between ignition switch and 4WD shift switch

2-4WD SHIFT SOLENOID VALVE AND 4WD SHIFT SWITCH

Diagnostic Procedure (Cont’d)

TF-68

4

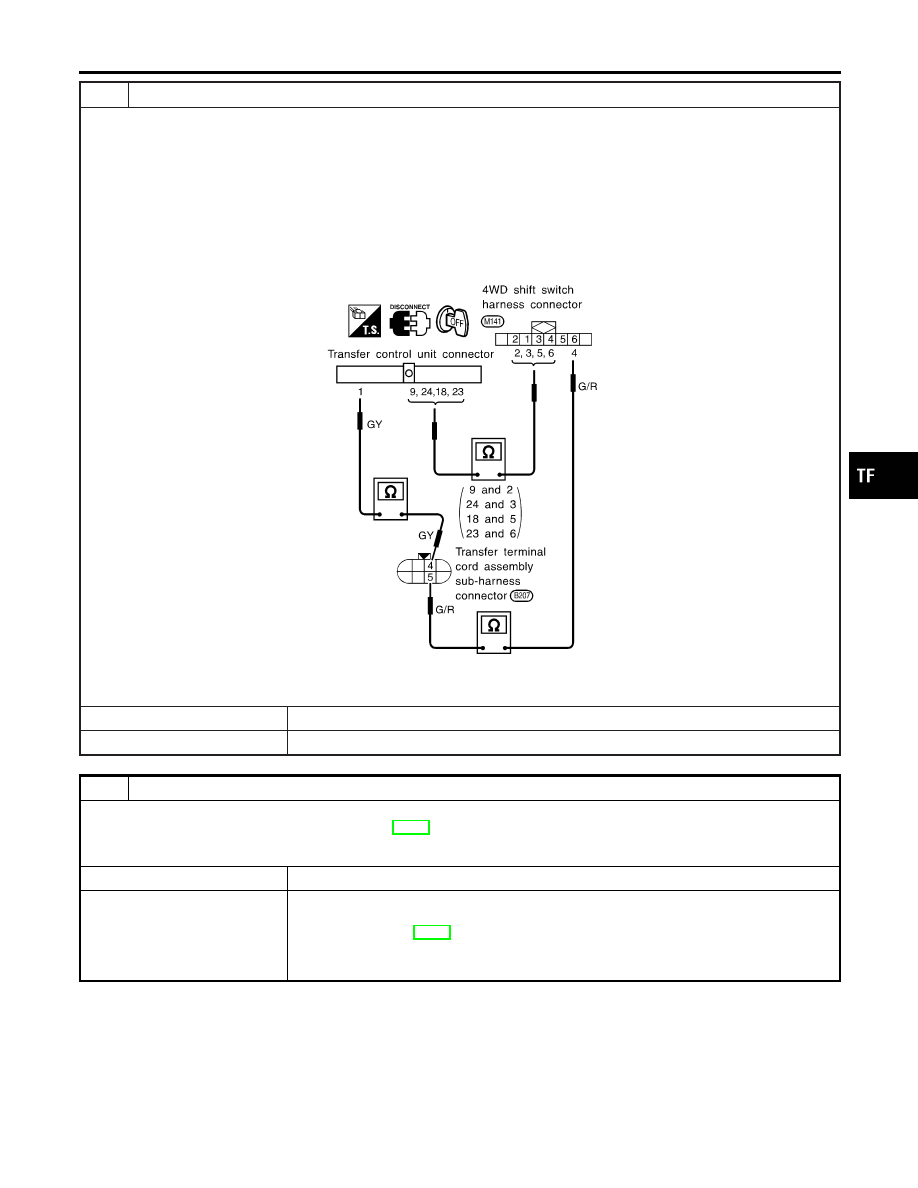

CHECK HARNESS CONTINUITY

1. Turn ignition switch to “OFF” position.
2. Check continuity between the following terminals:

I

Transfer control unit 9 and 4WD shift switch 2 (2WD)

I

Transfer control unit 18 and 4WD shift switch 5 (4H)

I

Transfer control unit 24 and 4WD shift switch 3 (AUTO)

I

Transfer control unit 23 and 4WD shift switch 6 (4LO)

I

Transfer control unit 1 and Transfer terminal cord assembly sub-harness connector 4

I

4WD shift switch 4 and Transfer terminal cord assembly sub-harness connector 5
Continuity should exist.

SMT853D

OK or NG

OK

©

GO TO 5.

NG

©

Repair harness or connector.

5

PERFORM SELF-DIAGNOSIS AGAIN

After driving for a while, perform self-diagnosis again.
Refer to “Trouble Diagnosis without CONSULT-II”, TF-27.

OK or NG

OK

©

INSPECTION END

NG

©
