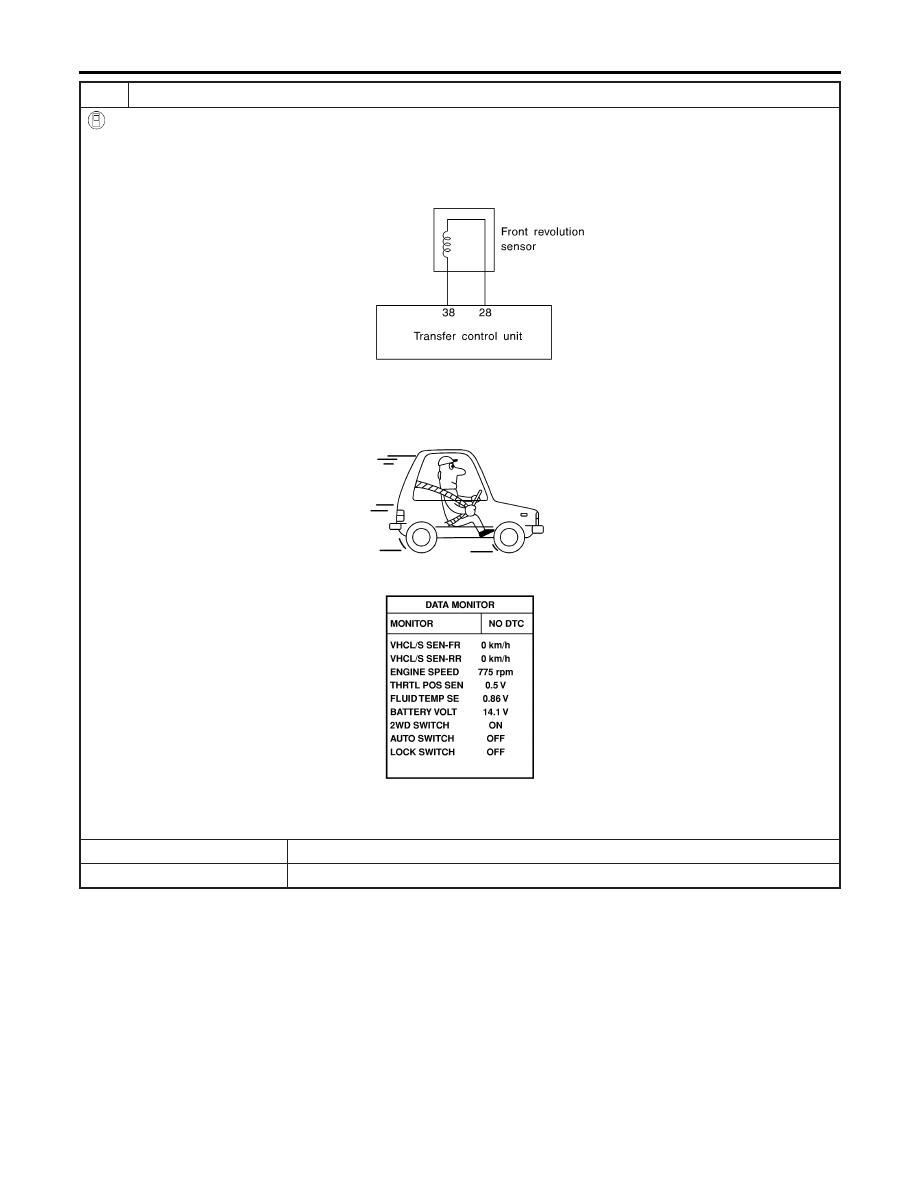

CHECK INPUT SIGNAL

With CONSULT-II

1. Start engine.
2. Select “ECU INPUT SIGNALS” in Data Monitor.
3. Read out the value of “VEHICLE SPEED SENSOR (FRONT)” while driving.

SMT773D

SMT974D

4. Check if the value changes according to accelerating and decelerating the vehicle.

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 7.

VEHICLE SPEED SENSOR (FRONT REVOLUTION SENSOR)

Diagnostic Procedure (Cont’d)

TF-62

5

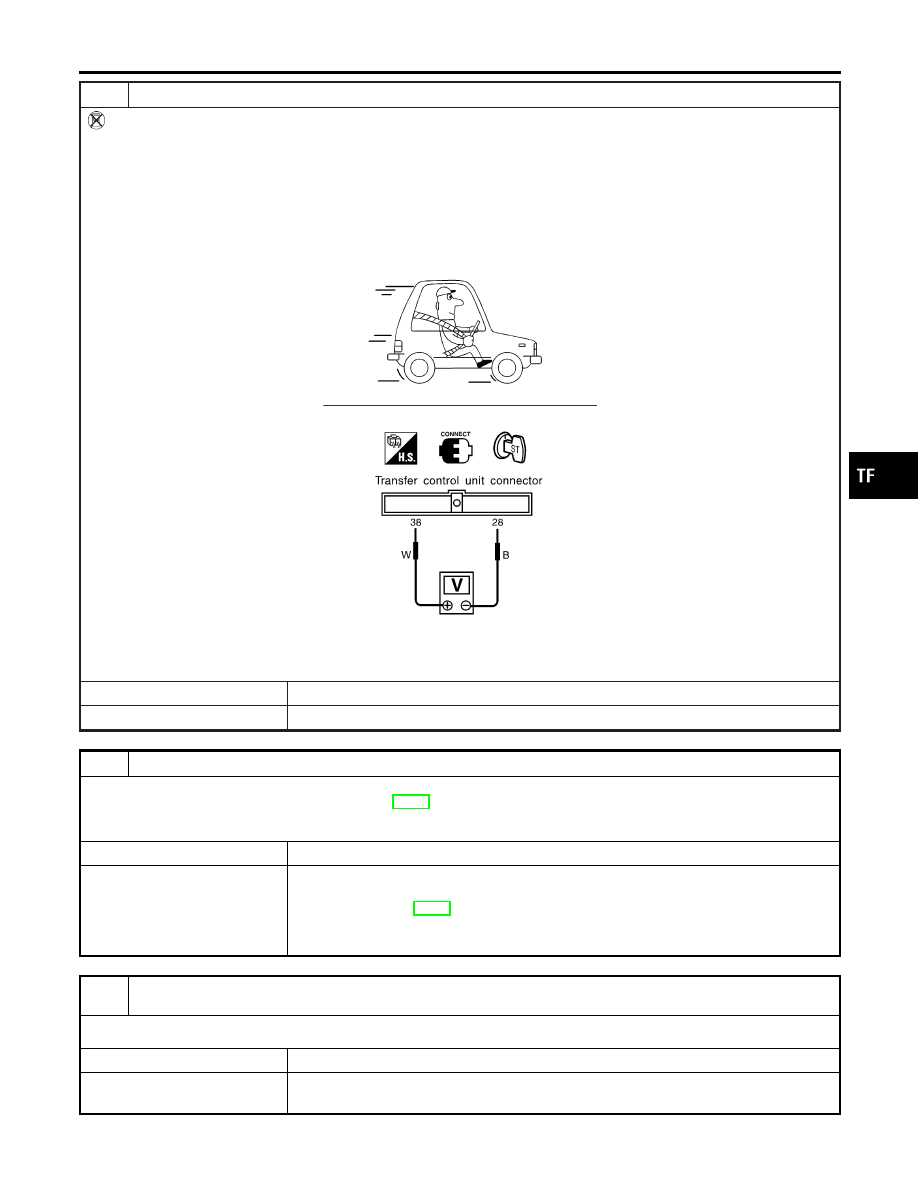

CHECK INPUT SIGNAL

Without CONSULT-II

1. Start engine.
2. Check voltage between transfer control unit harness connector terminals 38 and 28.

(Measure it in AC range.)

Voltage:

0 km/h (0 MPH): 0V
30 km/h (19 MPH): More than 1V

(Voltage rises gradually in response to vehicle speed.)

SMT774D

OK or NG

OK

©

GO TO 6.

NG

©

GO TO 7.

6

PERFORM SELF-DIAGNOSIS AGAIN

After driving for a while, perform self-diagnosis again.
Refer to “Trouble Diagnosis without CONSULT-II”, TF-27.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform transfer control unit input/output signal inspection. Refer to “TRANSFER

CONTROL UNIT INSPECTION TABLE”, “TROUBLE DIAGNOSIS — GENERAL
DESCRIPTION”, TF-55.

2. If NG, recheck transfer control unit pin terminals for damage or loose connection with

harness connector.

7

CHECK HARNESS CONTINUITY BETWEEN TRANSFER CONTROL UNIT AND FRONT REVOLUTION
SENSOR SUB-HARNESS CONNECTOR

OK or NG

OK

©

GO TO 6.

NG

©

Repair or replace sub-harness connector between transfer control unit and front revolu-
tion sensor.

GI

MA

EM

LC

EC

FE

AT

PD

AX

SU

BR

ST

RS

BT

HA

SC

EL

IDX

VEHICLE SPEED SENSOR (FRONT REVOLUTION SENSOR)

Diagnostic Procedure (Cont’d)

TF-63

Diagnostic Procedure

NBTF0020

1

CHECK 4WD SOLENOID VALVE

SMT775D

Refer to “4WD Solenoid Valve, Clutch Pressure Switch and Line Pressure Switch”, “COMPONENT INSPECTION”, TF-111.

OK or NG

OK

©

GO TO 2.

NG

©

Check the following. If OK, repair or replace 4WD solenoid valve.

I

Continuity of transfer sub-harness
Refer to “TRANSFER TERMINAL CORD ASSEMBLY SUB-HARNESS CONNECTOR”,
“COMPONENT INSPECTION”, TF-114.

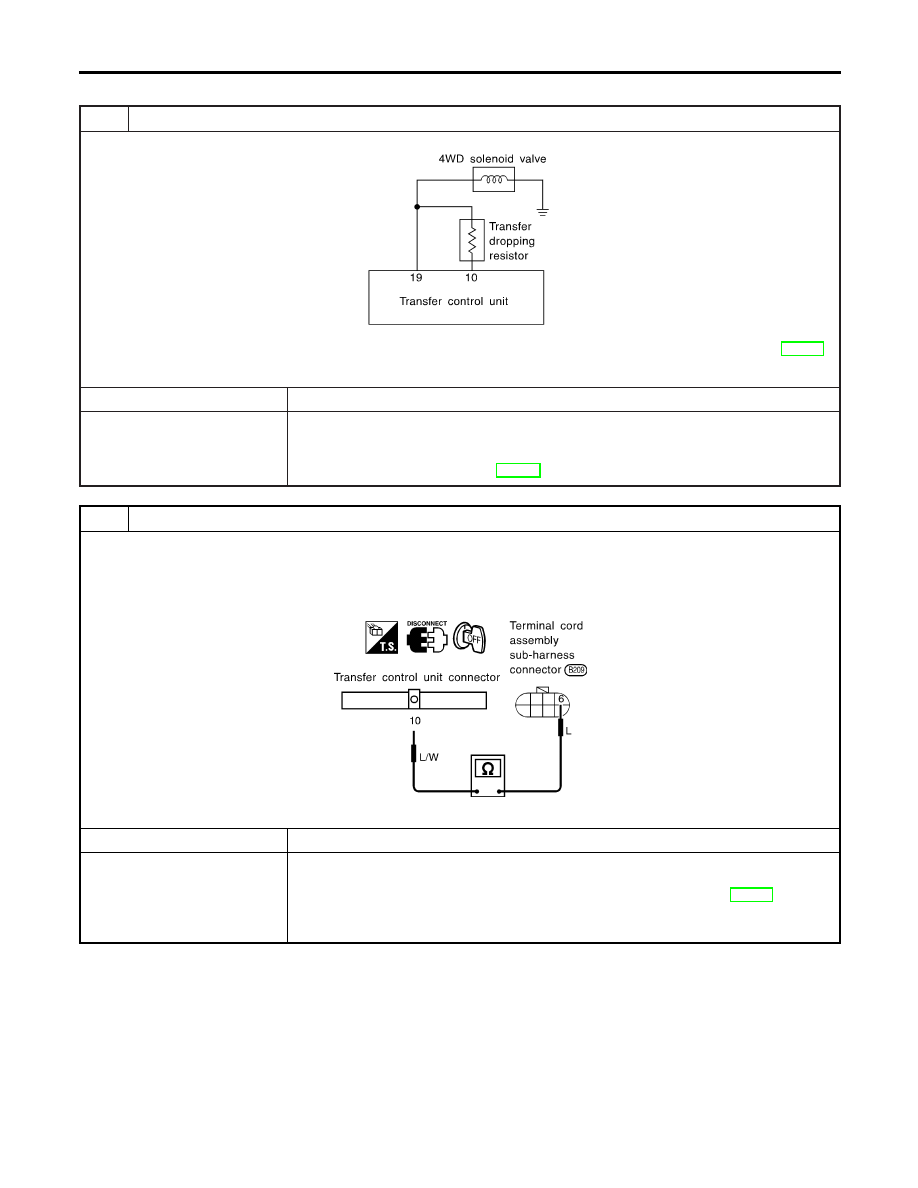

2

CHECK POWER SOURCE CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Disconnect transfer control unit harness connector.
3. Check resistance between transfer terminal cord assembly sub-harness connector terminal 6 and transfer control unit

harness connector terminal 10.

Resistance: 11.2 - 12.8

SMT776D

OK or NG

OK

©

GO TO 3.

NG

©

Check the following.

I

Transfer dropping resistor
Refer to “Transfer Dropping Resistor”, “COMPONENT INSPECTION”, TF-112.

I

Continuity between transfer terminal cord assembly sub-harness connector terminal 6
and transfer control unit harness connector terminal 10.

4WD SOLENOID VALVE

Diagnostic Procedure

TF-64

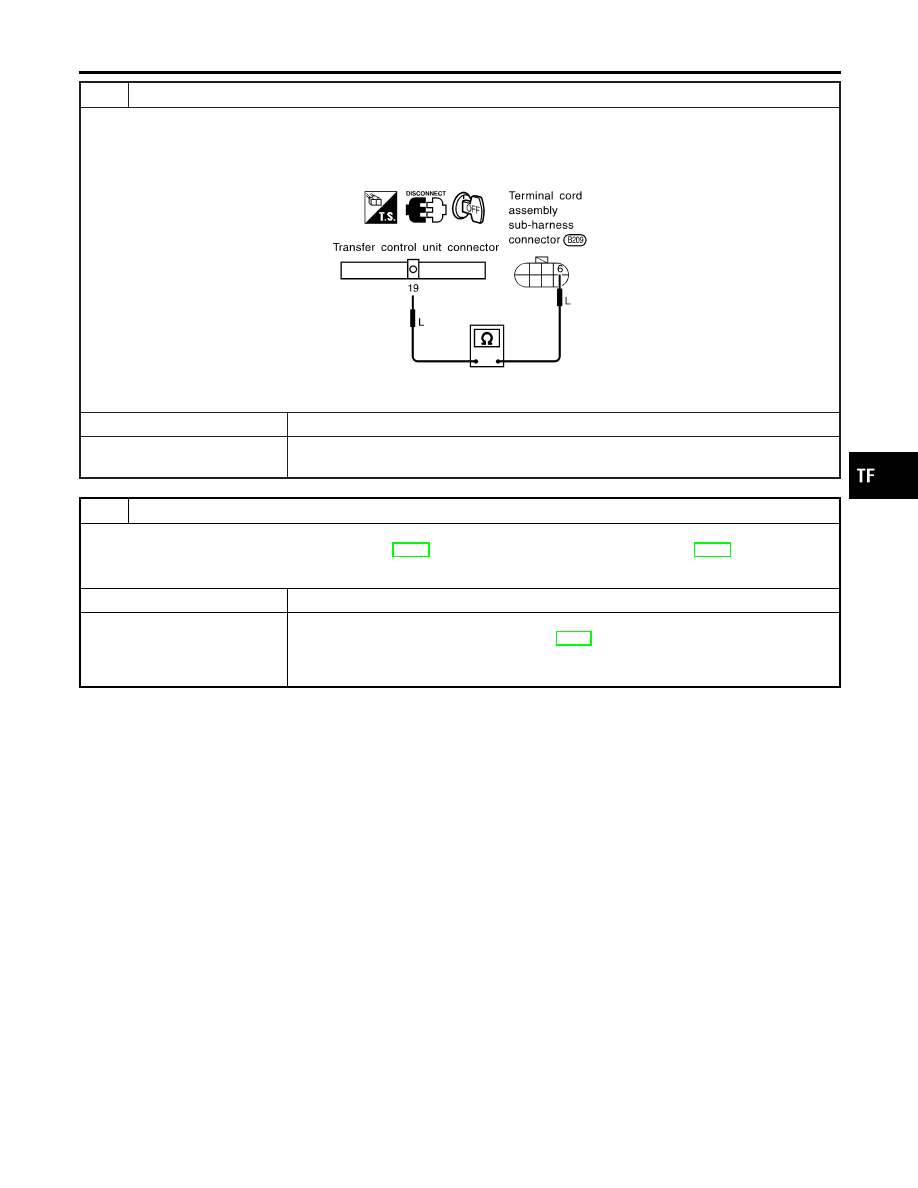

3

CHECK POWER SOURCE CIRCUIT

1. Turn ignition switch to “OFF” position.
2. Check continuity between transfer terminal cord assembly sub-harness connector terminal 6 and transfer control unit

harness connector terminal 19.
Continuity should exist.

SMT777D

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace harness between transfer terminal cord assembly sub-harness connec-
tor terminal 6 and transfer control unit harness connector terminal 19.

4

PERFORM SELF-DIAGNOSIS

After driving for a while, perform self-diagnosis.
Refer to “Trouble Diagnosis without CONSULT-II”, TF-27 and “Trouble Diagnosis with CONSULT-II”, TF-30.

OK or NG

OK

©

INSPECTION END

NG

©

1. Perform transfer control unit input/output signal inspection. Refer to “TRANSFER

CONTROL UNIT INSPECTION TABLE”, TF-55.

2. If NG, recheck transfer control unit pin terminals for damage or loose connection with

harness connector.
