PRECAUTIONS

PFP:00001

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NDS000D3

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

●

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

●

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

●

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions

NDS000D4

●

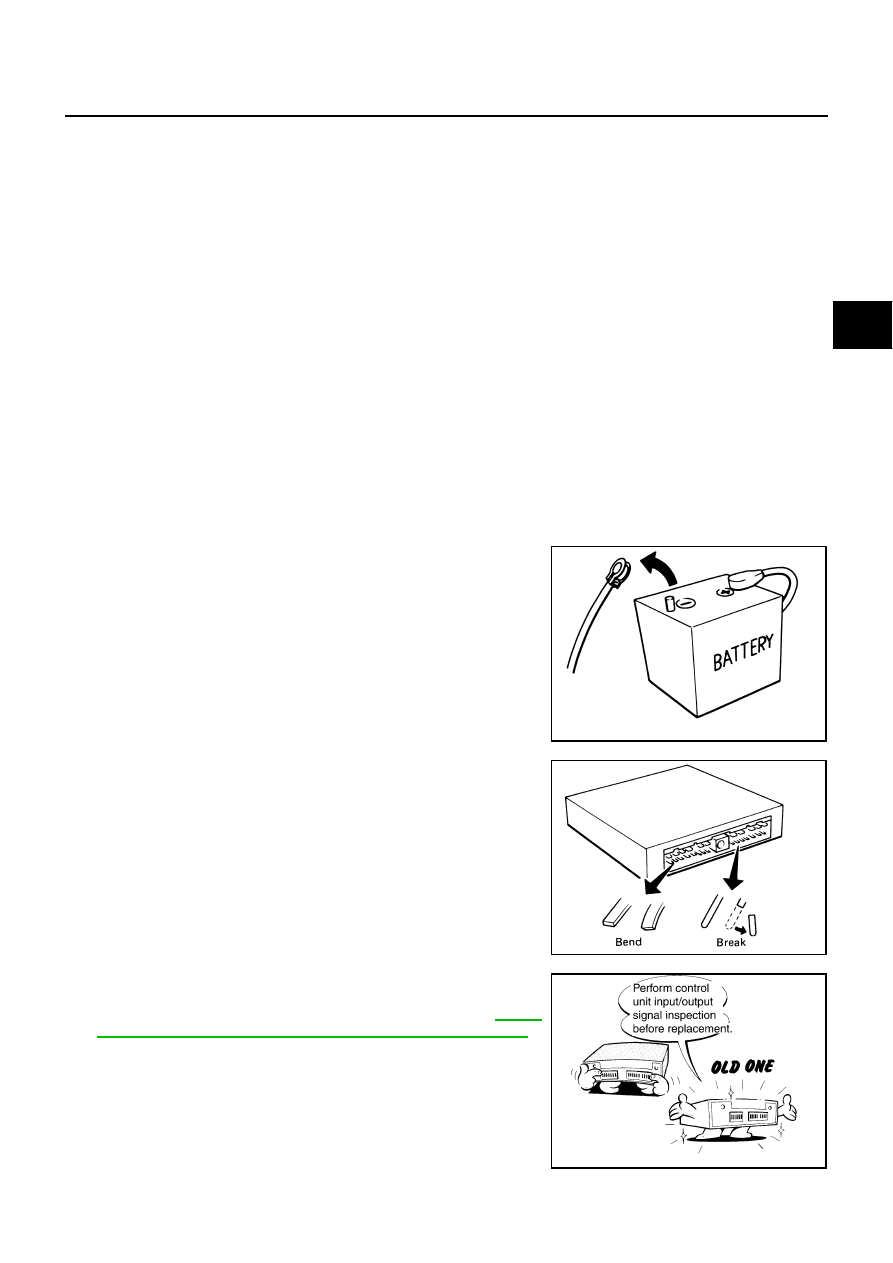

Before connecting or disconnecting the AWD control unit
harness connector, turn ignition switch “OFF” and discon-
nect battery ground cable. Because battery voltage is
applied to AWD control unit even if ignition switch is turned
“OFF”.

●

When connecting or disconnecting pin connectors into or
from AWD control unit, take care not to damage pin termi-
nals (bend or break).
When connecting pin connectors, make sure that there are
no bends or breaks on AWD control unit pin terminal.

●

Before replacing AWD control unit, perform AWD control
unit input/output signal inspection and make sure whether
AWD control unit functions properly or not. Refer to

TF-20,

"AWD Control Unit Input/Output Signal Reference Values"

 .

SEF289H

SEF291H

SDIA1848E

TF-4

PRECAUTIONS

Service Notice or Precautions

NDS000D5

●

Do not reuse transfer fluid, once it has been drained.

●

Check the fluid level or replace the fluid only with the vehicle parked on level ground.

●

During removal or installation, keep inside of transfer clear of dust or dirt.

●

Replace all tires at the same time. Always use tires of the proper size and the same brand and pattern.
Fitting improper size and unusual wear tires applies excessive force to vehicle mechanism and can cause
longitudinal vibration.

●

Disassembly should be done in a clean work area, it is preferable to work in dustproof area.

●

Before proceeding with disassembly, thoroughly clean the transfer. It is important to prevent the internal
parts from becoming contaminated by dirt or other foreign matter.

●

All parts should be carefully cleaned with a general purpose, non-flammable solvent before inspection or
reassembly.

●

Check for the correct installation status prior to removal or disassembly. If matching marks are required,
be certain they do not interfere with the function of the parts when applied.

●

Check appearance of the disassembled parts for damage, deformation, and unusual wear. Replace them
with a new ones if necessary.

●

Gaskets, seals and O-rings should be replaced any time when the transfer is disassembled.

●

In principle, tighten bolts or nuts gradually in several steps working diagonally from inside to outside. If
tightening sequence is specified, use it.

●

Observe the specified torque when assembling.

●

Clean and flush the parts sufficiently and blow-dry them.

●

Be careful not to damage sliding surfaces and mating surfaces.

●

Clean innerparts with lint-free cloth or towels. Do not use cotton work gloves and rags to prevent adhering
fibers.

PREPARATION

TF-5

C

E

F

G

H

I

J

K

L

M

A

B

TF

PREPARATION

PFP:00002

Special Service Tools

NDS000D6

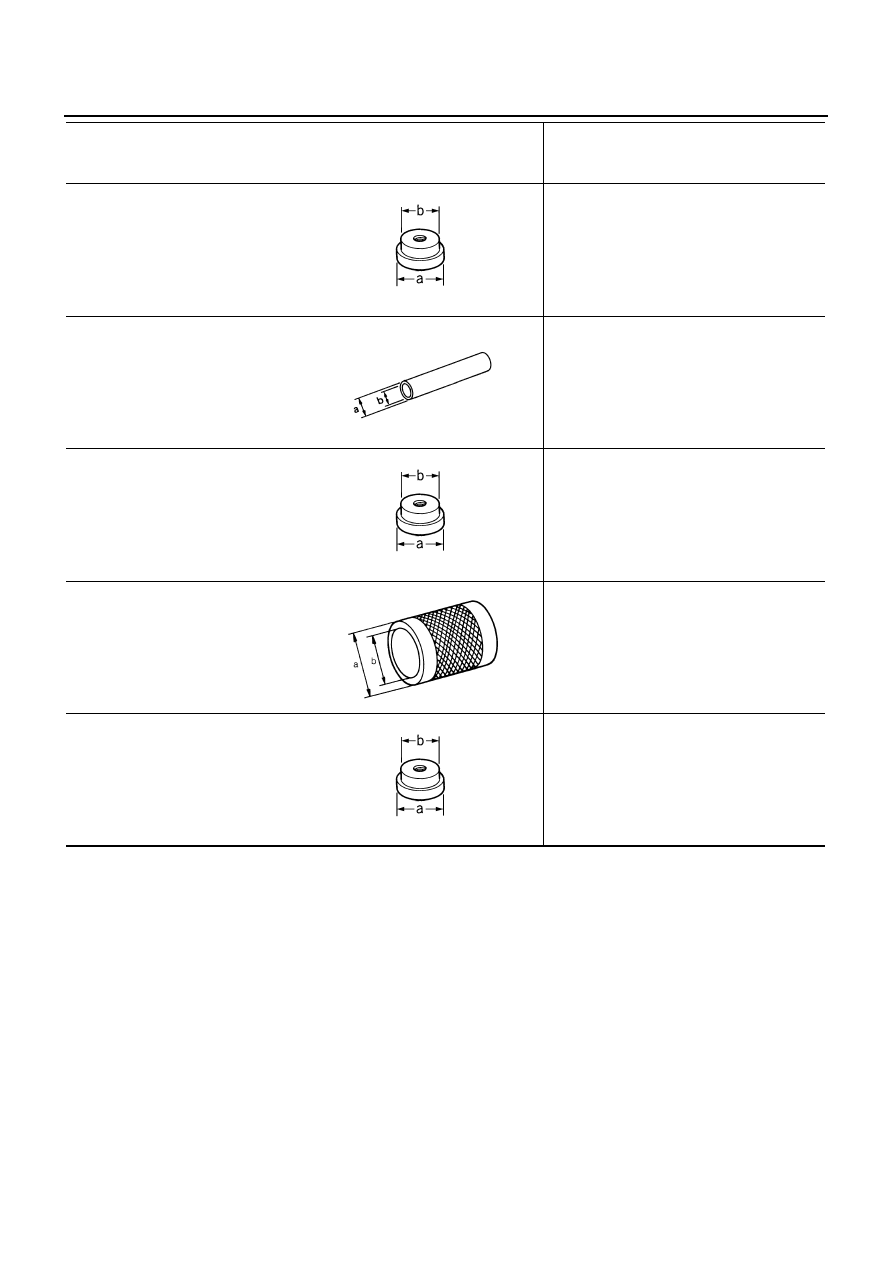

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST27862000
(

—

)

Drift
a: 62.5 mm (2.461 in) dia.
b: 42 mm (1.65 in) dia.

●

Installing front oil seal

KV381054S0
(J-34286)
Puller

●

Removing rear oil seal

ST30720000
(J-25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

●

Installing rear oil seal

●

Installing mainshaft oil seal

KV40104830
(

—

)

Drift
a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.500 in) dia.

●

Installing rear oil seal

KV38100300
(J-25523)
Drift
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.

●

Removing mainshaft bearing

ST33052000
(

—

)

Drift
a: 28 mm (1.10 in) dia.
b: 22 mm (0.87 in) dia.

●

Removing mainshaft assembly

ST30611000
(J-25742-1)
Drift bar
a: 350 mm (1.10 in)
b: 25 mm (1.10 in) dia.
c: M12

×

 1.5P

●

Removing rear bearing

ZZA0194D

ZZA0601D

ZZA0811D

ZZA1003D

ZZA1046D

ZZA1000D

NT663

TF-6

PREPARATION

ST35321000
(

—

)

Drift
a: 49 mm (1.93 in) dia.
b: 41 mm (1.61 in) dia.

●

Removing rear bearing

●

Installing mainshaft assembly

ST31214000
(J-25269-B)
Drift
a: 34 mm (1.34 in) dia.
b: 25.5 mm (1.004 in) dia.

●

Removing front drive shaft front bearing

●

Removing front drive shaft rear bearing

KV38104010
(

—

)

Drift
a: 67 mm (2.64 in) dia.
b: 49 mm (1.93 in) dia.

●

Installing front drive shaft rear bearing

●

Installing rear bearing

ST33200000
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

●

Installing front drive shaft front bearing

ST30621000
