Infiniti M35/M45 Y50. Manual - part 1123





TROUBLE DIAGNOSIS

STC-49

[RAS]

C

D

E

F

H

I

J

K

L

M

A

B

STC

Check RAS Static/Dynamic Characteristics

NGS000F3

1.

CHECK (1): RAS ACTUATOR STROKE

Perform CONSULT-II “ACTIVE TEST”, and then check the actuator
stroke when turning the steering wheel clockwise or counterclock-
wise by 180

°

 or more.

OK or NG

OK

>> GO TO 2.

NG

>> GO TO 3.

2.

CHECK (2): RAS ACTUATOR STROKE

Perform CONSULT-II “ACTIVE TEST“. When turning the steering
wheel in neutral position (A), the rear wheel turns clockwise/counter-
clockwise periodically. At that time, check actuator stroke (B).

OK or NG

OK

>> RAS static/dynamic characteristics inspection is com-

pleted.

NG

>> GO TO 3.

3.

CHECK RAS MOTOR

Check RAS motor itself separated from other parts. Refer to

STC-50, "RAS MOTOR"

 .

OK or NG

OK

>> GO TO 4.

NG

>> RAS motor malfunction. Check the stroke again after replacing.

4.

CHECK REAR WHEEL STEERING ANGLE SENSOR

Check rear wheel steering angle sensor separated from other parts. Refer to

STC-50, "REAR WHEEL

STEERING ANGLE SENSOR"

 .

OK or NG

OK

>> GO TO 5.

NG

>> Rear wheel steering angle sensor malfunction. Check the stroke again after replacing.

5.

CHECK RAS CONTROL UNIT

Replace RAS control unit. Check the symptom of malfunction again.
Is the malfunction corrected?

YES

>> RAS control unit malfunction

NO

>> GO TO 6.

6.

REPLACE RAS ACTUATOR ASSEMBLY

Replace RAS actuator assembly. Check the symptom of malfunction again.

Is the malfunction corrected?

YES

>> RAS actuator malfunction

NO

>> Check rear suspension components. Refer to

RSU-7, "Components"

 .

Neutral position (A)

Actuator stroke (B)

: 2.8 - 3.0 mm (0.110 - 0.118 in)

SGIA1240E

Actuator stroke (B)

: 2.3 - 2.5 mm (0.091 - 0.098 in)

SGIA1240E

STC-50

[RAS]

TROUBLE DIAGNOSIS

Component Inspection

NGS000F4

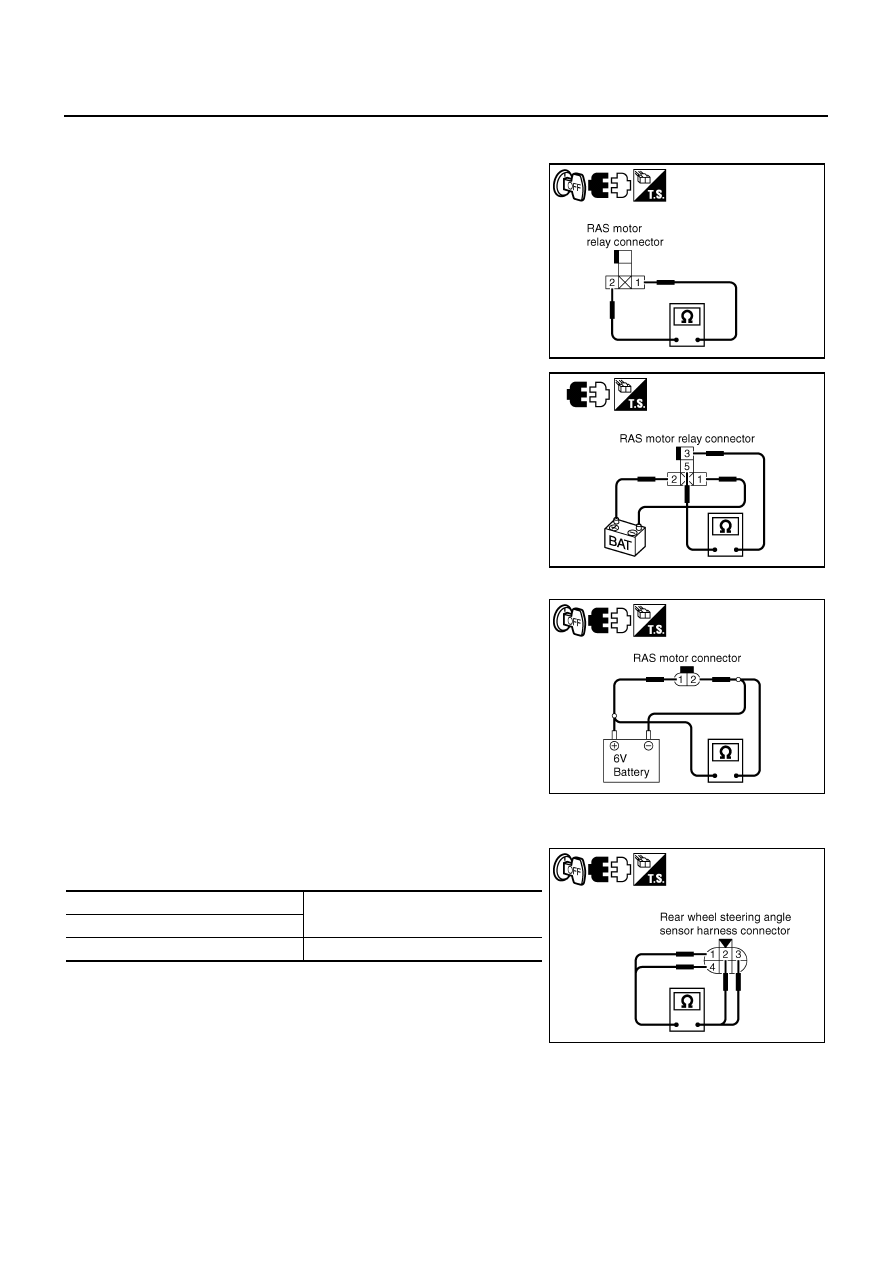

RAS MOTOR RELAY

1.

Check the resistance between RAS motor relay connector
B480.

2.

When applying or not supplying approximately 12 V between
RAS motor relay connector, check continuity RAS motor relay
connector B480.

RAS MOTOR

1.

Check the resistance RAS motor connector B463.

2.

Remove RAS motor from RAS actuator, and then turn the motor
by 6 V battery.

CAUTION:

Do not apply 12 V (battery voltage) to the RAS motor termi-
nal because RAS motor might be damaged.

REAR WHEEL STEERING ANGLE SENSOR

1.

Disconnect rear wheel steering angle sensor harness connector B465.

2.

Check resistance of rear wheel steering angle sensor connec-
tors B465.

Terminal 1 – 2

: Approx. 74

SGIA1266E

Terminal 3 – 5

: When applying 12 V voltage: Continu-
ity exist.

: When not applying 12 V voltage: Con-
tinuity not exist.

SGIA1286E

Terminal 1 – 2

: Approx. 0.6

If it is normal, it turns.

SGIA1287E

Terminal 2 – 3

: Approx. 1 k

Terminal 4 – 3

Terminal 1 – 3

: Approx. 1.25 k

SGIA1288E
