Honda Ridgeline. Manual - part 544





SJC8A000000000J2301ZCAT00

Restraints

Restraints

Seat Belts

SRS (Supplemental Restraint System)

................................................................

................................................................

Special Tools

. 24-2

........................................

......................................

.......................................

.....................................................................

........................................

......................................

.......................................

.....................................................................

Component Location Index

. 24-3

Front Seat Belt Replacement

. 24-4

Rear Seat Belt Replacement

. 24-7

Inspection

. 24-12

........................................

......................................

......................

......................................

...................................................

.........................................

.......

.......................................

..............................

.....................................................

............................................................

..................................................

........................................

..............................................................

.....................................

....................

...........................................

..............................

..................................

.............................................

................................................

...................

.............

......

....................................

............................

...................................

.............

.............................................

........................................

......................................

......................

......................................

...................................................

.........................................

.......

.......................................

..............................

.....................................................

............................................................

..................................................

........................................

..............................................................

.....................................

....................

...........................................

..............................

..................................

.............................................

................................................

...................

.............

......

....................................

............................

...................................

.............

.............................................

Component Location Index

. 24-14

Precautions and Procedures

. 24-16

General Troubleshooting Information

. 24-27

OPDS/ODS Unit Initialization

. 24-30

ODS Unit Calibration

. 24-31

ODS Unit Operation Check

. 24-32

Driver’s Seat Position Sensor Operation Check

. 24-33

DTC Troubleshooting Index

. 24-34

Symptom Troubleshooting Index

. 24-37

System Description

. 24-38

Circuit Diagram

. 24-45

DTC Troubleshooting

. 24-53

Symptom Troubleshooting

. 24-169

Component Replacement/Inspection After

Deployment

. 24-171

Driver’s Airbag Replacement

. 24-174

Front Passenger’s Airbag Replacement

. 24-175

Side Airbag Replacement

. 24-176

Side Curtain Airbag Replacement

. 24-177

Airbag and Tensioner Disposal

. 24-181

Cable Reel Replacement

. 24-185

SRS Unit Replacement

. 24-188

Side Impact Sensor (First) Replacement

. 24-189

Side Impact Sensor (Second) Replacement

. 24-190

Front Passenger’s Weight Sensor Replacement

. 24-191

OPDS/ODS Unit Replacement

. 24-192

Front Impact Sensor Replacement

. 24-193

Roll Rate Sensor Replacement

. 24-194

Driver’s Seat Position Sensor Replacement

. 24-195

Passenger’s Airbag Cutoff Indicator

Illumination Bulb Test

. 24-196

01

01

01

01

01

01

01

01

SJC8A000000000J2301PAAT00

Ref. No.

Tool Number

Description

Qty

24-2

Restraints

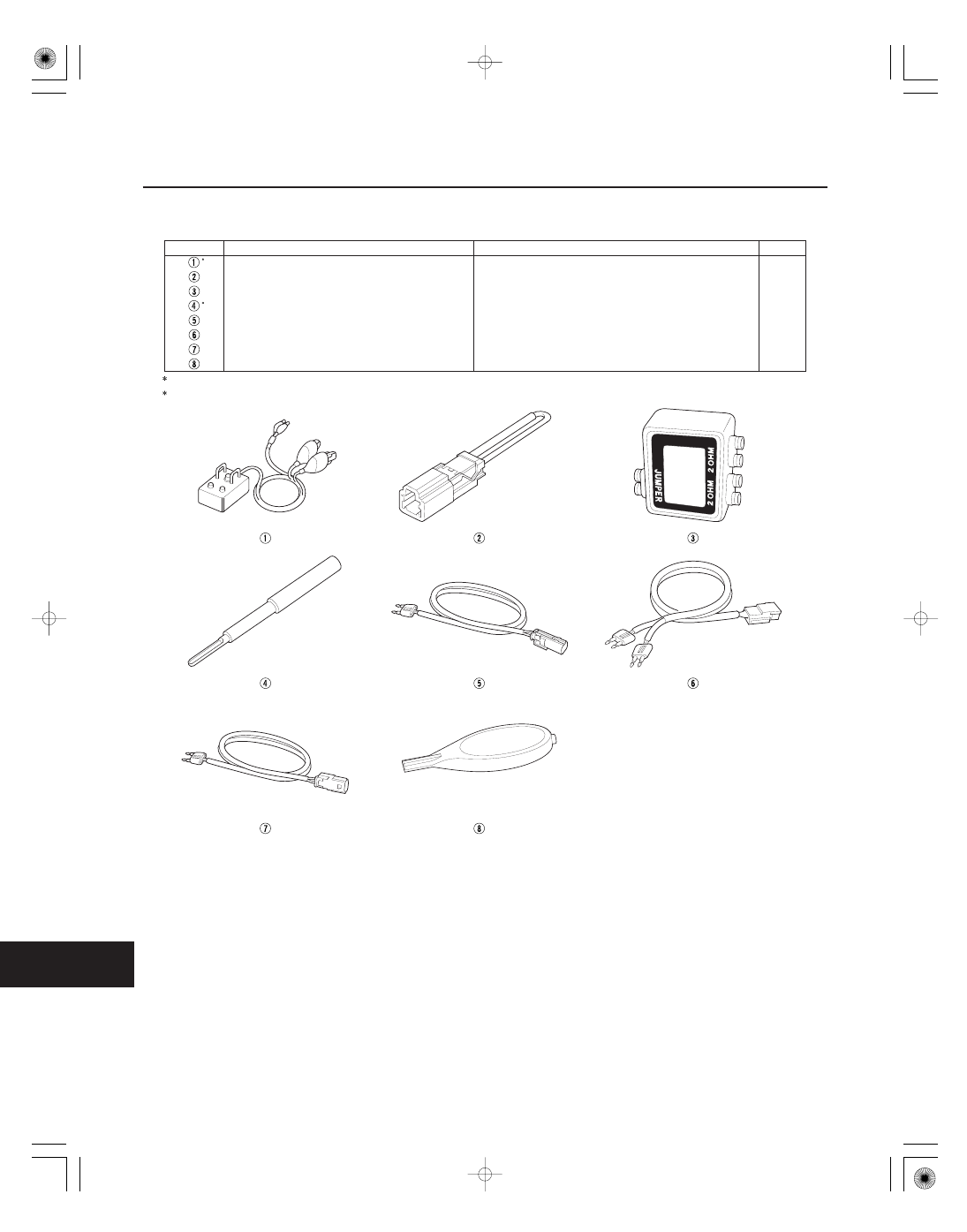

Special Tools

1

2

07HAZ-SG00500

Deployment Tool

1

07PAZ-001010A

SCS Service Connector

1

07SAZ-TB4011A

SRS Inflator Simulator

1

07TAZ-001020A

Backprobe Adapter, 17 mm

2

07XAZ-S1A0200

SRS Simulator Lead E

1

07XAZ-SZ30100

SRS Simulator Lead F

1

07YAZ-S3AA100

SRS Simulator Lead H

1

070AZ-SAA0100

SRS Short Canceller

2

1: Included in SRS Tool Set 07MAZ-SM5000B
2: Use with the stacking patch cords from T/N 07SAZ-001000A, Backprobe Set.

*01

SJC8A00H46200000000DAAT00

24-3

Seat Belts

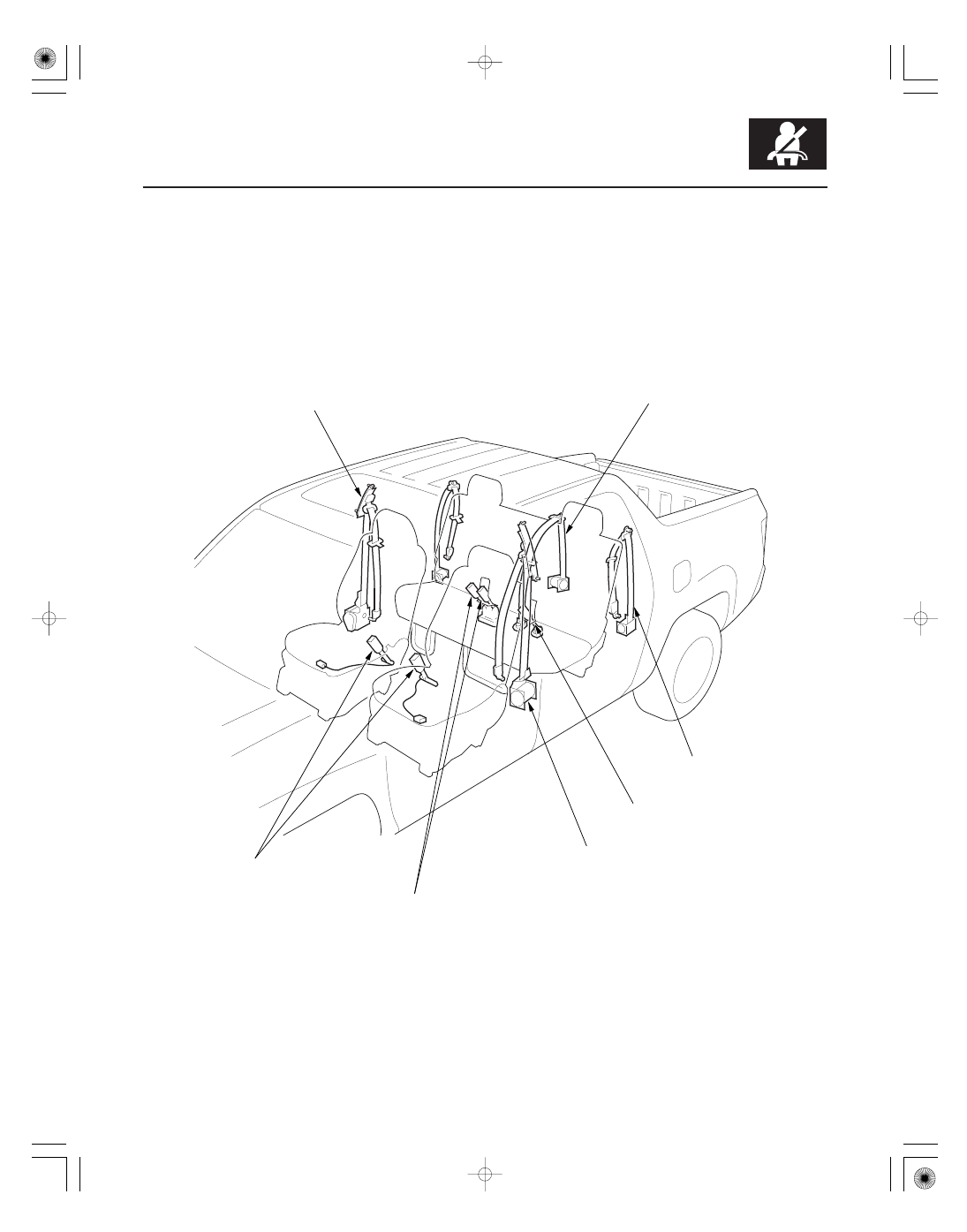

Component Location Index

SHOULDER ANCHOR ADJUSTER

REAR CENTER SEAT BELT

REAR SEAT BELT

LEFT REAR SEAT BELT BUCKLE

FRONT SEAT BELT

RIGHT REAR SEAT BELT BUCKLE/
CENTER SEAT BELT BUCKLE

FRONT SEAT BELT BUCKLES

Replacement, page 24-9
Inspection, page 24-12

Replacement, page 24-7
Inspection, page 24-12

Replacement, page 24-11

Replacement, page 24-4
Inspection, page 24-12

Replacement, page 24-11

Replacement, page 24-6

01

02

03

SJC8A00H46200053401KBAT00

Front Seat Belt

24-4

Seat Belts

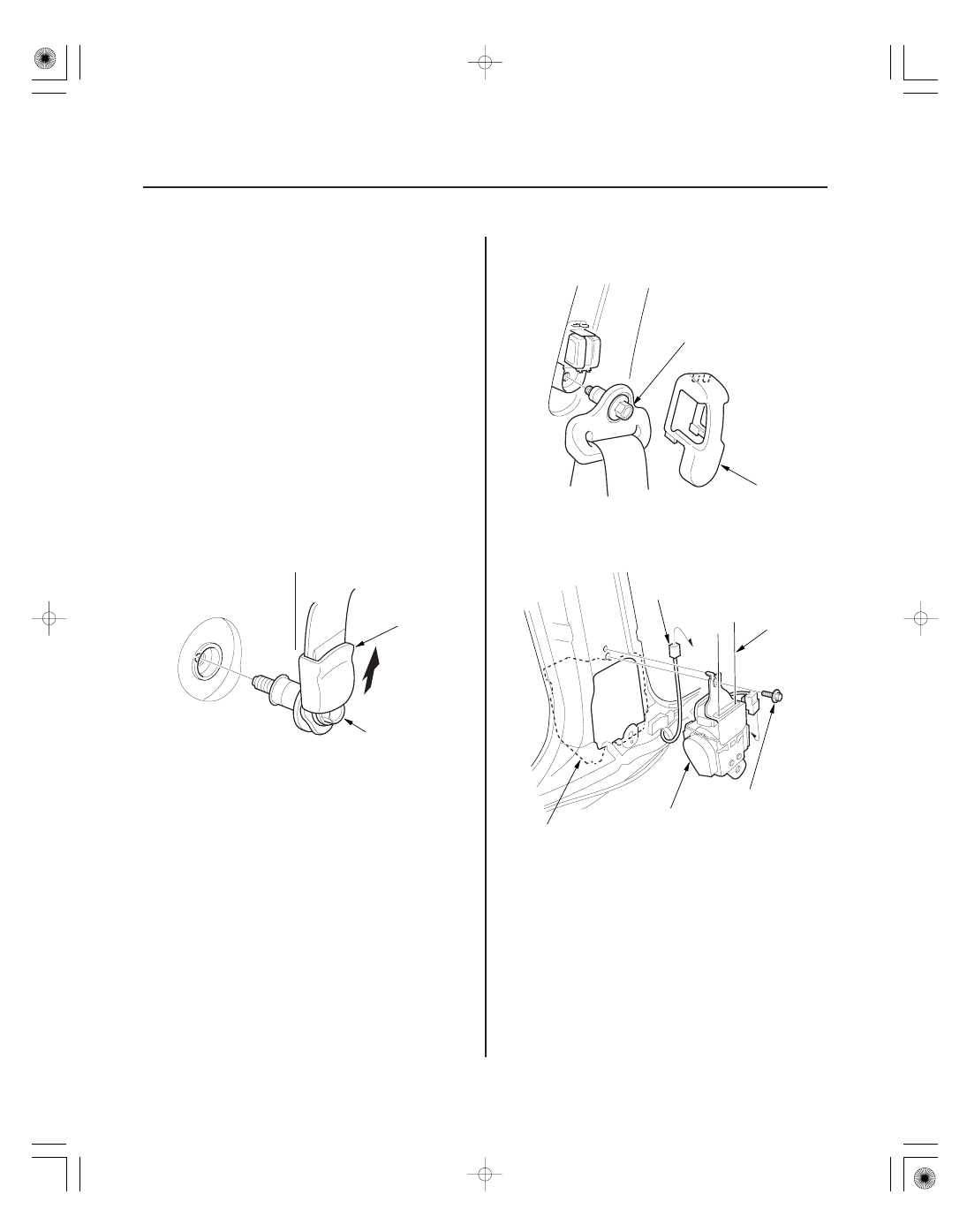

Front Seat Belt Replacement

B
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

B
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

A

C

D

E

B
6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

SRS components are located in this area. Review the
SRS component locations (see page 24-14) and the
precautions and procedures (see page 24-16) before
performing repairs or service.

NOTE: Check the front seat belts for damage, and
replace them if necessary. Be careful not to damage
them during removal and installation.

1. Slide the front seat fully forward.

2. Make sure you have the anti-theft codes for the

audio system and the navigation system (if
equipped).

3. Disconnect the negative cable from the battery, and

wait at least 3 minutes before beginning work.

4. Pull the lower anchor cover (A) back, and remove

the lower anchor bolt (B).

5. Remove these items:

• Front door sill trim (see page 20-60)
• Rear door sill trim (see page 20-60)

6. Remove the B-pillar lower trim (see page 20-65).

7. Remove the upper anchor cover (A), and remove

the upper anchor bolt (B).

8. Disconnect the seat belt tensioner 2P connector (A).

Remove the upper retractor mounting bolt (B), then
remove the front seat belt (C) and retractor (D).

9. If necessary, remove the front seat belt

protector (E).
