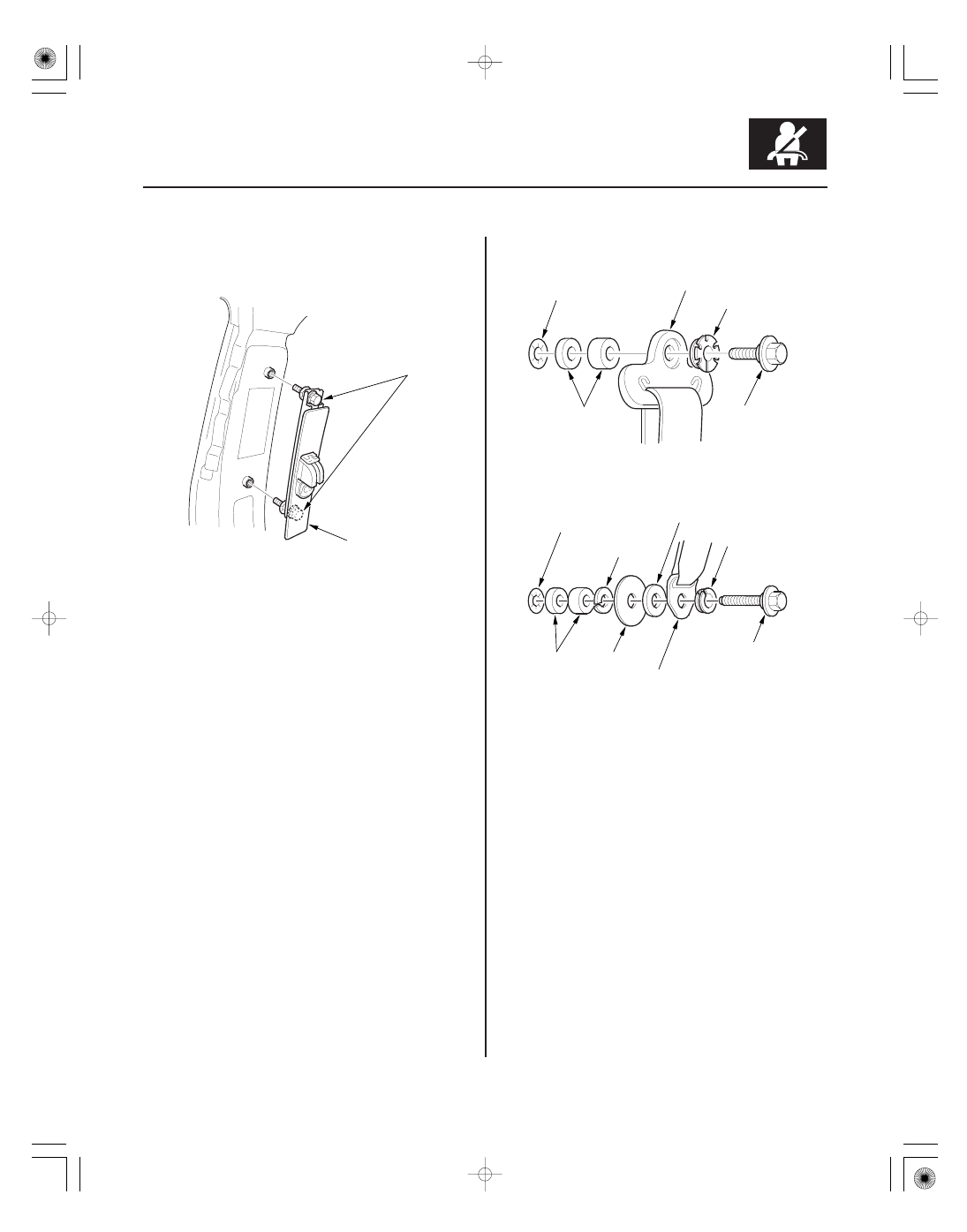

Upper anchor bolt installation

Lower anchor bolt installation

24-5

A

8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

COLLARS

UPPER ANCHOR

UPPER ANCHOR
BOLT

TOOTHED LOCK
WASHER

BUSHING

COLLARS

SPRING
WASHER

LOWER ANCHOR
BOLT

TOOTHED LOCK
WASHER

BUSHING

WASHER

WASHER

LOWER ANCHOR

10. Remove the B-pillar upper trim (see page 20-65).

11. Remove the shoulder anchor adjuster (A).

12. Install the seat belt in the reverse order of removal,

and note these items:

• Apply medium strength type liquid thread lock to

the anchor bolts before reinstallation.

• Check that the retractor locking mechanism

functions (see page 24-12).

• Assemble the washers, collars, and bushings on

the upper and lower anchor bolts as shown.

• If the seat belt tensioner has been deployed,

replace the seat belt protector with a new one.

• Before installing the anchor bolts, make sure

there are no twists or kinks in the seat belt.

• Make sure the seat belt tensioner connector is

plugged in properly.

• Reconnect the negative cable to the battery.
• Enter the anti-theft codes for the audio system

and the navigation system (if equipped).

• Set the clock (on vehicles without navigation).
• Do the power window control unit reset

procedure (see page 22-209).

(cont’d)

07

08

09

10

11

Seat Belt Buckle

Driver’s 10-way power seat

Driver’s manual height adjustable seat

Passenger’s manual seat

Driver’s 10-way power seat

Driver’s manual height adjustable seat

24-6

Seat Belts

Front Seat Belt Replacement (cont’d)

A

C

B

Forward

A

C

B

A

Forward

C

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

D

B

C

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

B

D

NOTE:

• Take care not to scratch the body or tear the seat

covers.

• Put on gloves to protect your hands.
• DTC codes will set if the ignition is turned ON (II) with

the seats removed.

1. Remove the front seat (see page 20-97).

2. Remove the center cover (see page 20-99).

3. Make sure you have the anti-theft codes for the

audio system and the navigation system (if
equipped).

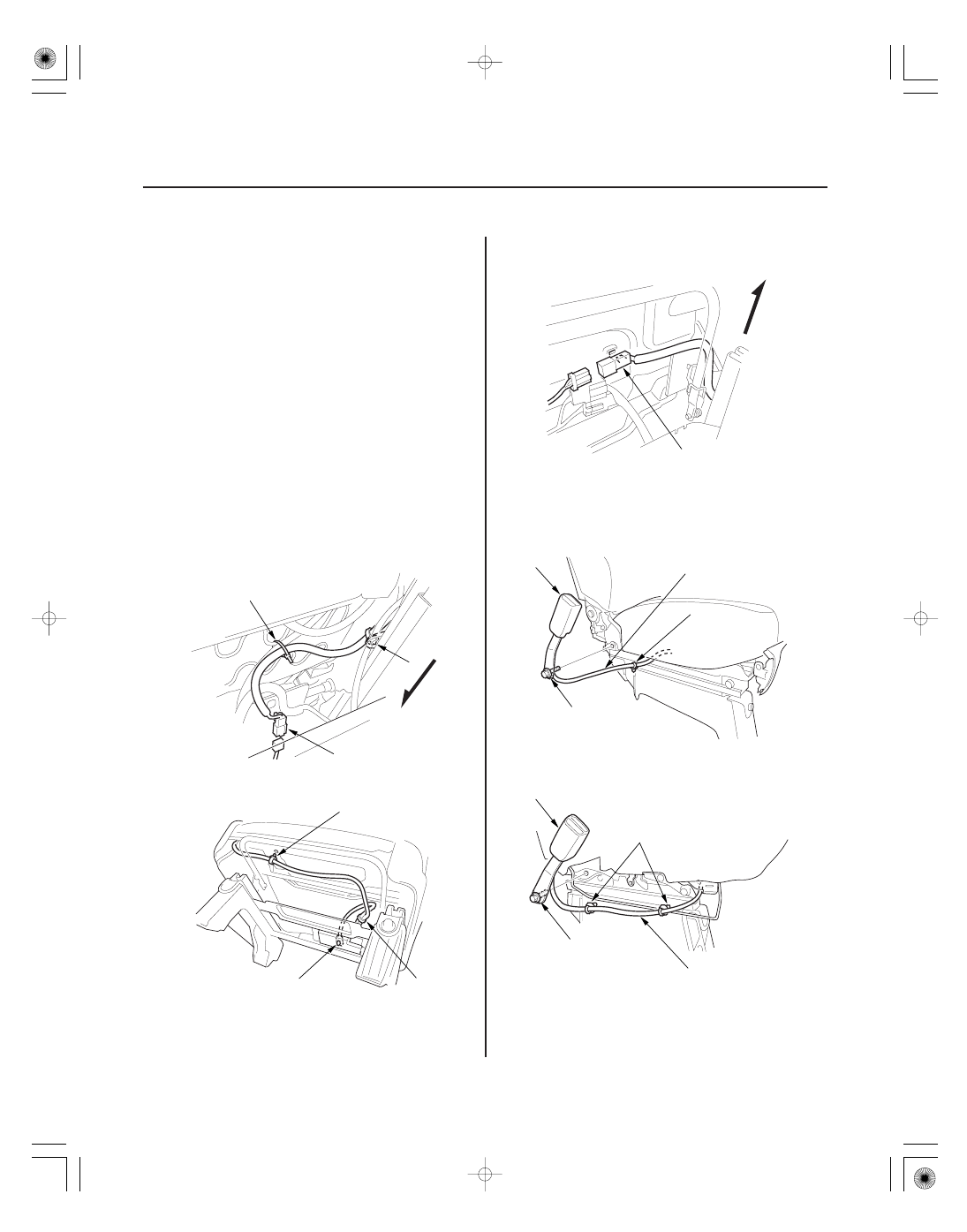

4. Disconnect the seat belt switch connector (A), and

detach it, and detach the harness clip (B) and
harness band (C).

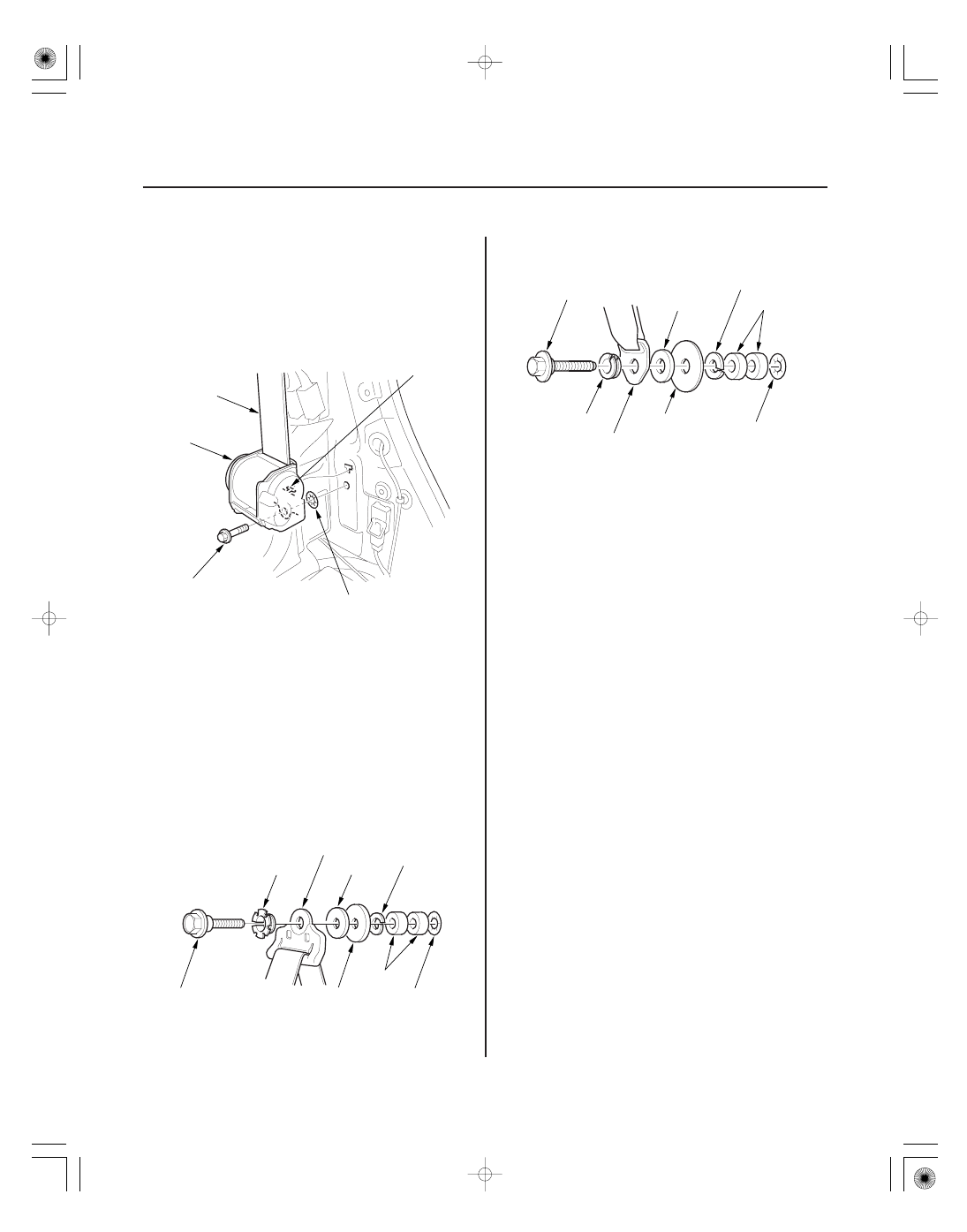

5. Remove the anchor bolt (A), and detach the

harness clip (B), then remove the seat belt buckle
(C).

12

13

01

02

SJC8A00H46200053402KBAT00

Passenger’s manual seat

Center anchor bolt installation

Rear Seat Belt

24-7

24-7

Rear Seat Belt Replacement

B

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

C

D

WAVE WASHER

ANCHOR BOLT

TOOTHED LOCK
WASHER

BUSHING

WASHER

WASHER

SPRING WASHER

B
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

B
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A

6. Pull the seat belt switch harness (D) out through the

space between the seat cushion and the seat
linkage, or through the hole in the seat track.

7. Install the buckle in the reverse order of removal,

and note these items:

• Assemble the washers and bushing on the center

anchor bolt as shown.

• Apply medium strength type liquid thread lock to

the center anchor bolt before reinstallation.

• Apply medium strength type liquid thread lock to

the seat mounting bolts before reinstallation.

• Tighten the bolt by hand first, then tighten to

specification with a torque wrench.

• Reconnect the negative cable to the battery.
• Enter the anti-theft codes for the audio system

and the navigation system (if equipped).

• Set the clock (on vehicle without navigation).
• Perform the power window control unit reset

procedure (see page 22-209).

NOTE: Check the rear seat belts for damage, and
replace them if necessary.

1. Remove the rear seat assembly (see page 20-117).

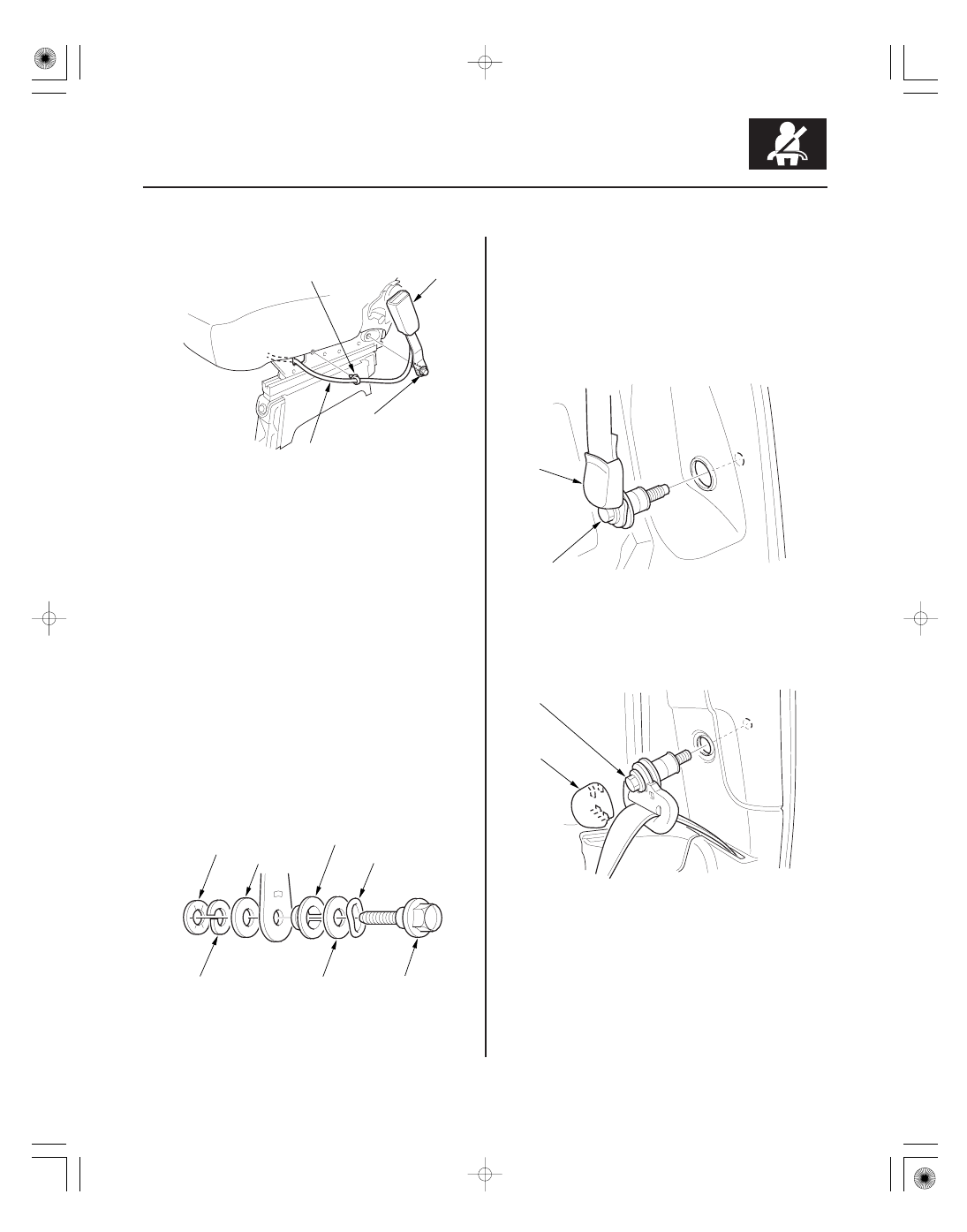

2. Pull the lower anchor cover (A) back, and remove

the lower anchor bolt (B).

3. Remove the upper anchor cap (A), and remove the

upper anchor bolt (B).

(cont’d)

03

04

05

Upper anchor bolt installation

Lower anchor bolt installation

24-8

Seat Belts

Rear Seat Belt Replacement (cont’d)

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

B

D

C

E

COLLARS

SPRING
WASHER

UPPER ANCHOR
BOLT

TOOTHED LOCK
WASHER

BUSHING

WASHER

WASHER

UPPER ANCHOR

COLLARS

SPRING WASHER

LOWER ANCHOR
BOLT

TOOTHED LOCK
WASHER

BUSHING

WASHER

WASHER

LOWER ANCHOR

4. Remove these items:

• C-pillar trim (see page 20-68)
• Rear seat side trim (see step 9 on page 20-62)

5. Remove the retractor bolt (A), and lift up on the

retractor (B) to release the hook (C), then remove
the rear seat belt (D) and toothed lock washer (E).

6. Install the seat belt in the reverse order of removal,

and note these items:

• Assemble the washers, collars, and bushings on

the upper and lower anchor bolts as shown.

• Check that the retractor locking mechanism

functions as described (see page 24-12).

• Apply medium strength type liquid thread lock to

the anchor bolts before reinstallation.

• Before installing the anchor bolts, make sure

there are no twists or kinks in the seat belt.
