Special Tools Required

23-138

23-138

Navigation System

Forced Starting of Display

DVD-ROM Replacement

A
07PAZ-0010100

B

A

B

C

SCS service connector 07PAZ-0010100

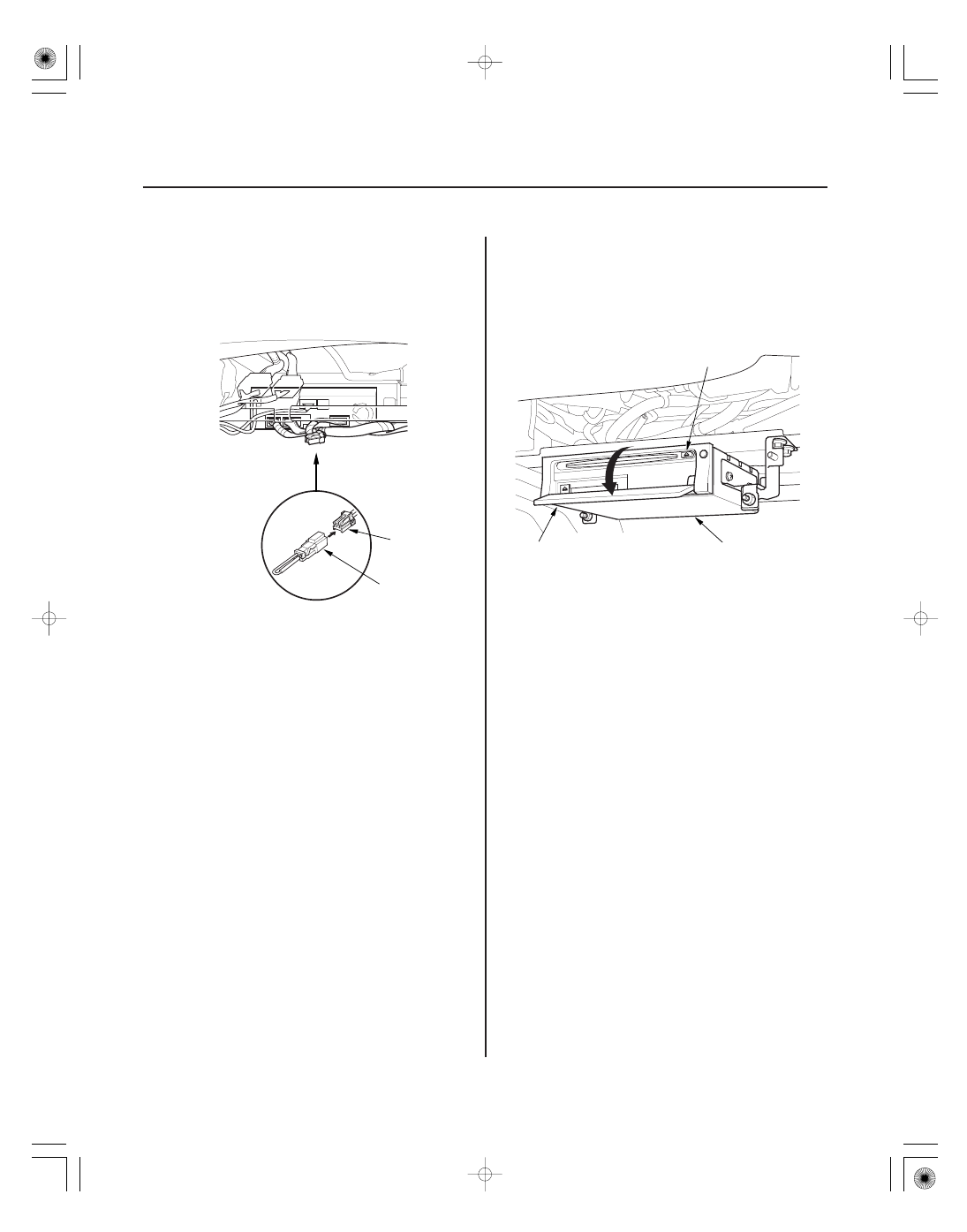

1. Connect the SCS service connector (A) to the

navigation service check connector (B) located
behind the navigation unit.

2. Turn the ignition switch ON (II).

3.

1.

2. Open the front cover (A) of the navigation unit (B)

located under the driver’s seat.

3. Press the EJECT button (C), then remove the DVD-

ROM.

4. Insert the new DVD-ROM with the white label

facing up.

5. Close the front cover. Do not turn the ignition

switch OFF; watch the navigation screen until the
data is downloaded to navigation unit.

6. Do the Map Matching (see page 23-68).

NOTE: After servicing, the front cover must be
closed.

Turn the ignition switch ON (II).

NOTE: Check any official Honda service website for
more service information about the navigation system.

Check that the system starts up and then changes
to the Navi System Link screen.

NOTE: If the system fails to display the Navi
System Link screen, refer to no picture is
displayed (see page 23-100).

*01

*02

SJC8AN1J36100042521KDAT01

23-139

Navigation Unit Removal/Installation

A

B

B

A

NOTE:

• Before you replace the navigation unit, back-up the

customer data using system diagnostic mode ‘‘save
users memory’’ (’07 and later) under the functional
set up (see page 23-134).

• If the navigation unit is replaced or disconnected, a

Map Matching must be done (see page 23-68).

1. Turn the ignition switch ON (II).

2. Eject the DVD from the original navigation unit

(see page 23-138). To avoid scratching or damaging
the DVD, temporarily place the DVD in a jewel case.

3. Turn the ignition switch OFF.

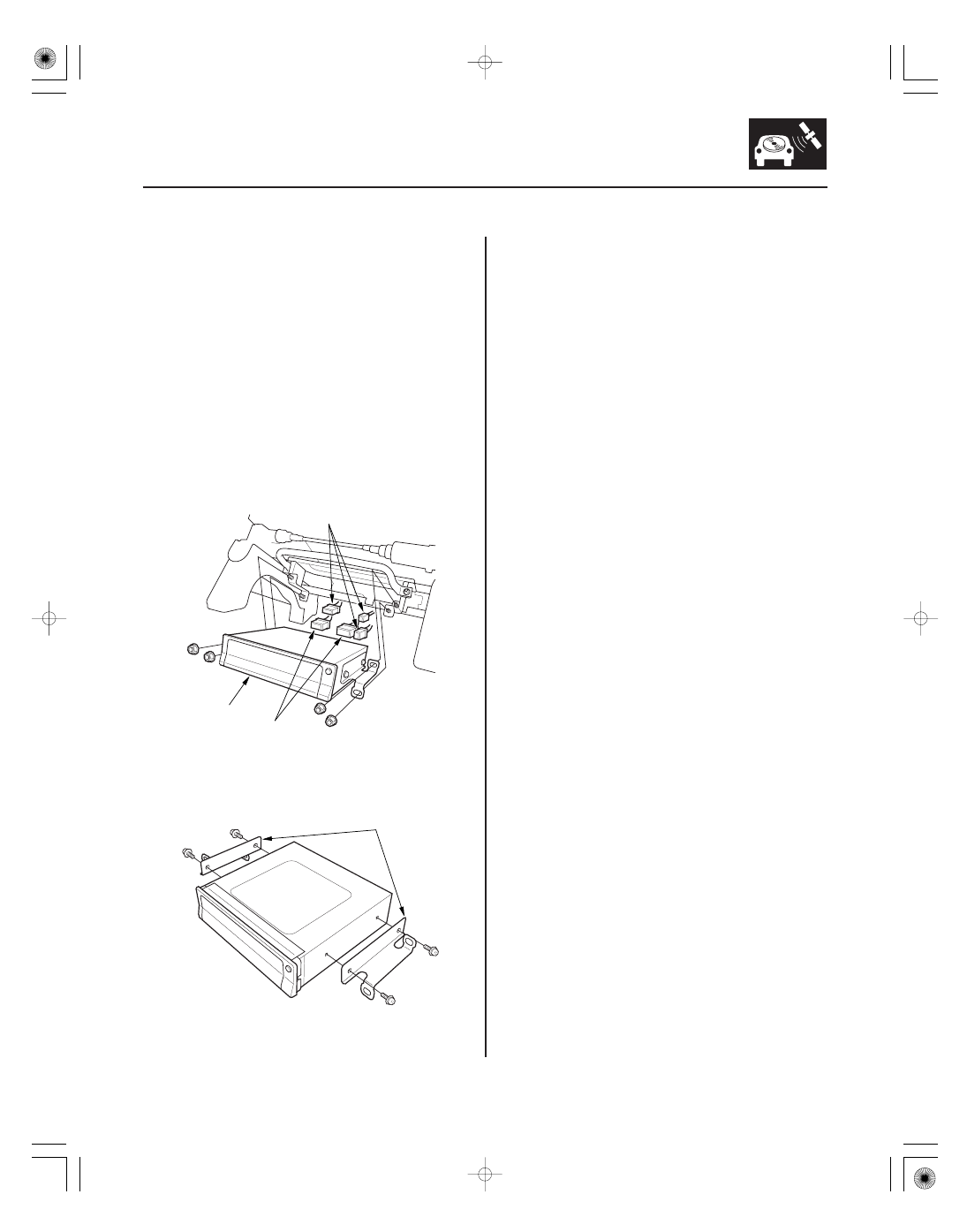

4. Remove the bolts, then pull out the navigation unit

(A).

5. Disconnect the connectors (B), then remove the

navigation unit.

6. Remove the screws and the bracket (A).

7. Install the navigation unit in the reverse order of

removal.

8. Turn the ignition switch ON (II), then reinstall the

customer’s original DVD, verifying that the DVD is
free of scratches or smudges.

9. Check online for any service publications

prescribing patches for the navigation system, and
if any should be applied to the new navigation unit.

NOTE: Simply transferring the DVD from the
original navigation unit to the new navigation unit
does not assure the correct software for the vehicle
will be loaded into the new navigation unit. Doing
the DVD transfer without doing software patches
may cause the new navigation unit to appear to be
malfunctioning.

10. Enter the new navigation anti-theft code.

11. Park the vehicle outside, and do the GPS

initialization (see page 23-67).

12. Give the new navigation anti-theft code to the

customer.

01

02

SJC8AN1J36100030151KDAT02

23-140

Navigation System

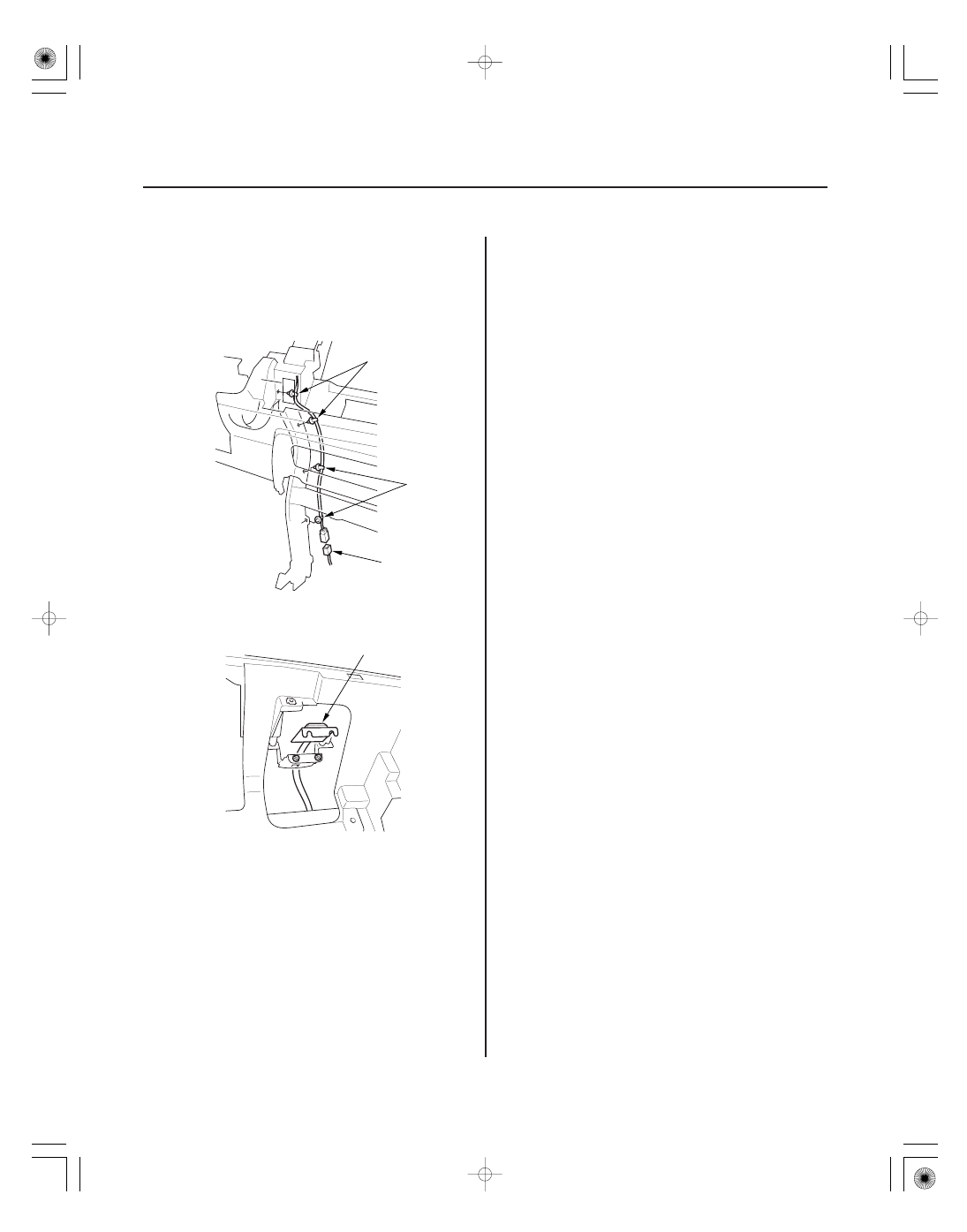

GPS Antenna Removal/Installation

A

B

B

A

1. Remove the gauge control module (see page

22-263) and the center lower pocket (see page
20-84).

2. Disconnect the connector (A), then remove the wire

harness clips (B).

3. Loosen th bolts and the GPS antenna (A).

4. Install the GPS antenna in the reverse order of

removal.

01

02

SJC8AN1J36100063301FEAT00

01

SJC8AN1J36100042501KDAT00

Position

Resistance

23-141

23-141

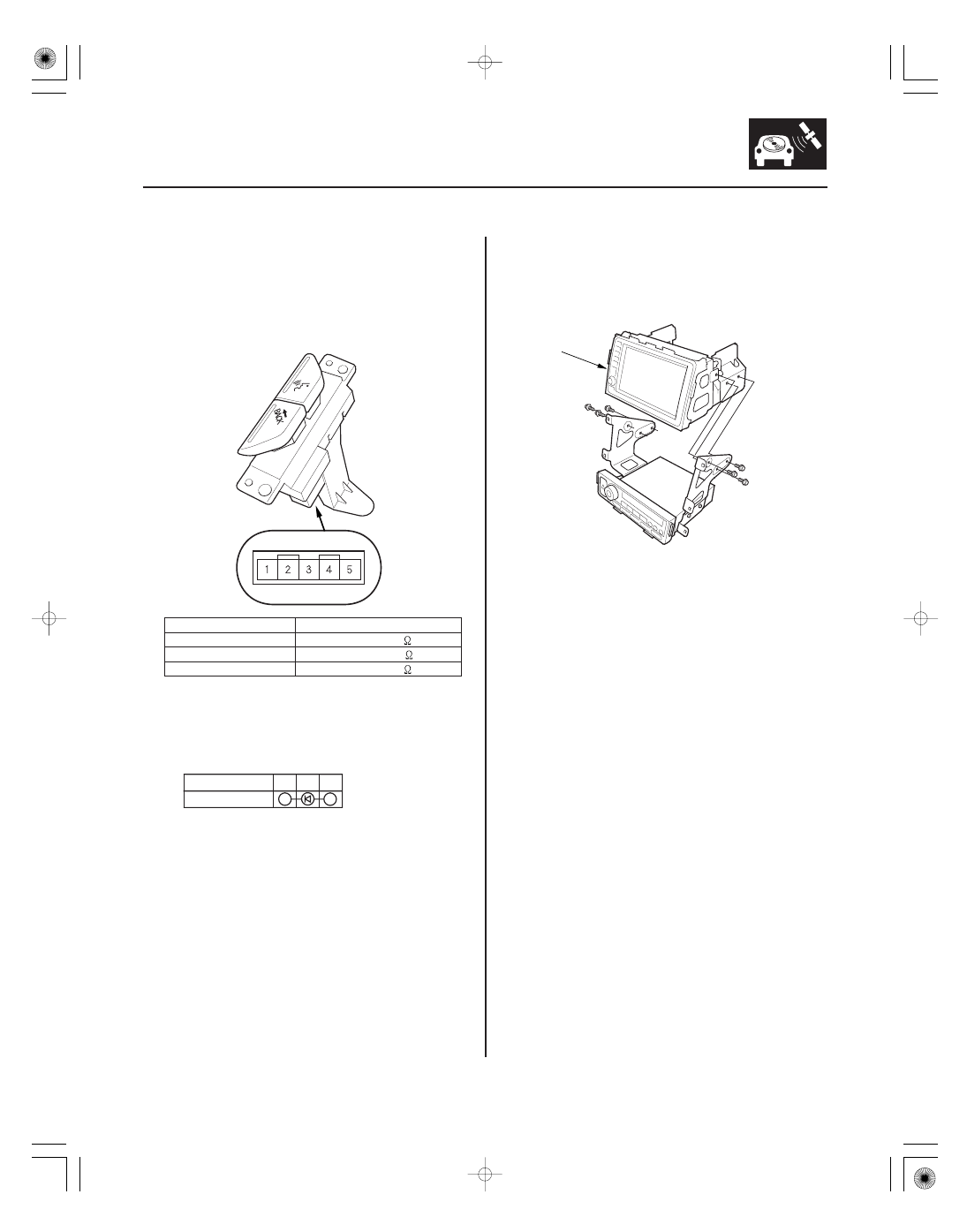

Voice Control Switch Test

Navigation Display Removal/
Installation

Terminal

5

4

A

1. Remove the steering wheel (see page 17-21).

2. Remove the voice control switch (see page 17-22).

3. Measure the resistance between the terminals

No. 1 and No. 2 in each switch position according
to the table.

OFF

About 10 k

TALK

About 2.9 k

BACK

About 680

4. If the resistance is not as specified, replace the

voice control switch.

5. Check for continuity between the terminals in each

switch position according to the table.

6. If the continuity check is not as specified, replace

the switch.

1. Remove the CD changer (see page 23-58).

2. Remove the bolts and the navigation display (A).

3. Install the navigation display in the reverse order of

removal.
