Honda Ridgeline. Manual - part 500





01

02

SJC8A00J34300044031FEAT00

Defogger Test

22-296

Power Mirrors

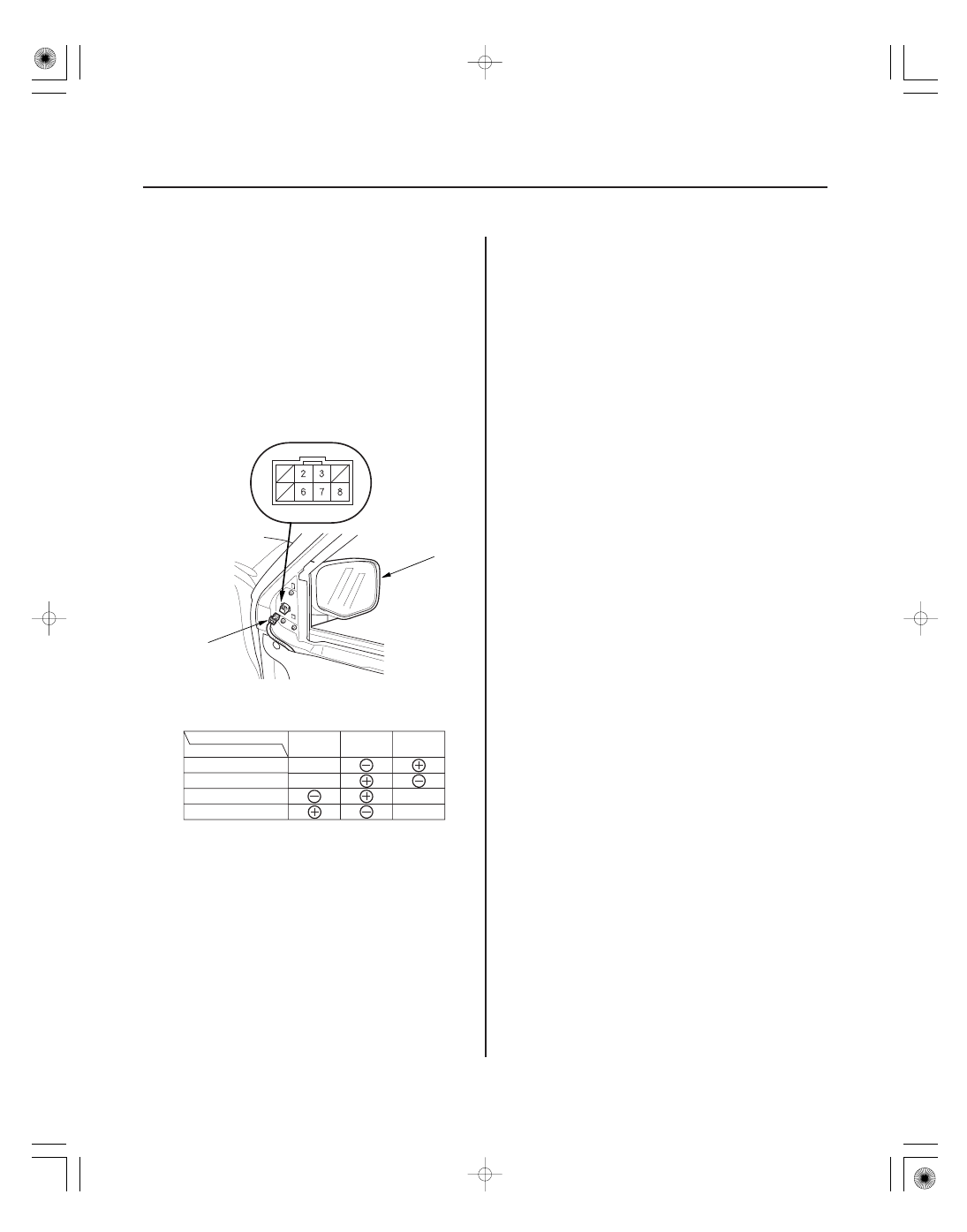

Power Mirror Actuator Test

A

B

Terminal

Position

6

7

8

TILT UP

TILT DOWN

SWING LEFT

SWING RIGHT

NOTE: The power mirror actuator can be tested by
using the HDS by following these steps:

• Select BODY ELECTRICAL from the SYSTEM SELECT

MENU.

• Select FUNCTION TESTS, and then the appropriate

power mirror function test.

1. Remove the door panel (see page 20-7) and the

mirror mount cover (see page 20-27).

2. Disconnect the 8P connector (A) from the power

mirror actuator (B).

3. Check actuator operation by connecting power and

ground according to the table.

4. If the mirror fails to work properly, replace the

mirror actuator.

5. Reconnect the 8P connector to the mirror actuator,

turn the ignition switch ON (II) and the mirror
defogger switch is ON.

6. Measure voltage between the No. 2 and No. 3

terminals of the 8P connector. There should be
battery voltage. If there is no voltage, check for an
open in the wire. If voltage is as specified and the
mirror fails to warm up, replace the mirror
defoggers.

01

SJC8A00J34300044031KBAT00

22-297

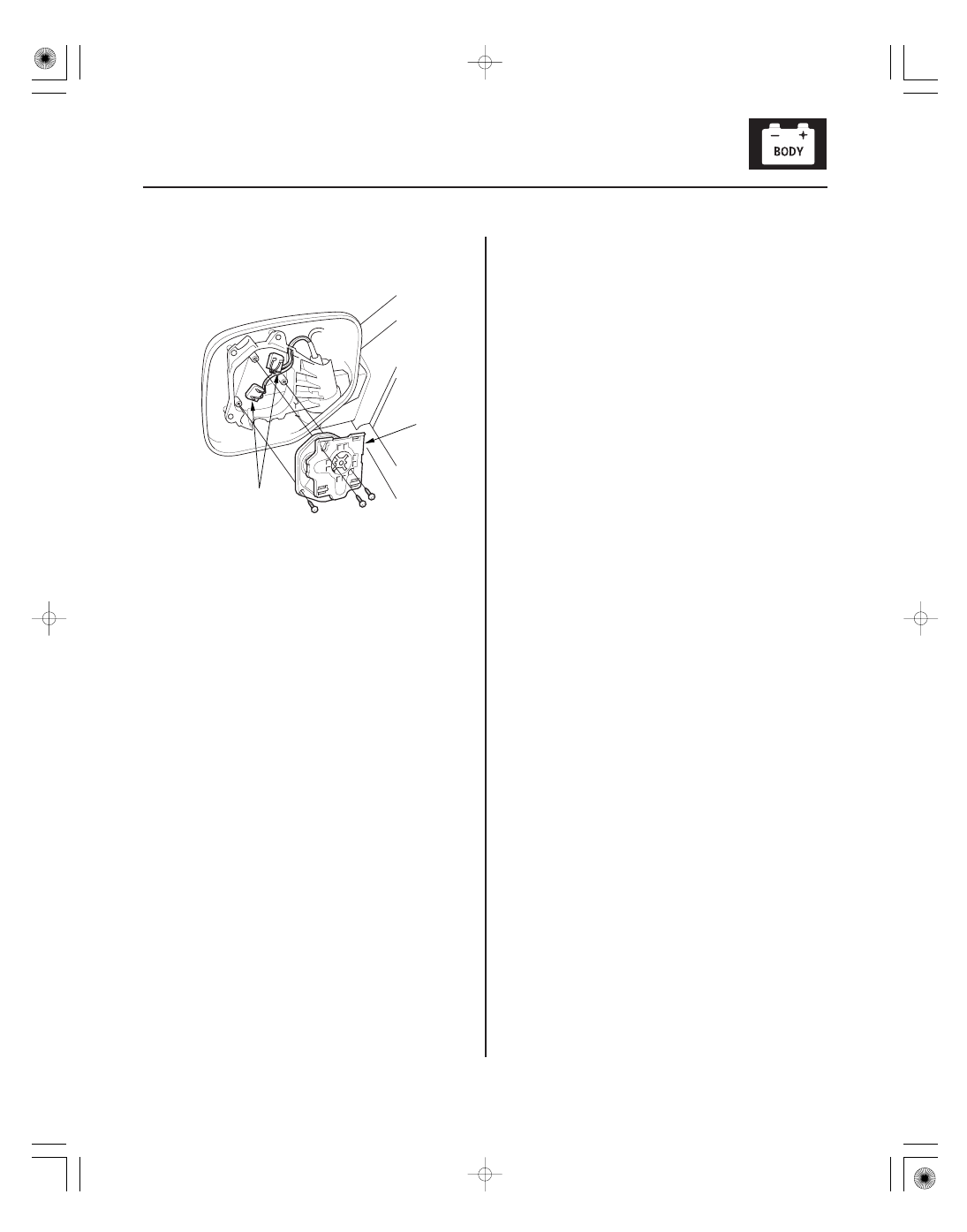

Power Mirror Actuator Replacement

A

B

1. Remove the mirror (see page 20-28).

2. Remove the three screws from the actuator (A).

3. Record the connector locations, then disconnect

the connectors (B) and remove the actuator.

4. Install in the reverse of removal.

5. Operate the power mirror to check that the actuator

works smoothly.

*01

SJC8AGDJ46127037901DAAT00

Driver’s side shown

22-298

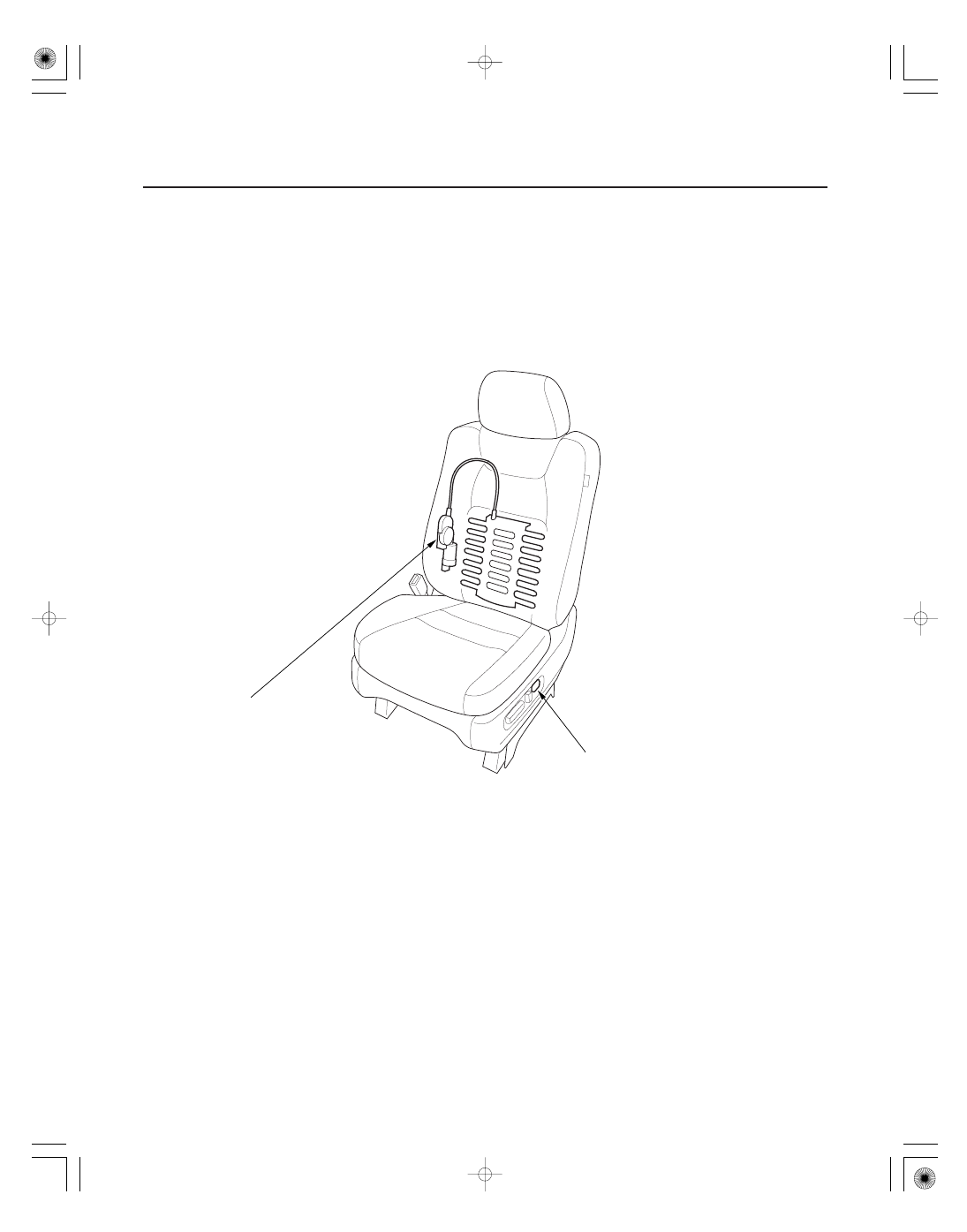

Power Lumbar Support

Component Location Index

LUMBAR SUPPORT MOTOR

LUMBAR SUPPORT SWITCH

Test, page 22-300

Test/Replacement, page 22-300

01

SJC8AGDJ46127037901EAAT00

22-299

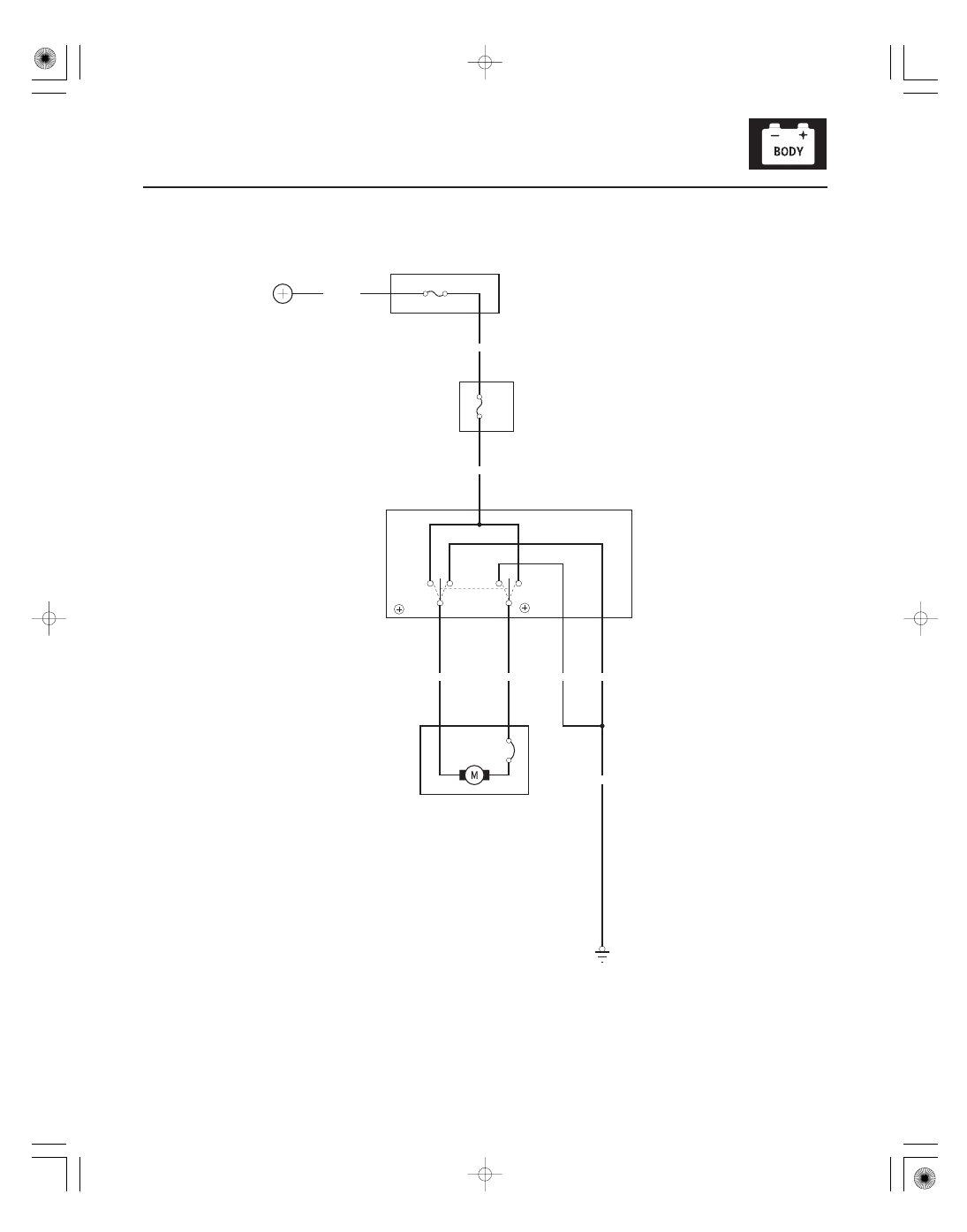

Circuit Diagram

B1

B6

BLK/YEL

F7

LUMBAR SUPPORT MOTOR

BACKWARD

FORWARD

BLK

BLK

1

WHT/BLK

4

BLK

5

RED

2

BLU

3

2

1

G501

UNDER HOOD FUSE/RELAY BOX

No.22 (SEAT) (40 A)

BATTERY

(10 A)

No.13

BLU

UNDER DASH
FUSE/RELAY
BOX

LUMBAR
SUPPORT
SWITCH
