Honda Ridgeline. Manual - part 477





01

SJC8A00J32323334311FEAT00

01

SJC8A00J32323334301FEAT00

22-204

22-204

Entry Lights Control System

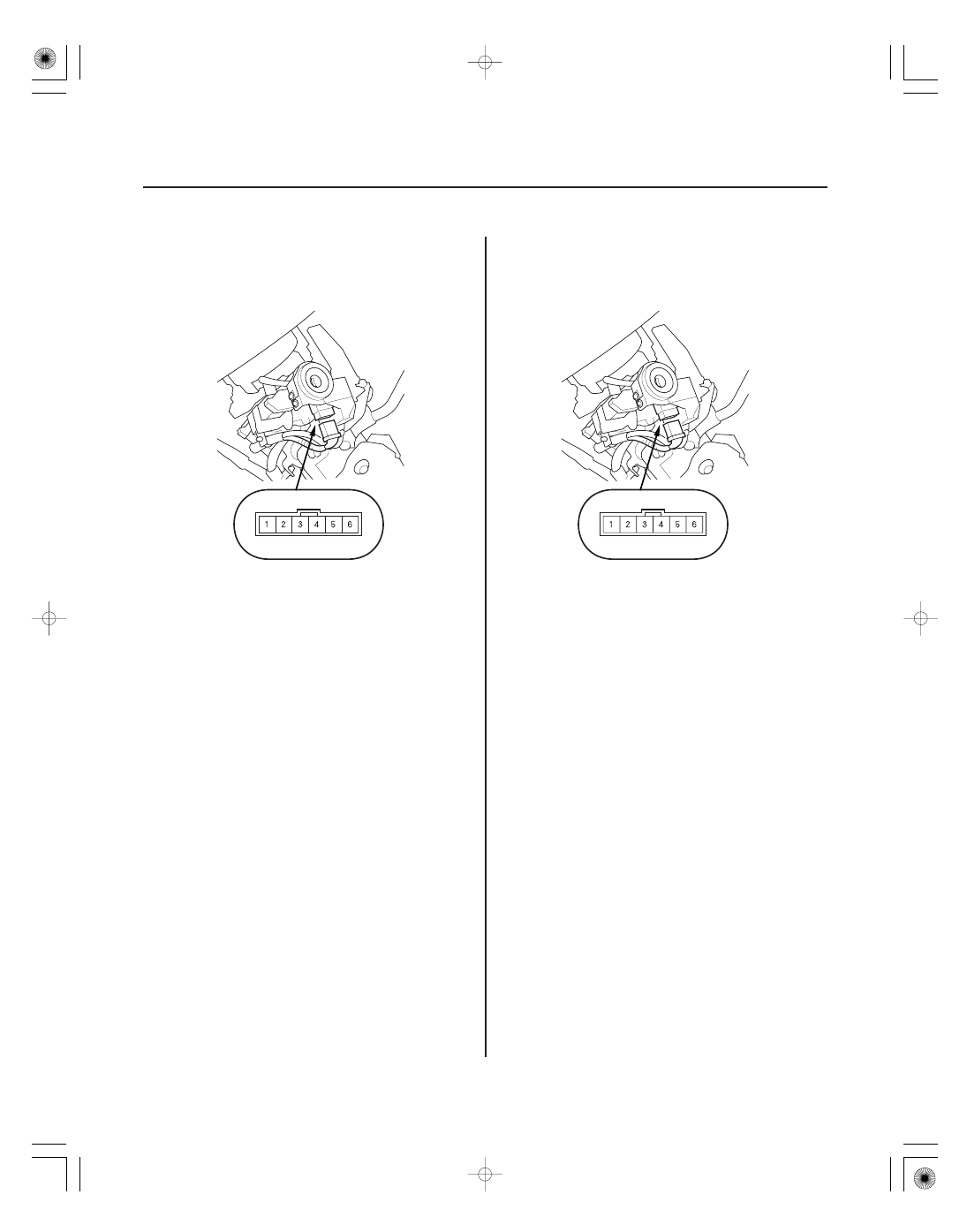

Ignition Key Switch Test

Ignition Key Light Test

1. Remove the steering column upper and lower

covers (see page 17-24).

2. Disconnect the 6P connector.

3. Check for continuity between the No. 1 and No. 2

terminals.

• There should be continuity with the key in the

ignition switch.

• There should be no continuity with the key

removed.

4. If the continuity is not as specified, replace the

ignition switch.

1. Remove the steering column upper and lower

covers (see page 17-24).

2. Disconnect the 6P connector.

3. The LED should come on when power is connected

to the No. 6 terminal and ground is connected to
No. 5 terminal.

4. If the LED does not come on, replace the ignition

switch.

*01

SJC8AGDJ46633300000EAAT00

*01

SJC8AGDJ46633300000FEAT00

22-205

22-205

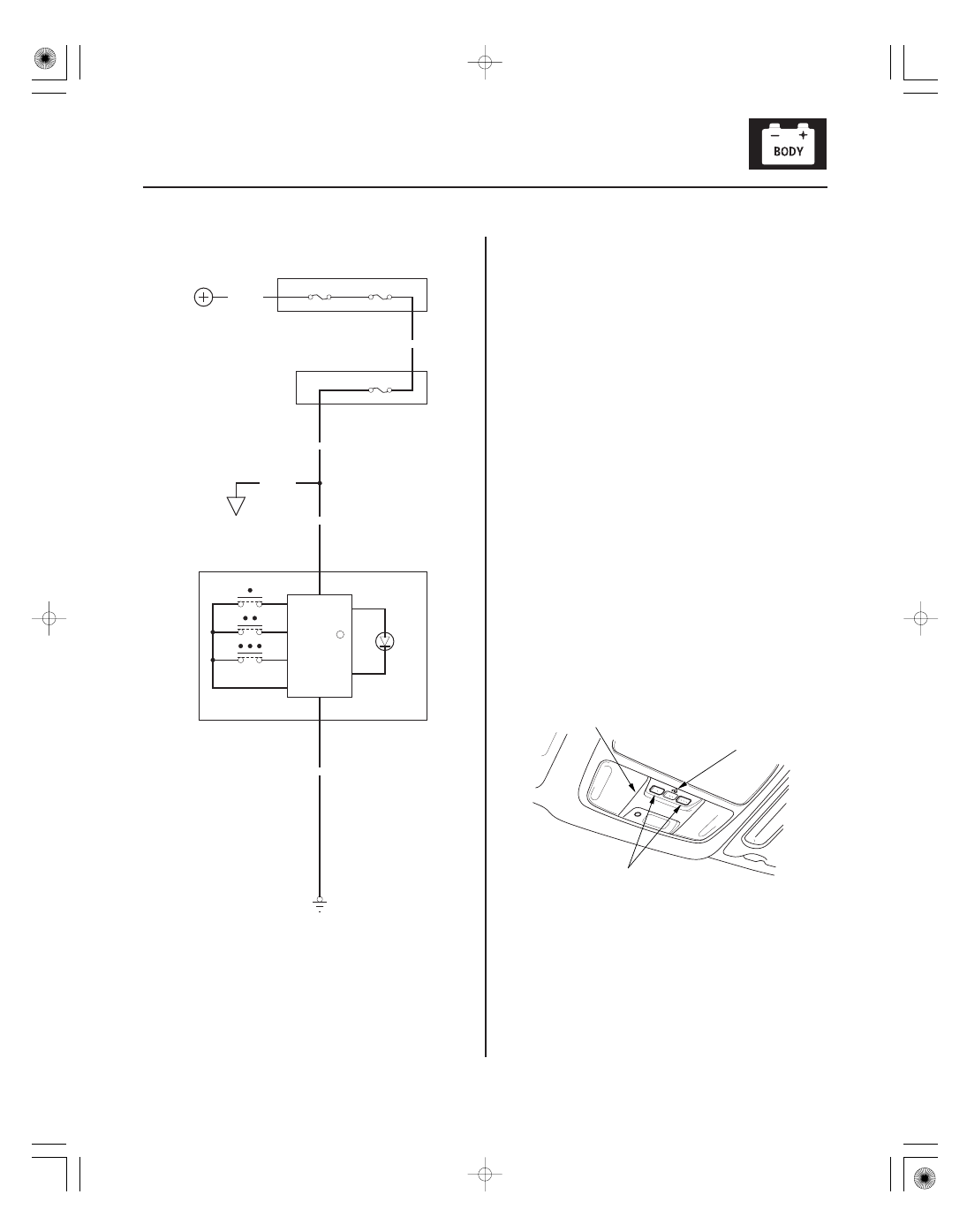

HomeLink Remote Control System

Circuit Diagram

Test

WHT/BLU

WHT/BLU

LIGHT
(LED)

No.6 (10 A)

D6

No.22 (BAT) (120 A)

BLK/YEL

B4

W1

WHT/BLU

UNDER HOOD FUSE/RELAY BOX

No.15 (40 A)

BATTERY

5

6

G401

BLK

YEL

UNDER DASH
FUSE/RELAY BOX

HOMELINK
UNIT

FRONT
INDIVIDUAL
MAP LIGHT

R

C

A

B

1.

• If the red indicator come on, go to step 3.
• If the red indicator does not come on, go to step

2.

2. Measure voltage between the No. 6 (

) and No. 5

There should be battery voltage.

• If the voltage is not as specified, check for these

problems:
– A blown No. 6 (10 A) fuse in the under-dash

fuse/relay box.

– A faulty under-dash fuse/relay box.
– An open in the WHT/BLU wire between the

If the voltage is specified, go to step 3.

3. Make sure the Genie remote transmitter (test

remote) has fresh batteries.

4. Clear any previously learned codes by pressing and

holding the two outside buttons (A) on the
HomeLink unit (B) for about 20 seconds. When the

the buttons.

(cont’d)

ROOF CONSOLE

If the HomeLink will not open the customer's garage,
do the following procedures.

Press any of the buttons on the HomeLink unit.

(−) terminals of the roof console 10P connector.

under-dash fuse/relay box and roof console.

– An open in the BLK wire between the roof

console and G401.

red indicator (C) on the unit starts blinking, release

*02

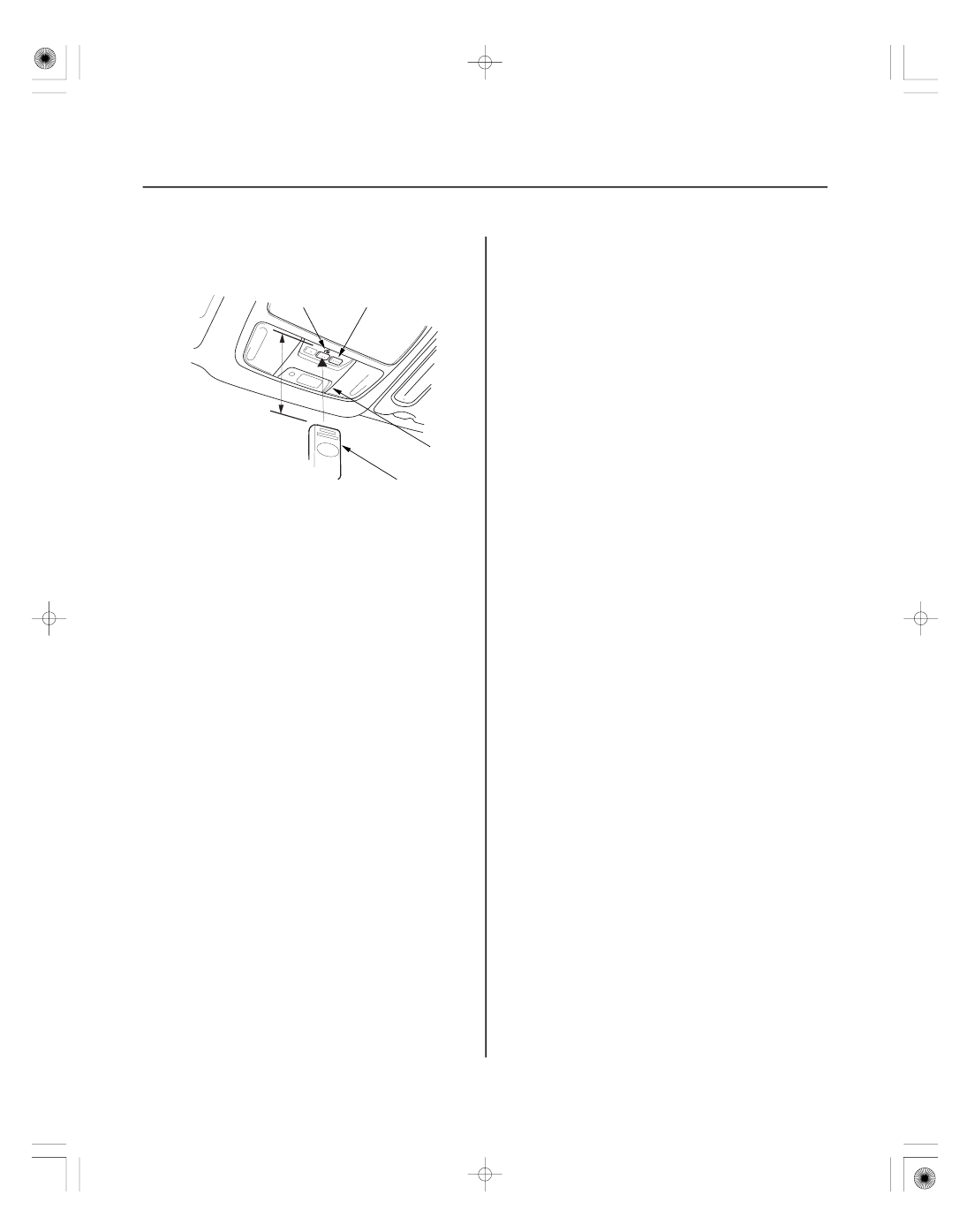

22-206

HomeLink Remote Control System

Test (cont’d)

C

D

B

A

4 INCHES

5. Point the test remote transmitter (A) straight up

exactly 101.6 mm (4.0 in.) away from the HomeLink
unit (B).

6.

7. Wait about 20 seconds while watching the red

indicator (D) on the HomeLink unit.

Press and hold the button on the test remote
transmitter and one of the buttons (C) on the
HomeLink unit at the same time.

owner’s

If the red indicator starts out blinking slowly and
then blinks faster, the unit is OK. Release the
buttons, then clear the learned code (see step 1).
Explain to the customer that garage door remote
transmitters come in two types: fixed code and
rolling code. Each type has its own programming
method, and each method is covered in the
manual. If the customer has concerns about
the HomeLink unit, have the customer contact the
HomeLink the assistance desk at 1-800-355-3515.
On the internet, go to www.homelink.com.
If the red indicator does not blink, replace the
HomeLink unit (see page 22-195).

*01

SJC8A00J54460600000DAAT00

22-207

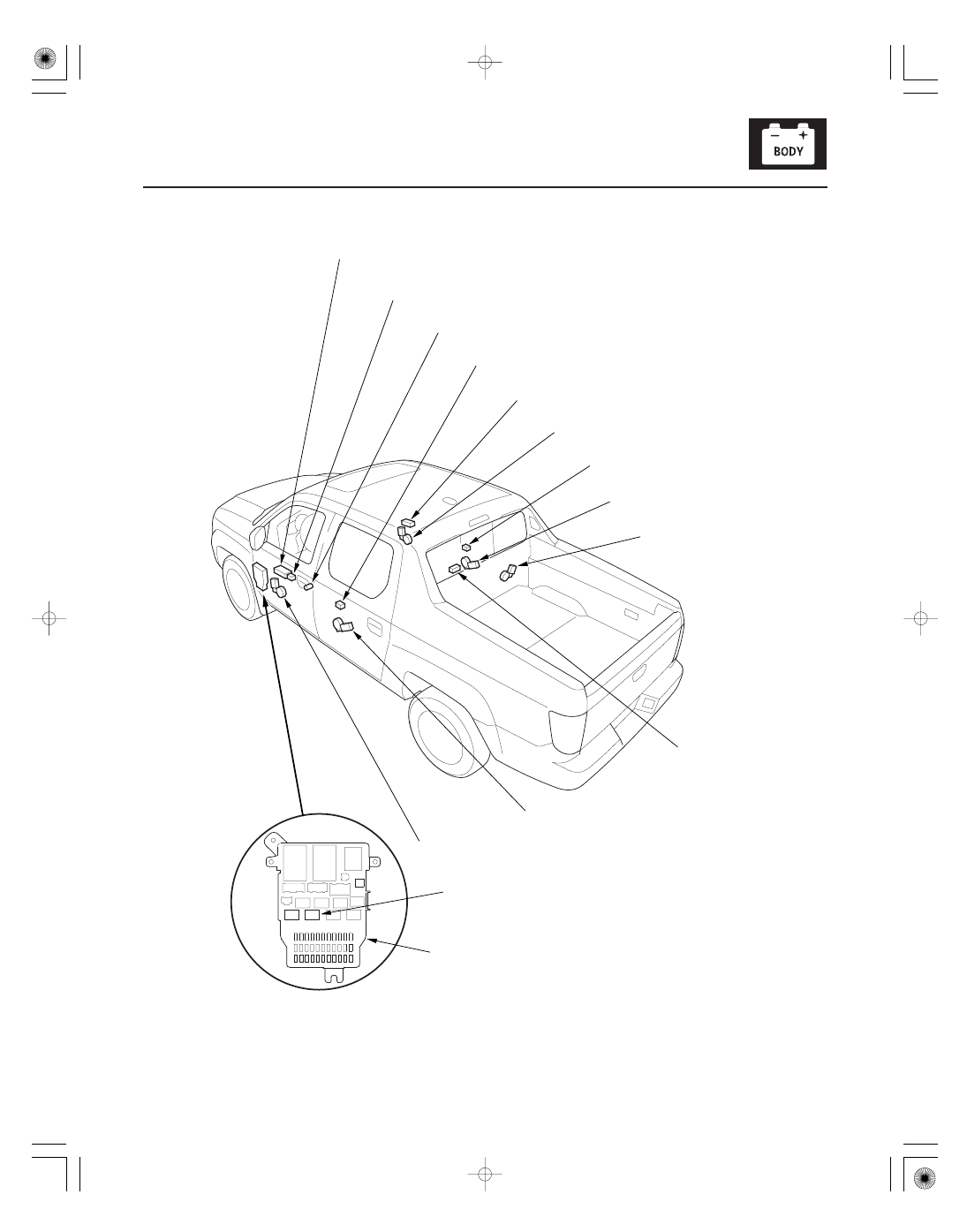

Power Windows

Component Location Index

BACK POWER WINDOW MOTOR

RIGHT REAR POWER WINDOW MOTOR

RIGHT REAR POWER WINDOW SWITCH

FRONT PASSENGER’S POWER WINDOW MOTOR

FRONT PASSENGER’S POWER WINDOW SWITCH

DRIVER’S DOOR KEY CYLINDER SWITCH

LEFT REAR POWER WINDOW SWITCH

POWER WINDOW RELAY

BACK POWER WINDOW SWITCH

POWER WINDOW MASTER SWITCH

BACK POWER WINDOW
POSITION SWITCH

DRIVER’S POWER WINDOW MOTOR

LEFT REAR POWER WINDOW MOTOR

UNDER-DASH FUSE/RELAY BOX

Test, page 22-223

Test, page 22-221

Test/Replacement, page 22-222

Test, page 22-221

Test/Replacement, page 22-222

Test, page 22-148

Test/Replacement, page 22-222

Test, page 22-75

Test/Replacement, page 22-223

Input Test, page 22-217
Replacement, page 22-221

Test, page 22-224

Test, page 22-220

Test, page 22-221
