Console Box Light 1

Console Box Light 2

Center Console Light 1:

3.8 W

Console Box Light 2:

1.4 W

22-196

Interior Lights

Console Box Light Replacement

A

B

A

B

C

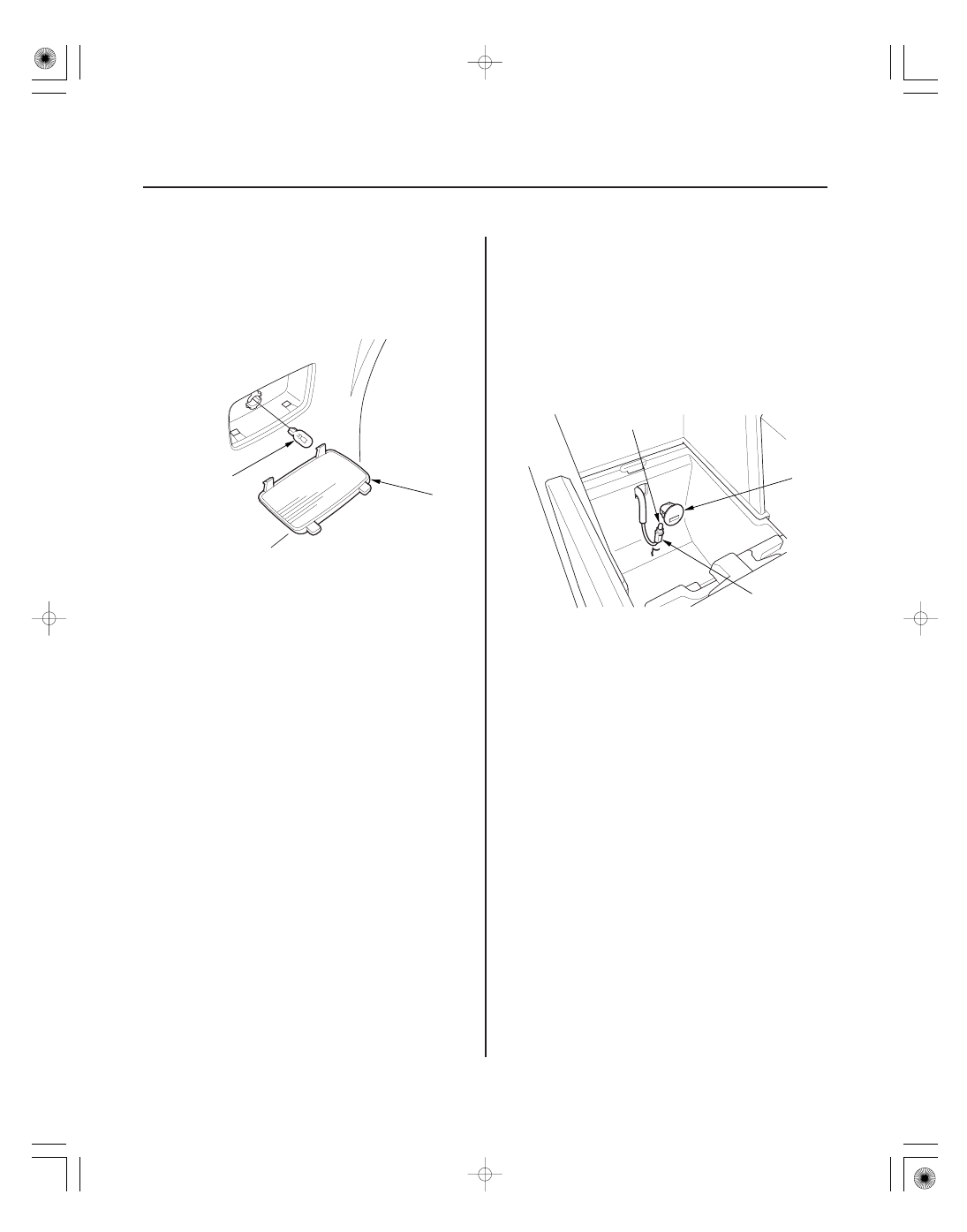

1. Carefully pry off the lens (A) with a small

screwdriver.

2. Remove the bulb (B) from the socket.

1. Remove the center console (see page 20-76).

2. Carefully pry the console box light out of the center

console.

3. Twist the socket (A) to remove it from the console

box light (B).

4. Remove the bulb (C) from the socket.

5. Install the light in the reverse order of removal.

01

SJC8A00J32300063101FEAT00

01

02

SJC8A00J32320520101KBAT00

Vanity mirror light:

2 W

Front Door Courtesy light: 3.8 W
Rear Door Courtesy light:

3.8 W

22-197

22-197

Vanity Mirror Light Test

Courtesy Light Replacement

A

B

C

A

B

A

B

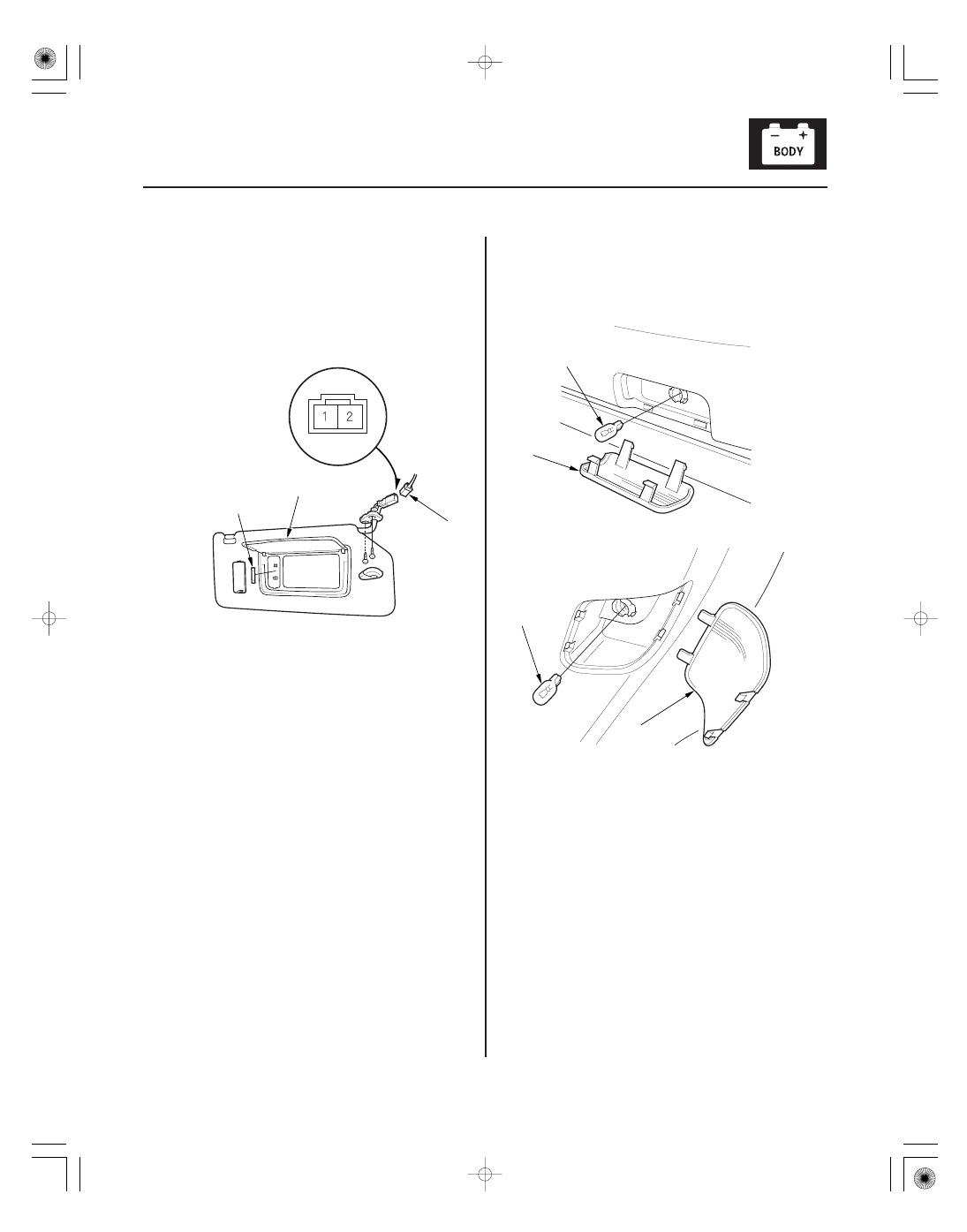

1. Open the sunvisor.

2. Remove the sunvisor (see page 20-70).

3. Disconnect the 2P connector (A) from the vanity

mirror light.

4. Check for continuity between the No. 1 and No. 2

terminals.

• With the vanity mirror cover (B) opened, there

should be continuity.

• With the vanity mirror cover closed, there should

be no continuity.

5. If the continuity is not as specified, replace the bulb

(C) or the sunvisor.

1. Carefully pry off the lens (A) with a small

screwdriver.

2. Remove the bulb (B) from the socket.

01

SJC8A00J32300030111FHAT00

01

02

SJC8A00J32300035061FHAT00

Glove Box Light: 3.4 W

22-198

22-198

Interior Lights

Glove Box Light Test/Replacement

Interior Light Switch Test/
Replacement

A

D

B

C

A

B

Terminal

Position

OFF

MIDDLE

ON

2

5

1

3

4

6

1. Remove the glove box (see page 20-85).

2. Disconnect the 2P connector (A) from the glove box

light (B).

3. Check for continuity between the No. 1 and No. 2

terminals.

• With the button (C) released, there should be

continuity.

• With the button (C) pressed, there should be no

continuity.

4. If the continuity is not as specified, check the bulb

(D). If the bulb is OK, replace the light.

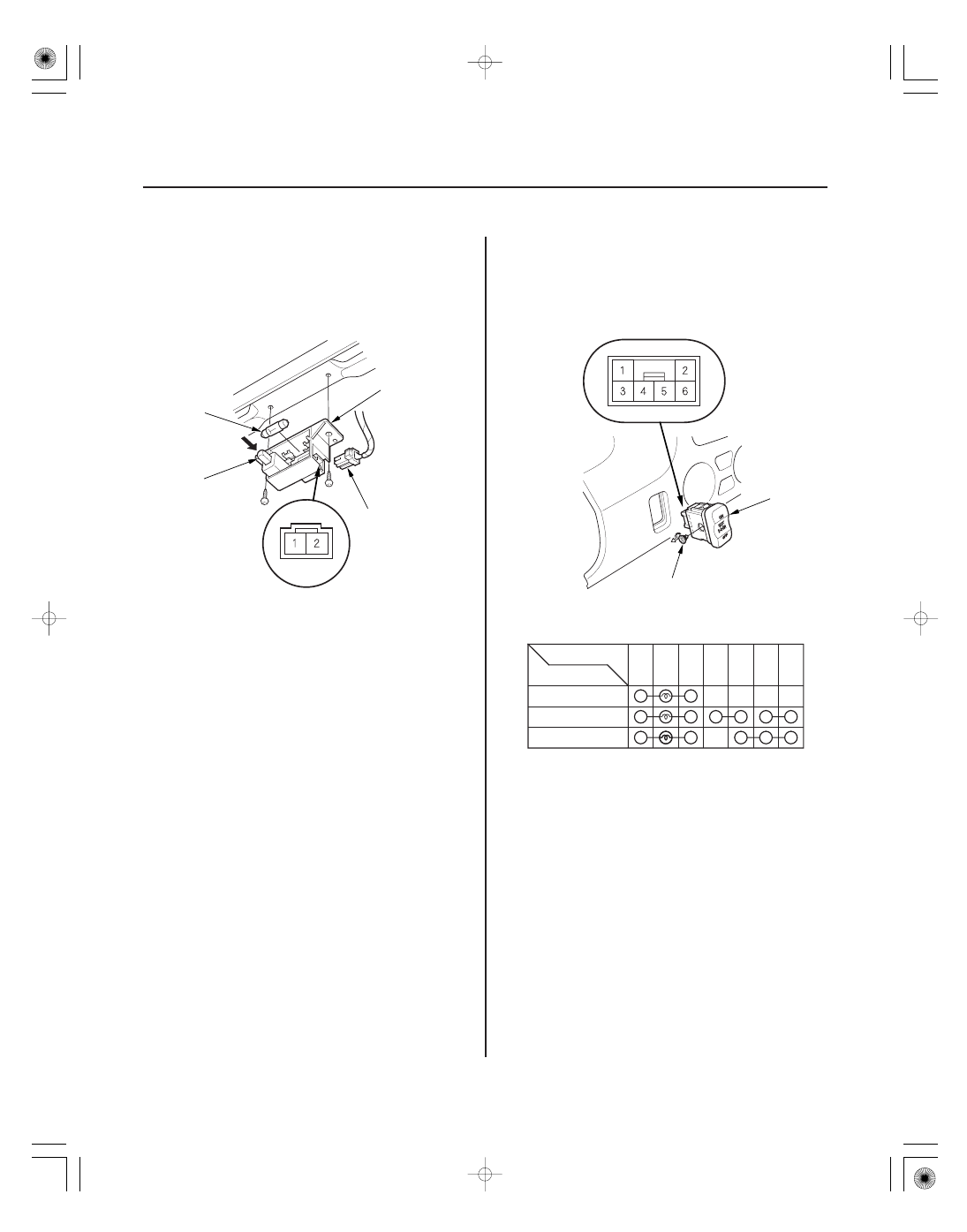

1. Remove the instrument panel (see page 20-81).

2. Push out the interior light switch (A) from behind

the dashboard lower cover.

3. Check for continuity between the terminals in each

switch position according to the table.

4. If the continuity is not as specified, replace the bulb

(B) or the interior light switch.

*01

SJC8A00J32323300000DAAT00

22-199

Entry Lights Control System

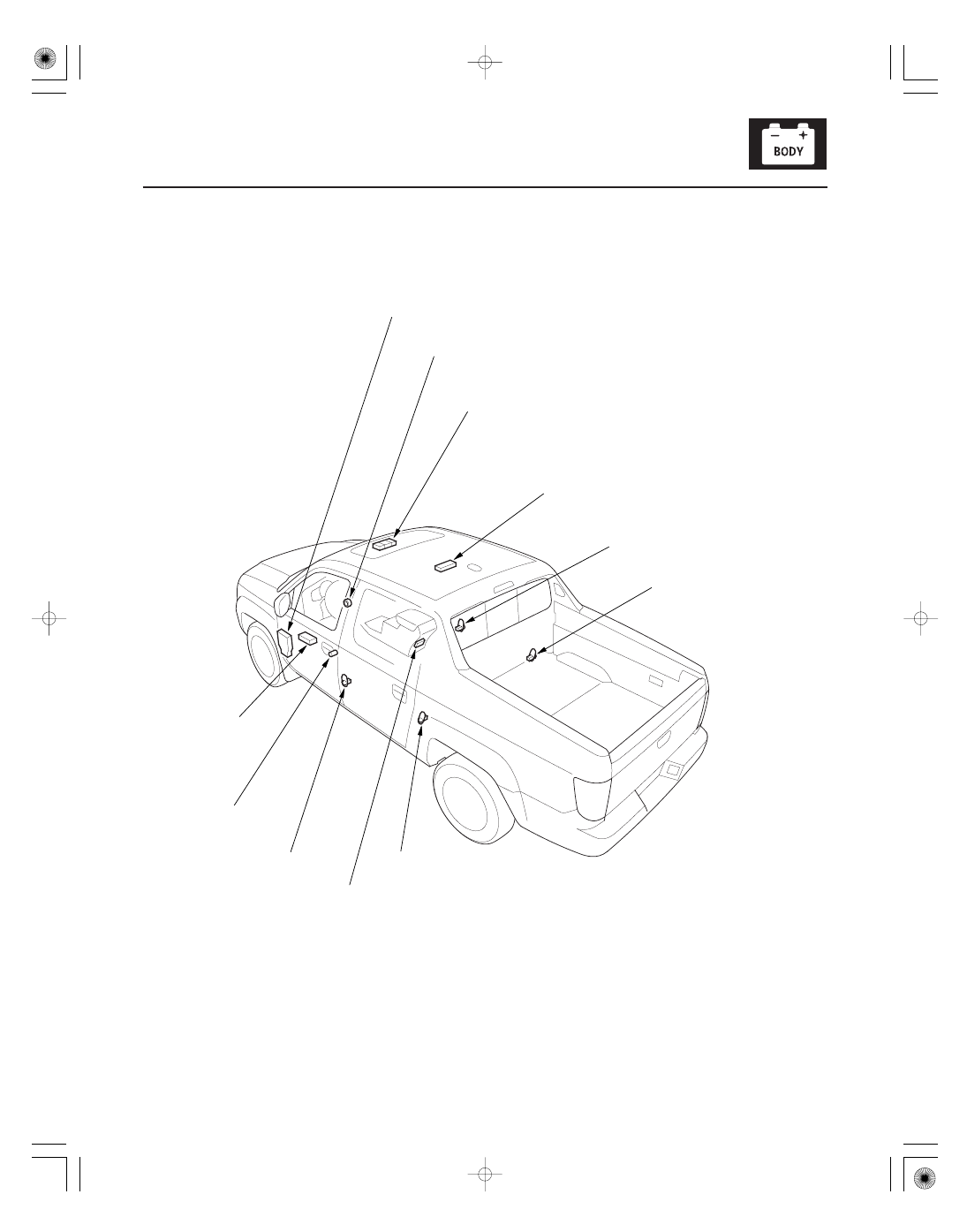

Component Location Index

RIGHT REAR DOOR SWITCH

FRONT PASSENGER’S DOOR SWITCH

CEILING LIGHT

FRONT INDIVIDUAL MAP LIGHTS
(With HomeLink Remote Control)

IGNITION KEY SWITCH

IGNITION KEY LIGHT

MICU
(Built into the under-dash fuse/relay box)

DOOR MULTIPLEX
CONTROL UNIT
(Built in the
power window
master switch)

LEFT REAR DOOR SWITCH

DRIVER’S DOOR SWITCH

DRIVER’S DOOR
KEY CYLINDER SWITCH

FRONT INDIVIDUAL MAP LIGHTS
(Without HomeLink Remote control)

CONSOLE BOX LIGHT 1

Replacement, page 22-195

Replacement, page 22-194

Test, page 22-204

Test, page 22-204

Input Test, page 22-201

Input Test,

page 22-201

Test, page 22-148

Replacement, page 22-194

Replacement, page 22-196
