22-8

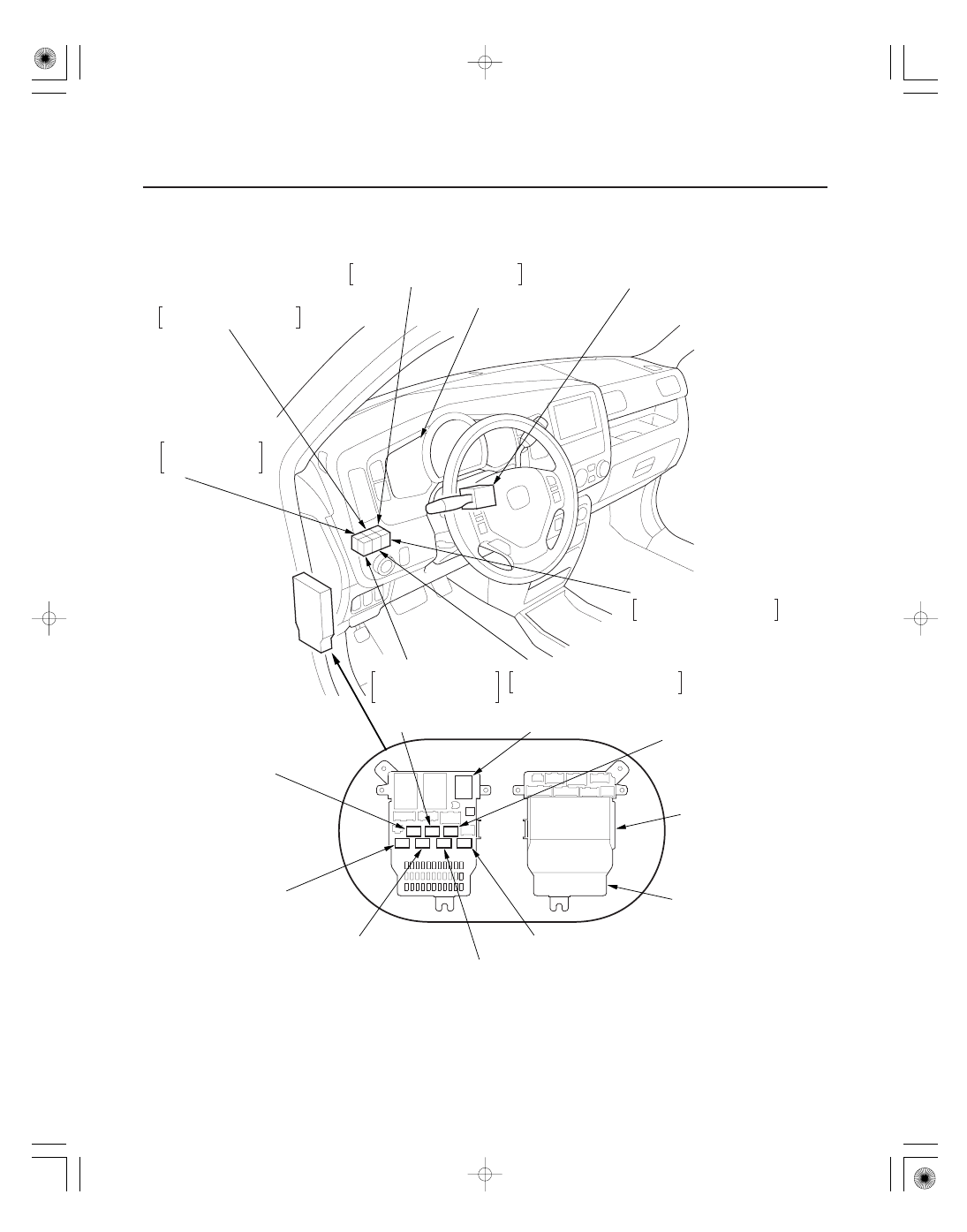

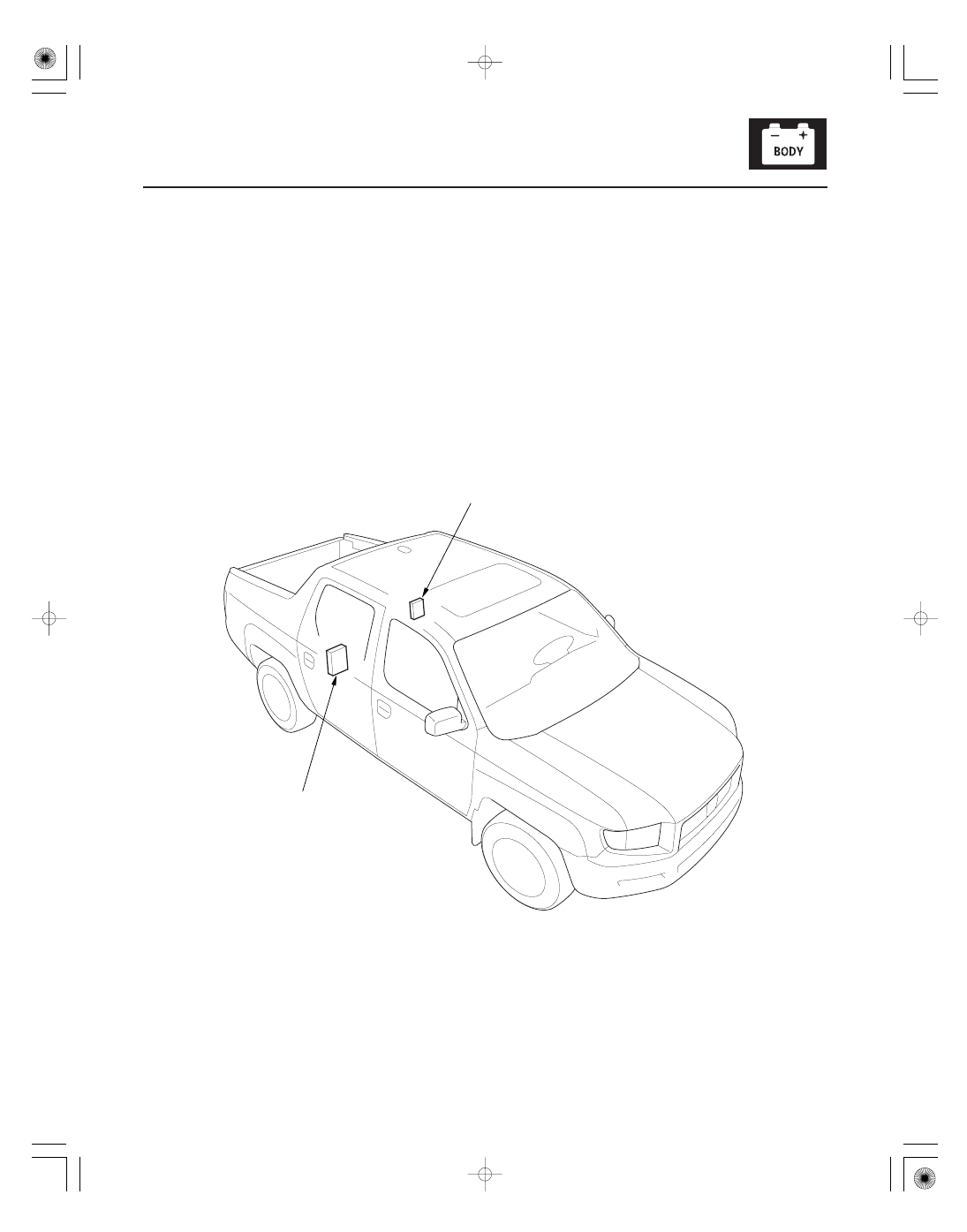

Relay and Control Unit Locations

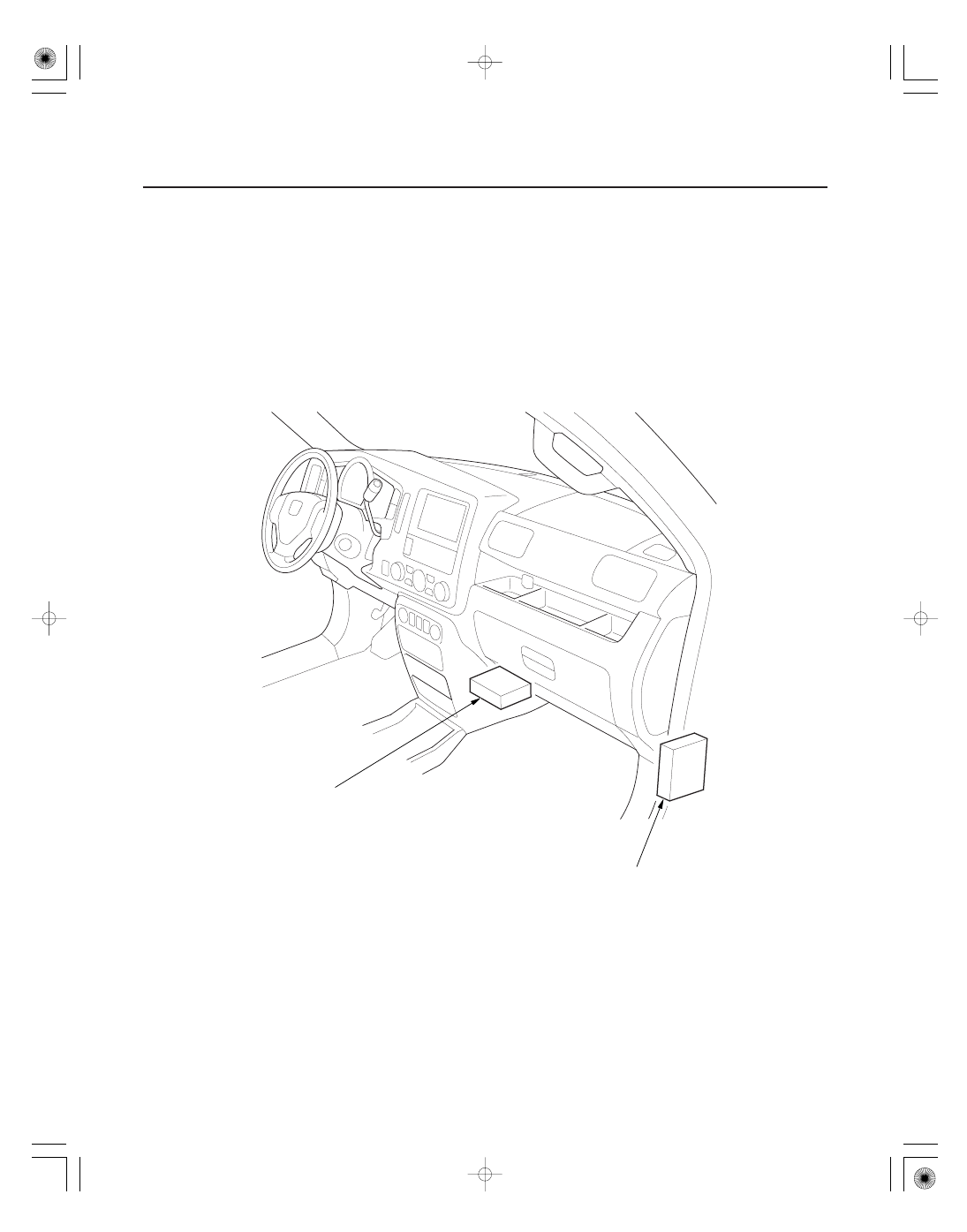

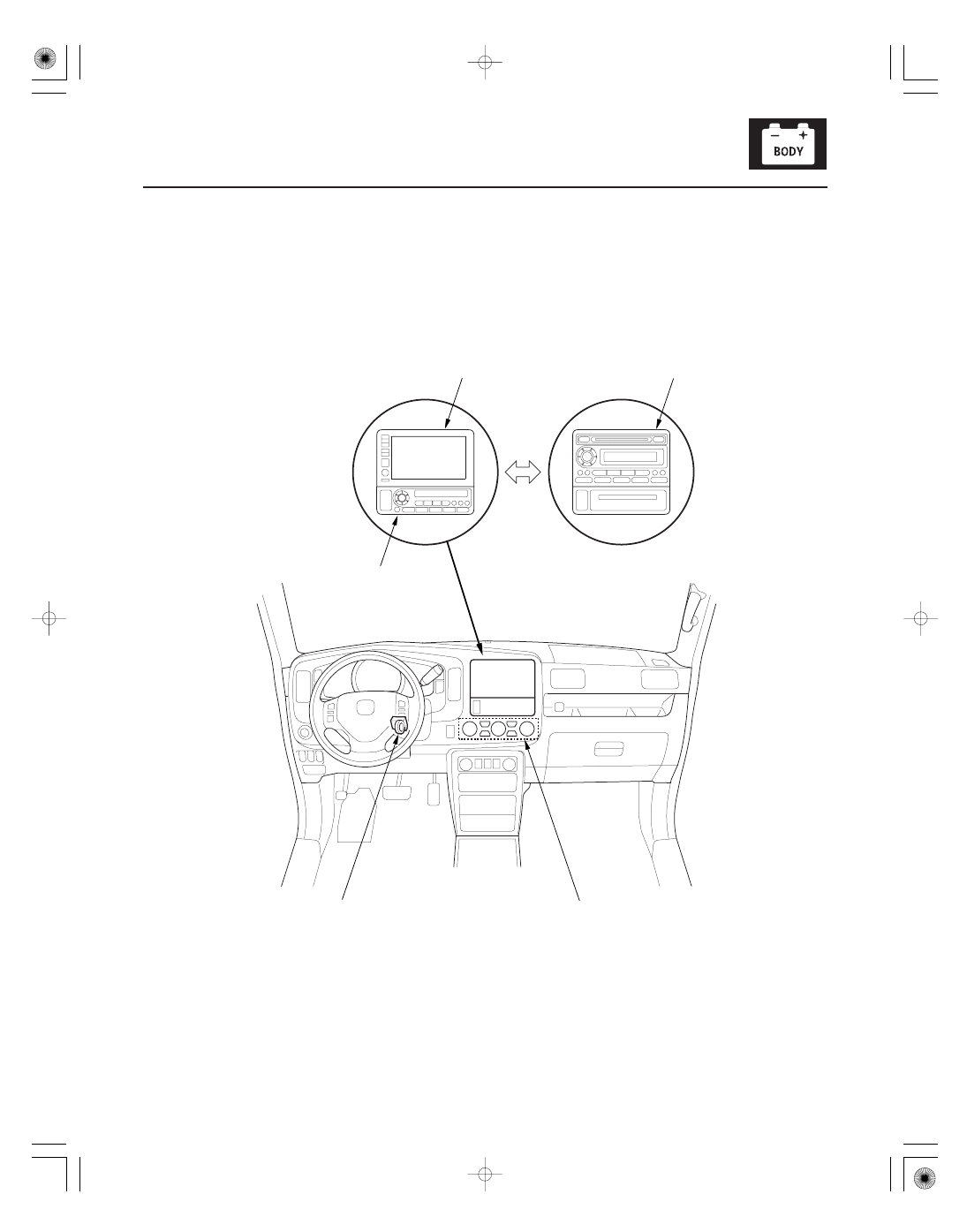

Dashboard
DAYTIME RUNNING LIGHTS RELAY (Canada)
COMBINATION SWITCH CONTROL UNIT
(Built into the wiper/washer switch)
FRONT ACCESSORY POWER SOCKET RELAY
TRAILER LIGHTING
RELAY (Y-OP)
LOW BEAM CUT RELAY (Canada)
CARGO AREA LIGHT RELAY
GAUGE CONTROL MODULE
VTM-4 RELAY
PGM-FI MAIN RELAY 1
(FI MAIN)
TURN SIGNAL/
HAZARD RELAY
REAR ACCESSORY POWER
SOCKET RELAY
MULTIPLEX INTEGRATED
CONTROL UNIT (MICU)
(Built into the under-dash
fuse/relay box)
UNDER-DASH
FUSE/RELAY BOX
STARTER CUT RELAY
A/F SENSOR RELAY
IGNITION COIL RELAY
PGM-FI MAIN RELAY 2
(Fuel pump relay)
POWER WINDOW RELAY
Wire colors: RED/BLK, RED/WHT,
RED/WHT, BLK and BLU/WHT
Wire colors: BLK, YEL/RED,
GRN/ORN and BLU/ORN
Wire colors: BLK,
BLK/YEL, GRN and
WHT/BLK
Wire colors: BLK, BLK/WHT
RED/BLK and RED/GRN
Wire colors: RED/WHT,
BLU/BLK, RED/WHT and YEL/BLU
Wire colors: WHT/RED,
RED/BLU, BLK/YEL and
ORN/GRN
