Honda Ridgeline. Manual - part 426





Interior Lights

Entry Lights Control System

HomeLink Remote Control System

Power Windows

Wipers/Washers

Gauges

Safety Indicator System

Reminder Systems

Moonroof

Accessory Power Sockets

Power Seats

Seat Heaters

Power Mirrors

......................

..........................................

...........................................

.....................

........................

..............

............................

....................

..........

..

......................

..........................................

...........................................

.....................

........................

..............

............................

....................

..........

..

Component Location Index

. 22-191

Circuit Diagram

. 22-192

Front Individual Map Light

Replacement

. 22-194

Ambient Light Replacement

. 22-195

Ceiling Light Replacement

. 22-195

Console Box Light Replacement

. 22-196

Vanity Mirror Light Test

. 22-197

Courtesy Light Replacement

. 22-197

Glove Box Light Test/Replacement

. 22-198

Interior Light Switch Test/Replacement

. 22-198

......................

..........................................

..............................

...........................

..............................

......................

..........................................

..............................

...........................

..............................

Component Location Index

. 22-199

Circuit Diagram

. 22-200

Control Unit Input Test

. 22-201

Ignition Key Switch Test

. 22-204

Ignition Key Light Test

. 22-204

..........................................

.............................................................

..........................................

.............................................................

Circuit Diagram

. 22-205

Test

. 22-205

......................

...................................

............................................

..........................................

................................

..........................

........

..........................................................

.....................

..................................

..............

..................................

..........................................................

......................

...................................

............................................

..........................................

................................

..........................

........

..........................................................

.....................

..................................

..............

..................................

..........................................................

Component Location Index

. 22-207

System Description

. 22-208

Resetting the Power Window

Control Unit

. 22-209

Circuit Diagram

. 22-211

DTC Troubleshooting

. 22-214

Master Switch Input Test

. 22-217

Driver’s Power Window Motor Test

. 22-220

Passenger’s Power Window Motor

Test

. 22-221

Master Switch Replacement

. 22-221

Passenger’s Power Window Switch

Test/Replacement

. 22-222

Back Power Window Motor Test

. 22-223

Back Power Window Switch

Test/Replacement

. 22-223

Back Power Window Position Switch

Test

. 22-224

......................

..........................................

................................

................................................

..........

.......................................

....................................

...............

.......................

...............

........................

................

......................

......................

..........................................

................................

................................................

..........

.......................................

....................................

...............

.......................

...............

........................

................

......................

Component Location Index

. 22-225

Circuit Diagram

. 22-226

DTC Troubleshooting

. 22-228

Combination Switch Control Unit

Input Test

. 22-233

Combination Switch Replacement

. 22-235

Wiper Motor Test

. 22-235

Washer Motor Test

. 22-236

Washer Fluid Level Switch Test

. 22-236

Wiper Motor Replacement

. 22-237

Washer Reservoir Replacement

. 22-238

Wiper Blade Replacement

. 22-239

Wiper Arm/Nozzle Adjustment

. 22-240

Washer Tube Replacement

. 22-241

......................

...........................

..........................................

................................

......

.................

..............................................

...

......................

...........................

..........................................

................................

......

.................

..............................................

...

Component Location Index

. 22-242

Self-diagnostic Function

. 22-244

Circuit Diagram

. 22-247

DTC Troubleshooting

. 22-254

Gauge Control Module Replacement

. 22-263

Rewriting the ODO Data and Transferring

the Maintenance Minder on a
New Gauge Control Module

. 22-263

Outside Air Temperature Indicator

Calibration

. 22-264

Select/Reset Switch Test/Replacement

. 22-266

......................

..........................................

..............................

......................

..........................................

..............................

Component Location Index

. 22-267

Circuit Diagram

. 22-268

Control Unit Input Test

. 22-269

..........................................

..............................

..........................................

..............................

Circuit Diagram

. 22-272

Control Unit Input Test

. 22-273

......................

..........................................

.......................................

........................

.................................................

................................

......................

..........................................

.......................................

........................

.................................................

................................

Component Location Index

. 22-276

Circuit Diagram

. 22-277

Limit Switch Test

. 22-278

Limit Switch Replacement

. 22-278

Switch Test

. 22-279

Moonroof Motor Test

. 22-279

......................

..........................................

..................................

..................................

......................

..........................................

..................................

..................................

Component Location Index

. 22-280

Circuit Diagram

. 22-281

Driver’s and Front Passenger’s

Accessory Power Socket
Test/Replacement

. 22-282

Rear Accessory Power Socket

Test/Replacement

. 22-283

......................

..........................................

.........................

..................................................

......................

..........................................

.........................

..................................................

Component Location Index

. 22-284

Circuit Diagram

. 22-285

Switch Test/Replacement

. 22-286

Motor Test

. 22-287

......................

..........................................

........................................

.........................

......................

..........................................

........................................

.........................

Component Location Index

. 22-288

Circuit Diagram

. 22-289

Seat Heater Test

. 22-290

Switch Test/Replacement

. 22-291

......................

..........................................

.........

..................................

......................

.......

......................

..........................................

.........

..................................

......................

.......

Component Location Index

. 22-292

Circuit Diagram

. 22-293

Power Mirror Switch Function Test

. 22-294

Power Mirror Switch

Test/Replacement

. 22-295

Power Mirror Actuator Test

. 22-296

Power Mirror Actuator Replacement

. 22-297

Power Lumbar Support

In-Bed Trunk Lid Opener

Electrical Compass

Heated Windshield Wiper Area

Immobilizer System

......................

..........................................

.........................

..................................................

......................

..........................................

.........................

..................................................

Component Location Index

. 22-298

Circuit Diagram

. 22-299

Switch Test/Replacement

. 22-300

Motor Test

. 22-300

......................

..........................................

................

......................

..........................................

................

Component Location Index

. 22-301

Circuit Diagram

. 22-302

Main Switch Test/Replacement

. 22-303

......................

..........................................

..........

................

......................

..........................................

..........

................

Component Location Index

. 22-305

Circuit Diagram

. 22-306

Electrical Compass Unit Input Test

. 22-307

Electrical Compass Calibration

. 22-308

......................

..........................................

..............................................

......................

..........................................

..............................................

Component Location Index

. 22-309

Circuit Diagram

. 22-310

Function Test

. 22-311

......................

...................................

..........................................

.............................................

.....................

............................................

..................................................

....................................................

................................

................................................

...........................................

......................

...................................

..........................................

.............................................

.....................

............................................

..................................................

....................................................

................................

................................................

...........................................

Component Location Index

. 22-312

System Description

. 22-314

Circuit Diagram

. 22-315

Symptom Troubleshooting

Information

. 22-316

Symptom Troubleshooting

. 22-318

System Check

. 22-322

Status Log

. 22-323

Registration for Immobilizer

System

. 22-324

. 22-325

Input Test

. 22-327

Immobilizer Control Unit-Receiver

Replacement

. 22-329

.................

.................

In-Bed Trunk Lid Actuator Test

. 22-304

In-Bed Trunk Lid Handle Switch Test/

Replacement

.................

..................

Immobilizer Control Unit-Receiver

Replacement

Imoes Unit Input Test/

.................

.................. 22-303

....

....

..

..

..

....

....

..

..

..

..

01

01

SJC8A000000000J2201PAAT00

Ref. No.

Tool Number

Description

Qty

22-2

Body Electrical

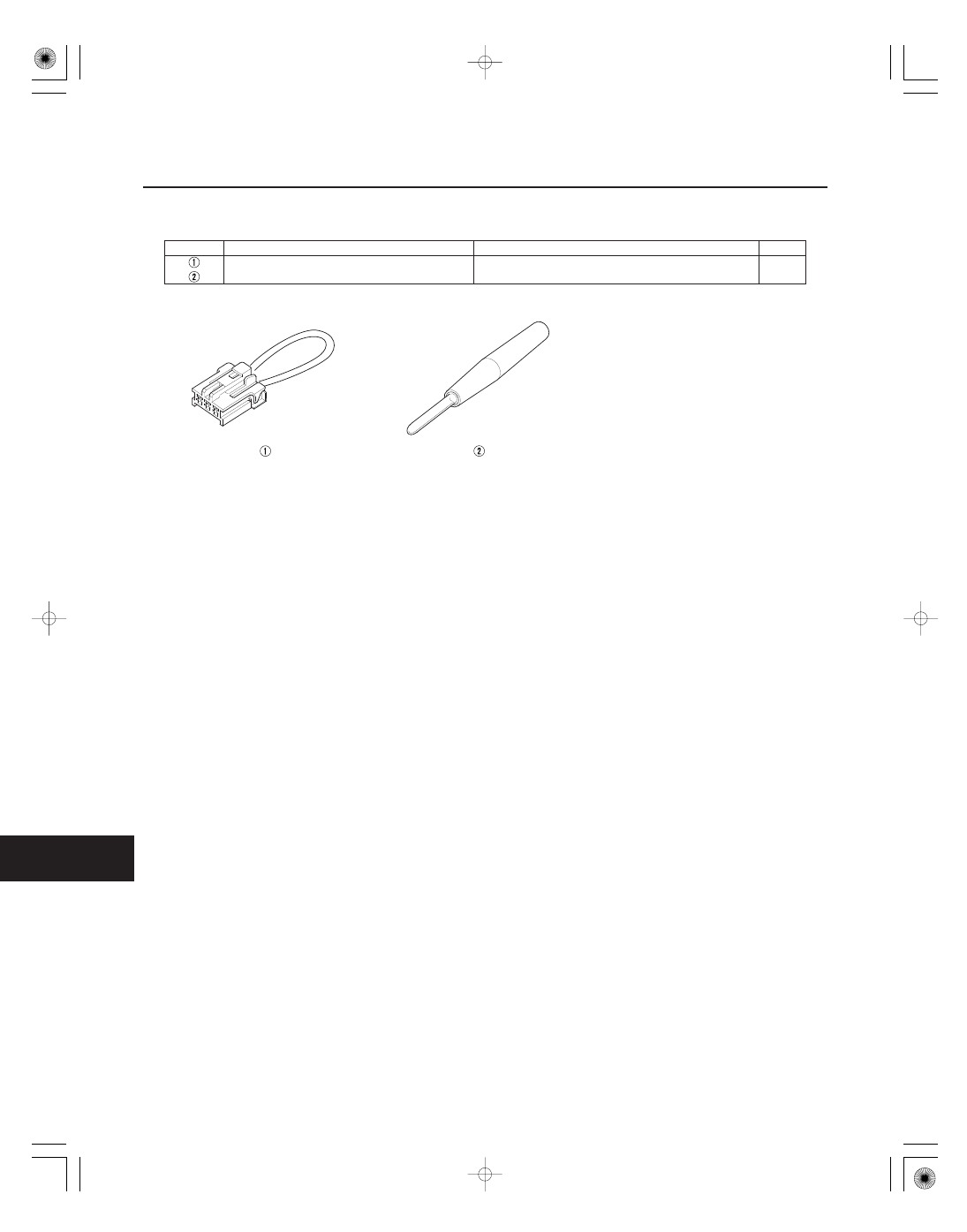

Special Tools

07WAZ-001010A

MPCS (MCIC) Service Connector

1

07TAZ-001020A

Back Probe Adaptor

1

01

02

03

04

SJC8A00J54200000000BBAT00

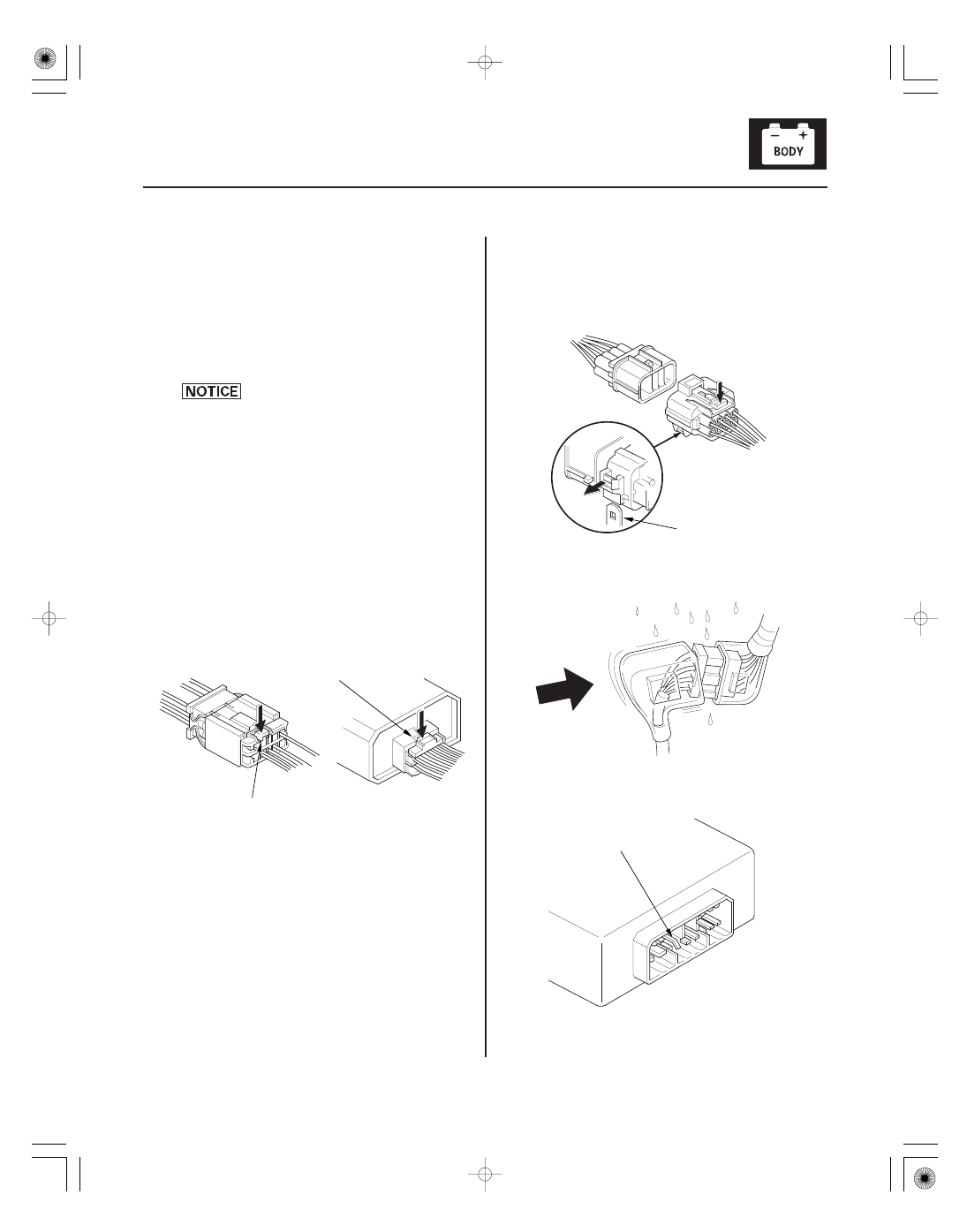

Tips and Precautions

Before Troubleshooting

Handling Connectors

22-3

General Troubleshooting Information

A

A

A

A

1. Check applicable fuses in the appropriate fuse/relay

box.

2. Check the battery for damage, state of charge, and

clean and tight connections.

• Do not quick-charge a battery unless the

battery ground cable has been
disconnected, otherwise you will damage
the alternator diodes.

• Do not attempt to crank the engine with

the battery ground cable loosely
connected or you will severely damage the
wiring.

• Make sure the connectors are clean and have no

loose wire terminals.

• Make sure multiple cavity connectors are packed with

dielectric grease (except watertight connectors).

• All connectors have push-down release type locks (A).

• Some connectors have a clip on their side used to

attach them to a mount bracket on the body or on
another component. This clip has a pull type lock.

• Some mounted connectors cannot be disconnected

unless you first release the lock and remove the
connector from its mount bracket (A).

• Never try to disconnect connectors by pulling on their

wires; pull on the connector halves instead.

• Always reinstall plastic covers.

• Before connecting connectors, make sure the

terminals (A) are in place and not bent.

(cont’d)
