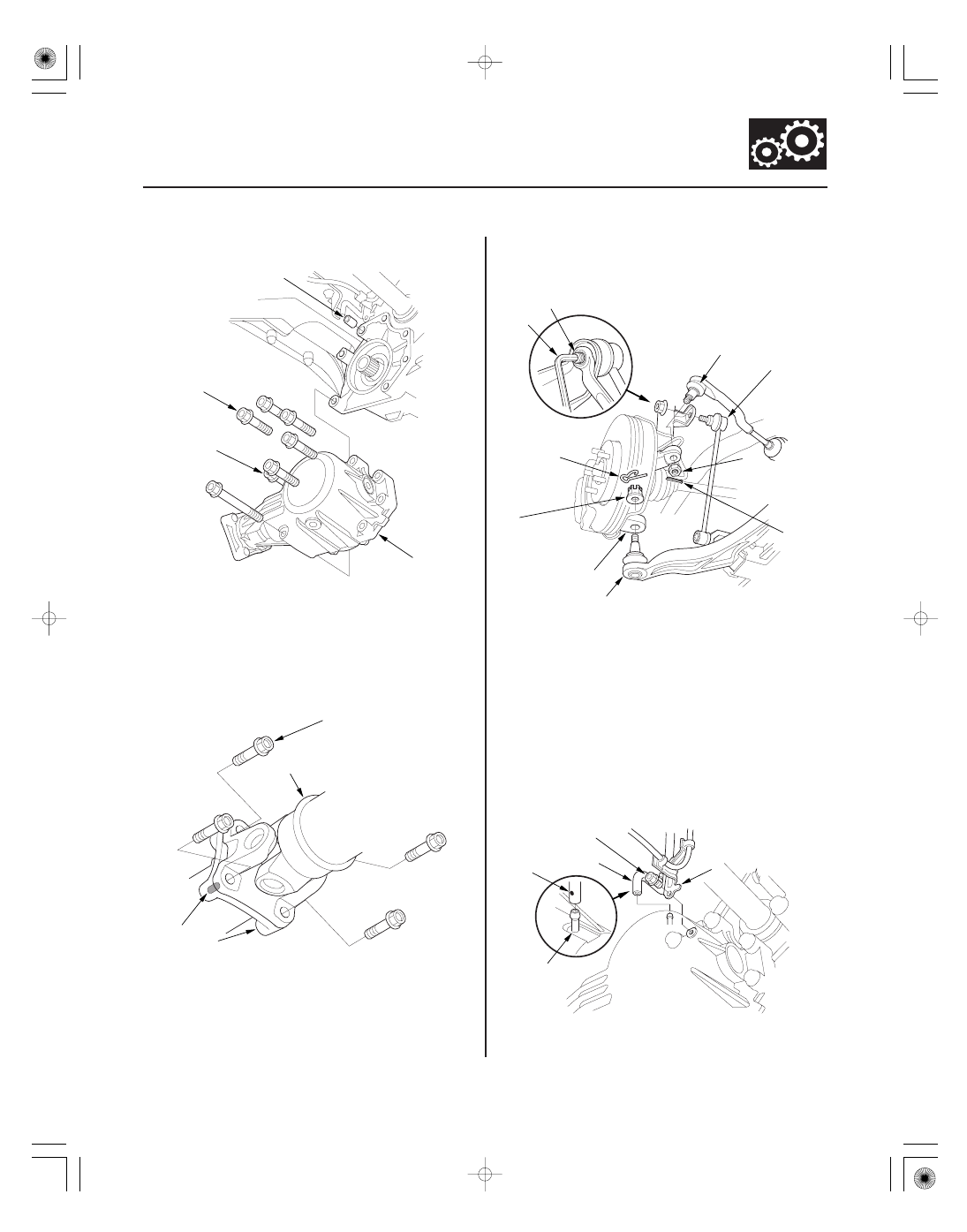

26. Install the dowel pin (A) in the transmission.

27. Insert the one 10 x 1.25 mm bolt (length: 105 mm)

(B) in the rear upper of the transfer housing, then
install the transfer assembly (C) on the
transmission.

28. Install the propeller shaft (A) to the transfer

companion flange (B) by aligning the reference
mark (C).

29. Install the ball joints on each lower arm (A) to each

knuckle (B) with new castle nuts (C), and secure the
castle nuts with the lock pins (D).

30. Install the nuts (E) to the ball joint pins (F) on each

stabilizer link (G). Insert a 6 mm Allen wrench (H) in
the top of the ball joint pins, and tighten the nuts to
the specified torque.

31. Install the tie-rod end ball joints (I) to each knuckle

with the nuts (J) and new cotter pins (K).

32. Secure the transfer breather hose bracket (A) on

the transfer assembly with the bolt, and install the
breather hose (B) over the breather pipe (C) with
the dot (D) on the hose facing out.

(cont’d)

Replace.

*02

20

21

22

14-234

Automatic Transmission

Transmission Installation (cont’d)

8 x 1.25 mm
22 N·m
(2.2 kgf·m,
16 lbf·ft)

B

C

C

10 x 1.25 mm
54 N·m
(5.5 kgf·m,
40 lbf·ft)

10 x 1.25 mm
33 N·m
(3.4 kgf·m, 25 lbf·ft)

A

10 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

D

10 x 1.25 mm
54 N·m (5.5 kgf·m, 40 lbf·ft)

10 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

10 x 1.25 mm
44 N·m
(4.5 kgf·m,
33 lbf·ft)

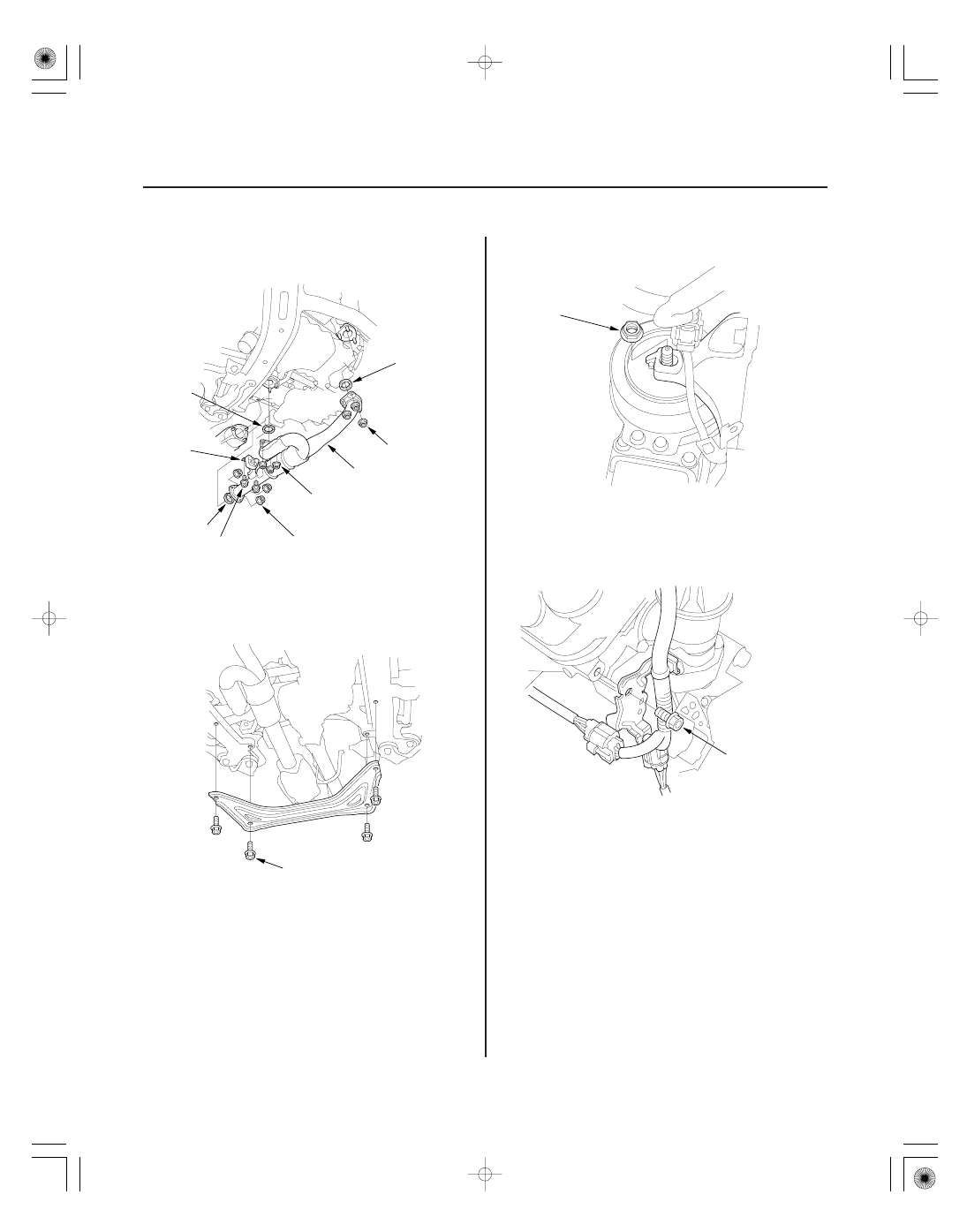

33. Install exhaust pipe A with the new self-locking

nuts, its mount (B), and new gaskets (C) (D).

34. Install the front subframe stiffener with new

mounting bolts.

35. Install a new front mount nut, and tighten it.

36. Remove the engine support hanger, the engine

hanger adapters, and the engine balance bar.

37. Install the connector bracket on the engine front

cylinder head.

Replace.

Replace.

Replace.

Replace.

Replace.

23

24

25

26

14-235

8 x 1.25 mm
26 N·m
(2.7 kgf·m, 20 lbf·ft)

A

B

C

D

E

A

B

C

D

A

B

A

C

B

C

38. Install the harness clamp brackets on the engine

rear cylinder head.

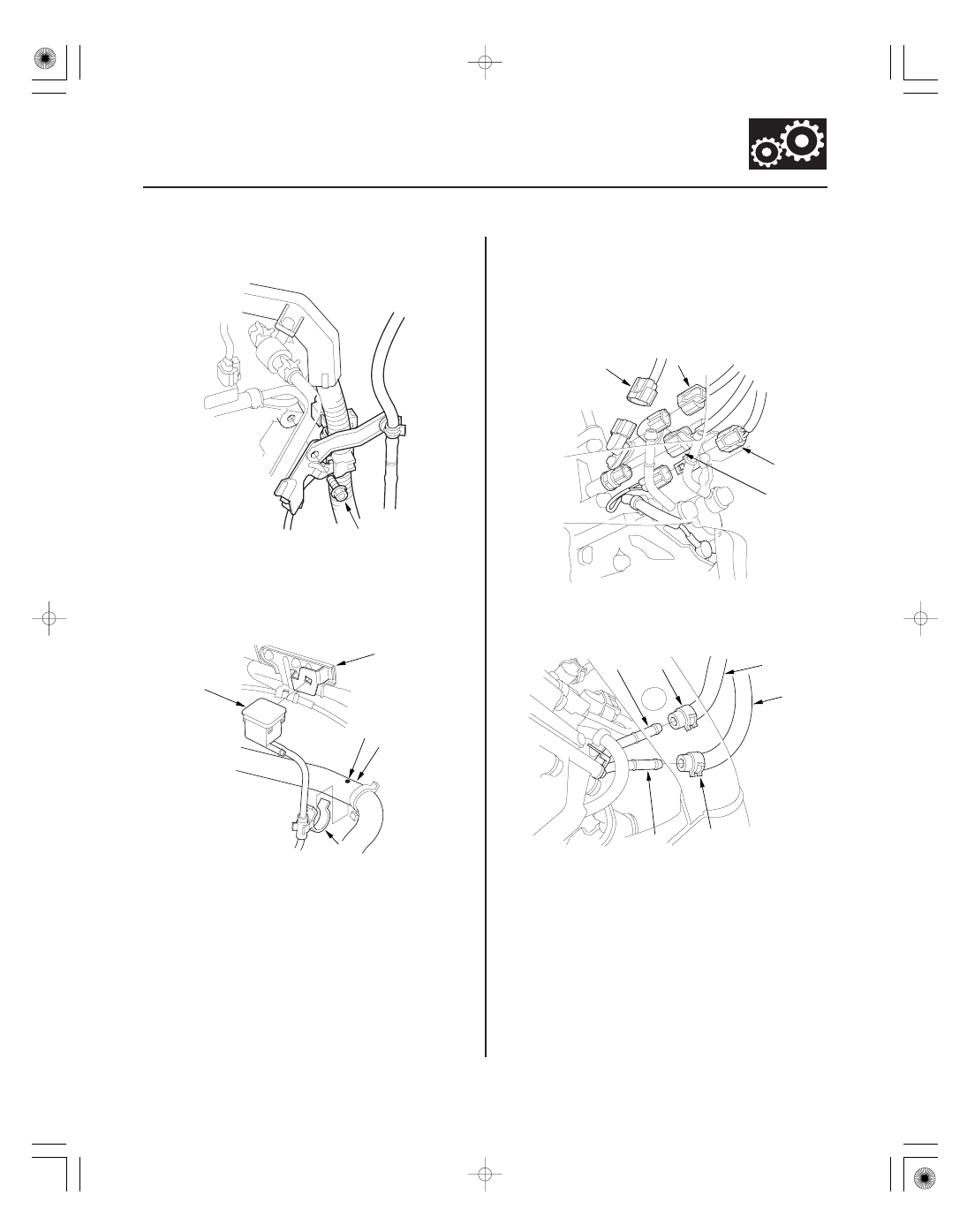

39. Install the transfer breather (A) on the throttle cable

bracket (B). Install the transfer breather hose clamp
(C) on the heater hose (D), centering the heater
hose dot (E) in the clamp opening.

40. Connect the input shaft (mainshaft) speed sensor

connector (A), the output shaft (countershaft) speed
sensor connector (B), the ATF temperature sensor
connector (C), and the 3rd clutch transmission fluid
pressure switch connector (D). Do not allow water,
fluid, oil, dust, or other foreign particles to enter
any of the connectors.

41. Connect the ATF cooler hoses (A) to the ATF cooler

lines (B), and secure the hoses with the clips (C)
(see page 14-241).

(cont’d)

27

28

29

30

14-236

Automatic Transmission

Transmission Installation (cont’d)

A

B

C

D

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

C

A

B

6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

6 x 1.0 mm
12 N·m
(1.2 kgf·m,
8.7 lbf·ft)

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

A

C

B

D

E

F

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m, 7.2 lbf·ft)

E

D

C

A

B

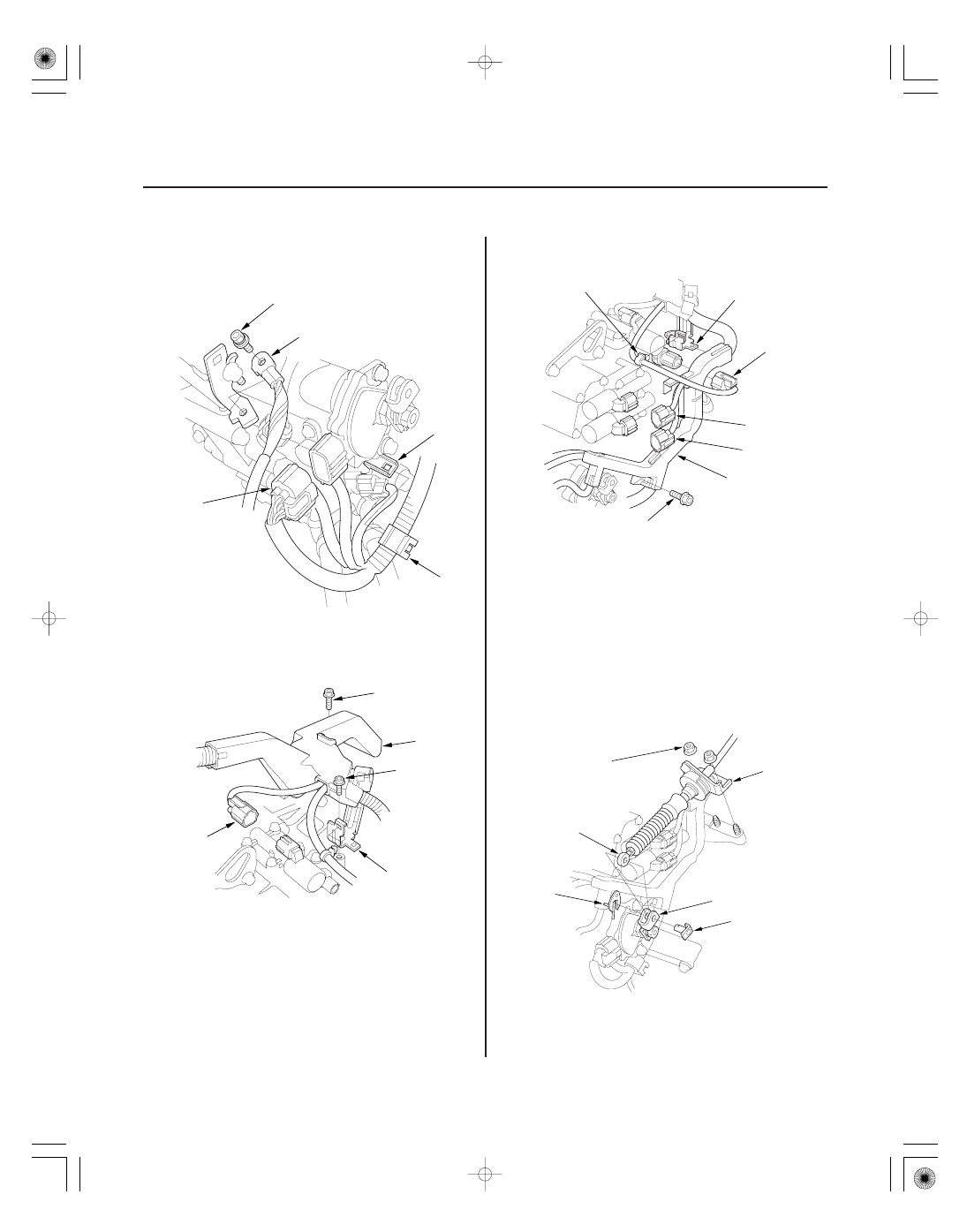

42. Connect the transmission range switch connector

(A), and install the harness clamp (B) on the clamp
bracket (C).

43. Install the transmission ground cable (D).

44. Secure the harness cover (A) and the harness cover

/clamp bracket (B) with the bolts.

45. Connect the A/T clutch pressure control solenoid

valve C connector (C).

46. Install the harness cover (A) on the harness cover/

clamp bracket (B), and secure it with the bolt.

47. Connect the 4th clutch transmission fluid pressure

switch connector (C), and install the harness clamp
(D) on the bracket. Connect the A/T clutch pressure
control solenoid valve A connector (E), and the A/T
clutch pressure control solenoid valve B connector
(F).

48. Attach the shift cable end (A) to the control lever (B),

then insert the control pin (C) into the control lever
hole through the shift cable end, and secure the
control pin with the spring clip/washer (D).

49. Secure the shift cable bracket (E) with the nuts.
