Honda Ridgeline. Manual - part 210





26

27

28

29

14-225

A

A

B

C

A

B

A

A

B

EQS02BMDXSB0

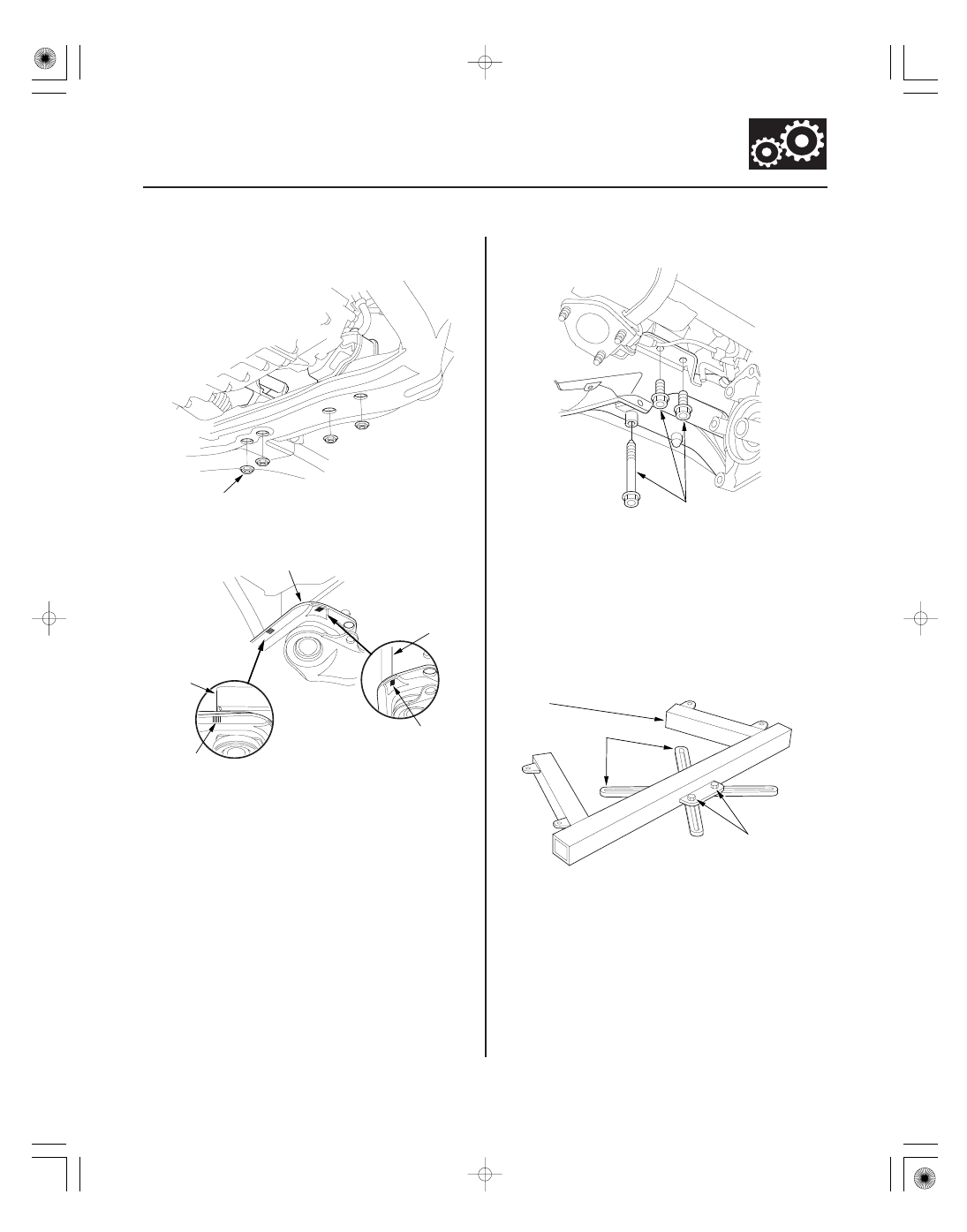

51. Remove the four transmission lower mount nuts

(A).

52. Make reference marks (A) on the body across the

marks (B) on the edge of the front subframe (C).

53. Remove the three rear mount bracket bolts (A).

54. Loosen the four bolts (A) holding the adjustable

arms (B) of the front subframe adapter
(EQS02BMDXSB0) to its center plate.

NOTE: The adapter is designed to be used the
Honda transmission jack (model number
LSL-W93714) or powertrain lift (model number
OTC-1585), both available through the Honda Tool
and Equipment Program. It will also work with
most commercially available transmission jacks.

(cont’d)

30

01

31

32

14-226

Automatic Transmission

Transmission Removal (cont’d)

B
10 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

EQS02BMDXB0

A

A

A

B

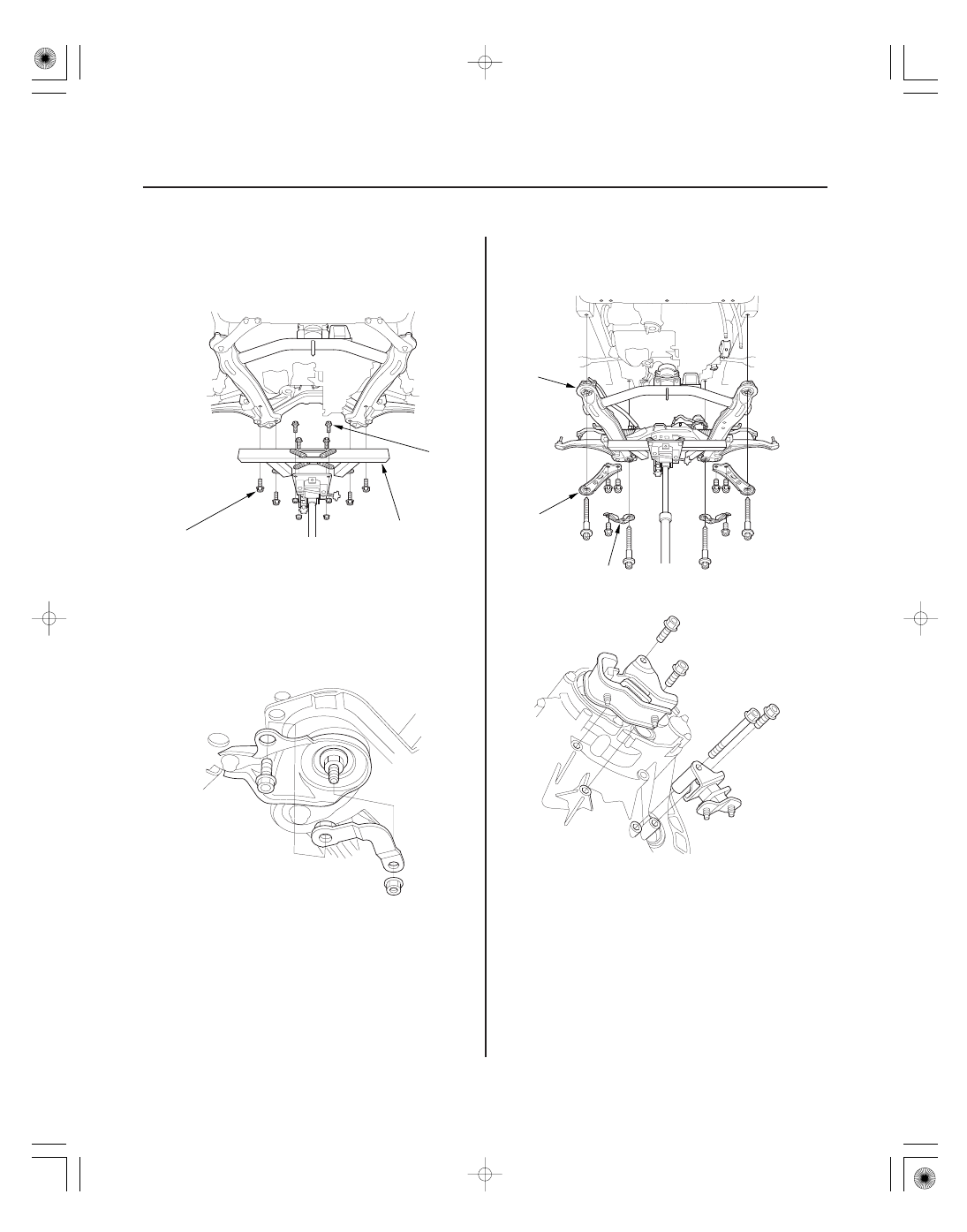

55. Line up the slots in the arms with the bolt holes on

the corner of the jack base, then attach the adapter
to the jack base with the bolts (A) that came with
the jack. Tighten the bolts securely.

56. Raise the jack to the vehicle height, then attach the

adapter to the front subframe using the subframe
stiffener mounting bolts (B) and bolt holes.

57. For ’07-08 models: Remove both retainers securing

the rear mounting bolts of the front subframe.

58. Remove the six bolts securing the stiffeners (A) and

the four bolts securing the front subframe (B), and
lower the front subframe.

59. Remove the transmission lower mounts.

*04

03

35

36

14-227

B

A

C

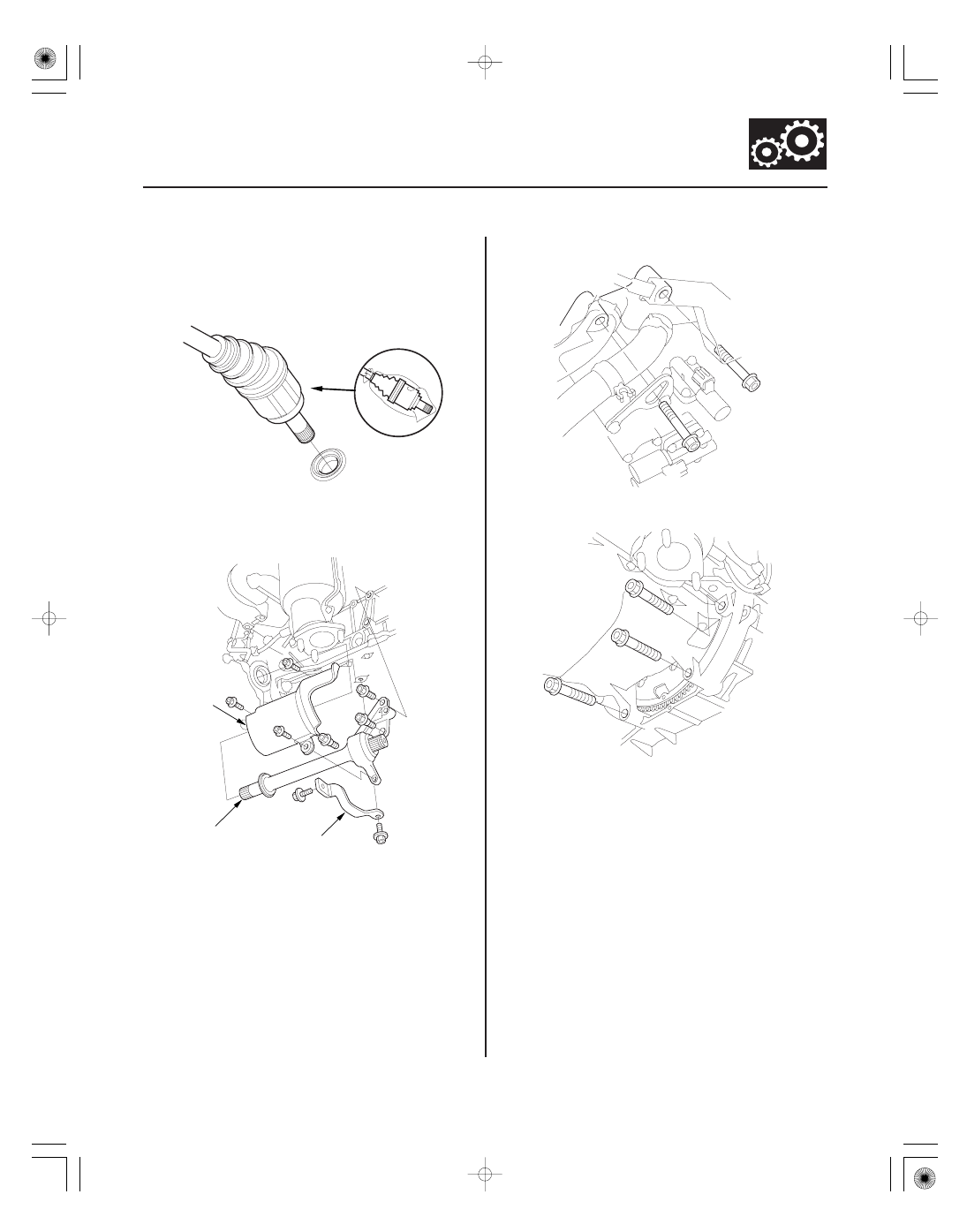

60. Remove the driveshafts from the differential and

the intermediate shaft. Coat all precision machined
surfaces with clean engine oil, then put plastic bags
over the driveshaft ends.

61. Remove the exhaust manifold bracket (A) and the

heat shield (B).

62. Remove the intermediate shaft (C). Coat all

precision machined surfaces with clean engine oil,
then put the plastic bags over the intermediate
shaft ends.

63. Remove the transmission housing mounting bolts.

64. Remove the transmission housing mounting bolts.

(cont’d)

37

38

39

14-228

Automatic Transmission

Transmission Removal (cont’d)

A

B

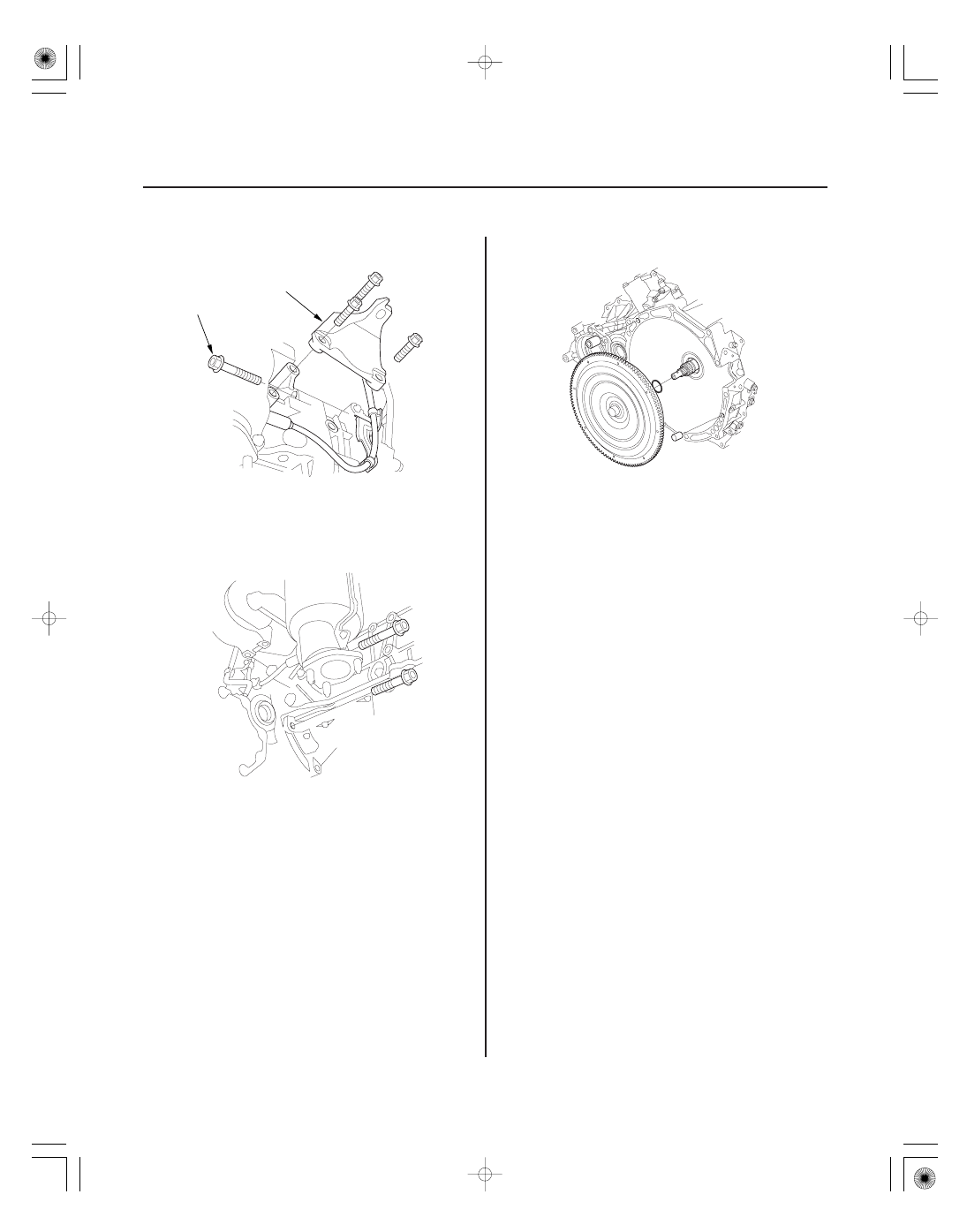

65. Remove the front mount bracket (A).

66. Remove the transmission housing mounting bolt

(B) using a socket 22 mm in length.

67. Remove the transmission housing mounting bolts.

68. Lower the transmission by loosening the wing nut

of the engine support hanger, and tilt the engine
just enough for the transmission end to clear the
side frame.

69. Place a jack under the transmission.

70. Slide the transmission away from the engine to

remove it from the vehicle.

71. Remove the torque converter and the dowel pins.

72. Inspect the drive plate, and replace if it’s damaged.
