Honda Ridgeline. Manual - part 28





5-22

Engine Assembly

Engine Installation (cont’d)

68. Do the crankshaft position (CKP) pattern clear/CKP

pattern learn procedure (see page 11-4).

69. Inspect the idle speed (see page 11-272).

70. Inspect the ignition timing (see page 4-18).

71. Enter the anti-theft codes for the audio system and

navigation system (if equipped).

72. Do the power window control unit reset procedure

(see page 22-209).

73. Set the clock (on vehicles without navigation).

01

SJC8A00A18224000000KBAT00

5-23

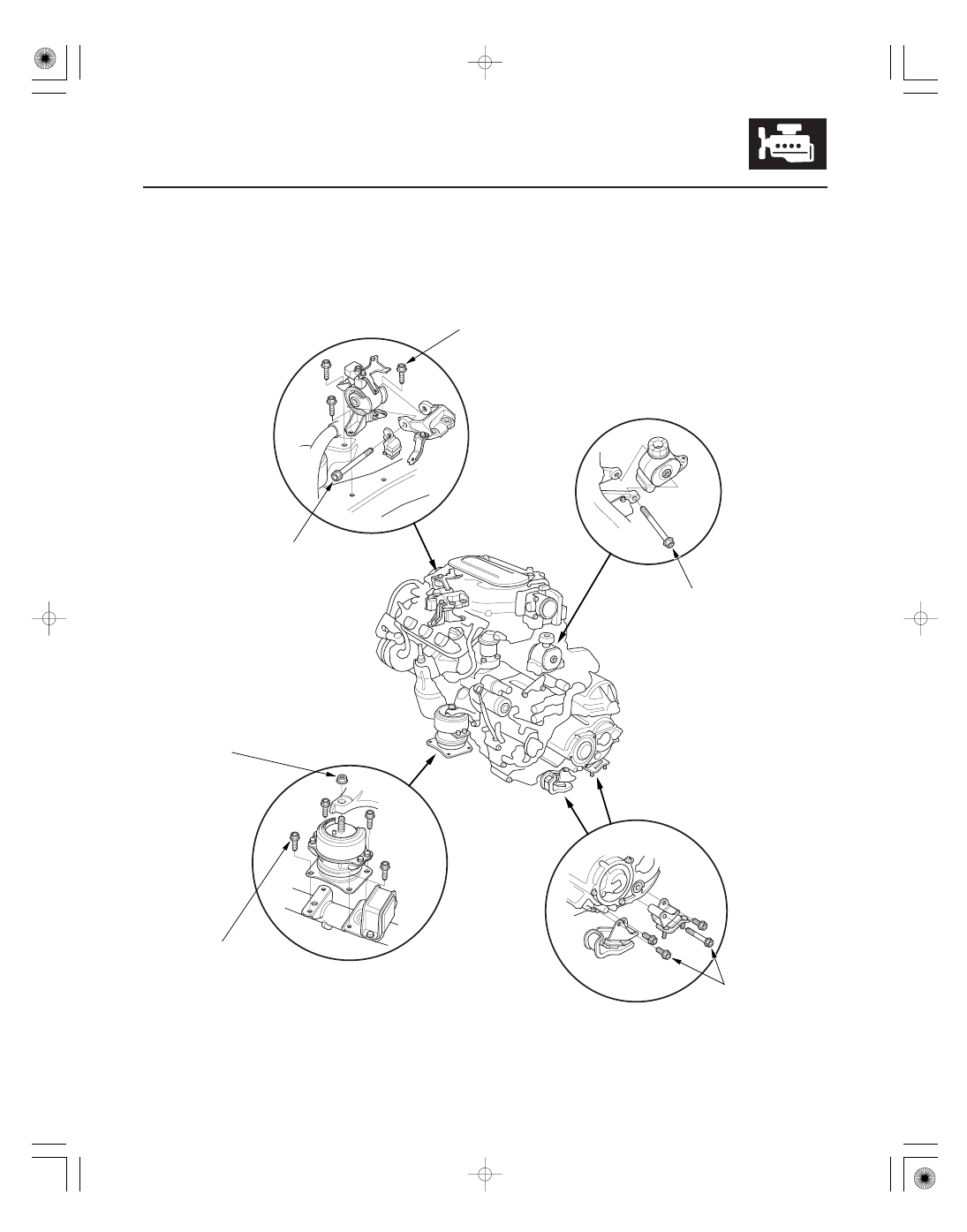

Engine Mount Replacement

SIDE ENGINE
MOUNT

TRANSMISSION LOWER
MOUNT

12 x 1.25 mm
83 N·m
(8.5 kgf·m, 61 lbf·ft)

12 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

10 x 1.25 mm
38 N·m
(3.9 kgf·m, 28 lbf·ft)

10 x 1.25 mm
45 N·m
(4.5 kgf·m, 33 lbf·ft)

FRONT MOUNT

REAR MOUNT

10 x 1.25 mm
38 N·m
(3.9 kgf·m, 28 lbf·ft)

12 x 1.25 mm
54 N·m
(5.5 kgf·m, 40 lbf·ft)

Replace.

Replace.

SJC8A000000000J0601ZCAT00

Engine Mechanical

Cylinder Head

................................................................

........................................

................................

................................................

......................................

.............

................................................

...................................................

...............................................

...........................................

............................

......................

...................................

...............................

..............................................

...............................................

.....................

................................

.......................................

..............................

...................................................

....................

..........................................................

..............

..........................................

.........................................

................

..................

..........................................

.......................

..............................................

................................................................

........................................

................................

................................................

......................................

.............

................................................

...................................................

...............................................

...........................................

............................

......................

...................................

...............................

..............................................

...............................................

.....................

................................

.......................................

..............................

...................................................

....................

..........................................................

..............

..........................................

.........................................

................

..................

..........................................

.......................

..............................................

Special Tools

. 6-2

Component Location Index

. 6-3

Engine Compression Inspection

. 6-6

VTEC Rocker Arm Test

. 6-7

Valve Clearance Adjustment

. 6-8

Crankshaft Pulley Removal and Installation

. 6-11

Timing Belt Inspection

. 6-13

Timing Belt Removal

. 6-13

Timing Belt Installation

. 6-16

Timing Belt Replacement

. 6-20

Timing Belt Adjuster Replacement

. 6-24

Timing Belt Drive Pulley Replacement

. 6-25

Cylinder Head Cover Removal

. 6-25

Cylinder Head Cover Installation

. 6-26

Cylinder Head Removal

. 6-28

Camshaft Replacement

. 6-31

Cylinder Head Inspection for Warpage

. 6-33

Rocker Arm Assembly Removal

. 6-33

Rocker Arm and Shaft

Disassembly/Reassembly

. 6-34

Rocker Arm and Shaft Inspection

. 6-35

Camshaft Inspection

. 6-37

Valve, Spring, and Valve Seal Removal

. 6-40

Valve Inspection

. 6-41

Valve Stem-to-Guide Clearance Inspection

. 6-41

Valve Guide Replacement

. 6-42

Valve Seat Reconditioning

. 6-44

Valve, Spring, and Valve Seal Installation

. 6-46

Camshaft, Rocker Arm Assembly,

Camshaft Seal, and Pulley Installation

. 6-47

Cylinder Head Installation

. 6-48

Camshaft Oil Seal Installation - In Car

. 6-54

Sealing Bolt Installation

. 6-54

01
01

01

01

01

01

01

01

01

01

01

SJC8A000000000J0601PAAT00

Ref. No.

Tool Number

Description

Qty

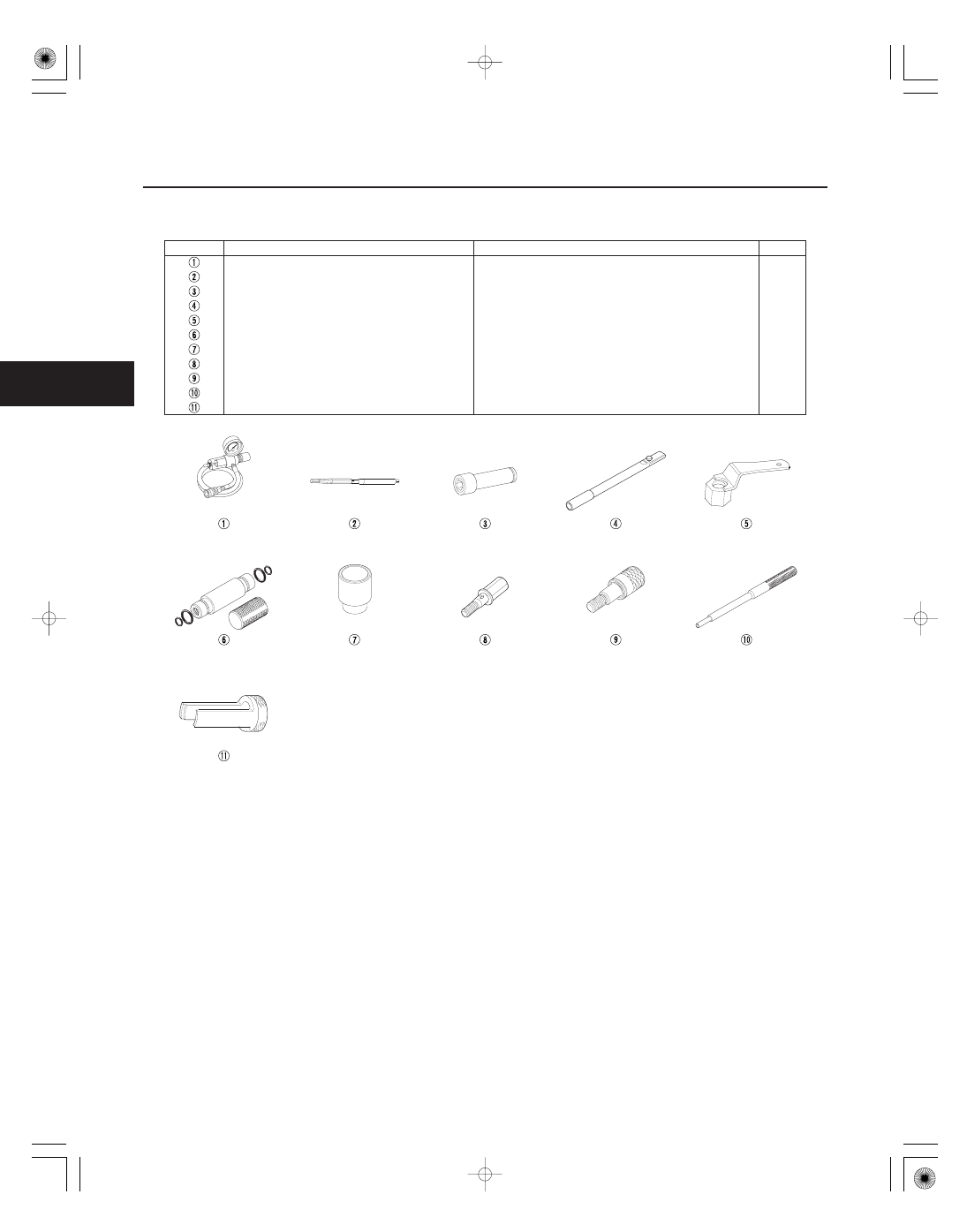

6-2

Cylinder Head

Special Tools

07AAJ-PNAA101

Air Pressure Regulator

1

07HAH-PJ7A100

Valve Guide Reamer, 5.5 mm

1

07JAA-001020A

Socket, 19 mm

1

07JAB-001020A

Holder Handle

1

07MAB-PY3010A

Holder Attachment, 50 mm, Offset

1

07PAD-0010000

Stem Seal Driver

1

07PAF-0030100

Camshaft Oil Seal Driver

1

07VAJ-P8A010A

VTEC Air Adapter

1

070AJ-0030100

VTEC Air Stopper

1

07742-0010100

Valve Guide Driver, 5.5 mm

1

07757-PJ1010A

Valve Spring Compressor Attachment

1
