Honda Element. Manual - part 706

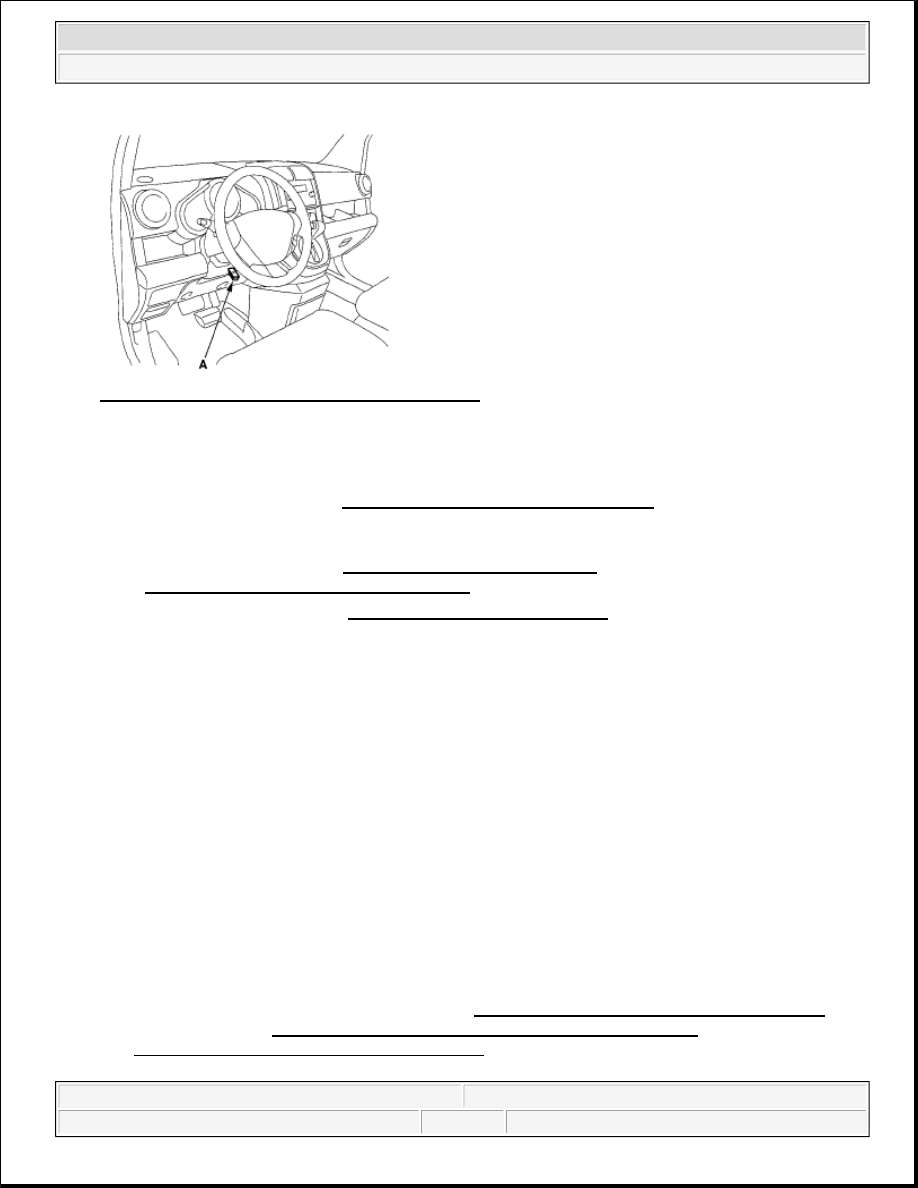

Fig. 189: Identifying Data Link Connector (DLC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Turn the ignition switch ON (II).

3. Make sure the HDS communicates with the ECM/PCM and other vehicle system. If it doesn't, go to the

DLC circuit troubleshooting (see DLC CIRCUIT TROUBLESHOOTING ). If you are returning from
DLC circuit troubleshooting, skip steps 4 through 7, 21 through 23, and 26 through 27, and do this after
replacing the ECM/PCM:



Replace the engine oil (see ENGINE OIL REPLACEMENT ) and the engine oil filter (see
ENGINE OIL FILTER REPLACEMENT ).



Clean the throttle body (see THROTTLE BODY CLEANING ).

4. Select the PGM-FI system with the HDS.

5. Select the INSPECTION MENU with the HDS.

6. Select the ETCS TEST, then select the TP POSITION CHECK, and follow the screen prompts.

7. Select the REPLACE ECM/PCM MENU, then select READ DATA and follow the screen prompts.

8. Turn the ignition switch OFF.

9. Jump the SCS line with the HDS.

10. Remove the passenger's dashboard undercover (see GLOVE BOX REMOVAL/INSTALLATION ),

the side kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ), and the glove box
(see GLOVE BOX REMOVAL/INSTALLATION ).

11. Cut the plastic cross brace in the glove box opening with diagonal cutters in the area shown, and discard

NOTE:

If the TP POSITION CHECK indicates FAILED, continue with this
procedure.

NOTE:



Doing this step copies (READS) the engine oil life data from the
original ECM/PCM so you can later download (WRITE) it into the new
ECM/PCM.



If READ DATA indicates FAILED, continue with this procedure.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



it.

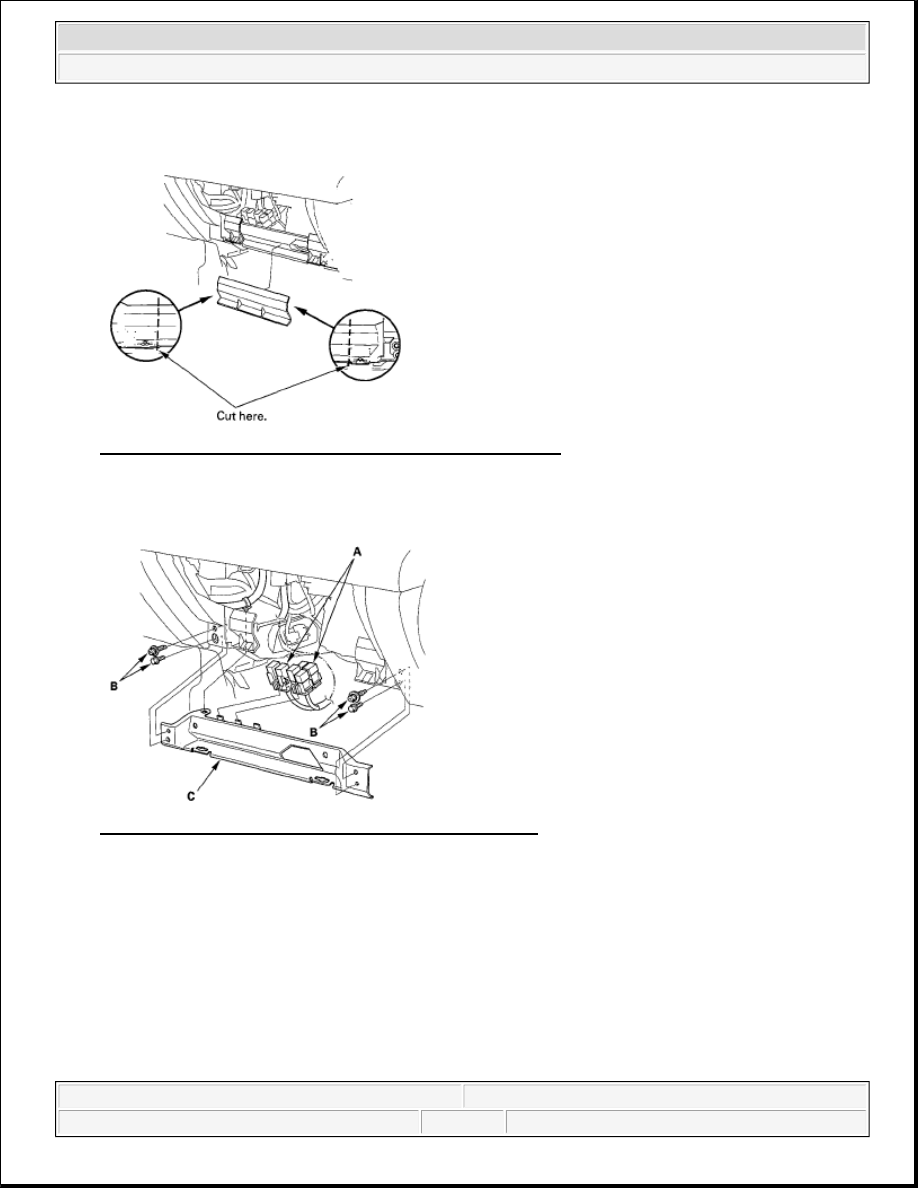

Fig. 190: Cutting Plastic Cross Brace In Glove Box Opening
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the relays (A), then remove the bolts (B) and the glove box frame (C).

Fig. 191: Identifying Relays, Bolts And Glove Box Frame
Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Remove the gray 20P ECM/PCM wire harness connector (A) from the ECM/PCM mounting bracket.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element

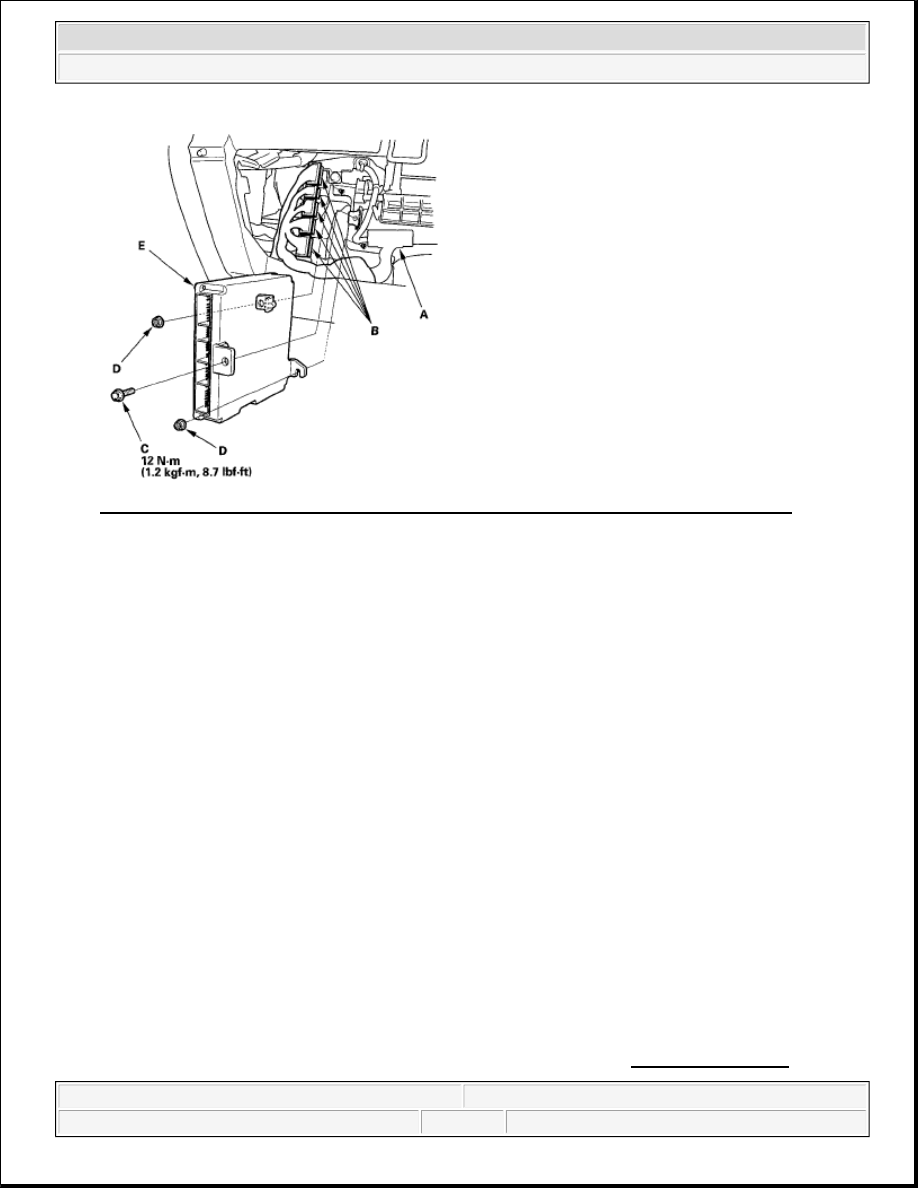

Fig. 192: Identifying ECM/PCM And Wire Harness Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Disconnect the ECM/PCM connectors (B).

15. Remove the ECM/PCM mounting bolt (C) and the bracket.

16. Remove the nuts (D), then remove the ECM/PCM (E).

17. Install the parts in the reverse order of removal.

18. Open the SCS line with the HDS.

19. Turn the ignition switch ON (II).

20. Manually input the VIN to the ECM/PCM with the HDS.

21. If the READ DATA (engine oil life) failed in step 7, go to step 24. Otherwise, go to step 22.

22. Select the PGM-FI system with the HDS.

23. Select the REPLACE ECM/PCM MENU, then select WRITE DATA and follow the screen prompts.

24. Select IMMOBI system with the HDS.

25. Enter the immobilizer code with the ECM/PCM replacement procedure in the HDS; it allows you to start

the engine.

26. If the TP POSITION CHECK failed in step 6 clean the throttle body (see THROTTLE BODY

NOTE:

DTC P0630 "VIN Not Programmed or Mismatch" may be stored because
the VIN has not been programmed into the ECM/PCM; ignore it, and
continue this procedure.

NOTE:

If the WRITE DATA indicates FAILED, continue with this procedure.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



CLEANING ), then go to step 27.

27. If the READ DATA failed in step 7 or the WRITE DATA failed in step 23, replace the engine oil (see

ENGINE OIL REPLACEMENT ) and engine oil filter (see ENGINE OIL FILTER
REPLACEMENT ), then go to step 28.

28. Select PGM-FI system, and reset the ECM/PCM with the HDS.

29. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ).

30. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

31. Do the CKP pattern learn procedure (see CRANK (CKP) PATTERN CLEAR/CRANK (CKP)

PATTERN LEARN ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element
