Honda Element. Manual - part 705

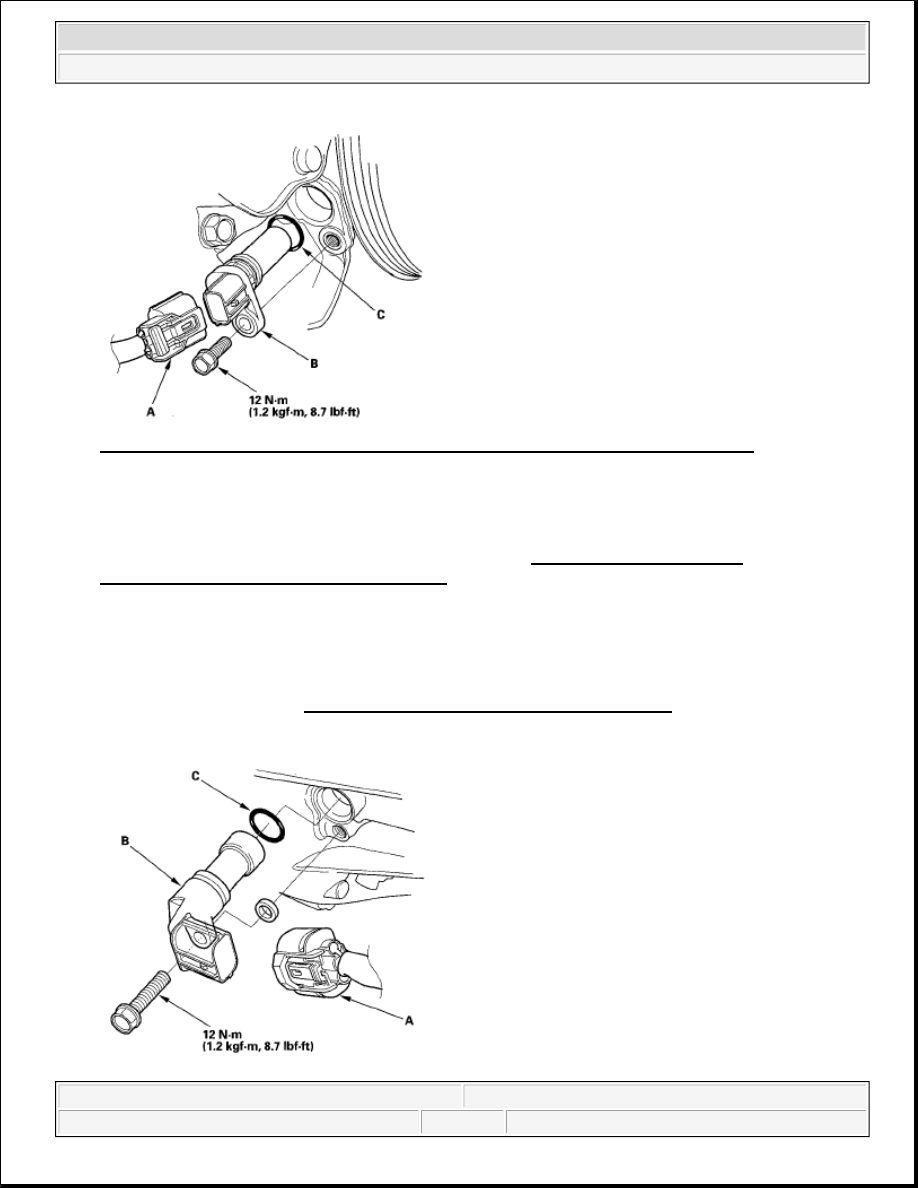

Fig. 183: Identifying O-Ring, CKP Sensor And Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the CKP sensor (B).

3. Install the parts in the reverse order of removal with a new O-ring (C) coated with clean engine oil.

4. Do the CKP pattern clear/CKP pattern learn procedure (see CRANK (CKP) PATTERN

CLEAR/CRANK (CKP) PATTERN LEARN ).

OUTPUT SHAFT (COUNTERSHAFT) SPEED SENSOR REPLACEMENT

M/T MODEL

1. Remove the air cleaner (see AIR CLEANER REMOVAL/INSTALLATION ).

2. Disconnect the output shaft (countershaft) speed sensor connector (A).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Fig. 184: Identifying O-Ring, Output Shaft (Countershaft) Speed Sensor And Connector With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the output shaft (countershaft) speed sensor (B).

4. Install the parts in the reverse order of removal with a new O-ring (C) coated with clean engine oil.

KNOCK SENSOR REPLACEMENT

1. Disconnect the knock sensor connector (A).

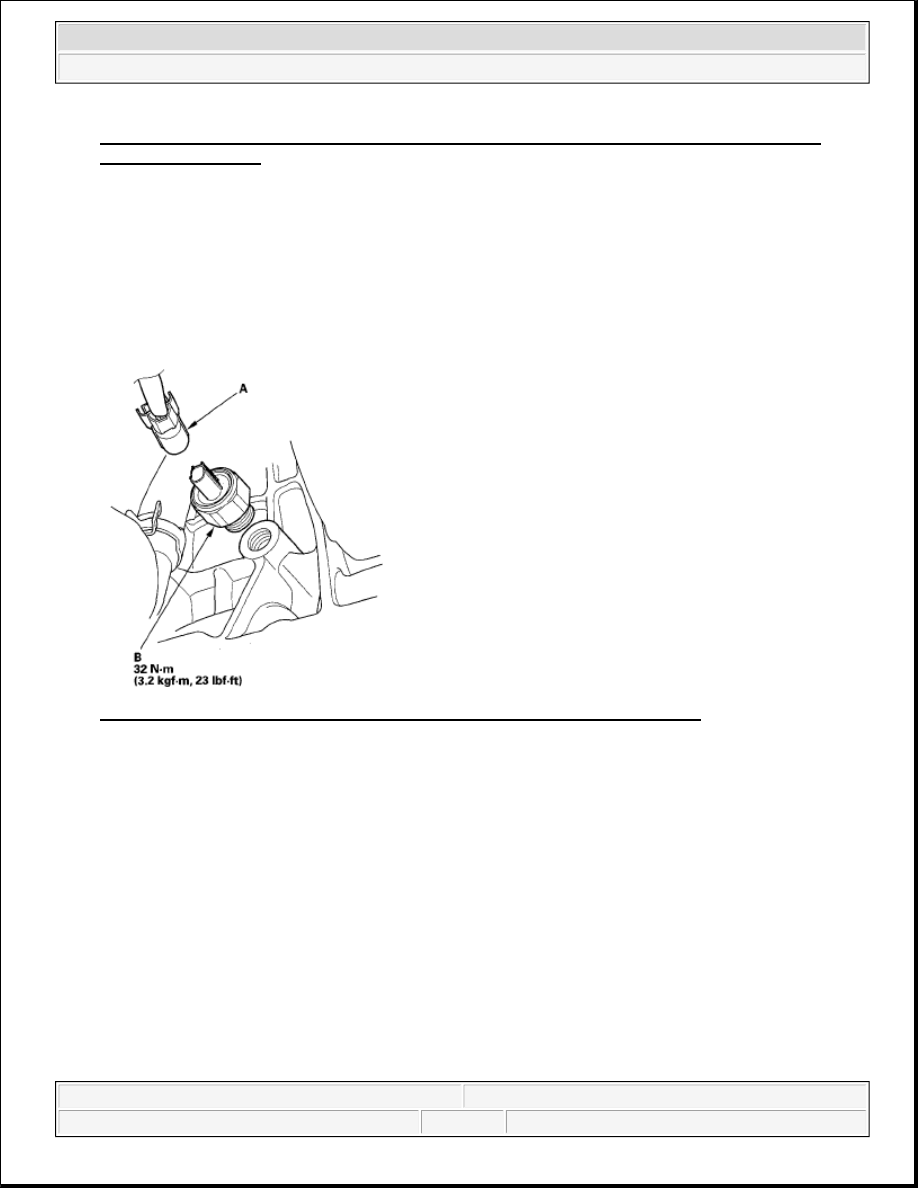

Fig. 185: Identifying Knock Sensor And Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Remove the knock sensor (B).

3. Install the parts in the reverse order of removal.

ELD REPLACEMENT

1. Make sure you have the anti-theft code for the audio system.

2. Disconnect the negative cable from the battery, then disconnect the positive cable.

3. Remove the two positive (+) terminals (A).

4. Remove the under-hood fuse/relay box from the bracket.

5. Remove the under-hood fuse/relay box lower cover (B) from the fuse/relay box.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



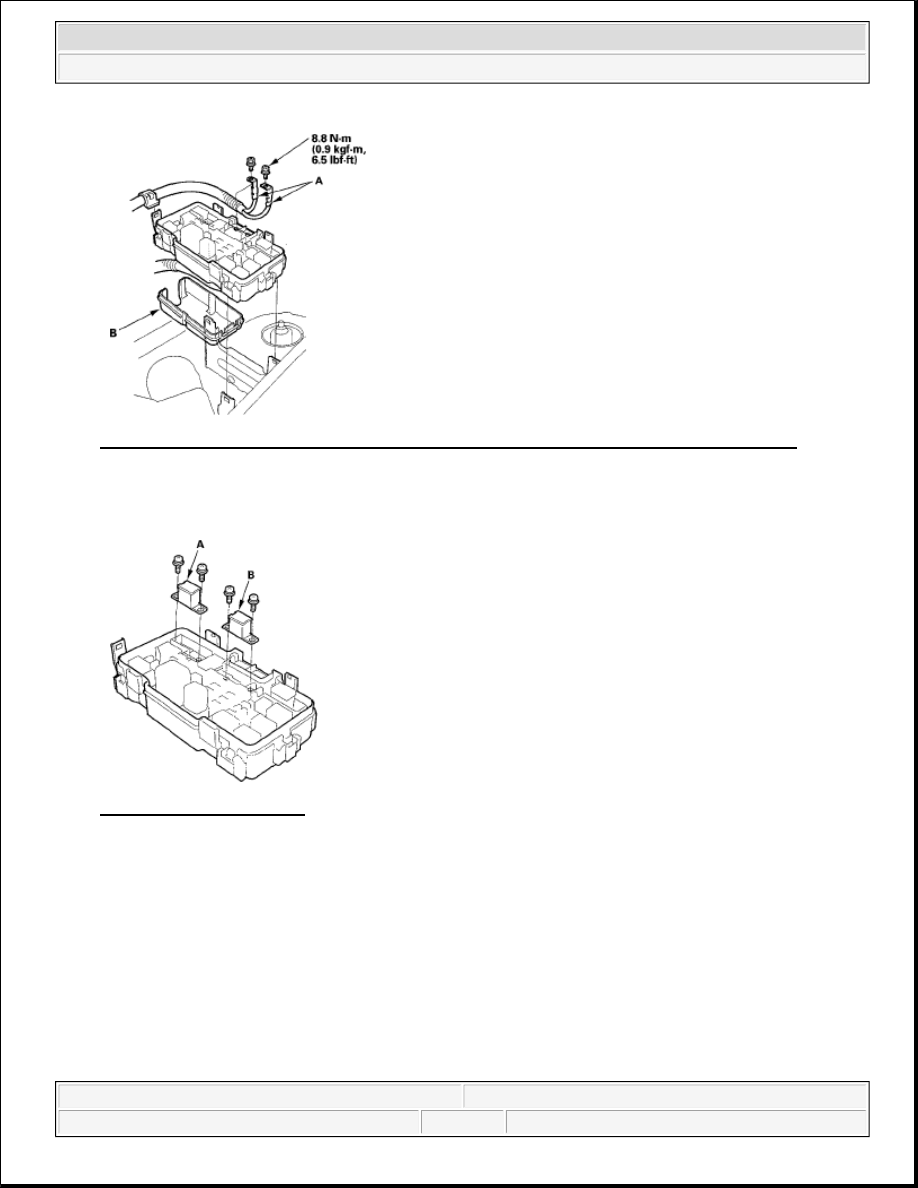

Fig. 186: Identifying Under-Hood Fuse/Relay Box Lower Cover With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the No. 20 IG1 (50 A) fuse (A) and the No. 19 BATTERY (100 A) fuse (B).

Fig. 187: Identifying Fuses
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Disconnect the ELD 3P connector (A), then remove the ELD (B).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



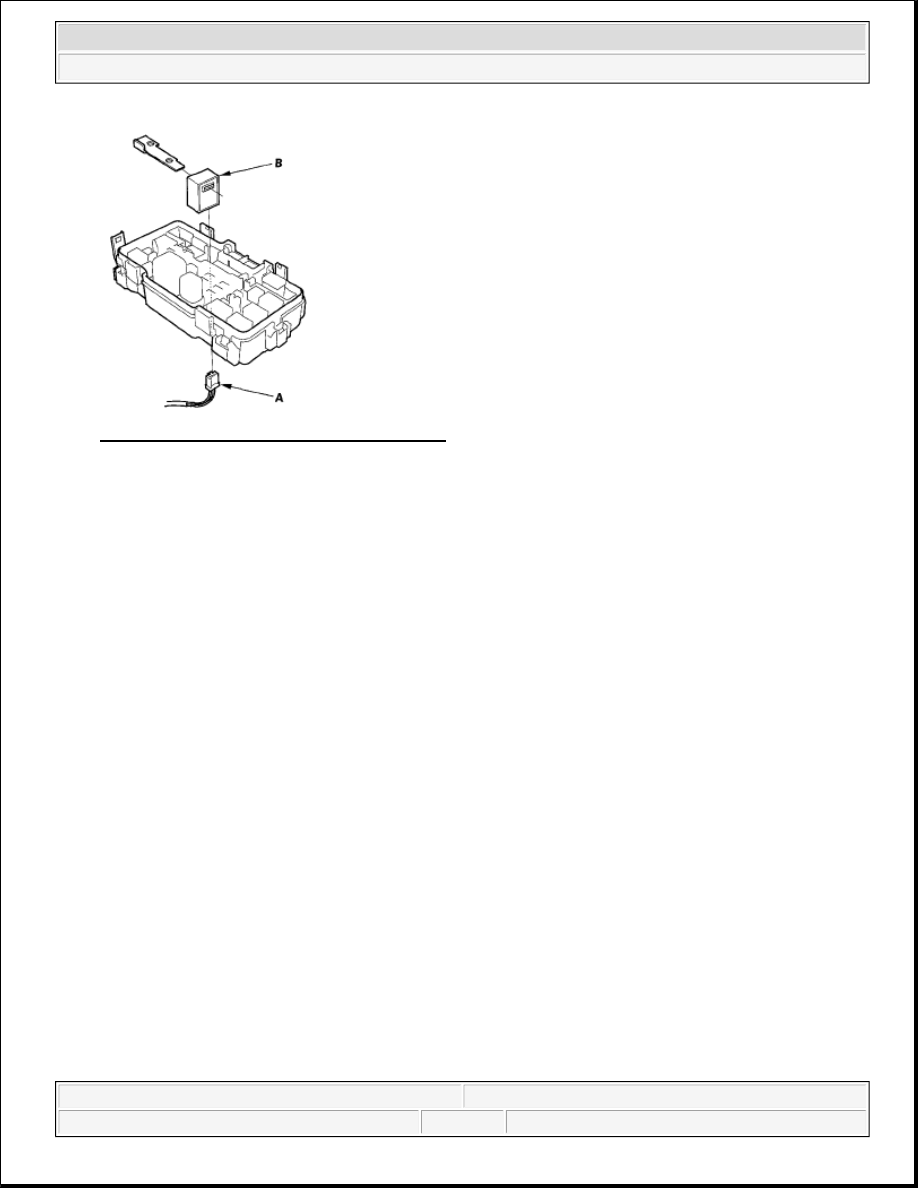

Fig. 188: Identifying ELD And 3P Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the parts in the reverse order of removal.

9. Enter the anti-theft code for the audio system.

10. Set the clock.

ECM/PCM REPLACEMENT

Special Tools Required



Honda diagnostics system (HDS) tablet tester



Honda interface module (HIM) and an iN workstation with HDS and CM update software



HDS pocket tester



GNA 600 and an iN workstation with HDS and CM update software

1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

NOTE:



Make sure the HDS is loaded with the latest software version.



If you are replacing the ECM/PCM after substituting a known-good
ECM/PCM, reinstall the original ECM/PCM, then do this procedure.



During the procedure, if any READ DATA, WRITE DATA, or other data
checks fail, note the failure, then continue.
