2007-08 ENGINE

Intake Manifold and Exhaust System - Element

INTAKE MANIFOLD REMOVAL AND INSTALLATION

EXPLODED VIEW

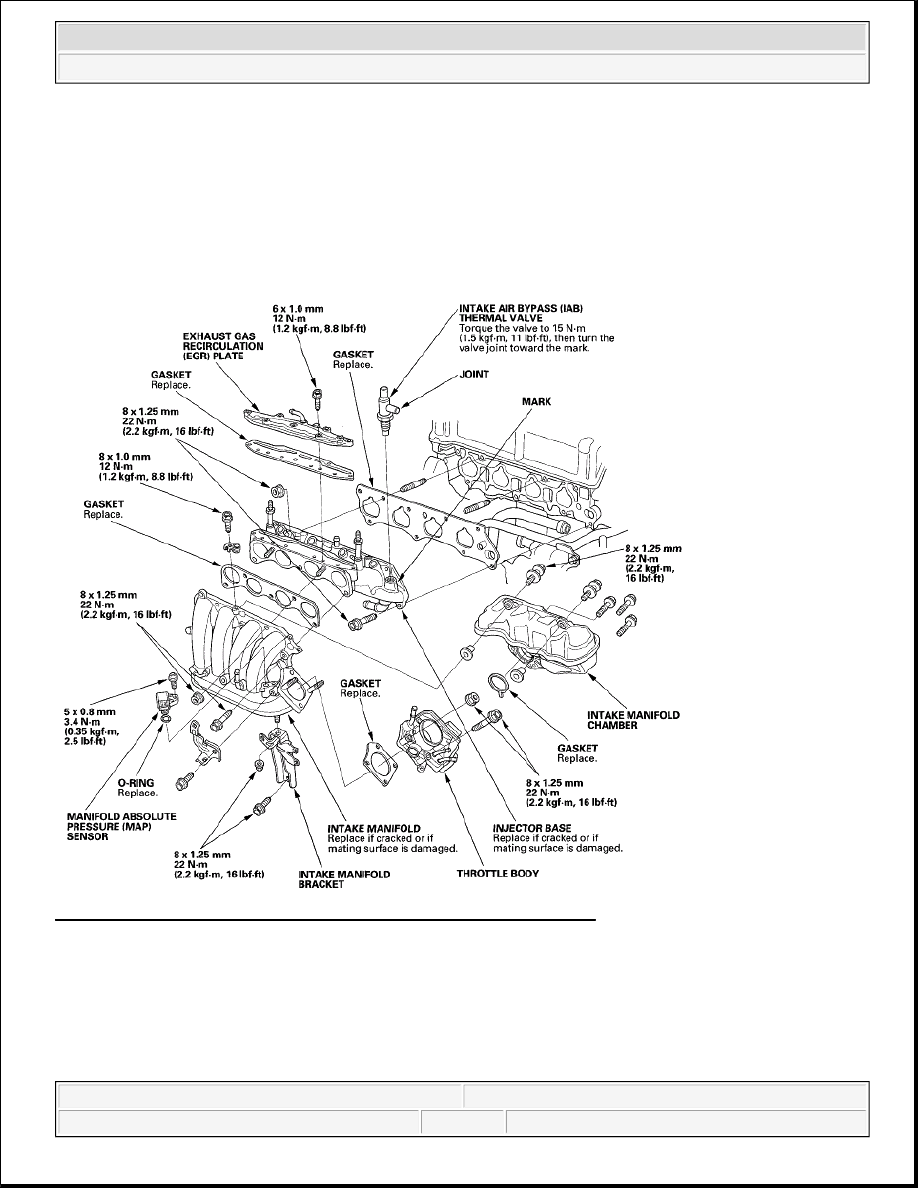

Fig. 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

REMOVAL

1. Disconnect the mass air flow (MAF) sensor/intake air temperature (IAT) sensor connector (A).



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element





2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element



Fig. 2: Identifying Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Disconnect the vacuum hose (B) and breather pipe (C), then remove the intake air duct (D).

3. Remove the engine cover.

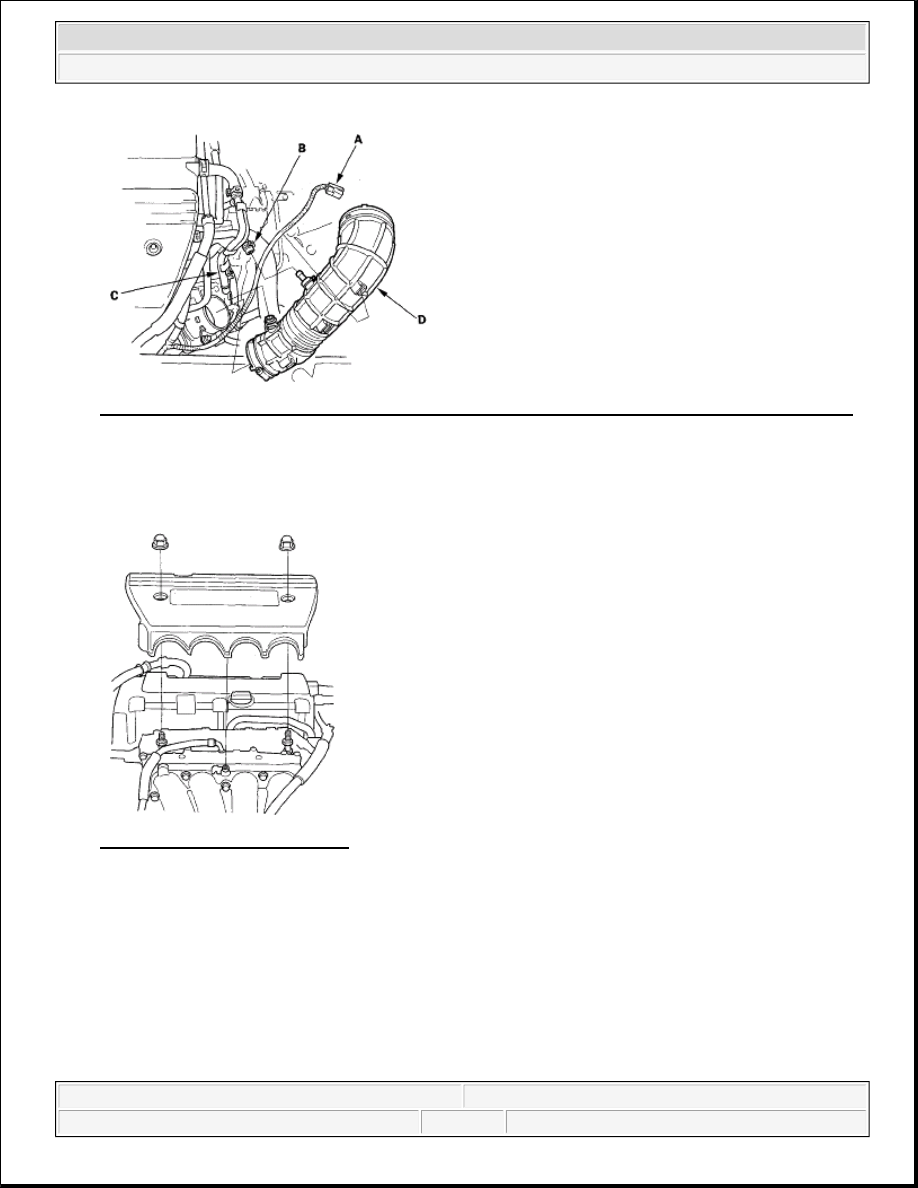

Fig. 3: Identifying Engine Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the evaporative emission (EVAP) canister hose (A) manifold absolute pressure (MAP) sensor

connector (B) and brake booster vacuum hose (C).



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element



Fig. 4: Identifying Evaporative Emission Canister Hose, Manifold Absolute Pressure Sensor
Connector And Brake Booster Vacuum Hose
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the harness bracket mounting bolts (D).

6. Remove the water bypass hoses, then plug the water bypass hoses.

7. Disconnect the throttle actuator connector (A).

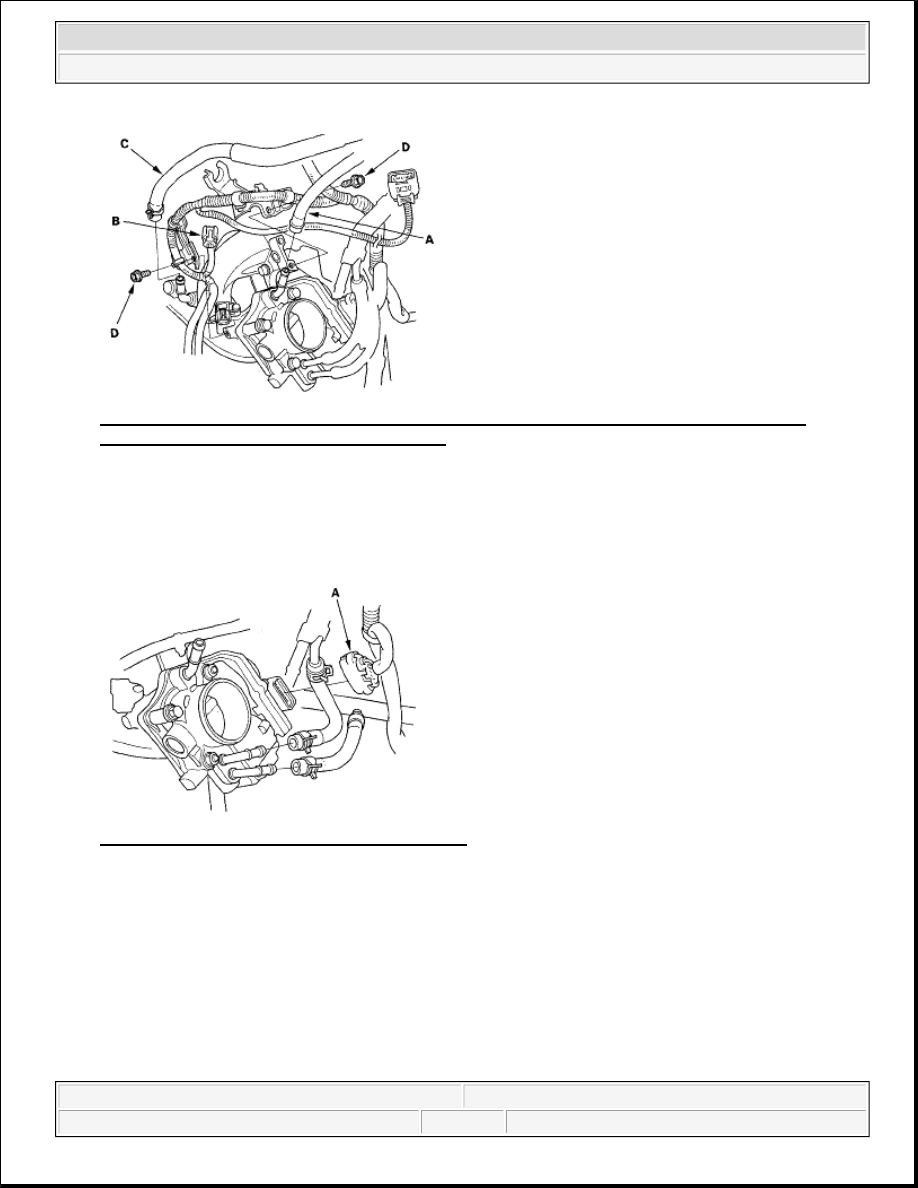

Fig. 5: Identifying Throttle Actuator Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Remove the front grille cover.



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element

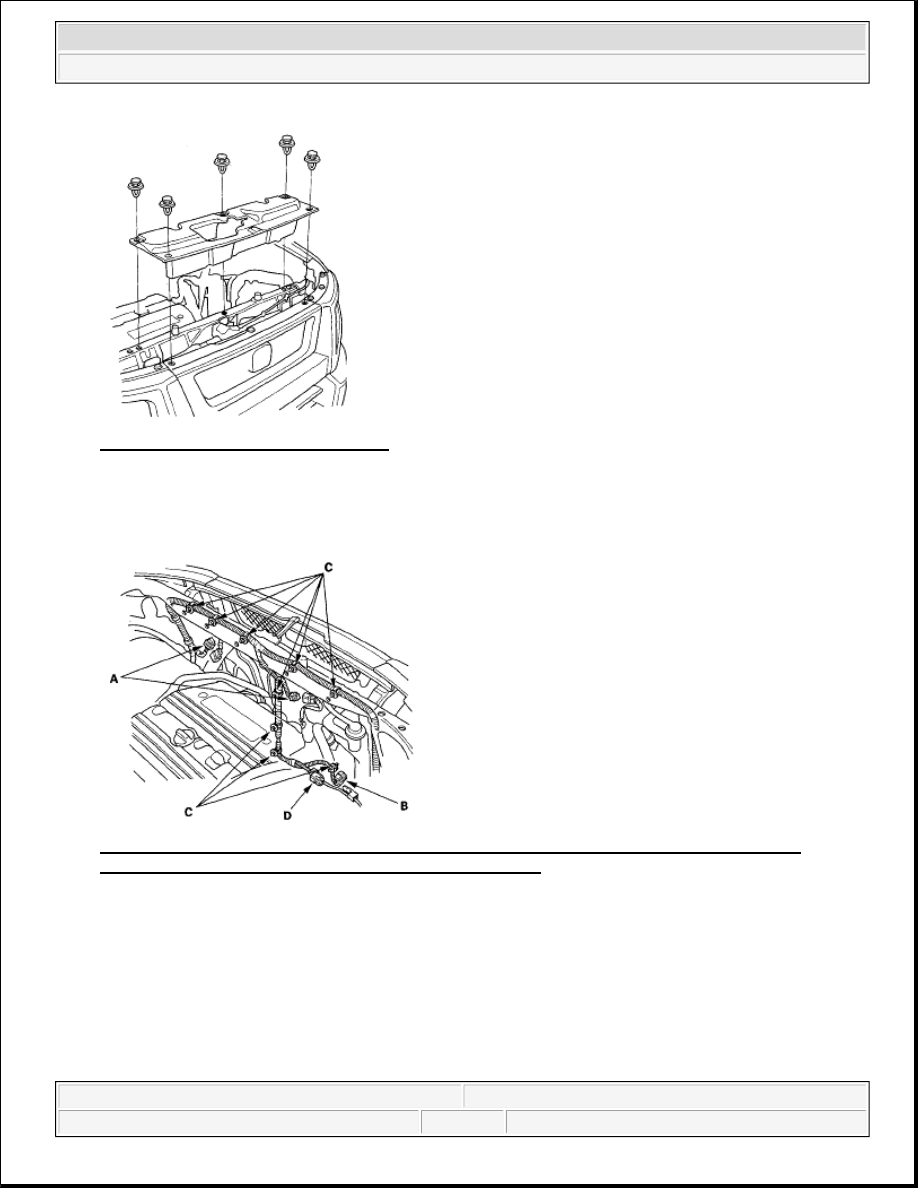

Fig. 6: Identifying Front Grille Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Disconnect the fan motor connectors (A) and engine coolant temperature (ECT) sensor 2 connector (B),

then remove the harness clamps (C) and A/C compressor clutch connector (D).

Fig. 7: Identifying Fan Motor Connectors, Engine Coolant Temperature Sensor Connector,
Harness Clamps And A/C Compressor Clutch Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the upper brackets and cushions (A), then remove the bulkhead (B).
