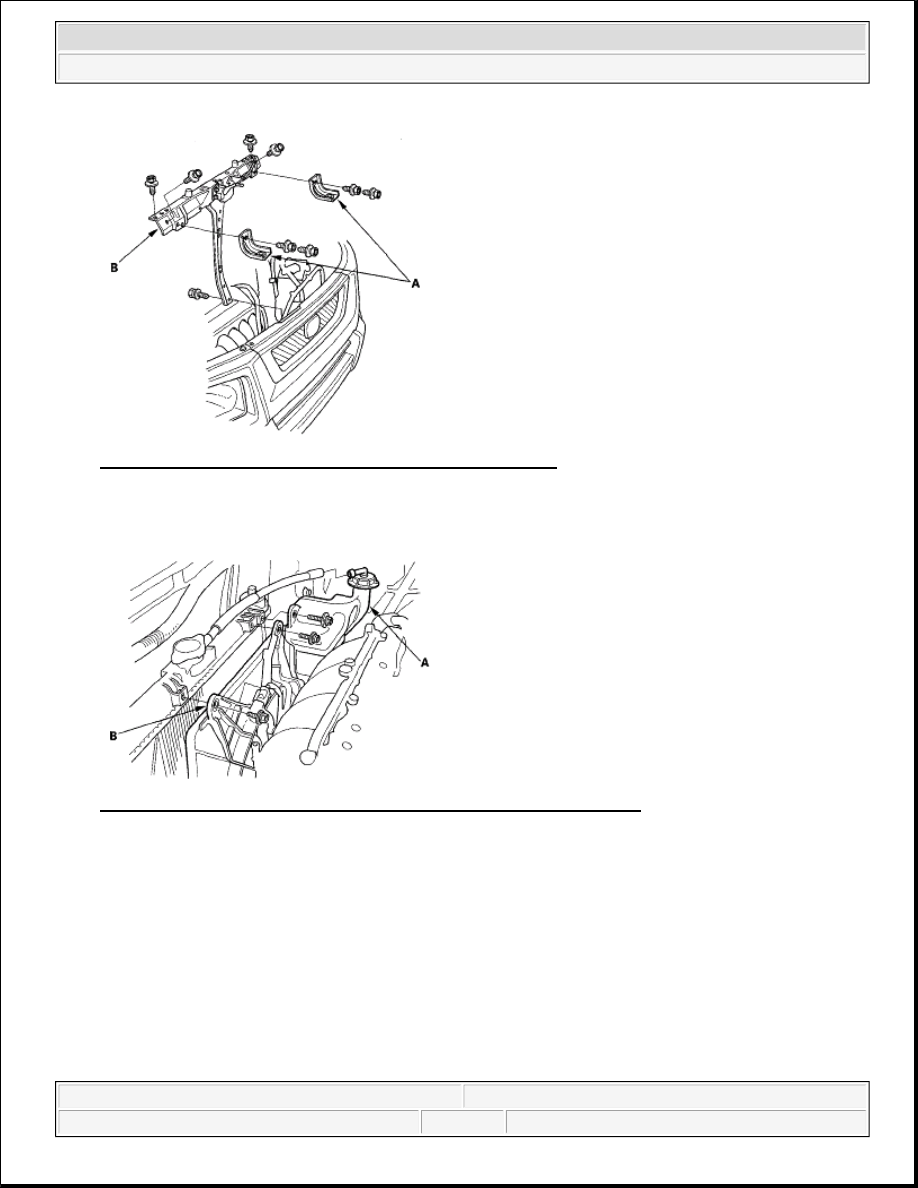

Fig. 8: Identifying Upper Brackets And Cushions Bulkhead
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Remove the coolant reservoir (A), then remove the A/C condenser fan shroud (B).

Fig. 9: Identifying Coolant Reservoir And A/C Condenser Fan Shroud
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Raise the vehicle on the lift.

13. Remove the connectors (A), then remove the intake manifold bracket (B).



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element



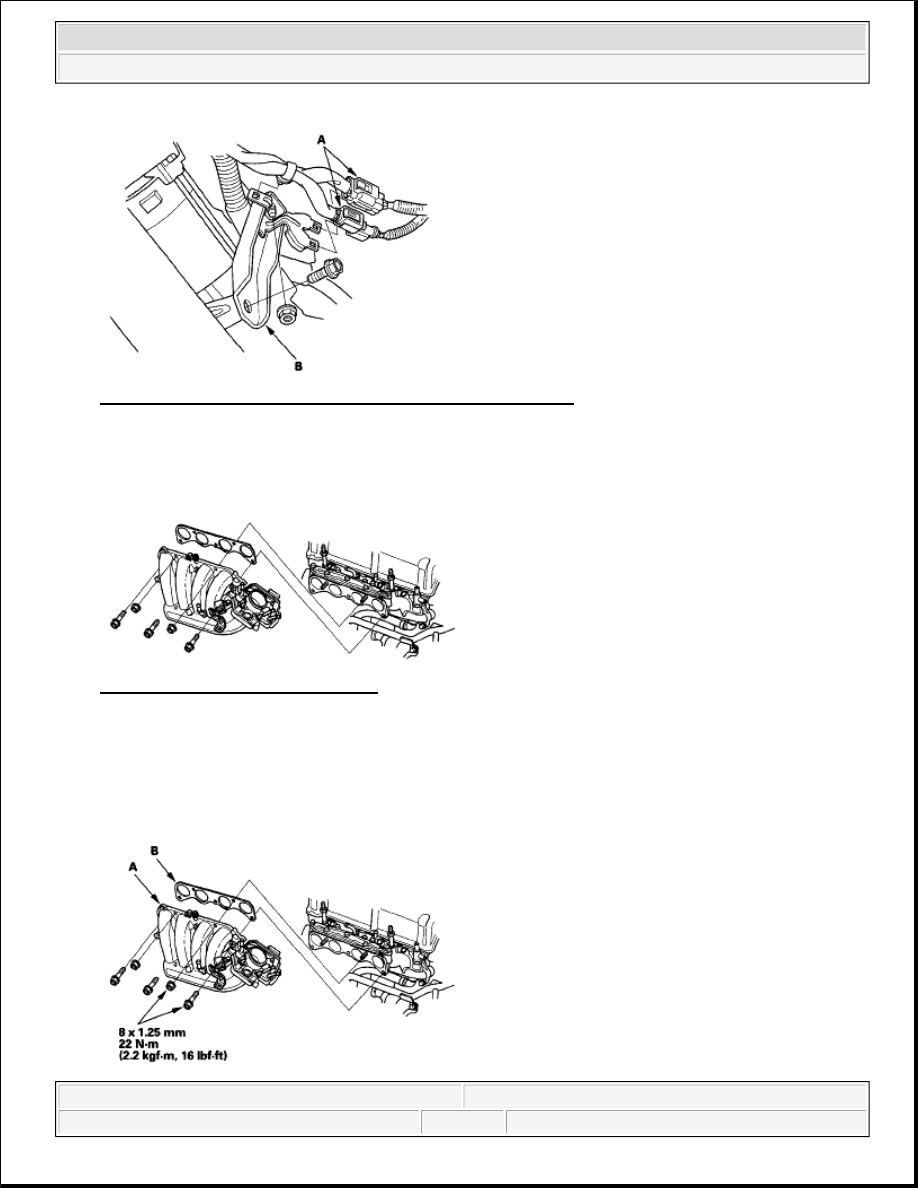

Fig. 10: Identifying Connectors And Intake Manifold Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Lower the vehicle on the lift.

15. Remove the intake manifold.

Fig. 11: Identifying Intake Manifold
Courtesy of AMERICAN HONDA MOTOR CO., INC.

INSTALLATION

1. Install the intake manifold (A) with a new gasket (B), and torque the bolts/nuts in a crisscross pattern in

three steps, beginning with the inner bolt.



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element



Fig. 12: Identifying Intake Manifold With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Raise the vehicle on the lift to full height.

3. Install the intake manifold bracket (A), then install the connectors (B).

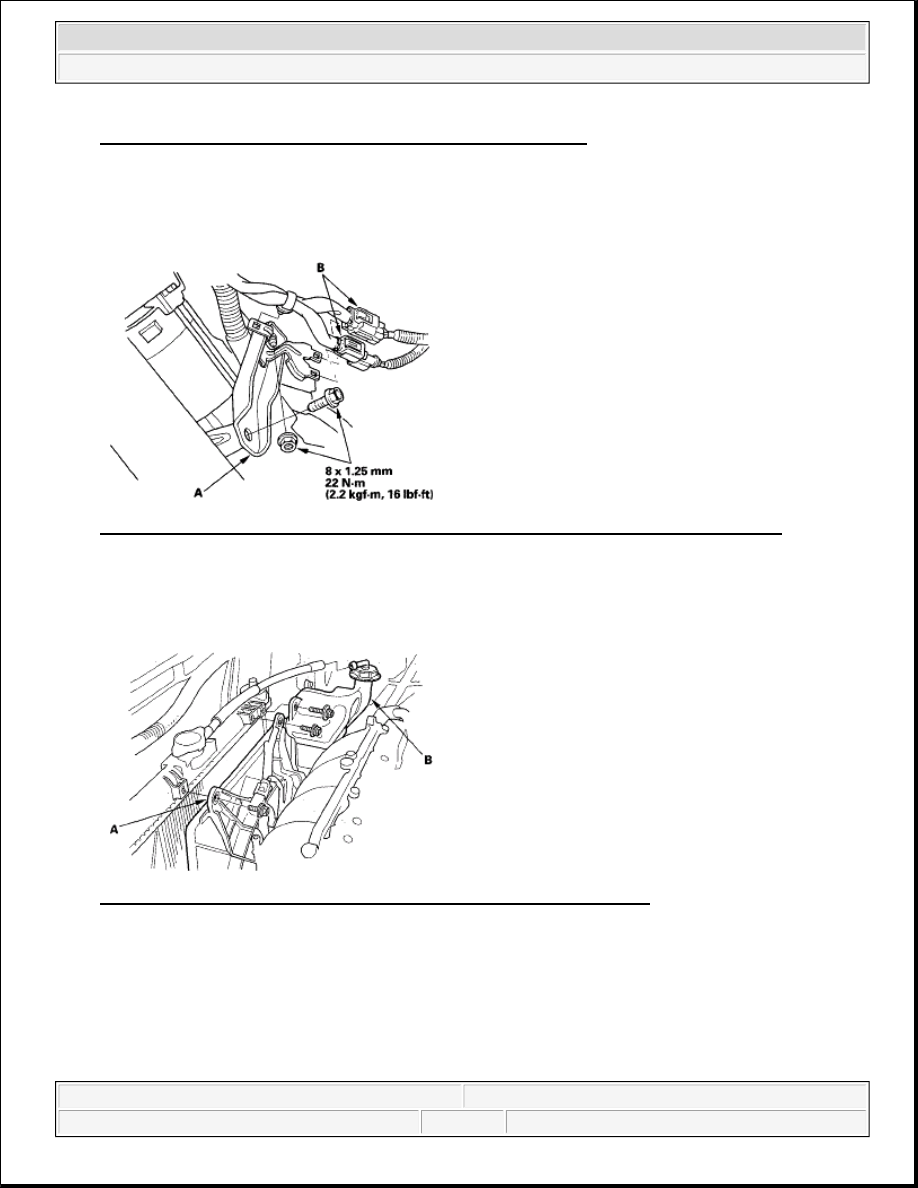

Fig. 13: Identifying Intake Manifold Bracket And Connectors With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Lower the vehicle on the lift.

5. Install the A/C condenser fan shroud (A), then install the coolant reservoir (B).

Fig. 14: Identifying A/C Condenser Fan Shroud And Coolant Reservoir
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the bulkhead (A), then install the upper bracket and cushions (B).



2007 Honda Element EX

2007-08 ENGINE Intake Manifold and Exhaust System - Element



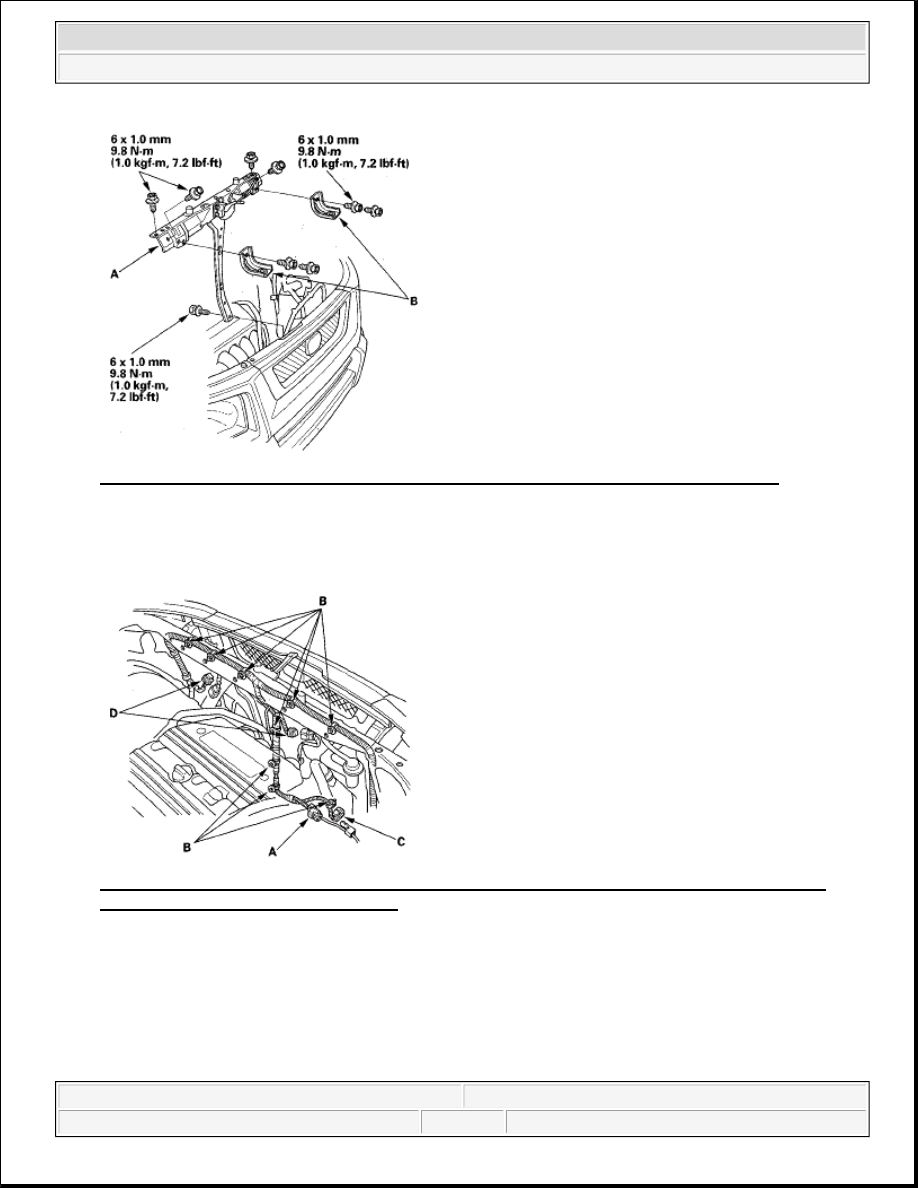

Fig. 15: Identifying Bulkhead, Upper Bracket And Cushions With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Install the A/C compressor clutch connector (A) and harness clamps (B), then connect the engine coolant

temperature (ECT) sensor 2 connector (C) and fan motor connectors (D).

Fig. 16: Identifying A/C Compressor Clutch Connector, Harness Clamps, And Engine Coolant
Temperature (ECT) Sensor Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Install the front grille cover.
