6. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on page 11-3).

7. Turn the ignition switch ON (II).

8. Make sure the HDS communicates with the vehicle and the engine control module (ECM)/powertrain

control module (PCM). If it doesn't communicate, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING ).

9. Jump the SCS line with the HDS, then turn the ignition switch OFF.

10. Disconnect ECM/PCM connector E (31P).

11. Check for continuity between ignition coil relay 4P socket terminal No. 3 and body ground.

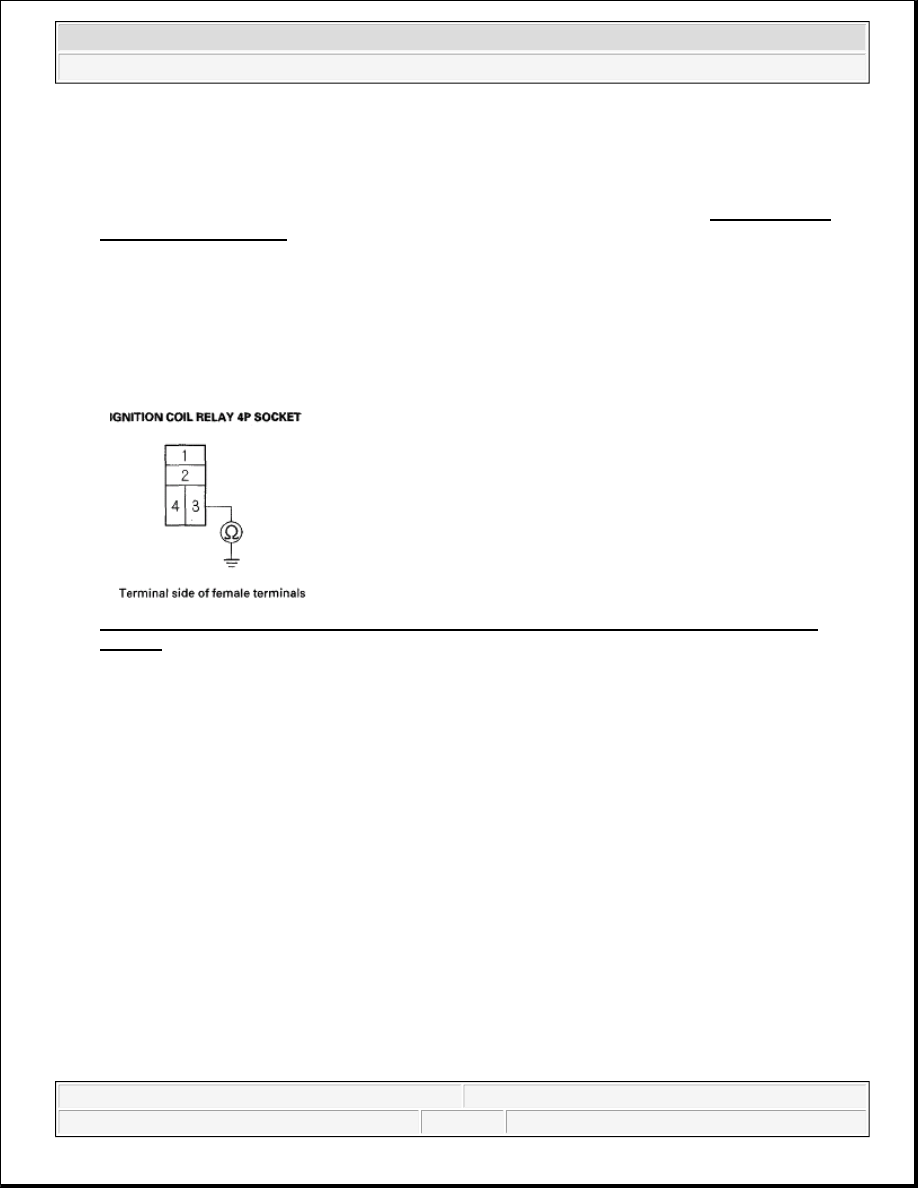

Fig. 9: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No. 3 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - Repair short in the wire between ignition coil relay 4P socket terminal No. 3 and the ECM/PCM
(E7).

NO - Go to step 12.

12. Check for continuity between ignition coil relay 4P socket terminal No. 3 and the ECM/PCM connector

terminal E7.

NOTE:

This step must be done to protect the ECM/PCM from damage.



2007 Honda Element EX

2007-08 ENGINE Ignition System - Element



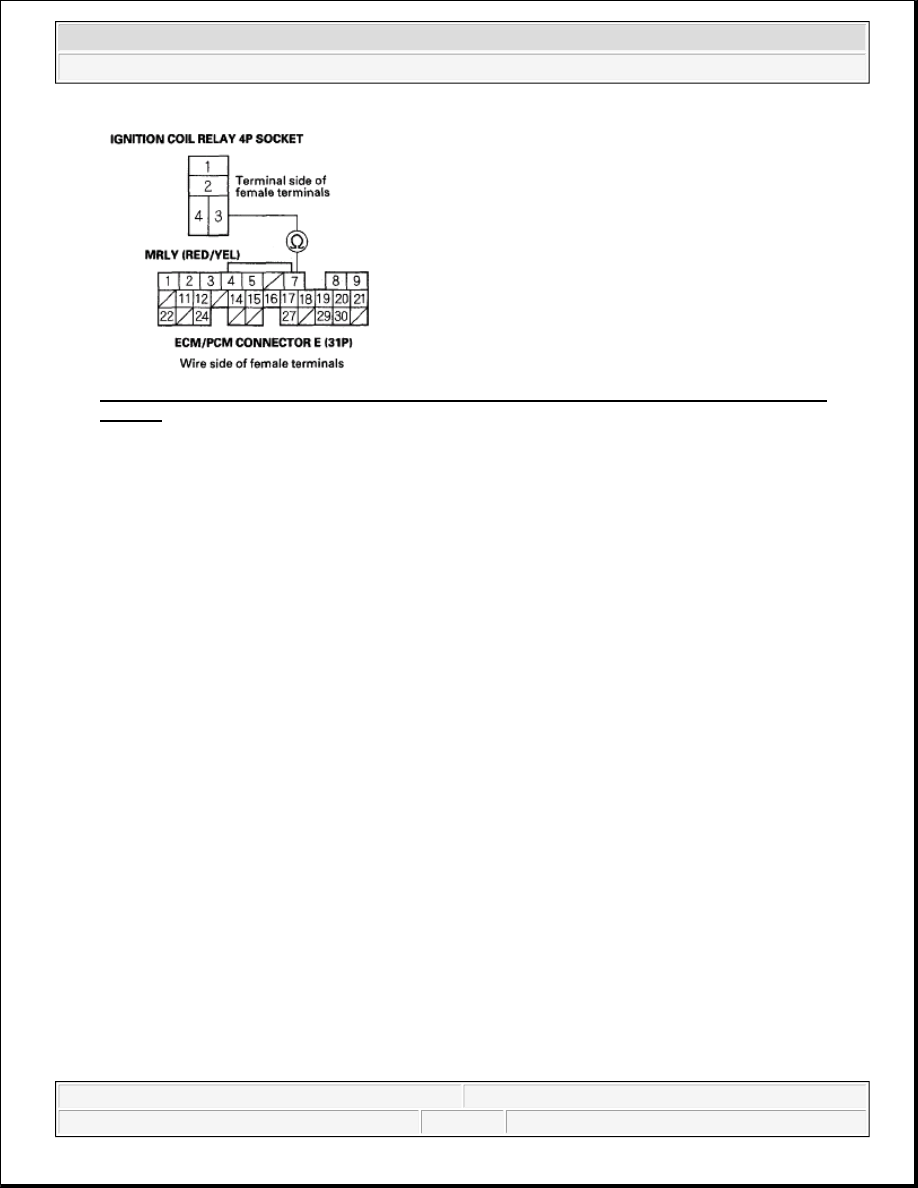

Fig. 10: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No. 3 And Body
Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES - The system is OK at this time. Check for loose or poor connections at the ignition coil relay and
the ECM/PCM (E7).

NO - Repair open in the wire between ignition coil relay 4P socket terminal No. 3 and the ECM/PCM
(E7).

SPARK PLUG INSPECTION

1. Remove the spark plugs, and inspect the electrodes and the ceramic insulator.



Burned or worn electrodes may be caused by these conditions:



Advanced ignition timing



Loose spark plug



Plug heat range too hot



Insufficient cooling



Fouled plugs may be caused by these conditions:



Retarded ignition timing



Oil in combustion chamber



Incorrect spark plug gap



Plug heat range too cold



Excessive idling/low speed running



Clogged air cleaner element



Deteriorated ignition coils



2007 Honda Element EX

2007-08 ENGINE Ignition System - Element



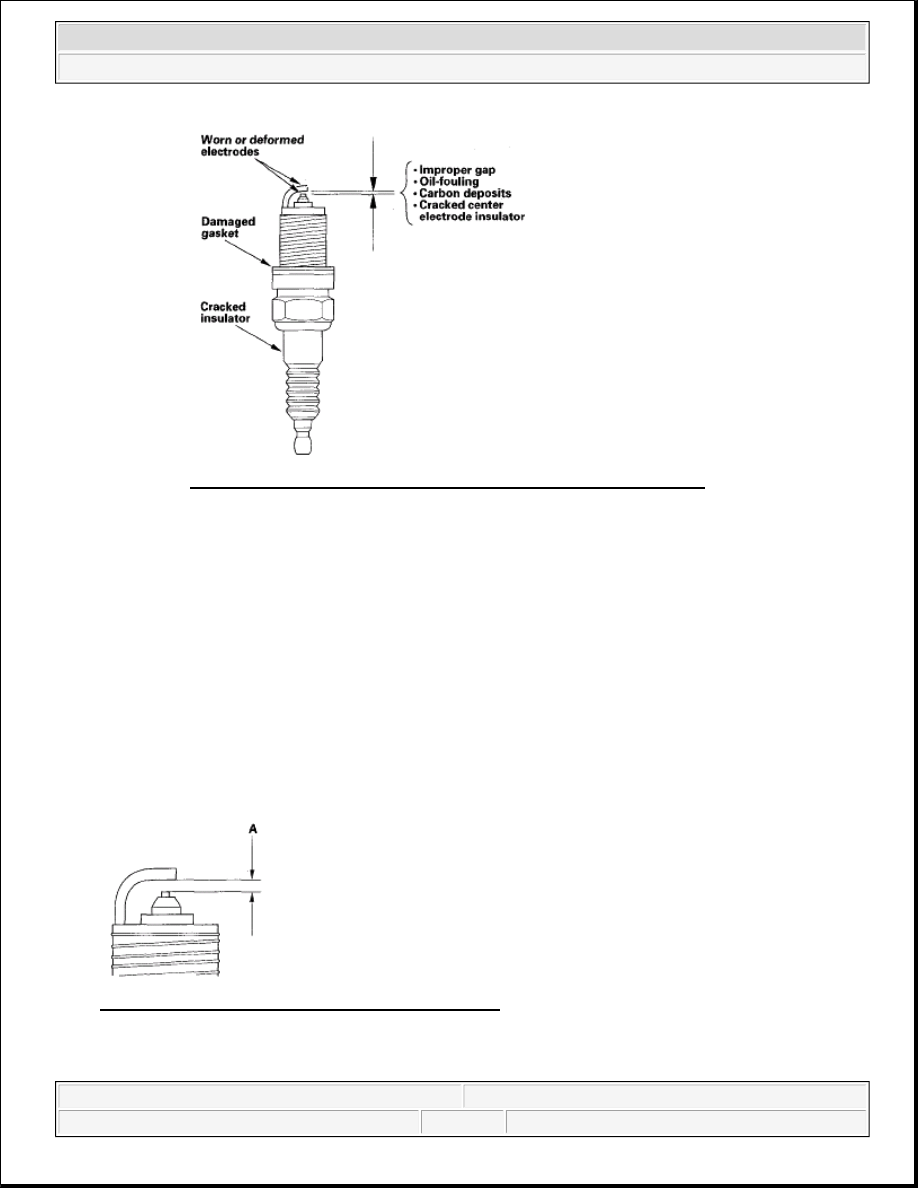

Fig. 11: Identifying Spark Plugs And Electrodes Ceramic Insulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. If the spark plug electrode is dirty or contaminated, clean the electrode with a plug cleaner.

3. Do not adjust the gap (A) of iridium tip plugs, replace the spark plug if the gap is out of specification.

Electrode Gap

Standard (New): 1.0-1.1 mm (0.039-0.043 in.)

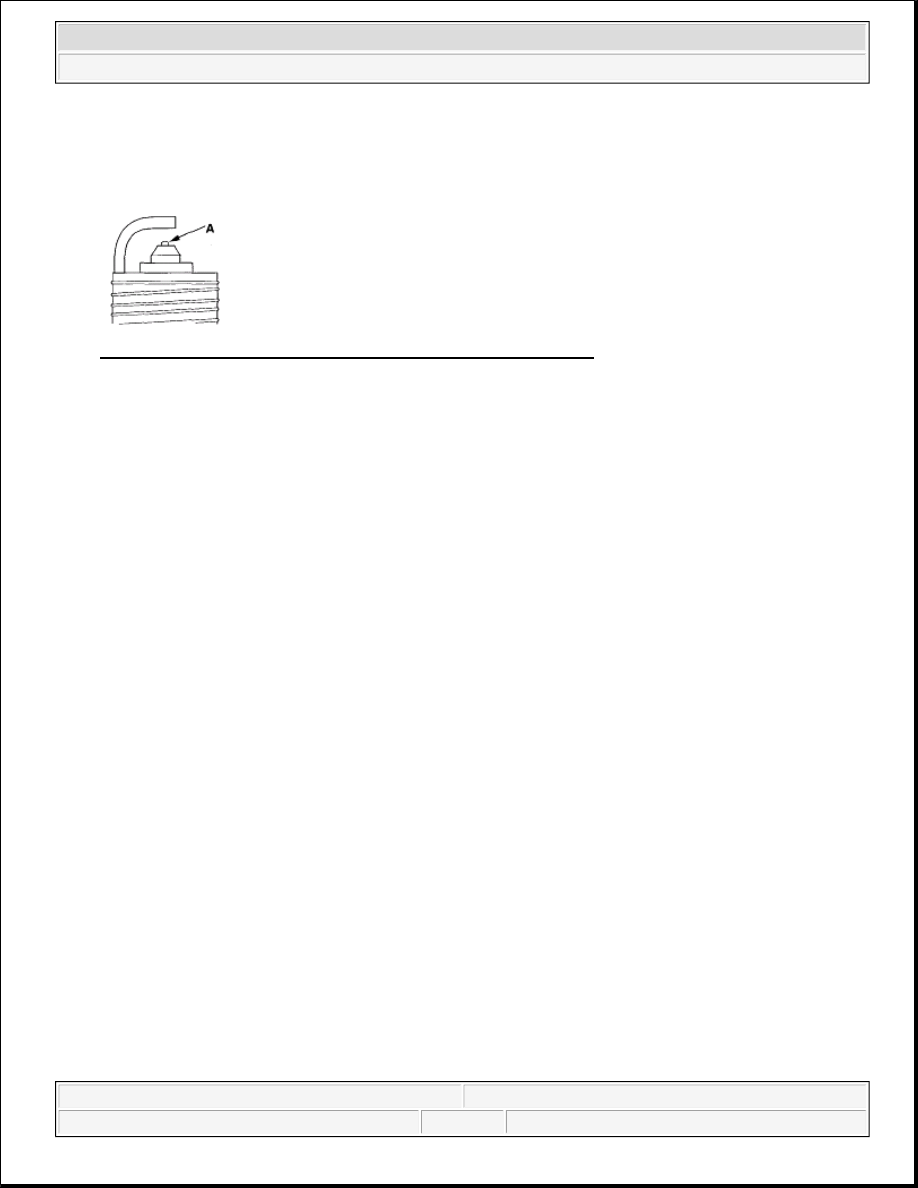

Fig. 12: Identifying Spark Plugs And Electrode Gap
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Replace the plug at the specified interval or if the center electrode is rounded (A). Use only the spark

NOTE:



Do not use a wire brush or scrape the iridium electrode since this will
damage the electrode.



When using a sand blaster spark plug cleaner, do not clean for more
than 20 seconds to avoid damaging the electrode.



2007 Honda Element EX

2007-08 ENGINE Ignition System - Element



plugs listed.

Spark Plugs IZFR6K11 (NGK)

Fig. 13: Identifying Spark Plugs And Rounded Center Electrode
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Apply a small amount of anti-seize compound to the plug threads, and screw the plugs into the cylinder

head, finger-tight. Torque them to 18 N-m (1.8 kgf.m, 13 lbf.ft).
