TRANSMISSION RANGE SWITCH SUBHARNESS (A/T)

CONNECTOR TO HARNESS INDEX

SHIFT CONTROL SOLENOID WIRE HARNESS (A/T)

CONNECTOR TO HARNESS INDEX

C105 (Junction
connector)

18

24

Left side of
engine





C106 (Junction
connector)

19

24

Left side of
engine





C107 (Junction
connector)

5

20

Behind glove box



C108

31

8

Transmission
housing

Shift control solenoid wire harness

A/T

G101

43



Middle of engine Engine ground, via engine wire harness



G102

13



Left side of
engine

Engine ground, via engine wire harness



Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Transmission range switch

25

10

Left side of engine compartment





C104

23

10

Transmission housing

Engine wire harness

Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Shift control solenoid valve A

29

1

In transmission





Shift control solenoid valve B

28

1

In transmission





Shift control solenoid valve C

33

1

In transmission





Shift control solenoid valve D

30

1

In transmission





ATF temperature sensor

34

1

In transmission





Shift control solenoid valve E

32

1

In transmission





C108

31

8

Transmission housing

Engine wire harness





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element

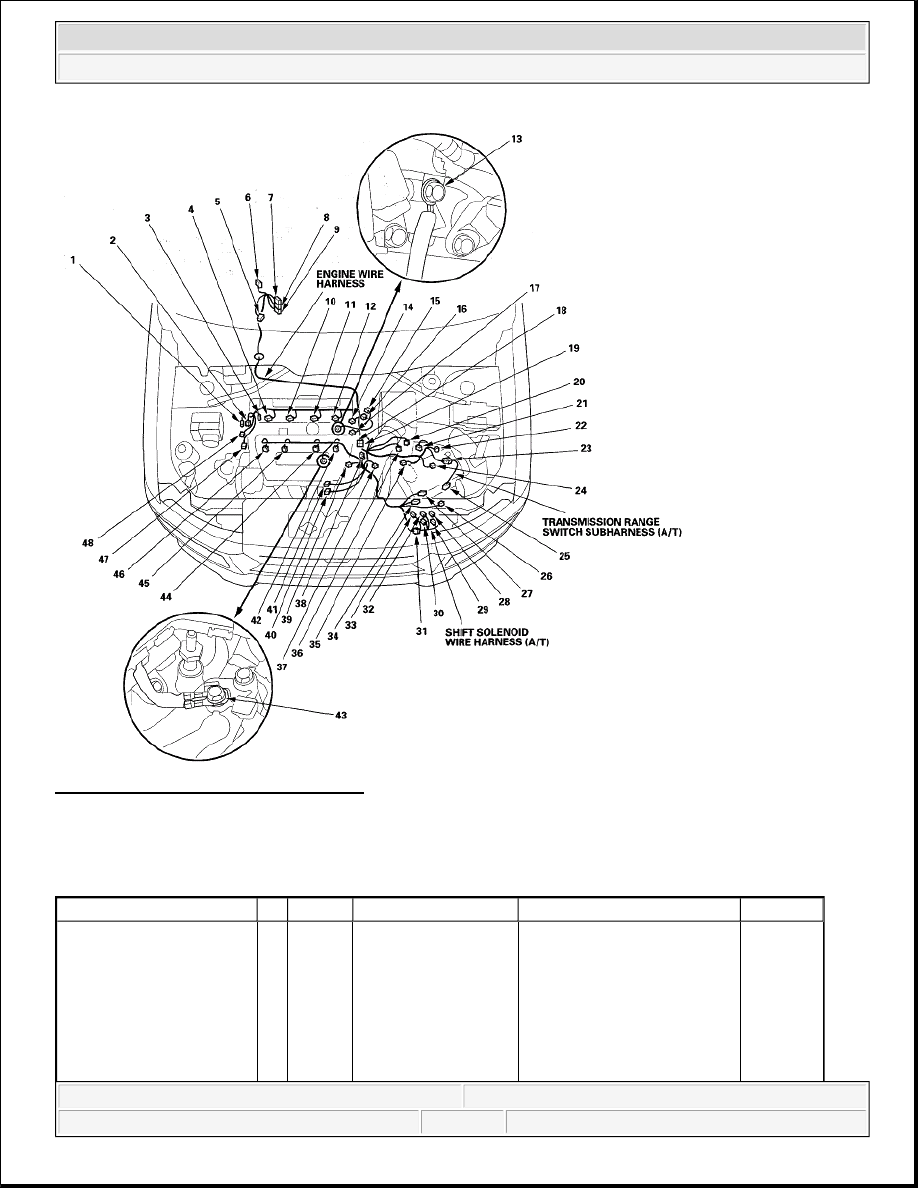

Fig. 4: Identifying Engine Wire Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) (EXCEPT SC MODEL)

CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities

Location

Connects to

Notes

A/C compressor clutch

12

1

Front of engine
compartment





A/C condenser fan motor

14

2

Front of engine
compartment





A/C pressure switch

10

2

Right side of engine
compartment





Engine coolant

Front of engine



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



temperature (ECT) sensor
2

13

2

compartment





Rear window washer
motor

5

2

Behind right side of
front bumper





Right front wheel sensor

11

2

Right side of engine
compartment





Right side marker light

2

2

Behind right headlight



Right front turn
signal/parking light

3

3

Behind right headlight



Right headlight

9

3

Behind right headlight



VSA modulator-control
unit

1

47

Right side of engine
compartment





Washer fluid level switch

6

2

Behind right side of
front bumper



Canada
models

Windshield washer motor

4

2

Behind right side of
front bumper





G201

7



Behind right side of
front bumper

Body ground, via engine
compartment wire harness



G202

8



Behind right side of
front bumper

Body ground, via engine
compartment wire harness





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element

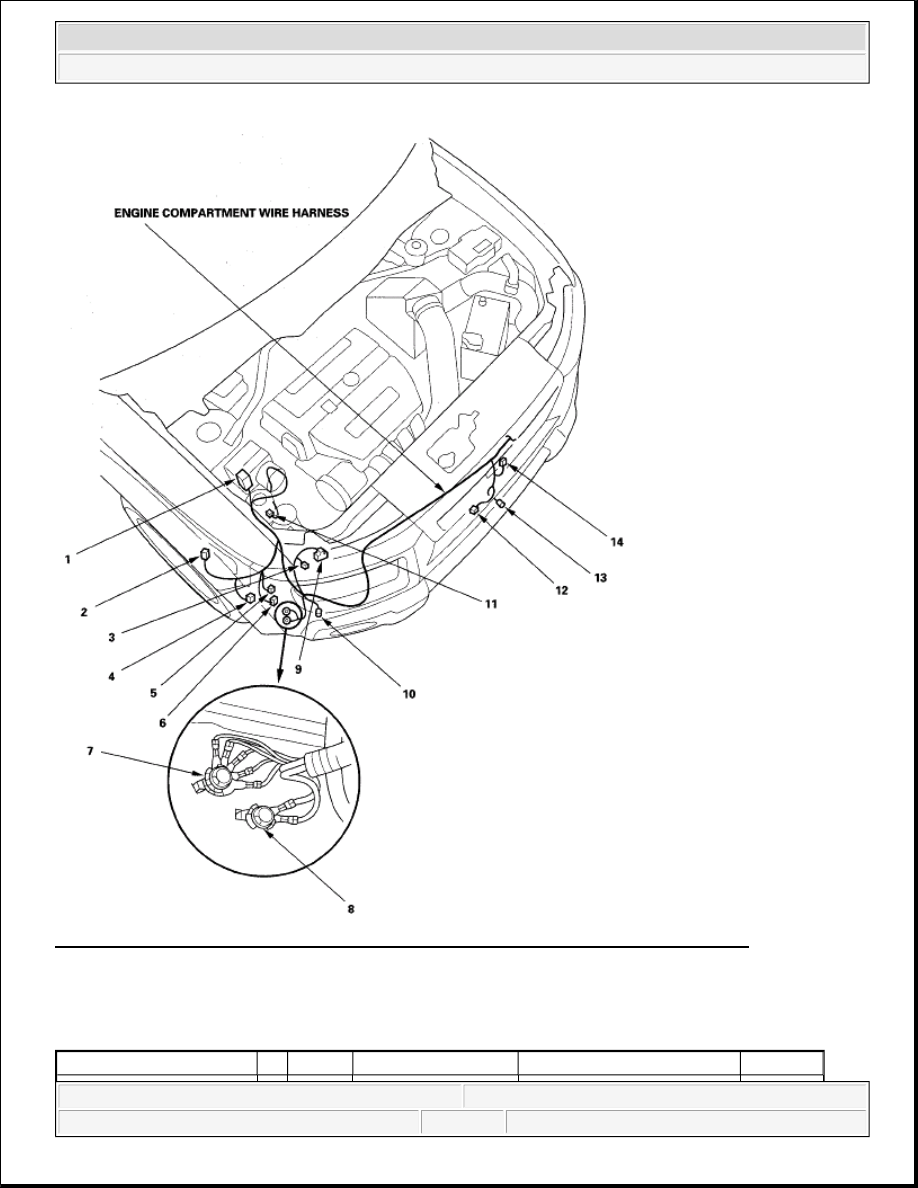

Fig. 5: Identifying Engine Compartment Wire Harness (Right Branch) (Except SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE COMPARTMENT WIRE HARNESS (RIGHT BRANCH) (SC MODEL)

CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities

Location

Connects to

Notes
