Honda Element. Manual - part 353

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

Alternator

1

4

Right side of engine
compartment





Knock sensor

3

1

Front of engine





Starter solenoid

5

1

Front of engine





C102

9

6

Left side of engine
compartment

Engine wire harness (see ENGINE
WIRE HARNESS )



C103

10

1

Middle of engine

Engine wire harness (see ENGINE
WIRE HARNESS )



T101

7



Left side of engine
compartment

Under-hood fuse/relay box



T102

6



Left side of engine
compartment

Under-hood fuse/relay box



T103

2



Right side of engine
compartment

Alternator



T104

4



Middle of engine

Starter motor



(+)

8



Left side of engine
compartment

Battery positive terminal





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



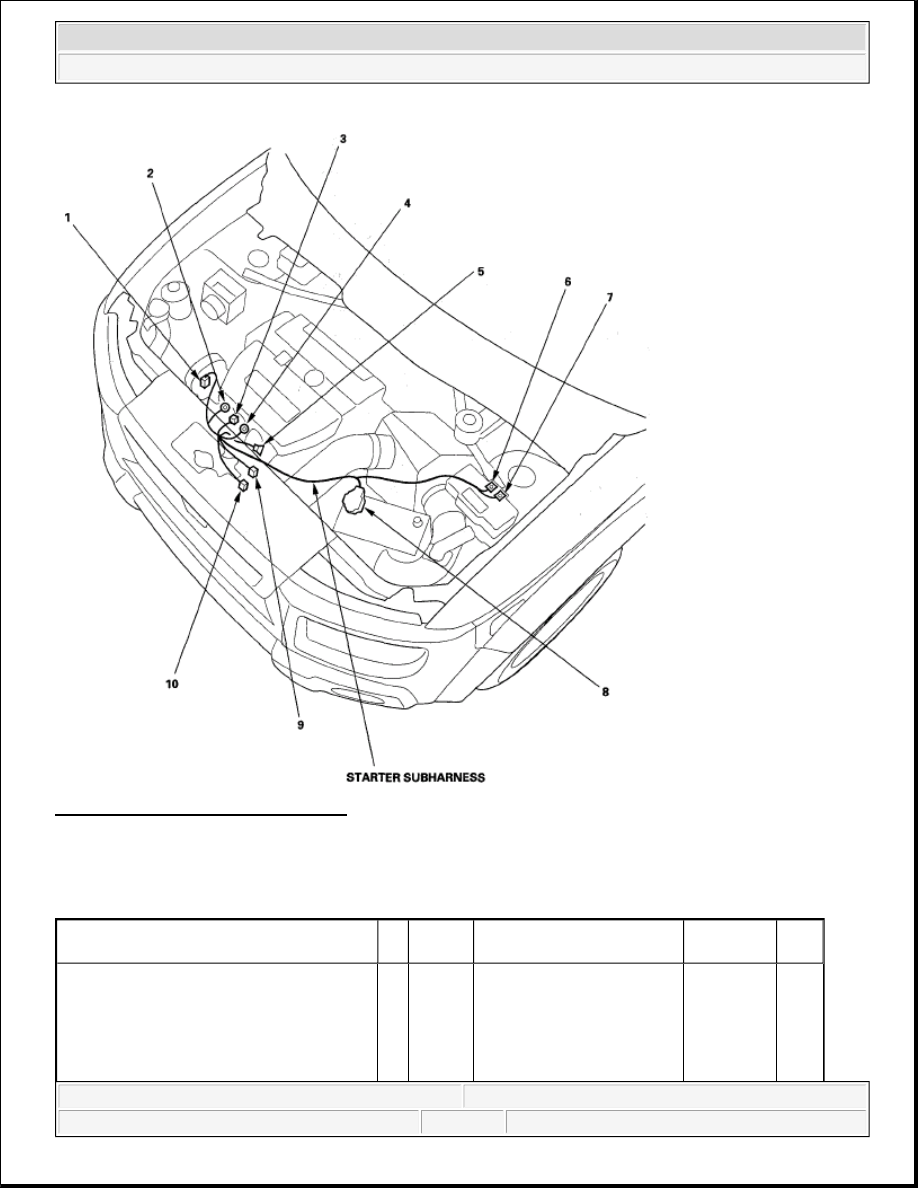

Fig. 2: Identifying Starter Subharness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE WIRE HARNESS

CONNECTOR TO HARNESS INDEX

Connector or Terminal

Ref Cavities

Location

Connects

to

Notes

A/T clutch pressure control solenoid valve
A

24

2

Transmission housing



A/T

A/T clutch pressure control solenoid valve
B

34

2

Transmission housing



A/T

A/T clutch pressure control solenoid valve  27

2

Transmission housing



A/T



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



C
Back-up light switch

36

2

Transmission housing



M/T

Camshaft position (CMP) sensor A

17

3

Left side of engine





Camshaft position (CMP) sensor B

14

3

Left side of engine





CKP sensor

47

3

Right side of engine





ECM/PCM connector A

9

31

Behind glove box





ECM/PCM connector B

8

24

Behind glove box





ECM/PCM connector C

7

22

Behind glove box





Engine coolant temperature (ECT) sensor 1 15

2

Left side of engine





EVAP canister purge valve

16

2

Left side of engine





Ignition coil No. 1

4

3

Middle of engine





Ignition coil No. 2

10

3

Middle of engine





Ignition coil No. 3

11

3

Middle of engine





Ignition coil No. 4

12

3

Middle of engine





Injector No. 1

46

2

Middle of engine





Injector No. 2

45

2

Middle of engine





Injector No. 3

44

2

Middle of engine





Injector No. 4

42

2

Middle of engine





Input shaft (Mainshaft) speed sensor

22

3

Transmission housing



A/T

MAF sensor/IAT sensor

37

5

Intake air duct





MAP sensor

39

3

Front of engine
compartment





Oil pressure switch

1

1

Right side of engine





Output shaft (Countershaft) speed sensor

21

3

Transmission housing



A/T

Output shaft (Countershaft) speed sensor

20

3

Transmission housing



M/T

Rocker arm oil control solenoid

2

2

Right side of engine





Rocker arm oil pressure switch

3

2

Right side of engine





TP sensor/throttle actuator

38

6

Left side of intake manifold



VTC oil control solenoid valve

48

2

Right side of engine





2nd clutch transmission fluid pressure
switch

35

1

Transmission housing



A/T

3rd clutch transmission fluid pressure
switch

26

1

Transmission housing



A/T



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



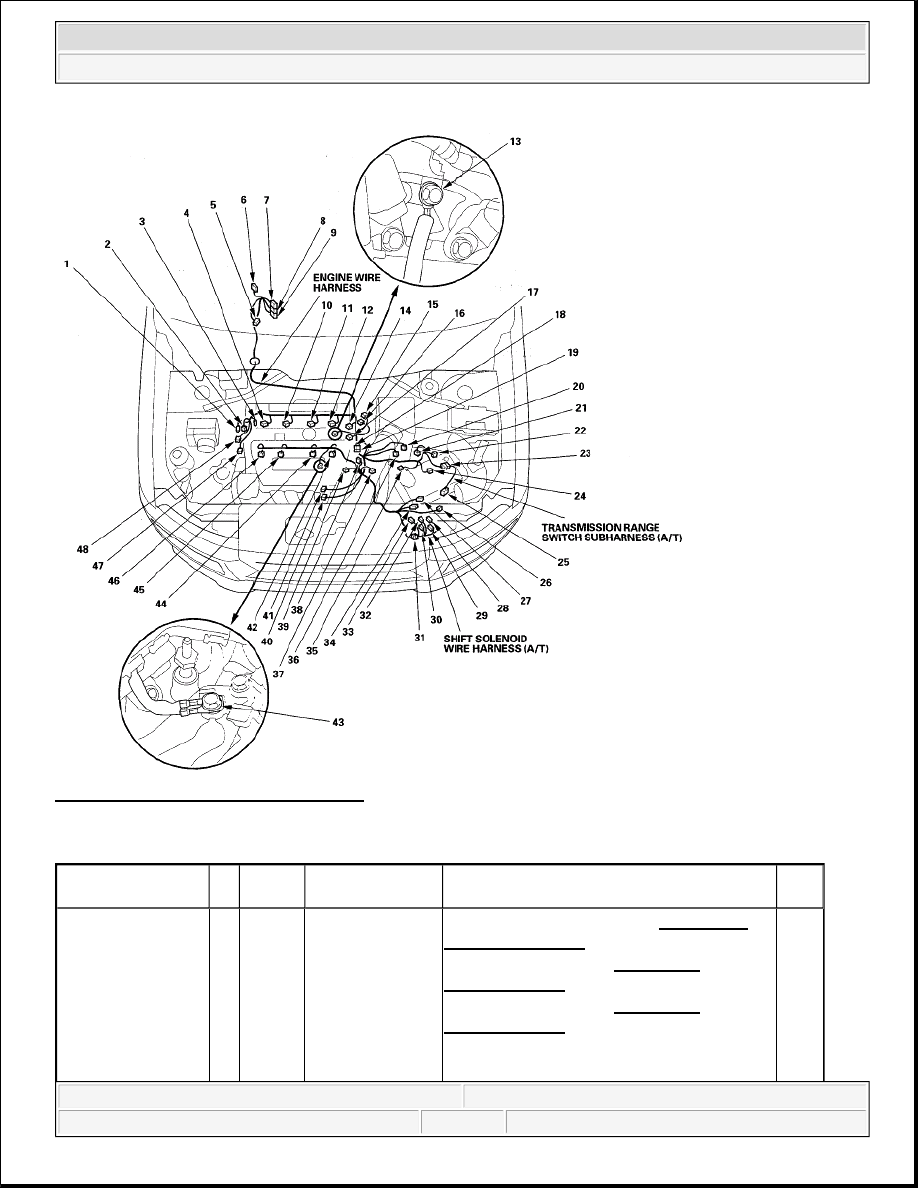

Fig. 3: Identifying Engine Wire Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

C101

6

20

Behind glove box

ECM/PCM wire harness (see ECM/PCM
WIRE HARNESS )



C102

40

6

Middle of engine

Starter subharness (see STARTER
SUBHARNESS )



C103

41

1

Middle of engine

Starter subharness (see STARTER
SUBHARNESS )



C104

23

10

Transmission
housing

Transmission range switch subharness

A/T



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
