2007-2008 ELECTRICAL

Connectors and Harnesses - Element

CONNECTOR INDEX

Identification numbers have been assigned to in-line connectors. The number is preceded by the letter "C" for
connectors, "G" for ground terminals or "1" for non-ground terminals.

CONNECTOR INDEX

Harness

Location

Engine

Compartment

Dashboard

Others
(Floor,

Door,

Tailgate,

and Roof)

Notes

A/C wire harness



C851 through C853

(see A/C WIRE HARNESS )

Battery ground
cable

T3, (-)
G1





(see BATTERY GROUND
CABLE )

Console subharness
(SC model)



C570



(see CONSOLE
SUBHARNESS (SC
MODEL) )

Dashboard wire
harness A (Left
branch)



C403, C406, C453,
C454, C501, C502,
C504, C751 and
C752 G501



(see DASHBOARD WIRE
HARNESS A (LEFT
BRANCH) )

Dashboard wire
harness A (Right
branch)



C551, C552, C561,
C562, C651 through
C653, C781, C851,
C852, C855 G502
and G503



(see DASHBOARD WIRE
HARNESS A (RIGHT
BRANCH) )

Dashboard wire
harness B



C401 through C404
G401



(see DASHBOARD WIRE
HARNESS B )

Driver's door wire
harness



C751, C752



(see DRIVER'S DOOR
WIRE HARNESS )

ECM/PCM wire
harness



C101, C451 through
C457 G451

C554, C570,
C571, C601,
C602, C681
G553

(see ECM/PCM WIRE
HARNESS )

Engine
compartment wire
harness
(Dashboard)



C401, C402, C405,
C451, C452, C501,
C502, C553, C853

G402

(see ENGINE
COMPARTMENT WIRE
HARNESS
(DASHBOARD) )

Engine
compartment wire

(see ENGINE
COMPARTMENT WIRE



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



harness (Left
branch) (Except SC
model)

G301





HARNESS (LEFT
BRANCH) (EXCEPT SC
MODEL) )

Engine
compartment wire
harness (Left
branch) (SC model)

C350, G301





(see ENGINE
COMPARTMENT WIRE
HARNESS (LEFT
BRANCH) (SC MODEL) )

Engine
compartment wire
harness (Right
branch) (Except SC
model)

G201, G202





(see ENGINE
COMPARTMENT WIRE
HARNESS (RIGHT
BRANCH) (EXCEPT SC
MODEL) )

Engine
compartment wire
harness (Right
branch) (SC model)

C250 G201,
G202





(see ENGINE
COMPARTMENT WIRE
HARNESS (RIGHT
BRANCH) (SC MODEL) )

Engine ground
cable

T4
G2





(see ENGINE GROUND
CABLE )

Engine wire
harness

C102 through
C106, C108
G101, G102

C101, C107



(see ENGINE WIRE
HARNESS )

Floor wire harness
(Left branch)





C554, C570,
C571, C601,
C602, C681
G553

(see FLOOR WIRE
HARNESS (LEFT
BRANCH) )

Floor wire harness
(Right branch)



C404, C455, C456,
C551, C552, C553,
C559, C561, C562

C556, C558,
C560, C604
G551, G552

(see FLOOR WIRE
HARNESS (RIGHT
BRANCH) )

Front passenger's
door wire harness



C781



(see FRONT
PASSENGER'S DOOR
WIRE HARNESS )

Hatch wire harness



C601
through
C603

(see HATCH WIRE
HARNESS )

Left headlight
subharness (SC
model)

C350





(see LEFT HEADLIGHT
SUBHARNESS (SC
MODEL) )

Left rear door
subharness





C554, C771

(see LEFT REAR DOOR
SUBHARNESS )

Left rear door wire
harness





C771
G771

(see LEFT REAR DOOR
WIRE HARNESS )

ODS unit harness





C560

(see ODS UNIT HARNESS )

Right headlight
subharness (SC
model)

C250





(see ENGINE
COMPARTMENT WIRE
HARNESS (RIGHT



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



CONNECTOR TO HARNESS INDEX

BATTERY GROUND CABLE

CONNECTOR TO HARNESS INDEX

ENGINE GROUND CABLE

CONNECTOR TO HARNESS INDEX

BRANCH) (SC MODEL) )

Right rear door
subharness



C851 through C853 C556, C761

(see RIGHT REAR DOOR
SUBHARNESS )

Right rear door
wire harness





C761
G751

(see RIGHT REAR DOOR
WIRE HARNESS )

Roof wire harness



C651 through C653

C603 and
C604

(see ROOF WIRE
HARNESS )

Seat position sensor
subharness





C571

(see FLOOR WIRE
HARNESS (LEFT
BRANCH) )

Shift solenoid wire
harness (A/T)







(see SHIFT CONTROL
SOLENOID WIRE
HARNESS (A/T) )

Starter subharness

C102, C103, (+)
T101 through
T104





(see STARTER
SUBHARNESS )

Tailgate wire
harness





C681

(see HATCH WIRE
HARNESS )

TPMS subharness



C855



(see DASHBOARD WIRE
HARNESS A (RIGHT
BRANCH) )

Transmission range
switch subharness
(A/T)

C104





(see TRANSMISSION
RANGE SWITCH
SUBHARNESS (A/T) )

Tweeter subharness

C504



(see TWEETER
SUBHARNESS )

VSA/Fuel pump
wire harness





C558

(see VSA/FUEL PUMP
WIRE HARNESS )

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

T3

3



Transmission housing

Transmission hanger bracket



G1

1



Left side of engine
compartment

Body ground via battery ground
cable



(-)

2



Battery

Battery negative terminal





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



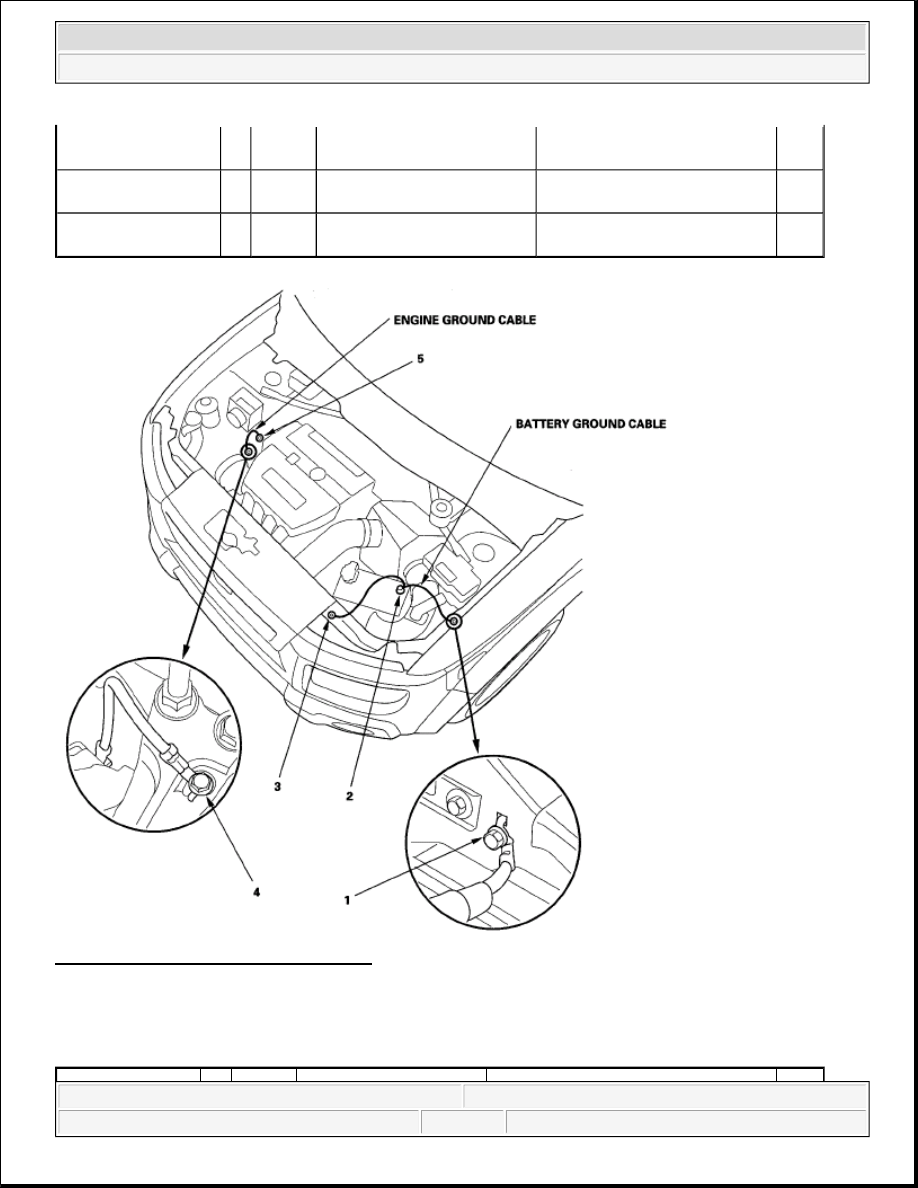

Fig. 1: Identifying Battery Ground Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

STARTER SUBHARNESS

CONNECTOR TO HARNESS INDEX

Connector or

Terminal

Ref Cavities

Location

Connects to

Notes

T4

5



Right side of engine
compartment





G2

4



Right side of engine
compartment

Body ground, via engine ground
cable





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
