RIGHT HEADLIGHT SUBHARNESS (SC MODEL)

CONNECTOR TO HARNESS INDEX

A/C compressor clutch

14

1

Front of engine
compartment





A/C condenser fan motor

16

2

Front of engine
compartment





A/C pressure switch

8

2

Right side of engine
compartment





Engine coolant
temperature (ECT) sensor
2

15

2

Front of engine
compartment





Rear window washer
motor

4

2

Behind right side of
front bumper





Right front wheel sensor

2

2

Right side of engine
compartment





Right side marker light

9

2

Behind right headlight



Right front turn
signal/parking light

10

3

Behind right headlight



Right headlight (connector
B)

13

2

Behind right headlight



VSA modulator-control
unit

1

47

Right side of engine
compartment





Washer fluid level switch

5

2

Behind right side of
front bumper



Canada
models

Windshield washer motor

3

2

Behind right side of
front bumper





C250

12

2

Behind right headlight Right headlight subharness



G201

6



Behind right side of
front bumper

Body ground, via engine
compartment wire harness



G202

7



Behind right side of
front bumper

Body ground, via engine
compartment wire harness



Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Right headlight connector A

11

2

Behind right headlight





C250

12

2

Behind right headlight

Engine compartment





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Fig. 6: Identifying Engine Compartment Wire Harness (Right Branch) (SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) (EXCEPT SC MODEL)

CONNECTOR TO HARNESS INDEX

Connector or Terminal

Ref Cavities

Location

Connects to

Notes

Under middle of



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



Air fuel ratio (A/F) sensor

4

4

vehicle





Brake fluid level switch

21

2

Left side of engine
compartment





ELD unit (see CONNECTOR TO
FUSE/RELAY BOX INDEX )

17

3

Under-hood
fuse/relay box





Horn

10

1

Behind left side of
front bumper





Left front wheel sensor

13

2

Left side of engine
compartment





Left front impact sensor

11

2

Behind left side of
front bumper





Left side marker light

12

2

Behind left
headlight





Left front turn signal/parking lights

7

3

Behind left
headlight





Left headlight

6

3

Behind left
headlight





Optional connector (for fog light)

8

1

Behind left side of
front bumper





Power steering pressure (PSP) switch

2

2

Rear of engine
compartment





Radiator fan motor

5

2

Front of engine
compartment





Right front impact sensor

1

2

Behind right side
of front bumper





Secondary heated oxygen sensor
(SHO2S)

3

4

Under middle of
vehicle





Under-hood fuse/relay box connector A
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

19

2

Under-hood
fuse/relay box





Under-hood fuse/relay box connector B
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

14

5

Under-hood
fuse/relay box





Under-hood fuse/relay box connector C
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

18

12

Under-hood
fuse/relay box





Under-hood fuse/relay box connector D
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

15

14

Under-hood
fuse/relay box





Under-hood fuse/relay box connector E
(see CONNECTOR TO
FUSE/RELAY BOX INDEX )

16

7

Under-hood
fuse/relay box





Windshield wiper motor

20

5

Under left side of
cowl cover





Behind left side of  Body ground, via engine



2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element



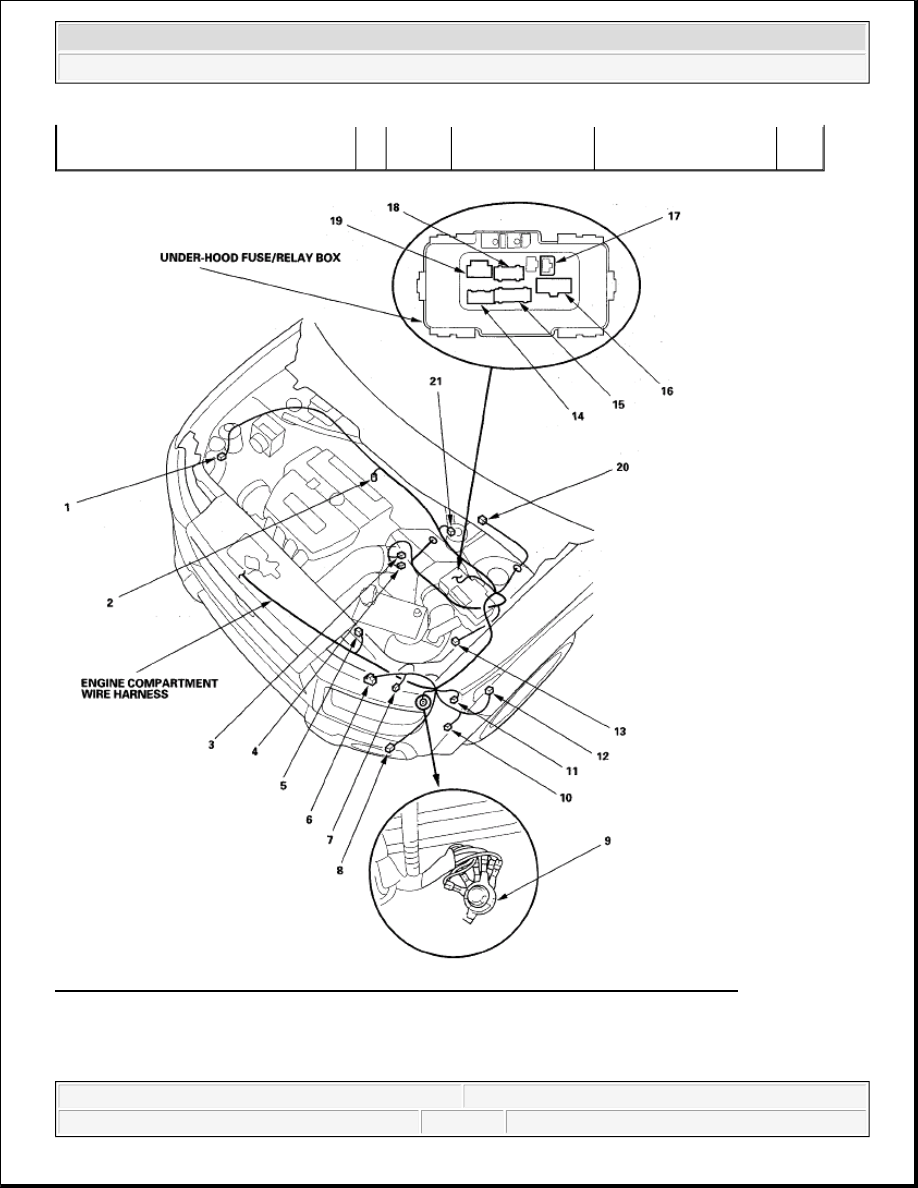

Fig. 7: Identifying Engine Compartment Wire Harness (Left Branch) (Except SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

ENGINE COMPARTMENT WIRE HARNESS (LEFT BRANCH) (SC MODEL)

G301

9



front bumper

compartment wire
harness





2007 Honda Element EX

2007-2008 ELECTRICAL Connectors and Harnesses - Element
