A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A TEST

1. Connect the HDS to the DLC (A).

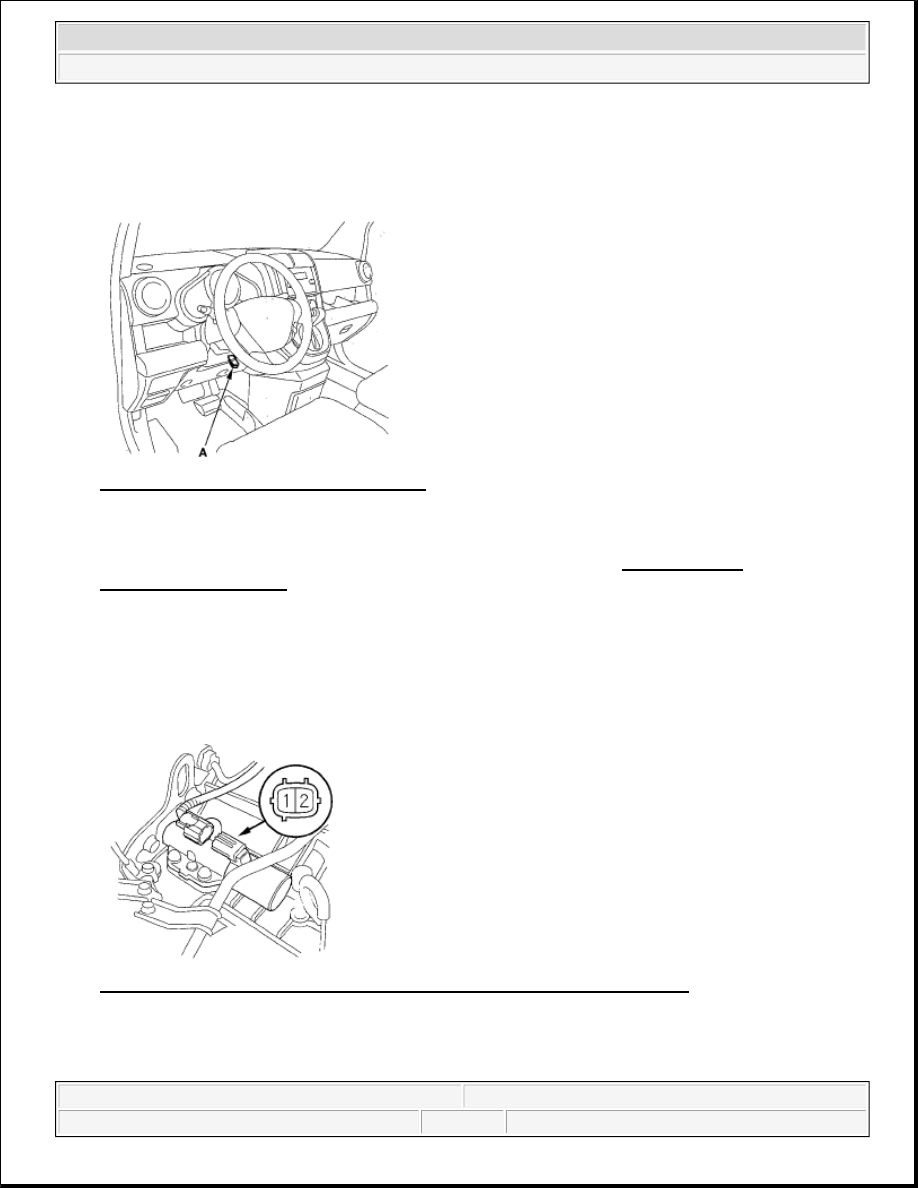

Fig. 183: Identifying Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Select Clutch Pressure Control (Linear) Solenoid A in Miscellaneous Test Menu on the HDS. If the HDS

does not communicate with the PCM, troubleshoot the DLC circuit (see DLC CIRCUIT
TROUBLESHOOTING ).

3. Test A/T clutch pressure control solenoid valve A with the HDS.

4. Follow the instructions indicated on the HDS by the test result. If the HDS has not determined the cause

of the failure, remove A/T clutch pressure control solenoid A and test.

5. Remove the air cleaner assembly.

6. Disconnect the A/T clutch pressure control solenoid valve A connector.

Fig. 184: Identifying A/T Clutch Pressure Control Solenoid Valve Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Measure A/T clutch pressure control solenoid valve A resistance at the solenoid valve A connector.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Standard: 3-10 ohms

8. If the resistance is out of the standard, replace A/T clutch pressure control solenoid valve A (see A/T

CLUTCH PRESSURE CONTROL SOLENOID VALVE A REPLACEMENT ).

9. Connect the battery positive terminal to A/T clutch pressure control solenoid valve connector terminal

No. 1, and connect the battery negative terminal to terminal No. 2. A clicking sound should be heard.

10. If no sound is heard, remove A/T clutch pressure control solenoid valve A, and check the valve

movement.

11. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.

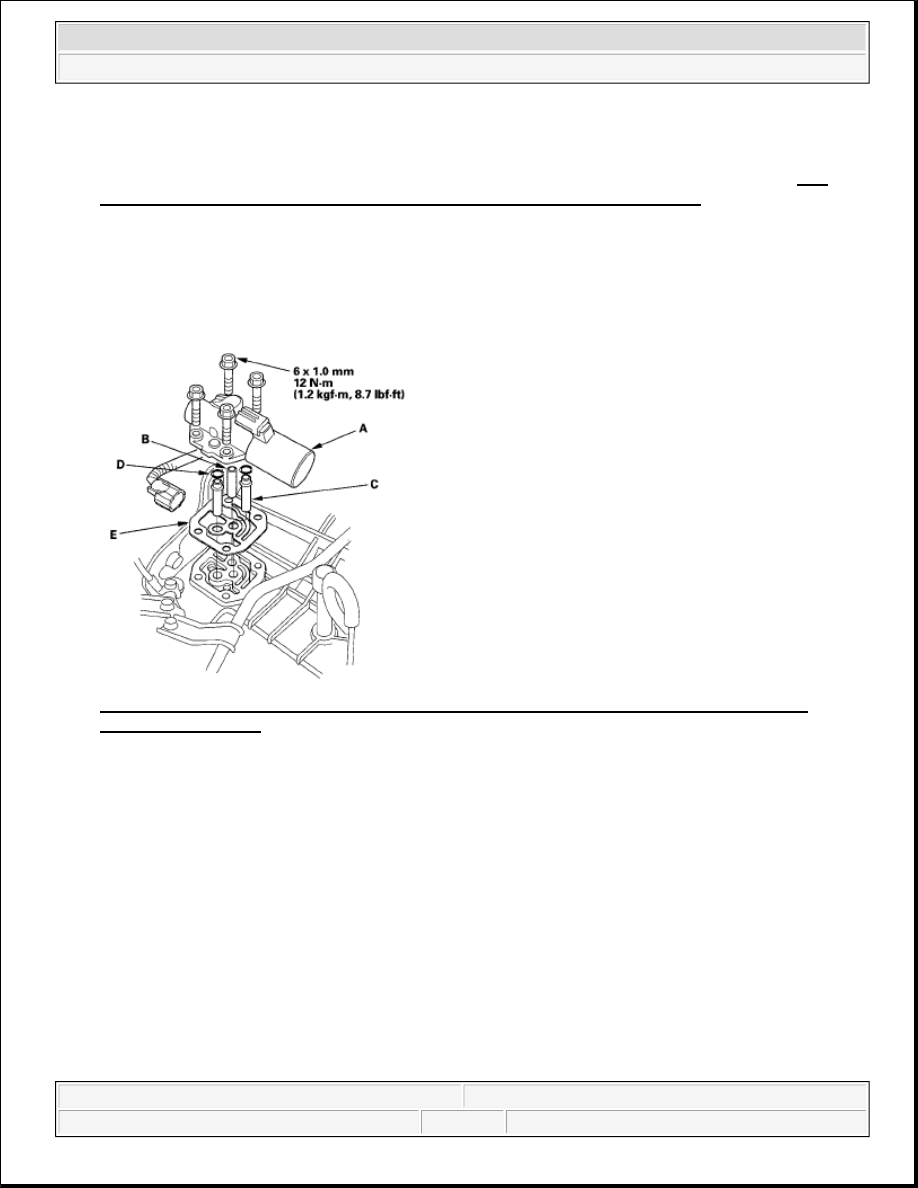

Fig. 185: Identifying A/T Clutch Pressure Control Solenoid Valve And Mounting Bolts With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the ATF pipe (B), ATF joint pipes (C), O-rings (D), and gasket (E).

13. Check the fluid passage of the A/T clutch pressure control solenoid valve for dust or dirt, and clean the

passage.

14. Connect the battery positive terminal to A/T clutch pressure control solenoid valve connector terminal

No. 1, and connect the battery negative terminal to terminal No. 2. Make sure the A/T clutch pressure
control solenoid valve moves.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



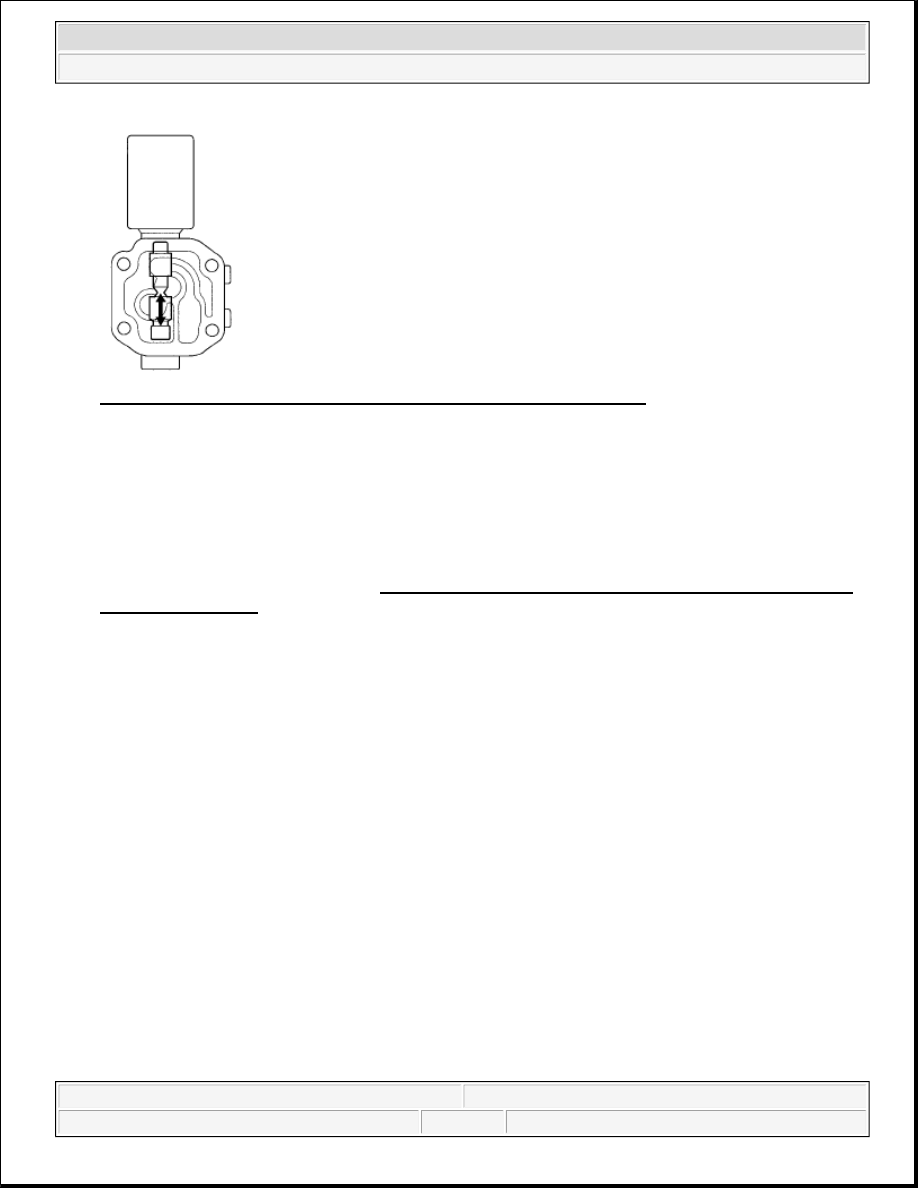

Fig. 186: Checking A/T Clutch Pressure Control Solenoid Valve Moves
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Disconnect one of the battery terminals, and check valve movement.

16. If the valve binds or moves sluggishly, or if the solenoid valve does not operate, replace A/T clutch

pressure control solenoid valve A (see A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE
A REPLACEMENT ).

17. Install a new gasket on the transmission housing, and install the ATF pipe and ATF joint pipes.

18. Install new O-rings over the ATF joint pipes.

19. Install A/T clutch pressure control solenoid valve A.

20. Check the A/T clutch pressure control solenoid valve A connector for rust, dirt, or oil, then connect the

connector securely.

21. Install the air cleaner assembly.

A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE A REPLACEMENT

1. Remove the air cleaner assembly.

2. Disconnect the A/T clutch pressure control solenoid valve A connector.

3. Remove the mounting bolts and A/T clutch pressure control solenoid valve A.

NOTE:

You can see valve movement through the fluid passage in the mounting
surface of the A/T clutch pressure control solenoid valve A body.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



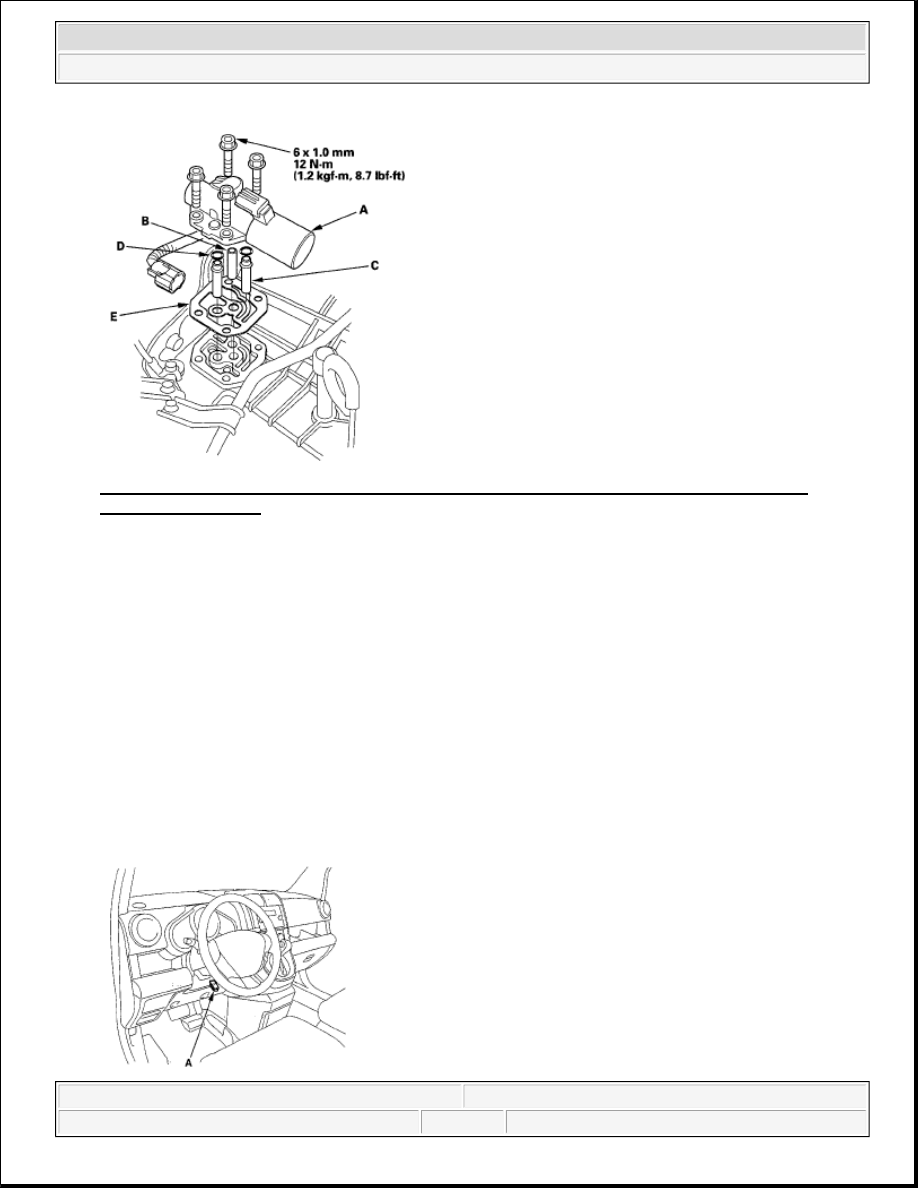

Fig. 187: Identifying A/T Clutch Pressure Control Solenoid Valve And Mounting Bolts With
Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the ATF pipe (B), ATF joint pipes (C), O-rings (D), and gasket (E).

5. Clean the mounting surface and fluid passages of the transmission housing.

6. Install a new gasket on the transmission housing, and install the ATF pipe and ATF joint pipes.

7. Install new O-rings over the ATF joint pipes.

8. Install new A/T clutch pressure control solenoid valve A.

9. Check the A/T clutch pressure control solenoid valve A connector for rust, dirt, or oil, then connect the

connector securely.

10. Install the air cleaner assembly.

A/T CLUTCH PRESSURE CONTROL SOLENOID VALVE B TEST

1. Connect the HDS to the DLC (A).
