Honda Element. Manual - part 237

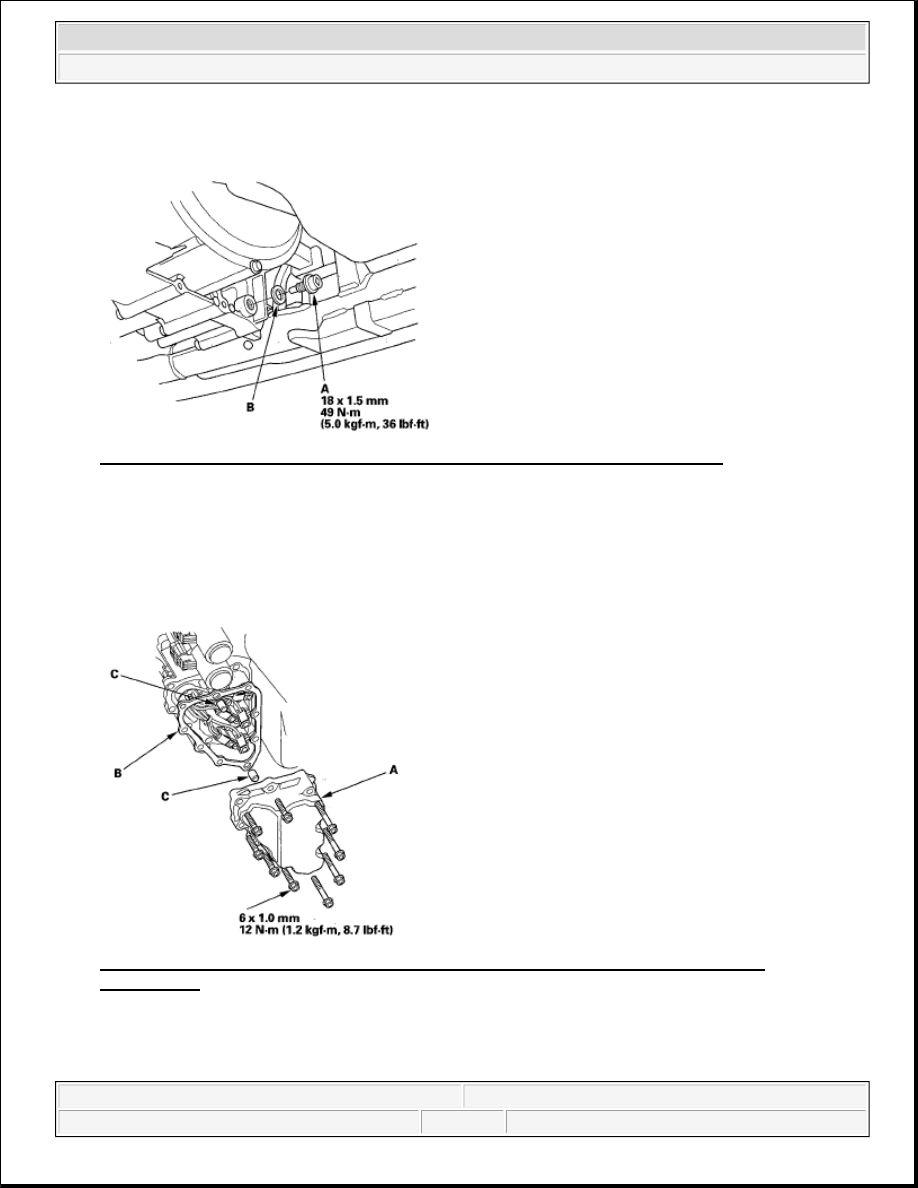

Fig. 177: Identifying Drain Plug With Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Reinstall the drain plug with a new sealing washer (B).

7. Place the transmission jack under the transmission, and lift it up to create clearance between the

transmission and front subframe.

8. Disconnect the shift solenoid harness connector.

9. Remove the shift solenoid valve cover (A), gasket (B), and dowel pins (C).

Fig. 178: Identifying Shift Solenoid Valve Cover, Gasket And Dowel Pins With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Remove the shift solenoid harness connector.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



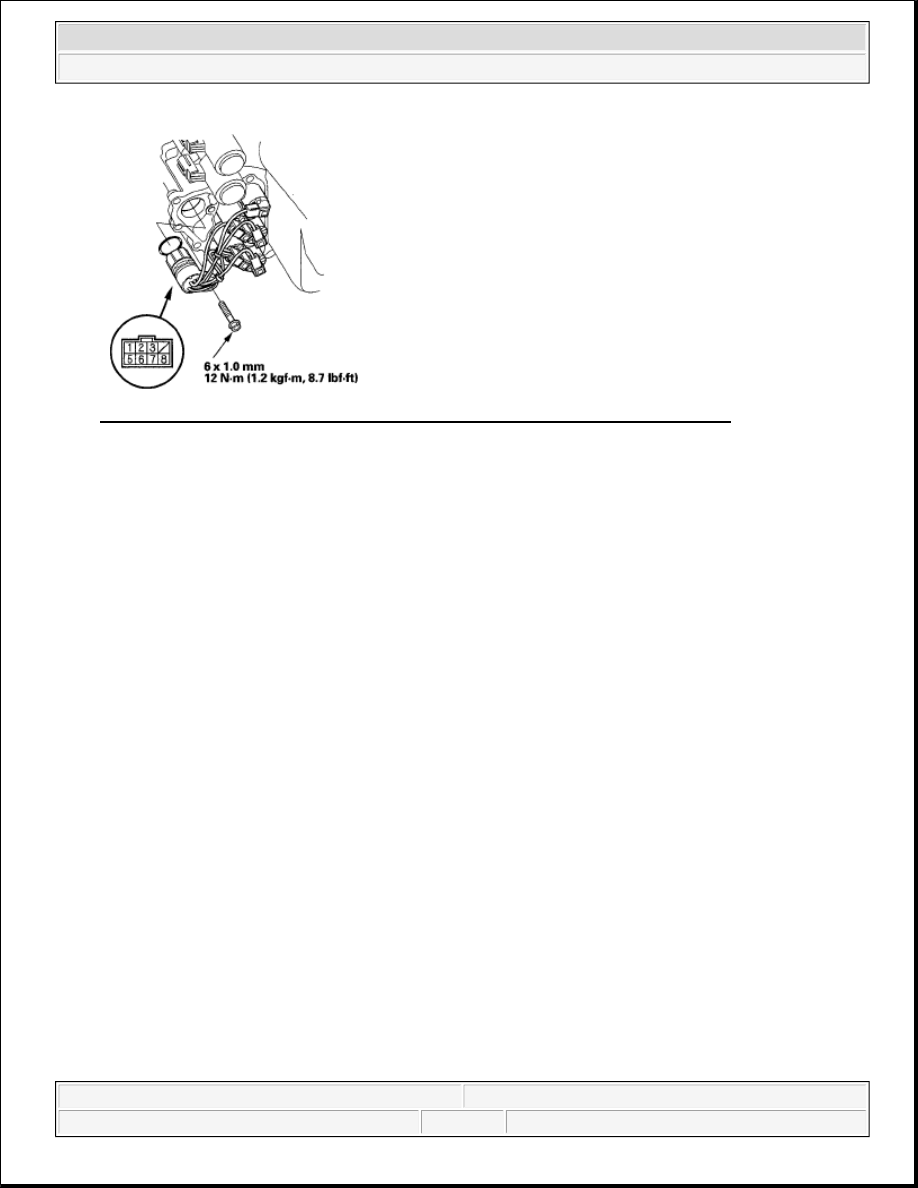

Fig. 179: Identifying Shift Solenoid Harness Connector With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Measure shift solenoid valve resistance between shift solenoid harness connector terminals below and

body ground:



No. 1 (GRN): Shift solenoid valve C



No. 2 (ORN): Shift solenoid valve B



No. 3 (RED): Shift solenoid valve E



No. 5 (BLU): Shift solenoid valve A



No. 8 (YEL): Shift solenoid valve D

Standard: 12-25 ohms

12. If the resistance is out of standard, disconnect the shift solenoid valve connector, and measure its

resistance at the solenoid valve connector. Replace the shift solenoid valve if the resistance is out of
standard.

13. Connect the battery negative terminal to body ground, and connect the battery positive terminal to the

shift solenoid harness connector terminal individually. A clicking sound should be heard.

14. If no sound is heard, connect the battery positive terminal to the shift solenoid valve terminal, and check

for a clicking sound. Replace the shift solenoid valve if no clicking sound is heard.

15. Replace the shift solenoid harness if the shift solenoid valves test results are OK.

16. Install a new O-ring on the shift solenoid harness connector, and install the connector in the transmission

housing.

17. Install the shift solenoid valve cover, dowel pins and a new gasket.

18. Check the connector for rust, dirt, or oil, then connect the connector securely.

19. Remove the transmission jack.

20. Refill the transmission with ATF (see step 5 ).

SHIFT SOLENOID VALVE REPLACEMENT



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



1. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

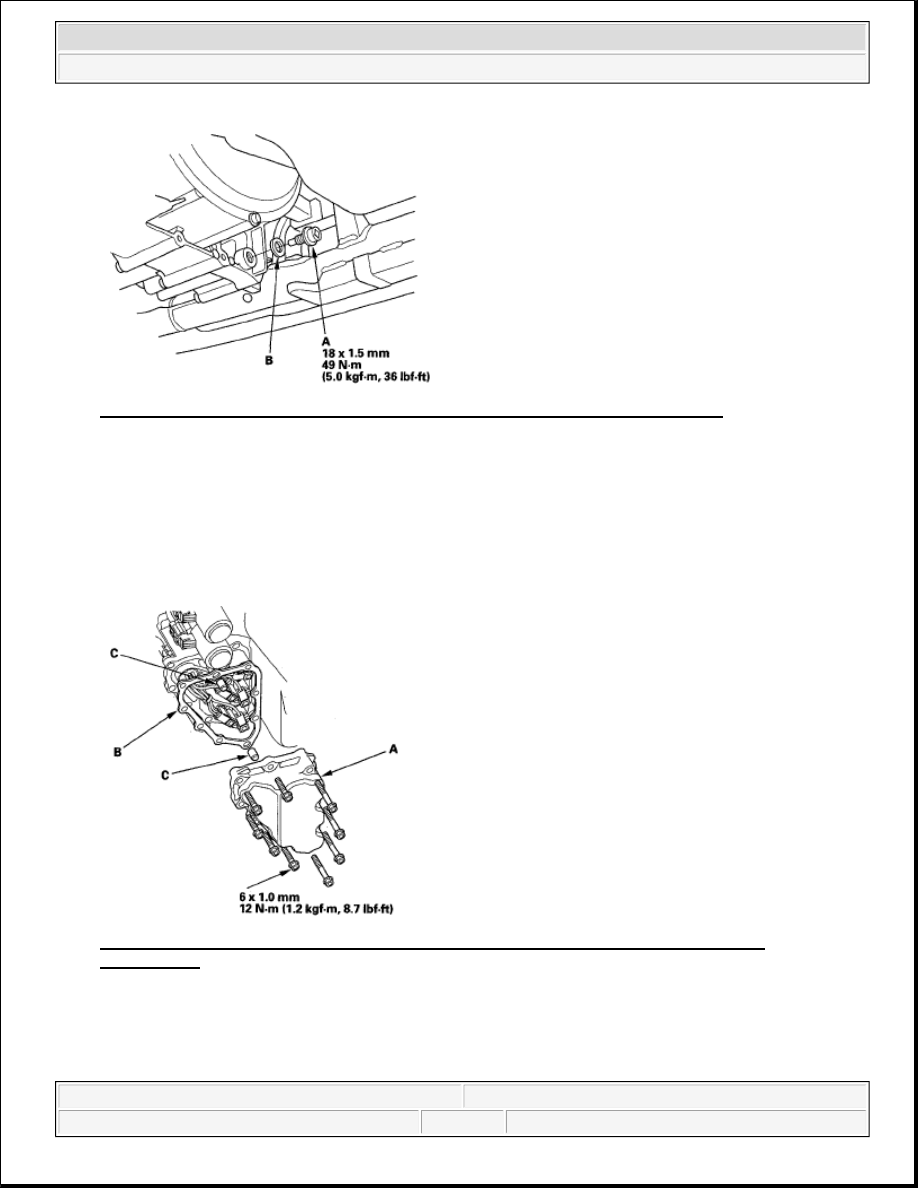

Fig. 180: Identifying Drain Plug With Sealing Washer With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Reinstall the drain plug with a new sealing washer (B).

3. Place the transmission jack under the transmission, and lift it up to create clearance between the

transmission and front subframe.

4. Remove the shift solenoid valve cover (A), gasket (B), and dowel pins (C).

Fig. 181: Identifying Shift Solenoid Valve Cover, Gasket And Dowel Pins With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Disconnect the shift solenoid valve connectors, remove the solenoid mounting bolts, then hold the

solenoid valve body and remove the shift solenoid valves. Do not hold the connector to remove the shift



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



solenoid valve.

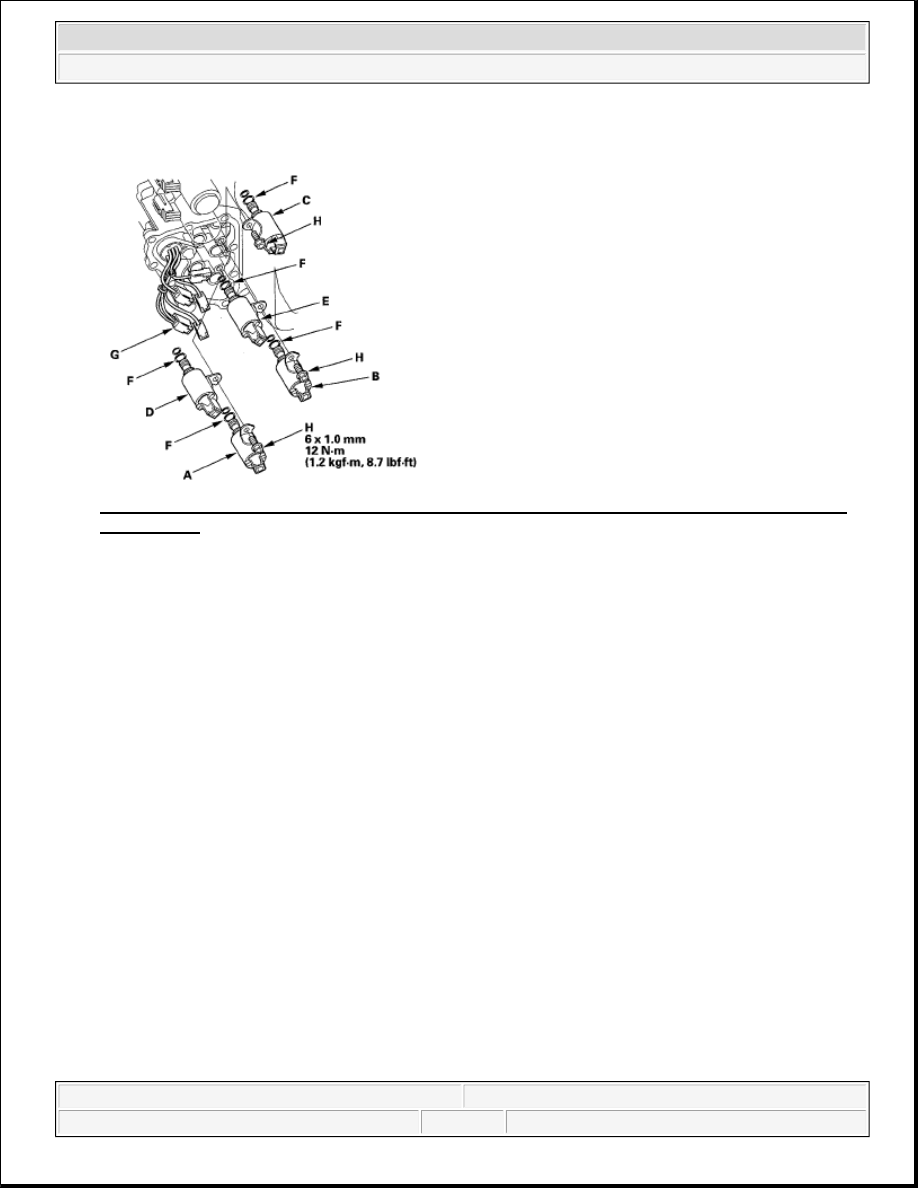

Fig. 182: Identifying Shift Solenoid Valve Connectors And Solenoid Mounting Bolts With Torque
Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Install the new O-rings (two O-rings per solenoid valve) (F) on the reused solenoid valve.

7. Install shift solenoid valves C, D, and E. While holding the shift solenoid valve body, be sure to install

the solenoid valves until their mounting brackets contact the servo body.

8. Install shift solenoid valves A and B. While holding the shift solenoid valve body, be sure to install the

solenoid valves until their mounting brackets contact the bracket of the installed solenoid. Install the
solenoid mounting bolts (H) and tighten them.

9. Connect the shift solenoid valve D connector (G) with the ATF temperature sensor.

10. Connect the solenoid valve A connector (BLU wire), solenoid valve B connector (ORN wire), solenoid

valve C connector (GRN wire), and solenoid valve E connector (RED wire).

11. Install the shift solenoid valve cover, dowel pins and a new gasket.

12. Check the connector for rust, dirt, or oil, then connect the connector securely.

13. Remove the transmission jack.

14. Refill the transmission with ATF (see step 5 ).

NOTE:

A new shift solenoid valve comes with new O-rings. If you install a new
shift solenoid valve, use the O-rings provided on it.

NOTE:

Do not install solenoid valves A and B before installing shift solenoid
valves D and E. If solenoid valves A and B are installed before solenoid
valves D and E, it may damage the hydraulic control system.
