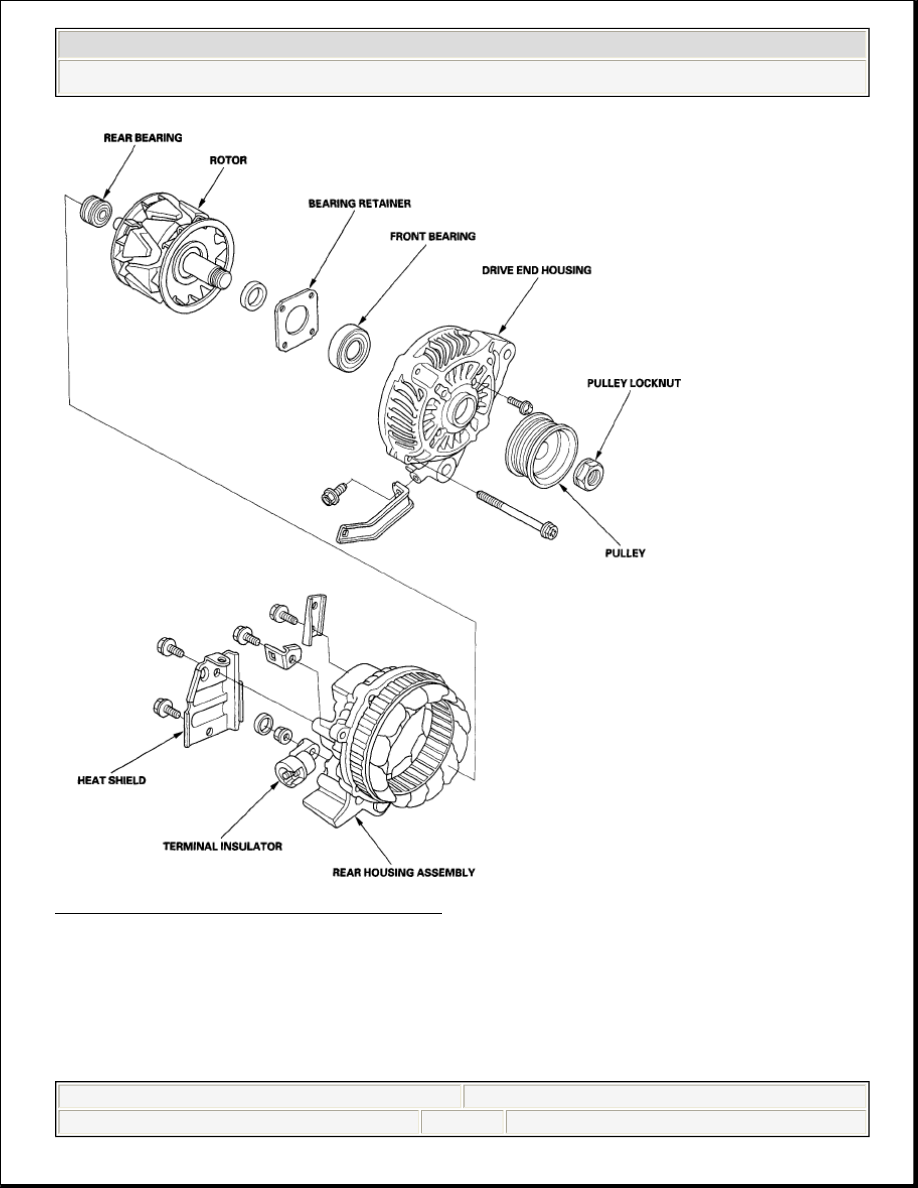

Fig. 22: Exploded View Of Alternator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Driver 07749-0010000

Attachment, 42 x 47 mm 07746-0010300

2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)

Alternator Disassembly

1. Test the alternator and regulator before you remove them (see

ALTERNATOR AND REGULATOR CIRCUIT
TROUBLESHOOTING ).

2. Remove the alternator (see ALTERNATOR REMOVAL AND

INSTALLATION ).

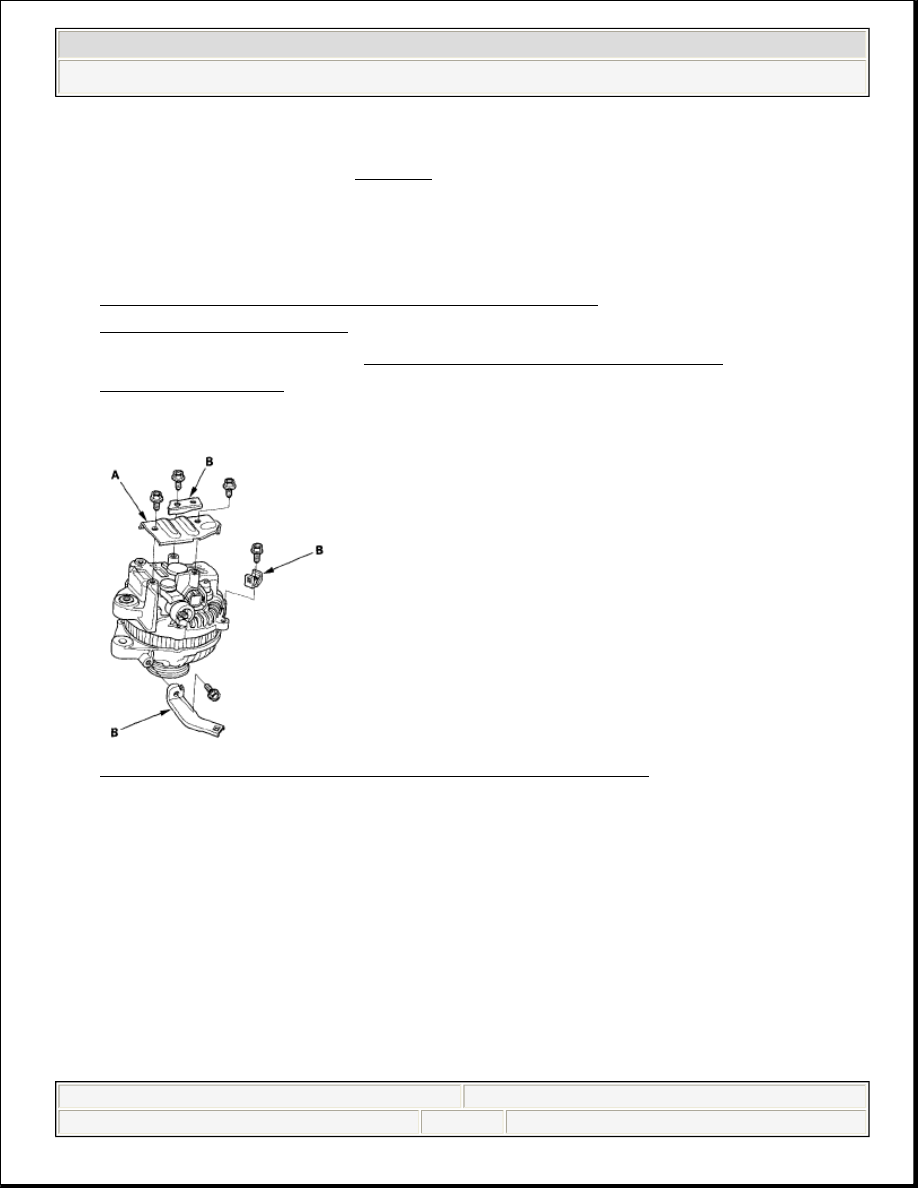

3. Remove the heat shield (A) and harness brackets (B).

Fig. 23: Removing Heat Shield And Harness Brackets
Courtesy of AMERICAN HONDA MOTOR CO., INC.

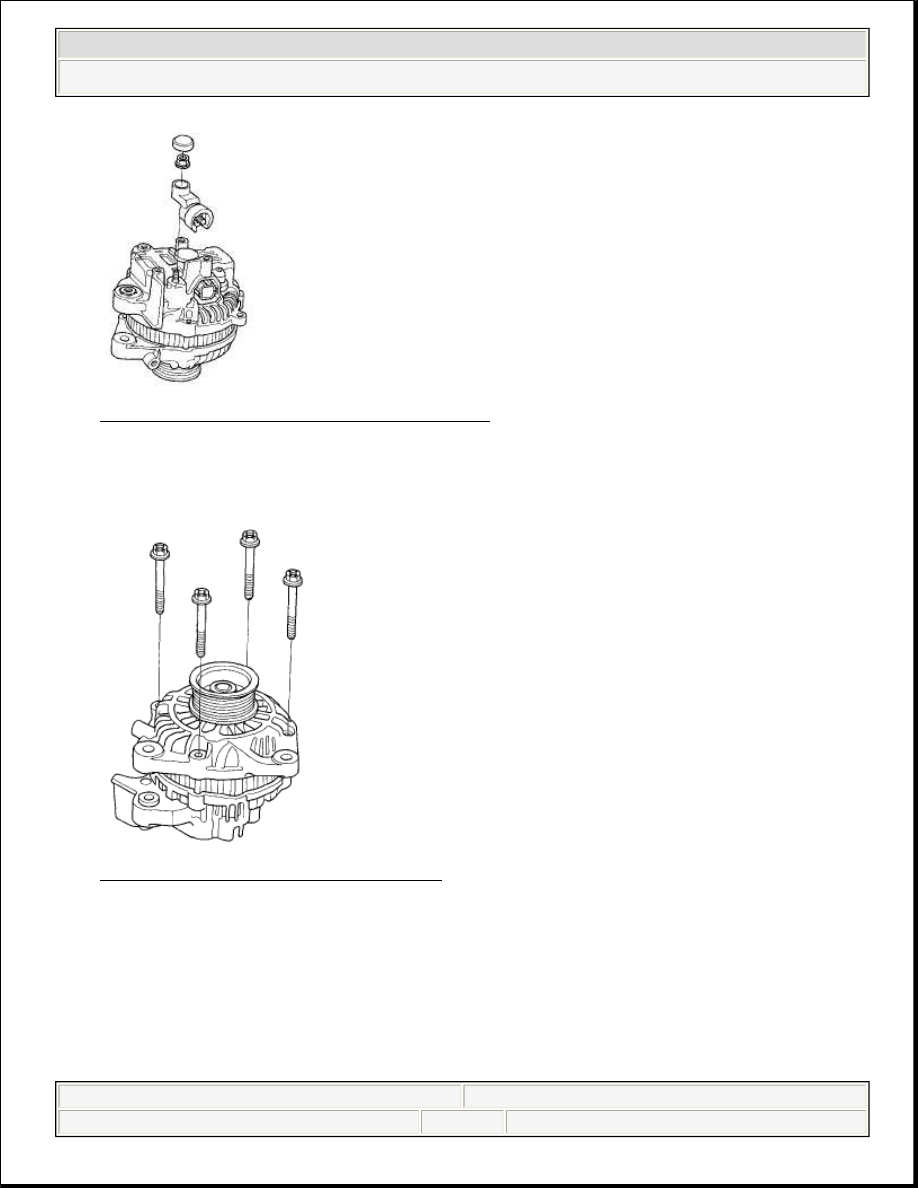

4. Remove the terminal insulator.

NOTE:

Refer to the exploded view as needed during this
procedure. See Fig. 22.

2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)

Fig. 24: Removing Terminal Insulator
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the four through bolts.

Fig. 25: Removing Through Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

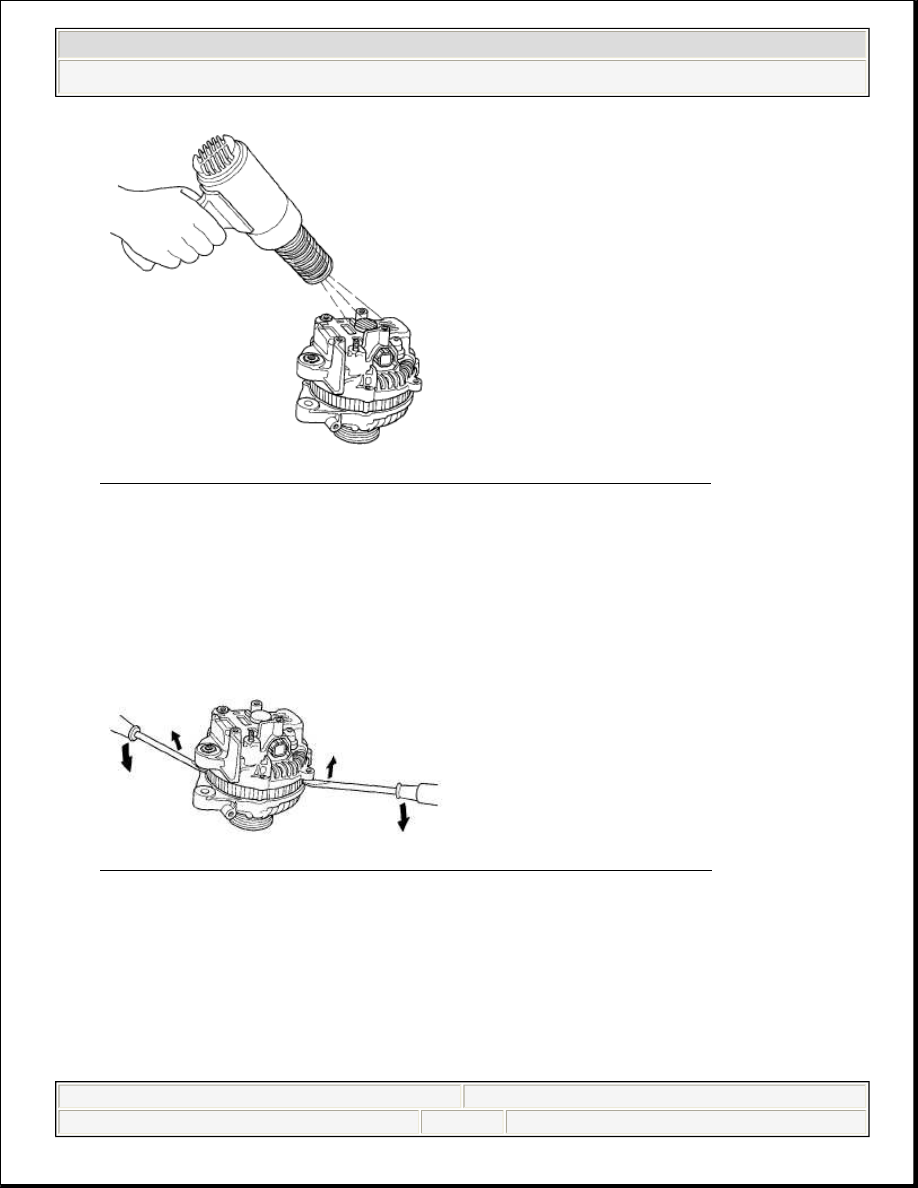

6. Heat the rear bearing seat with a heat gun for about 5 minutes (129-140 °F, 50-

60 °C).

2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)

Fig. 26: Identifying Heat Rear Bearing Seat With Heat Gun
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Separate the rear housing from the drive end housing by inserting a flat-tip

screwdriver into the openings and prying them apart.

Fig. 27: Identifying Rear Housing From Drive End Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Separate the rear housing (A) and drive end housing (B) with the stator (C)

attached to the rear housing.

NOTE:

Be careful not to damage the stator with the tip of the
screwdriver.

2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)
