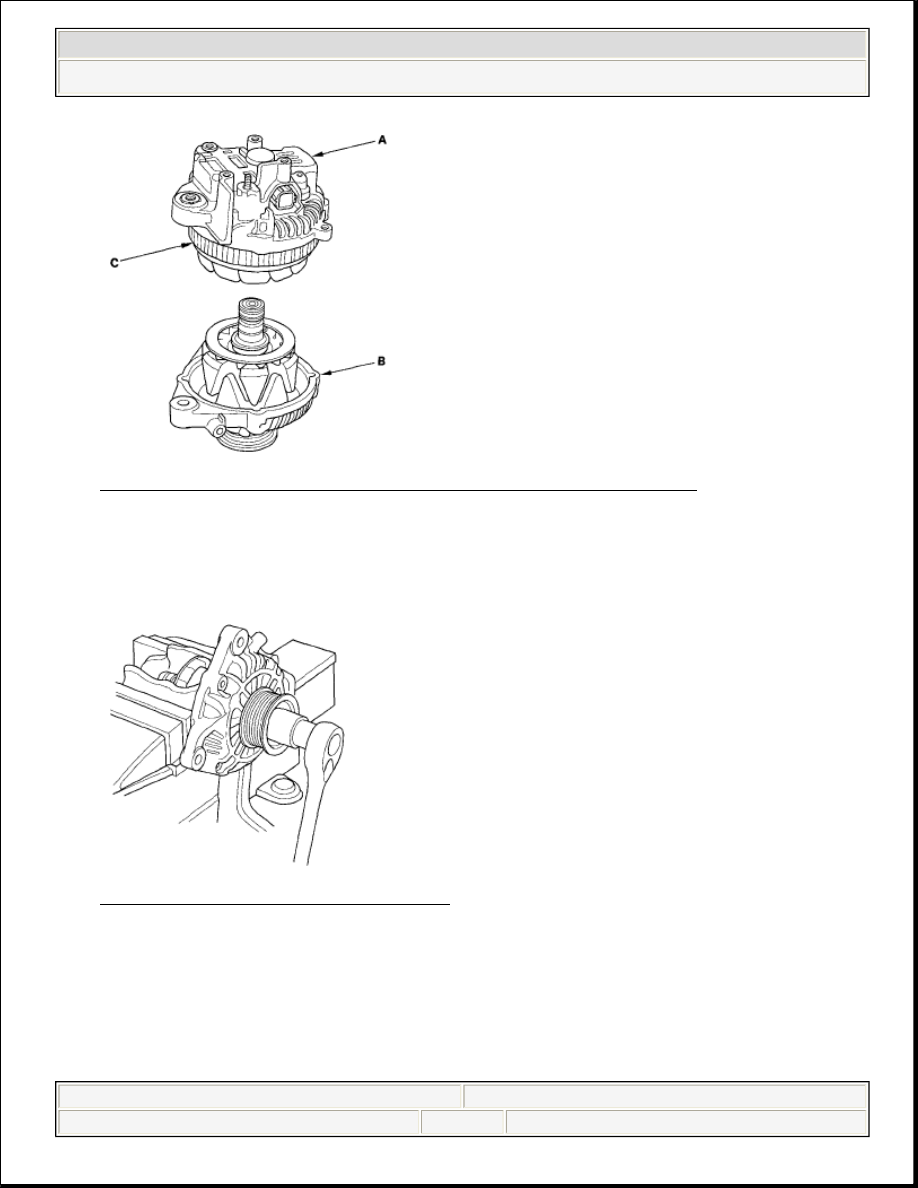

Fig. 28: Separating Rear Housing And Drive End Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. If you are not replacing the front bearing and/or rear bearing, go to step 17.

Clamp the rotor in a soft-jawed vise, then remove the pulley locknut.

Fig. 29: Removing Pulley Locknut
Courtesy of AMERICAN HONDA MOTOR CO., INC.

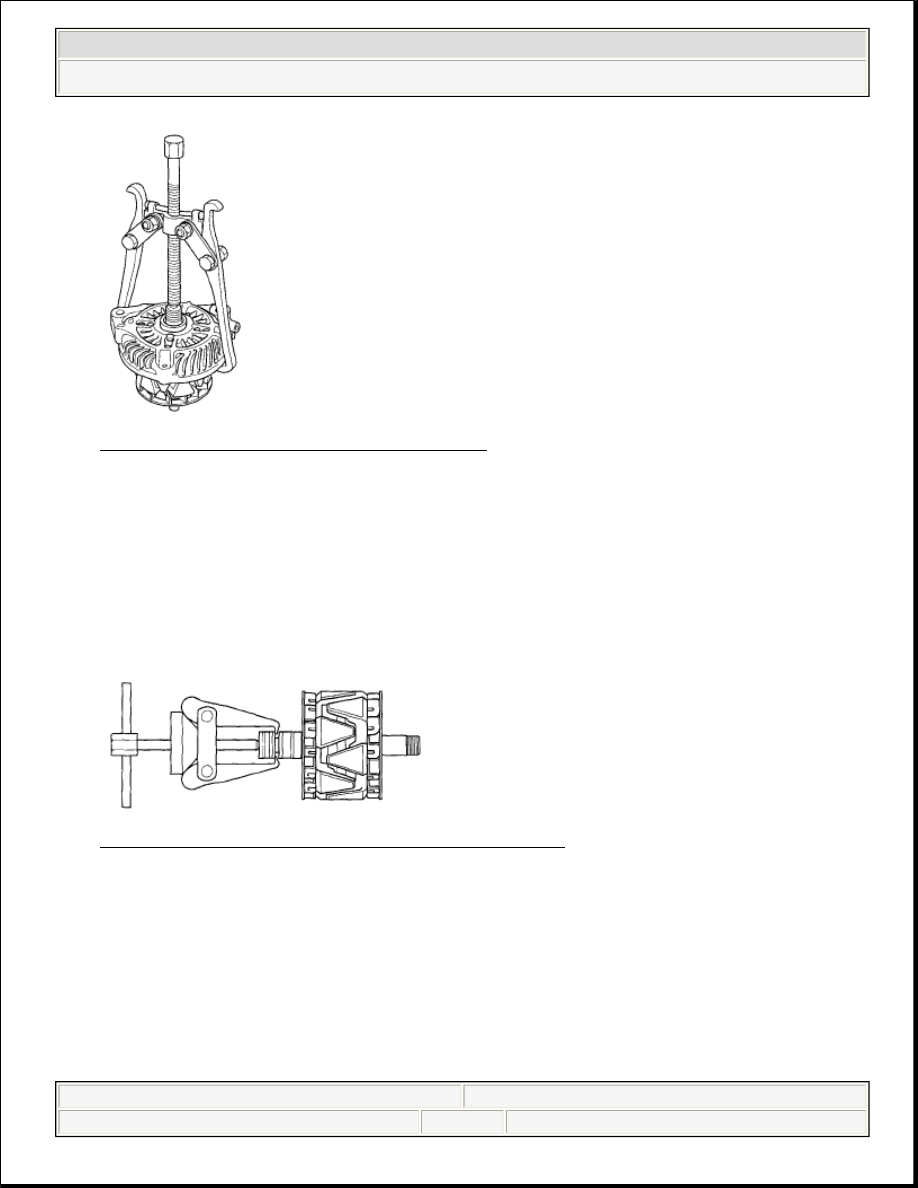

10. Remove the rotor using a puller as shown.



2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)



































Fig. 30: Removing Rotor Using Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Inspect the rotor shaft for scoring, and inspect the bearing journal surface in the

drive end housing for seizure marks.



If either the rotor or drive end housing is damaged, replace the alternator.



If both the rotor and the drive end housing are OK, go to step 12.

12. Remove the rear bearing using the puller as shown.

Fig. 31: Removing Rear Bearing Using Puller
Courtesy of AMERICAN HONDA MOTOR CO., INC.

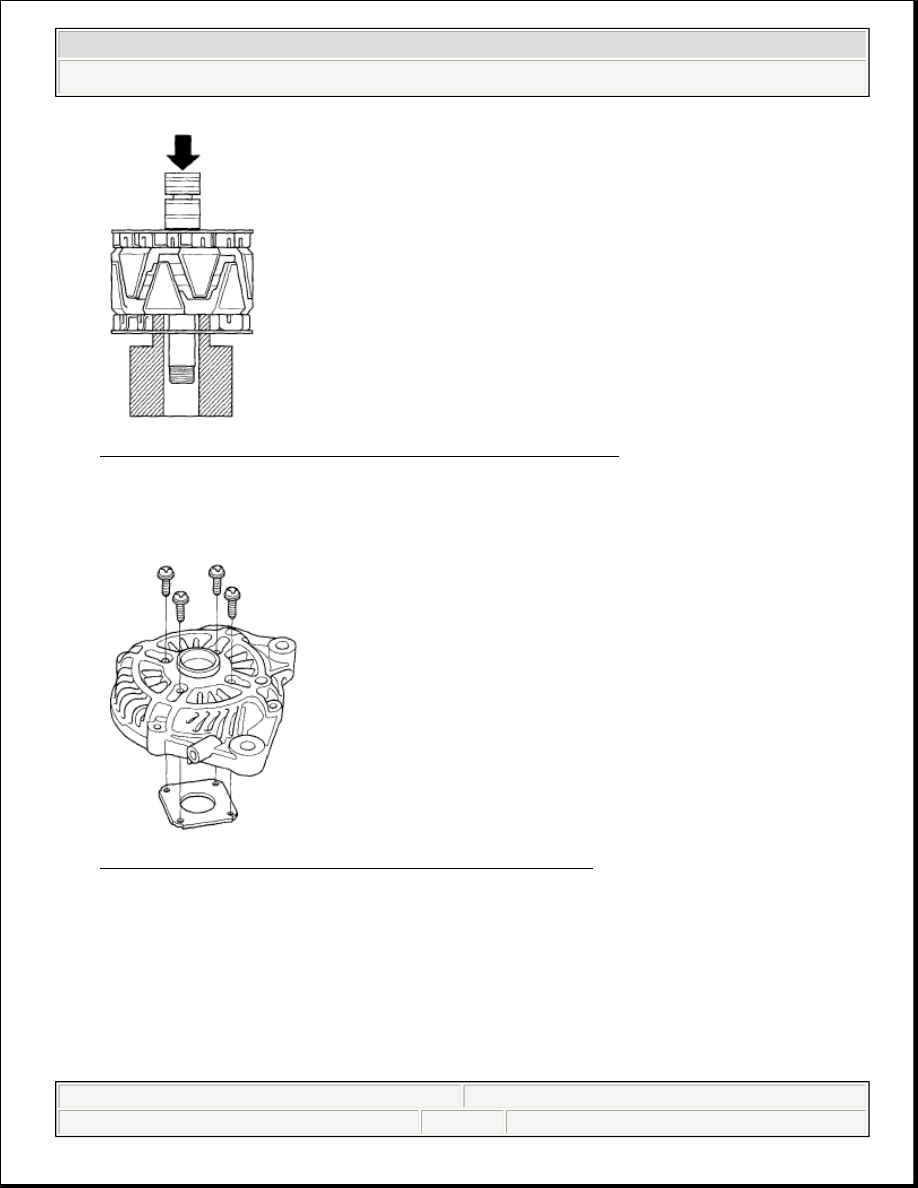

13. Use a hand press to install the new rear bearing. Apply pressure only on the

inner race to avoid damaging the bearing.



2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)



































Fig. 32: Applying Pressure On Inner Race Bearing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

14. Remove the front bearing retainer plate.

Fig. 33: Removing Front Bearing Retainer Plate
Courtesy of AMERICAN HONDA MOTOR CO., INC.

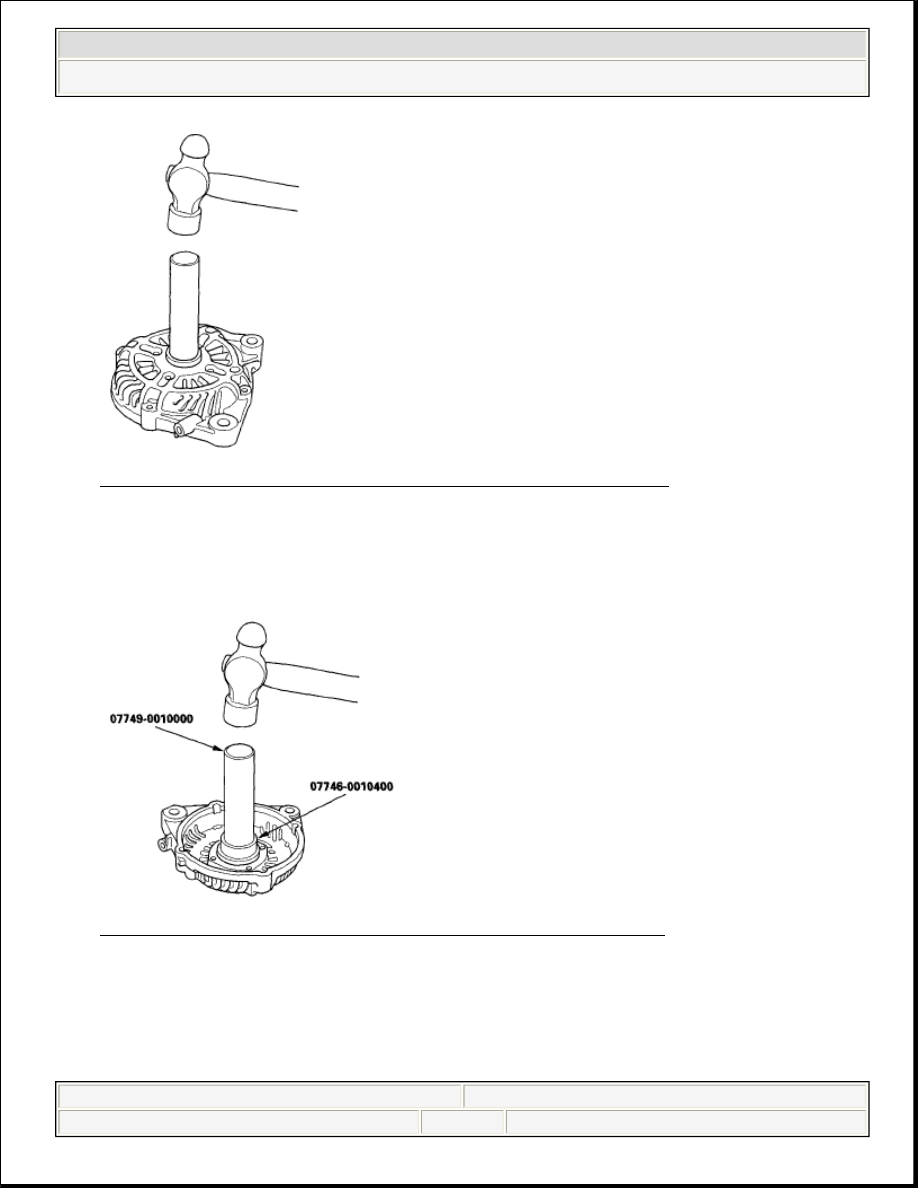

15. Support the drive end housing in a vise, and drive out the front bearing with a

brass drift and hammer.



2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)



































Fig. 34: Identifying Support Drive End Housing In Vise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

16. With a hammer and the special tools, install a new front bearing in the drive

end housing.

Fig. 35: Installing Front Bearing In Drive End Housing
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Alternator Brush Inspection

17. Measure the length of both brushes with a vernier caliper.



2008 Honda Civic GX

2006-08 ELECTRICAL Charging System (R18A1) - Civic (All Except Hybrid)
