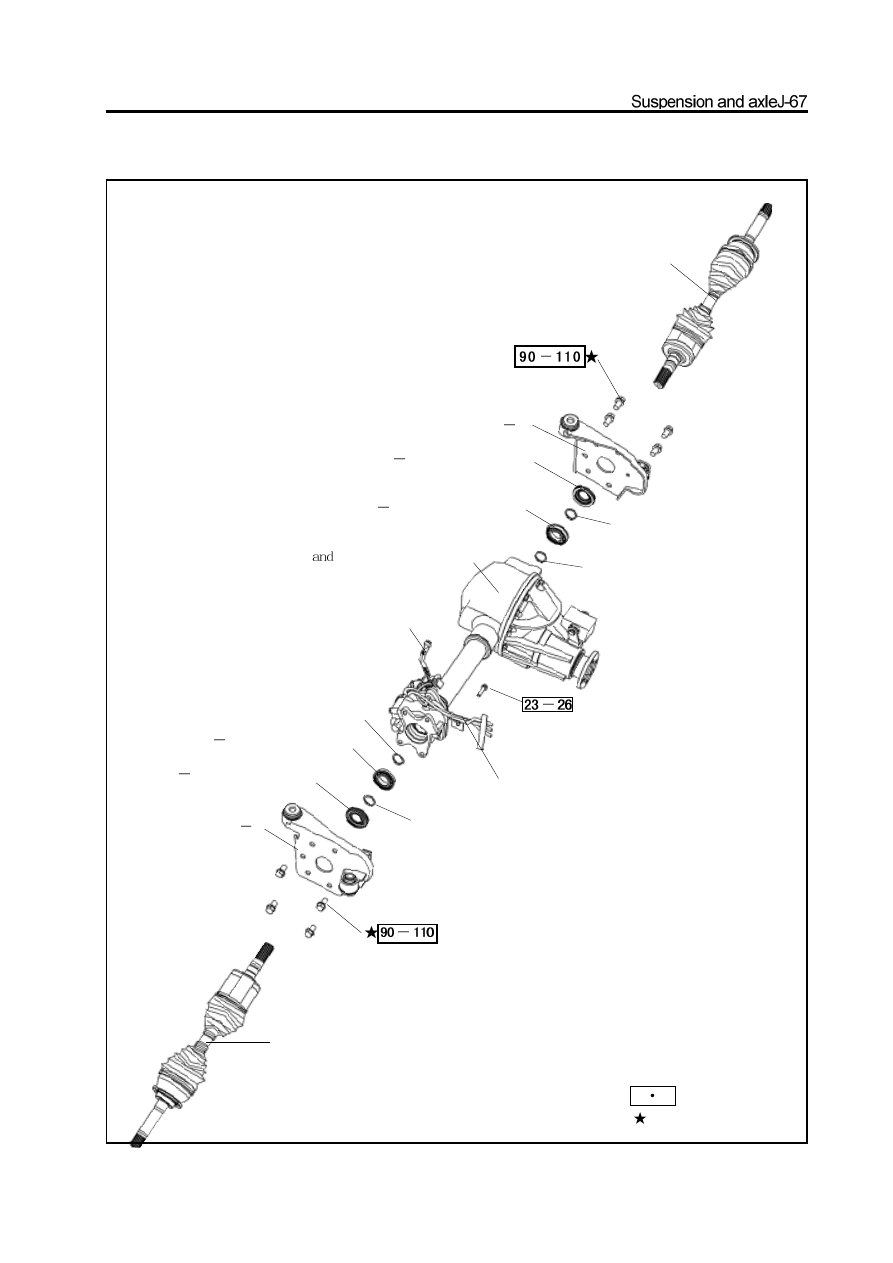

Front reducer assembly

front drive shaft assembly

hanger plank

R

oil seal

front vibration damper

bearing

front vibration damper

front reducer

electric clutch assembly

Power plug of electric clutch

circlip

bearing

front vibration damper

oil seal

front vibration damper

hanger plank

L

front drive shaft assembly

front drive axle vent tube connector assembly

circlip

circlip

Pregummed component

N

m: specified trque

circlip

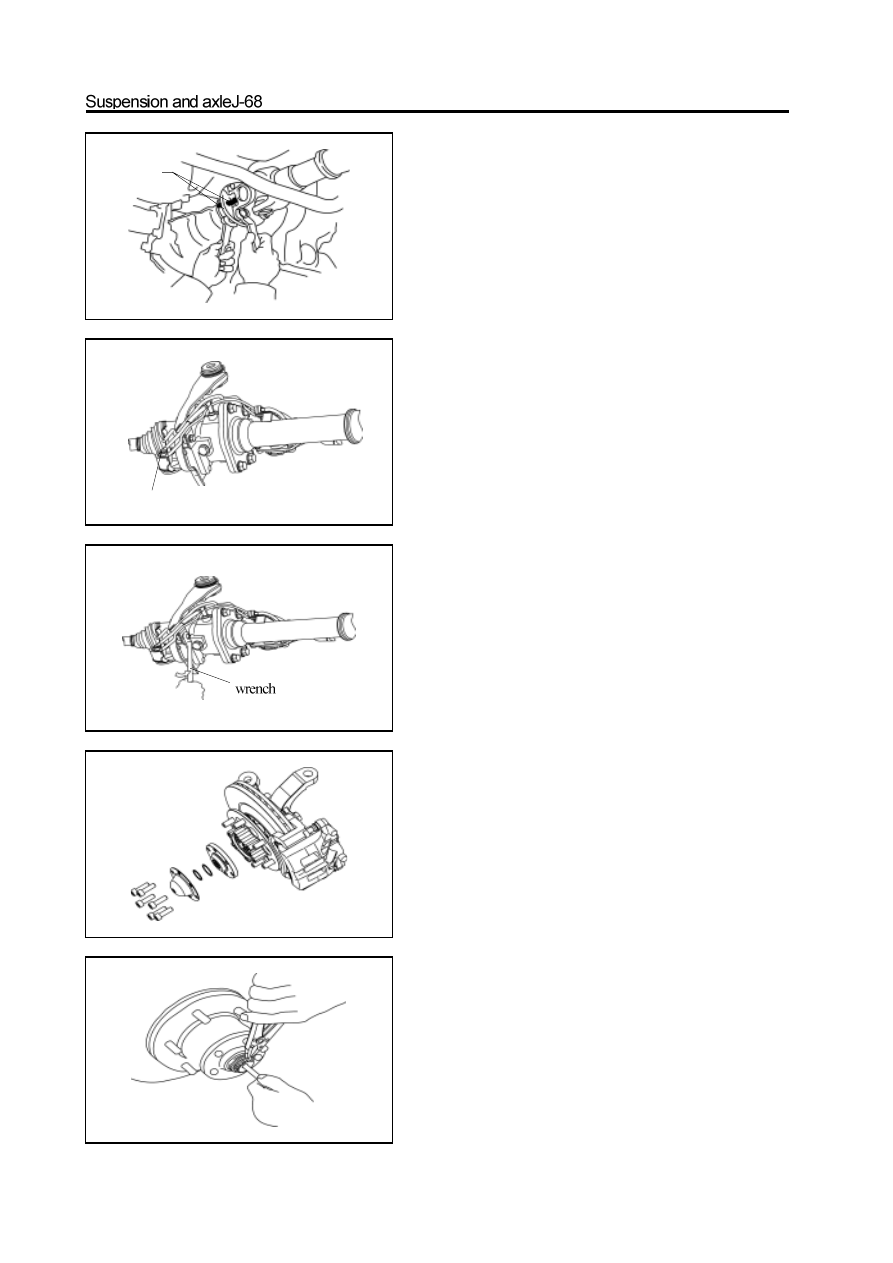

6. Use the wrench to screw off the bolt on the vent tube

bracket, which is used to fix the vent tube connector.

7. Disconnect the connection between the front drive

shaft assembly and steering knuckle front hub

assembly.

a.

Screw off the connecting bolt which is used to fix the front

hub cover; remove the front hub cover.

b.

Use the circlip pliers to remove the circlip from the front drive

shaft and remove the adjusting washer.

c.

Remove the steering knuckle of both sides and separate it

form the front drive shaft assembly.

1. Support the front of the car; remove two front

wheels and the beam under the front reducer

assembly.

2. Drain the lubrication oil in the front reducer

assembly.

3. Remove the flange of front reducer assembly from

the drive shaft

Caution: Make the assembly mark on the flange of

front reducer assembly and drive shaft before discon-

nect them.

4. Disconnect the connector of power wire of electric

clutch

5. Disconnect three rubber connectors on the front

drive axle vent tube connector assembly.

assembly mark

disconnect three connectors in this place

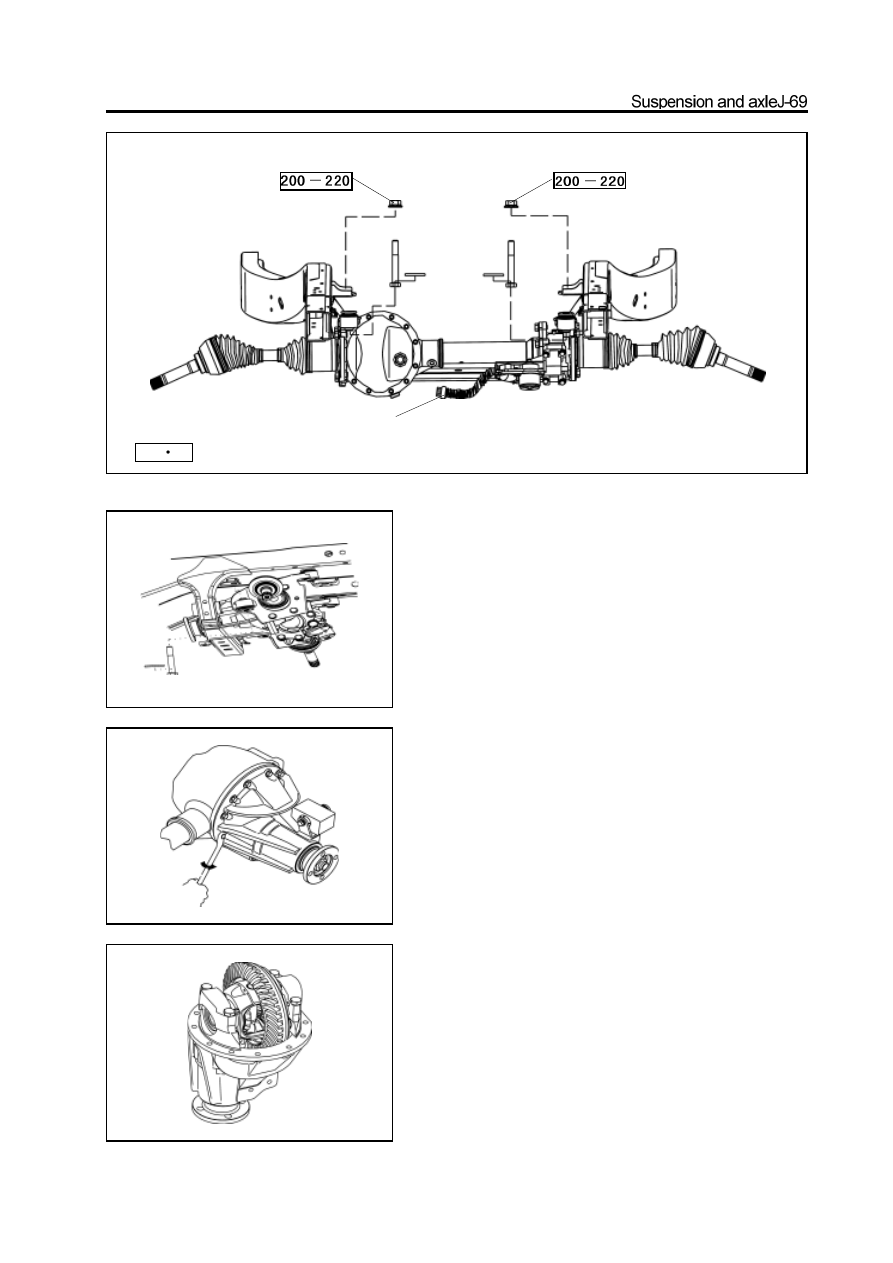

8. Use the jack to support the front reducer assembly

9. Remove the lifting bolt of front drive axle hanger

plank and carriage.

10. Remove the front drive axle assembly

Caution: Do not damage the drive shaft and front drive

shaft jacket

11. Remove the front drive shaft assembly of both sides

from the front drive axle assembly.

12. Use the wrench to remove the bolt and nut which is

used to fix the front reducer housing.

13. Remove the clump weight assembly and clump

weight bracket welded assembly

(Refer to “Disassembly of Front Reducer Assembly”)

electric clutch connector

N

m:   specified torque

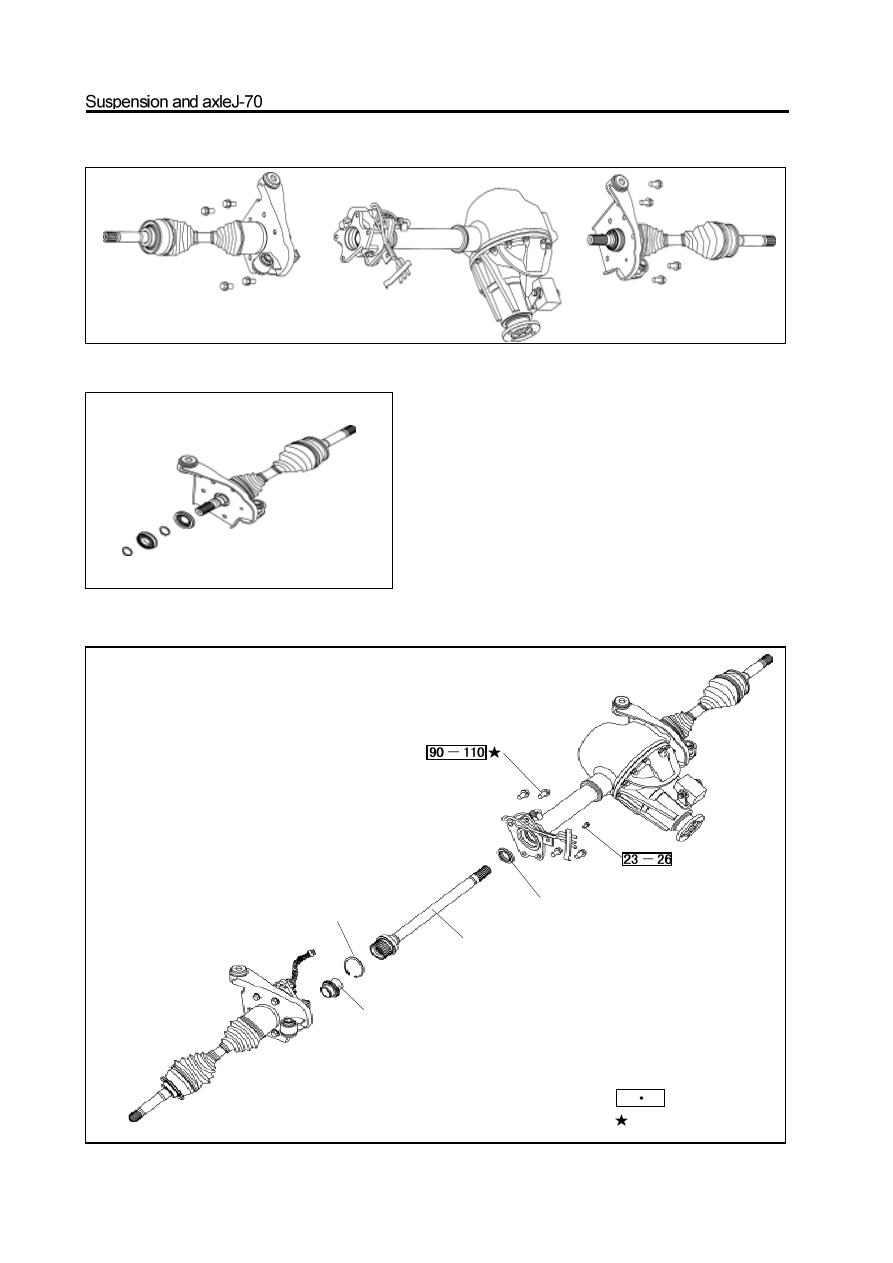

Replacement of front reducer assembly oil seal

1. Remove the front drive axle assembly

(Refer to “Removal of Front Reducer Assembly”)

2. Remove the left and right front drive shaft assem-

bly from the front drive axle assembly.

3. Remove and replace the lower oil seal according to

the removal and installation procedure of front drive

shaft assembly and install the new side oil seal on

the front drive shaft, then install them in the front

reducer assembly.

(Refer to “Removal and Installation of Front Drive Shaft

Assembly”)

Replacement of oil seal and major semiaxle oil seal of front reducer assembly

major semiaxle oil seal

major semiaxle pressing assembly

circlip

mechanical wheel of separator

 Pregummed component

 N

m:  Specified torque
