Great Wall Hover. Manual - part 12

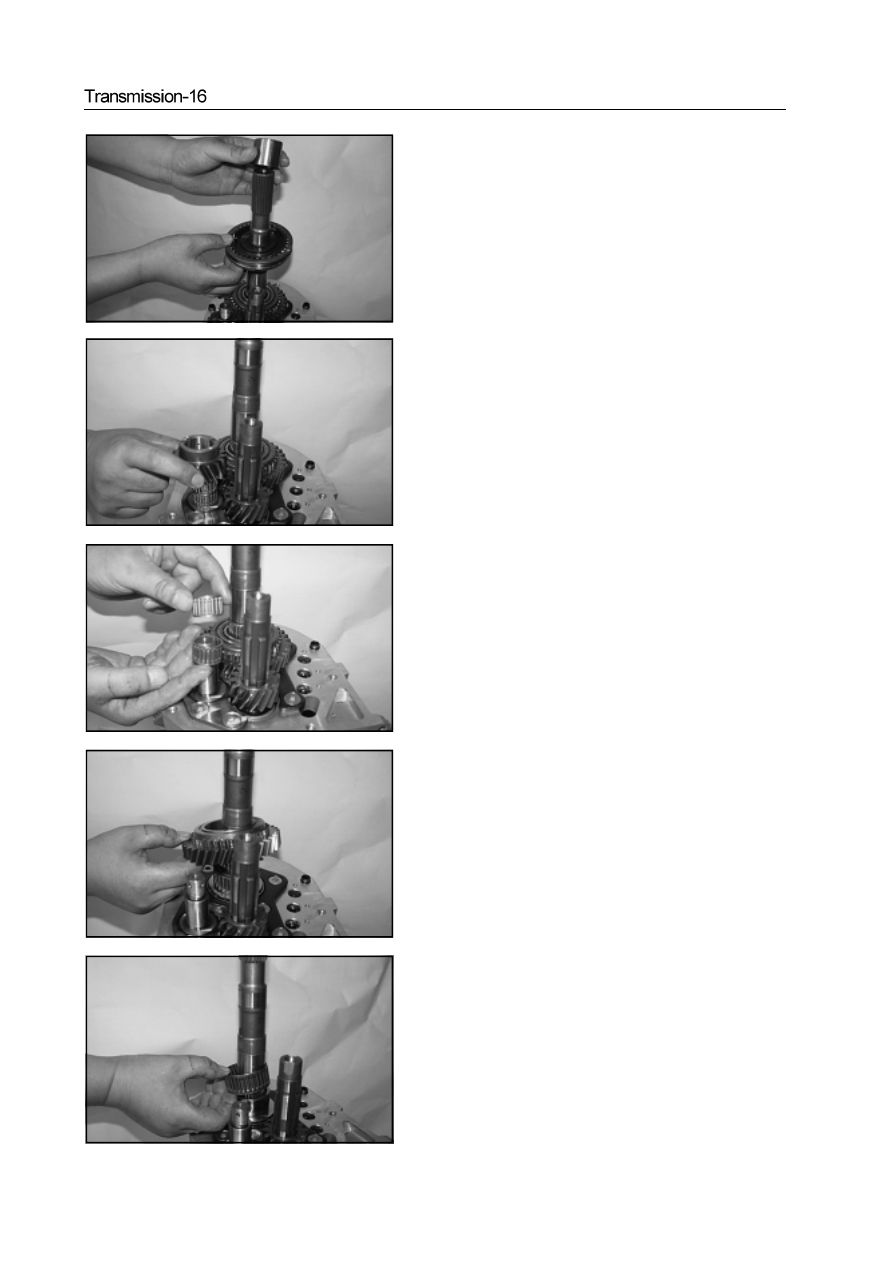

31. Remove the reverse gear

32. Remove 2 needle bearings of reverse gear

33. Remove the reverse driven gear

34. Remove the needle bearing of reverse driven gear

b. Remove the sleeve and 5th/reverse -Gear synchronizer assembly

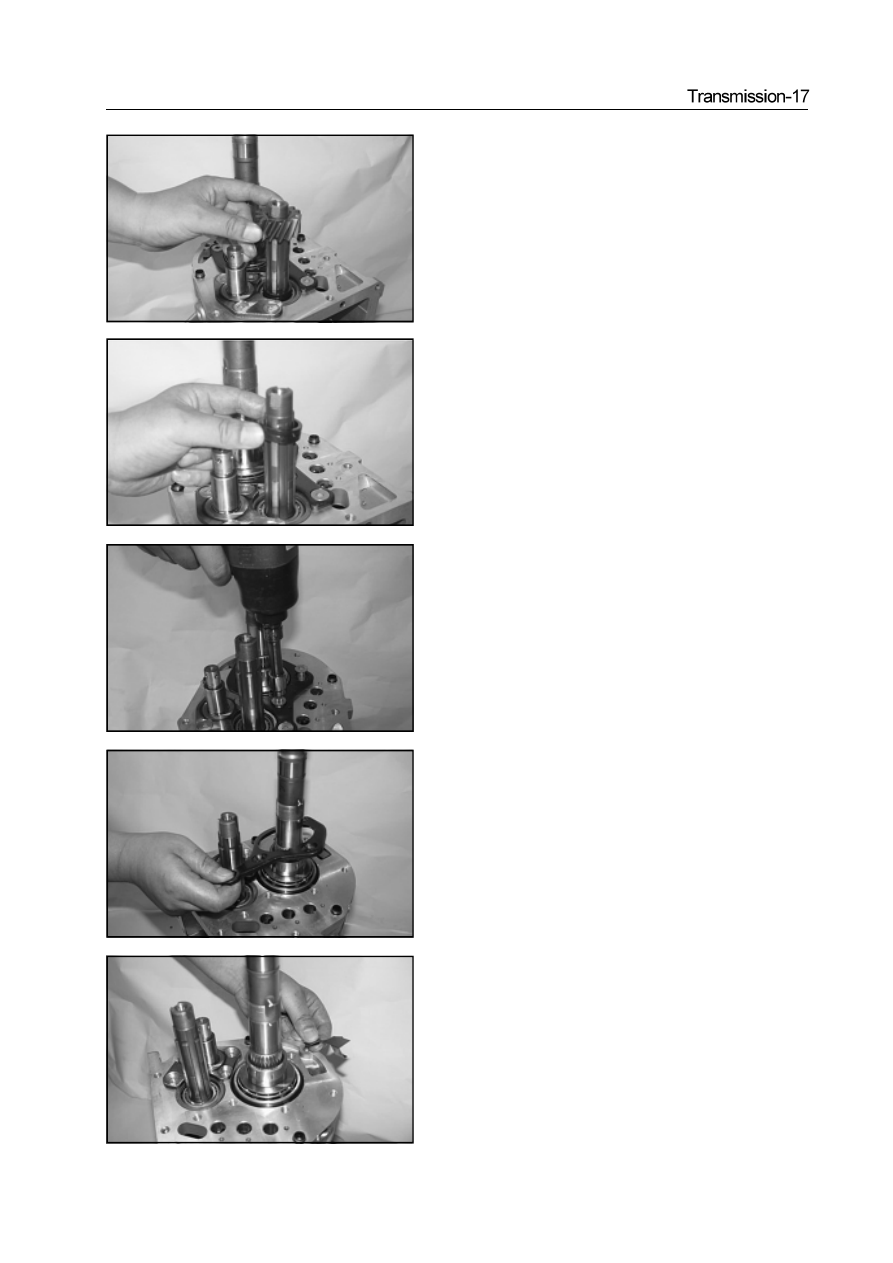

35. Remove the reverse drive gear

36. Remove the intermediate shaft spacing ring

37. Remove 8 countersunk screws

Caution: when install the countersunk screw, the tightening torque

is within 15-22N·m

38. Remove the support axial lock plate

39. Remove the air duct grease baffle

Disassembly of clutch housing assembly /bearing
housing assembly

40. Use the special tools to remove the reverse shaft

Use the magnetic rod to take out 2 interlocking pins

Remove the first bearing block assembly

a. Use the special tools to install 6 M8 bolts.

Caution: When install 6 M8 bolts, the tightening torque is 10-

13N·m

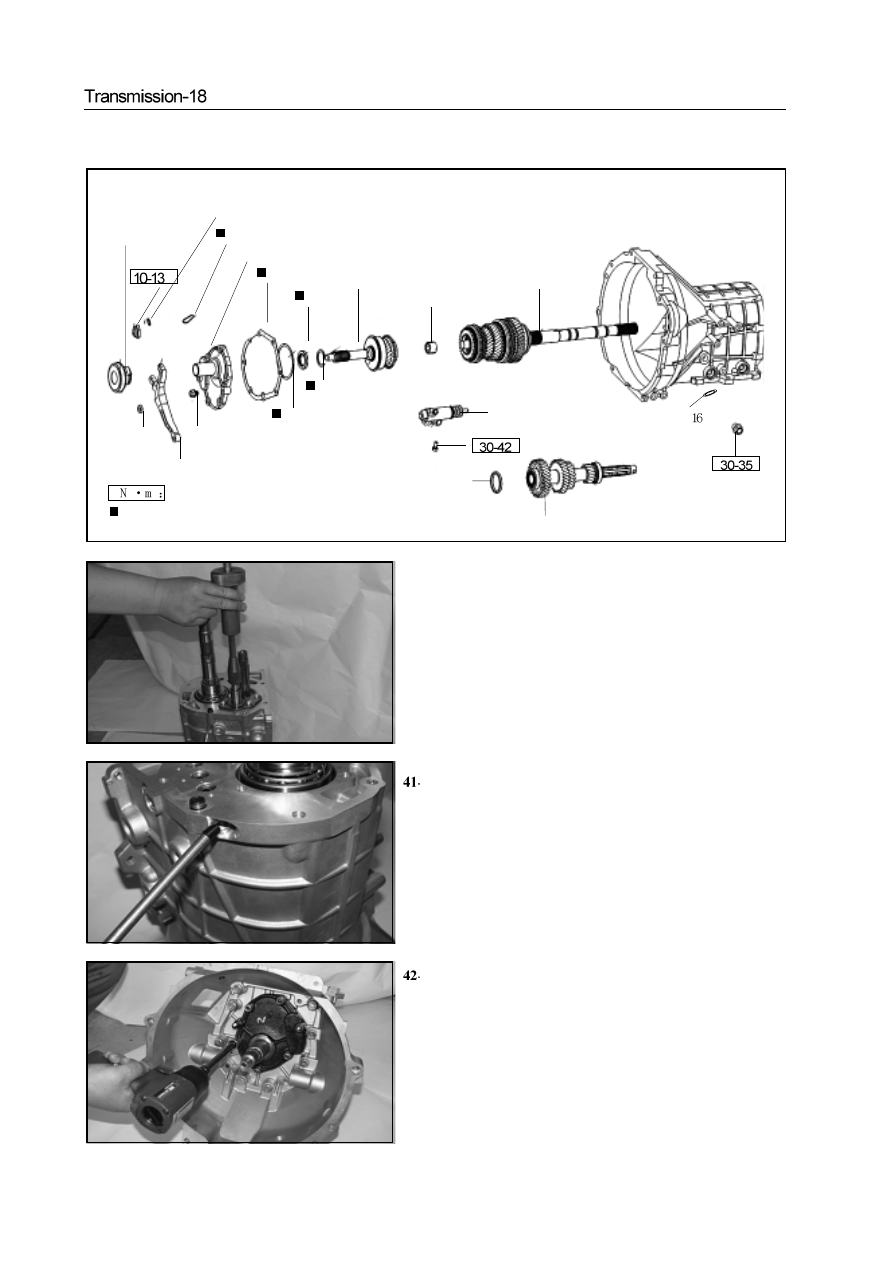

Clutch housing assembly  / Bearing housing assembly

bush

   oil seal

Used component which can not be used any more.

throwout bearing
assembly

 washer 8

¦ non-standard spring

first bearing

first shaft assembly

 needle bearing

second shaft assembly

  ¦circles for shaft

¦adjusting shim

leather cup

separation rocker arm assembly

 separation rocker arm ball support

clutch cylinder assembly

front space ring of intermediate shaft

 intermediate shaft assembly

 aluminum waher

 Specified torque

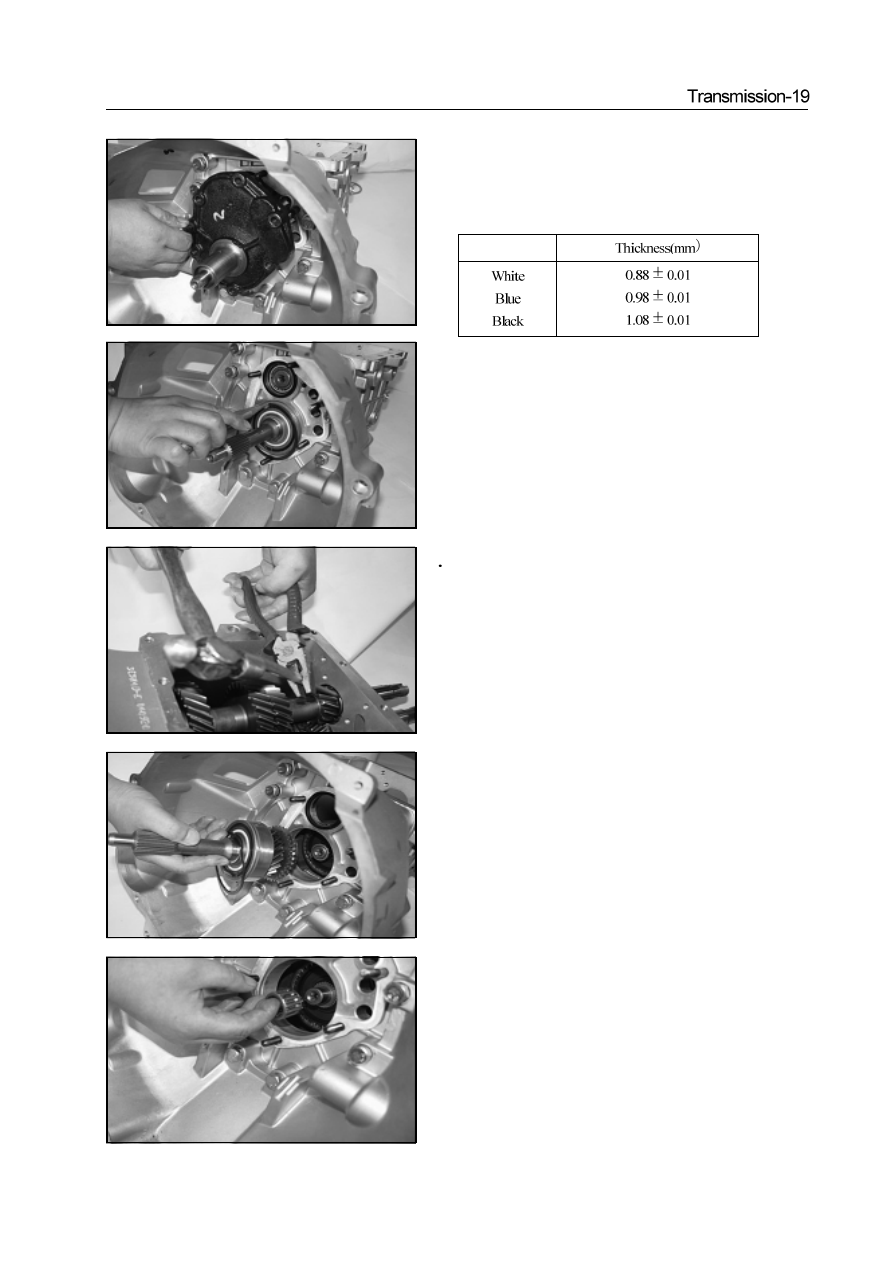

b. Remove the first bearing blocks assembly ; take out the adjusting

shim

Caution: It should select the adjusting shim when install the

adjusting shim

43. Remove the bearing snap ring

44  Remove the intermediate shaft assembly

45. Remove the first shaft assembly

46. Remove the needle bearing



Mark
