CAUTION: Never use compressed air to flush the washer system plumbing. Compressed air pressures are
too great for the washer system plumbing components and will result in further system damage. Never use
sharp instruments to clear a plugged washer nozzle or damage to the nozzle orifice and improper nozzle
spray patterns will result.

INSPECTION - FRONT WIPER & WASHER SYSTEM

WIPER SYSTEM

The wiper blades and wiper arms should be inspected
periodically, not just when wiper performance prob-
lems are experienced. This inspection should include
the following points:

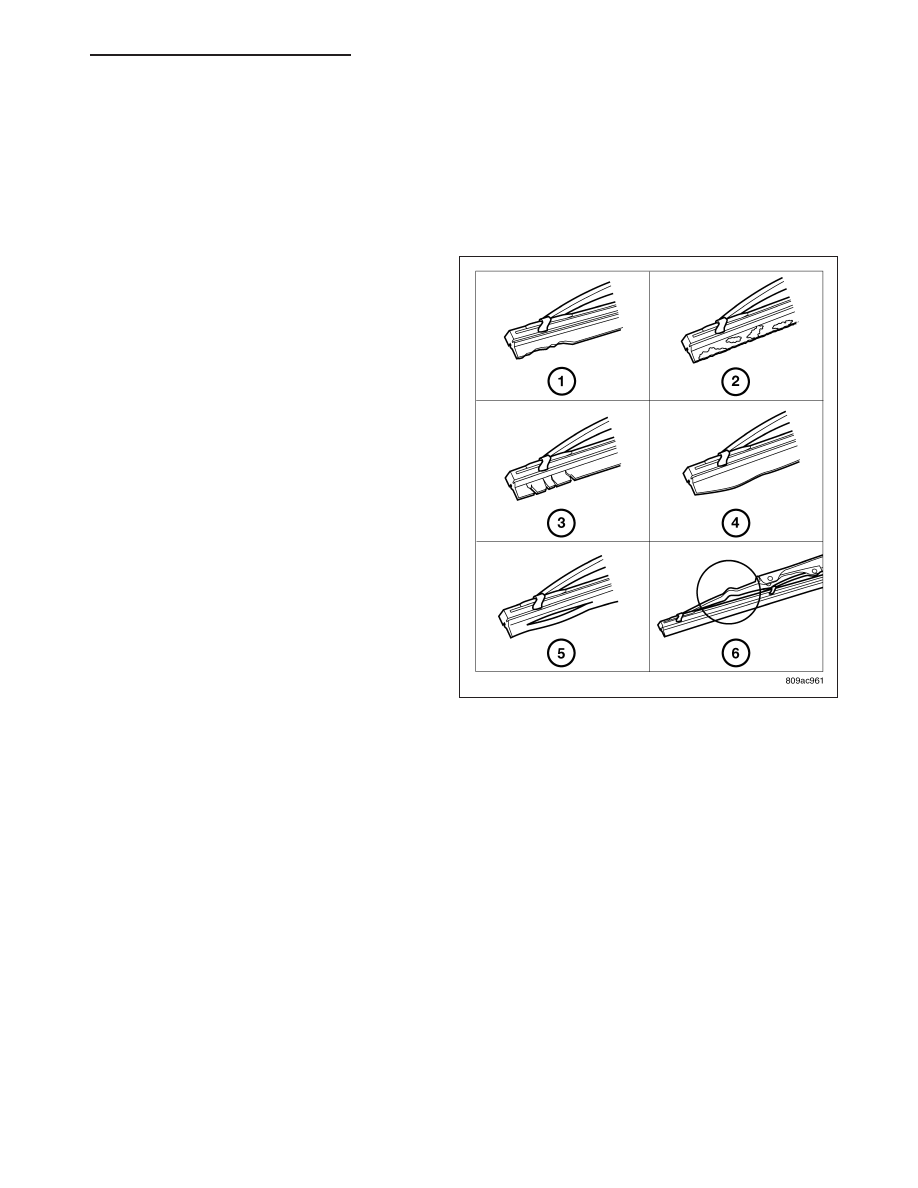

1. Carefully inspect the wiper blades for any indica-

tions of worn or uneven edges (1), foreign material
deposits (2), hardening or cracking (3), deformation
or fatigue (4), or splitting (5). Inspect the wiper
blade support components and the wiper arms for
damage (6) or corrosion. If the wiper arms and
blades are contaminated with any foreign material,
clean them and the glass as required. (Refer to 8 -
ELECTRICAL/FRONT

WIPERS/WASHERS

-

CLEANING). If a wiper blade or arm is damaged,
or if corrosion is evident, replace the affected wiper
arm or blade with a new unit. Do not attempt to
repair a wiper arm or blade that is damaged or cor-
roded.

2. Carefully lift the wiper blade off of the glass. Note

the action of the wiper arm hinge. The wiper arm
should pivot freely at the hinge, but with no lateral
looseness evident. If there is any binding evident in
the wiper arm hinge, or there is evident lateral play
in the wiper arm hinge, replace the wiper arm.

CAUTION: Do not allow the wiper arm to spring back against the glass without the wiper blade in place or
the glass may be damaged.

3. Once proper hinge action of the wiper arm is confirmed, check the hinge for proper spring tension. Remove the

wiper blade from the wiper arm. Either place a small postal scale between the blade end of the wiper arm and
the glass, or carefully lift the blade end of the arm away from the glass using a small fish scale. Compare the
scale readings between the right and left wiper arms. Replace a wiper arm if it has comparatively lower spring
tension, as evidenced by a lower scale reading.

4. After cleaning and inspecting the wiper components and the glass, if the wiper blade still fails to clear the glass

without smearing, streaking, chattering, hazing, or beading, replace the wiper blade.

WASHER SYSTEM

The washer system components should be inspected periodically, not just when washer performance problems are
experienced. This inspection should include the following points:

1. Check for ice or other foreign material in the washer reservoir. If contaminated, clean and flush the washer sys-

tem. (Refer to 8 - ELECTRICAL/FRONT WIPERS/WASHERS - CLEANING).

2. Inspect the washer plumbing for pinched, leaking, deteriorated, or incorrectly routed hoses and damaged or dis-

connected hose fittings. Replace damaged or deteriorated hoses and hose fittings. Leaking washer hoses can
sometimes be repaired by cutting the hose at the leak and splicing it back together using an in-line connector
fitting. Similarly, sections of deteriorated hose can be cut out and replaced by splicing in new sections of hose
using in-line connector fittings. Whenever routing a washer hose or a wire harness containing a washer hose, it

HB

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 39

must be routed away from hot, sharp, or moving parts. Also, sharp bends that might pinch the washer hose must
be avoided.

ARM-WINDSHIELD WIPER

DESCRIPTION

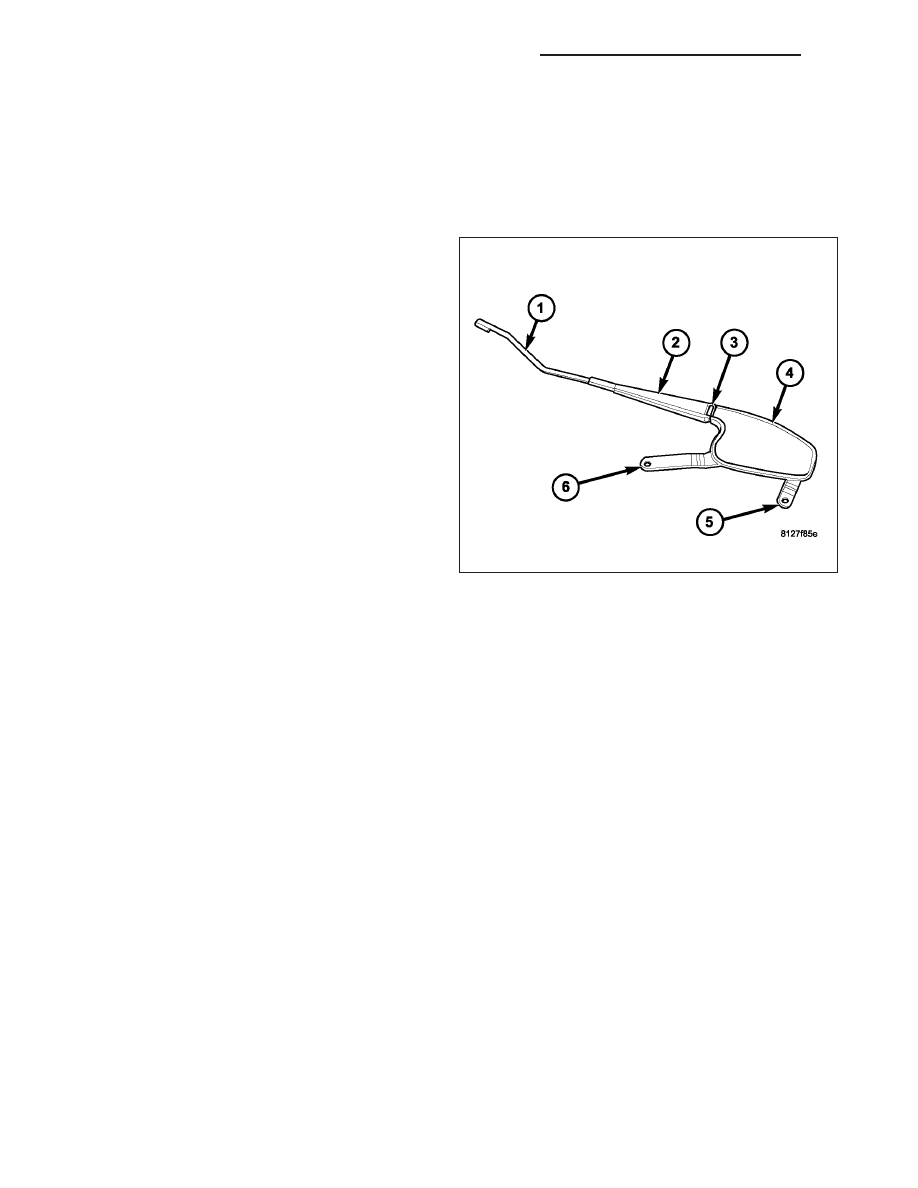

The front wiper arms are the rigid members located
between the wiper pivots protruding from the cowl ple-
num cover/grille panel near the base of the windshield
and the wiper blades on the windshield glass. Both
wiper arms feature an over-center hinge (3) that
allows easy access to the windshield glass for clean-
ing. The wiper arms each have a die cast metal pivot
end. The left arm has a large tapered mounting hole
on the pivot end that is secured by a nut to the left
wiper pivot.

The unique, articulated right wiper arm has two pivot-
ing links attached to the arm pivot end. A drive link (5)
is secured by a nut to the right wiper pivot and is the
unit that drives the right wiper arm. The articulating
link (6) is secured by a nut to a drone pivot located
outboard of the right wiper pivot on the wiper module
bracket. The right wiper arm pivot end and the con-
nections of both links to the arm are concealed
beneath a molded black plastic appearance cover (4).

The wide end of a tapered, stamped steel channel (2) hinges on and is secured with a hinge pin to the blade end
of both the right and left wiper arm pivot ends. One end of a long, rigid, stamped steel strap (1), with a small hole
near its pivot end, is riveted and crimped within the narrow end of the stamped steel channel. The tip of the wiper
blade end of this strap is bent back under itself to form a small hook. Concealed within the stamped steel channel,
one end of a long spring is engaged with a wire hook on the underside of the die cast pivot end, while the other end
of the spring is hooked through the small hole in the steel strap. The entire wiper arm has a satin black finish
applied to all of its visible surfaces.

A wiper arm cannot be adjusted or repaired. If damaged or faulty, the entire wiper arm unit must be replaced.

OPERATION

The front wiper arms are designed to mechanically transmit the motion from the wiper pivots to the wiper blades.
The wiper arm must be properly indexed to the wiper pivot in order to maintain the proper wiper blade travel on the
glass. The combination of the drive link, articulating link, wiper arm pivot end, the drone pivot and the wiper module
bracket creates a four link system that articulates the wiping action of the right wiper arm to effectively clear a larger
area of the windshield glass.

The tapered mounting hole in the left wiper arm pivot end or in the right wiper arm links interlock with the serrations
on the tapered outer circumference of the wiper pivot shafts and the drone pivot, allowing positive engagement and
finite adjustment of these connections. The mounting nuts lock the wiper arms to the threaded studs of the pivot
shafts. The spring-loaded wiper arm hinge controls the down-force applied through the tip of the wiper arm to the
wiper blade on the glass. The hook formation on the tip of the wiper arm provides a cradle for securing and latching
the wiper blade pivot block to the wiper arm.

8R - 40

FRONT WIPERS/WASHERS - SERVICE INFORMATION

HB

REMOVAL

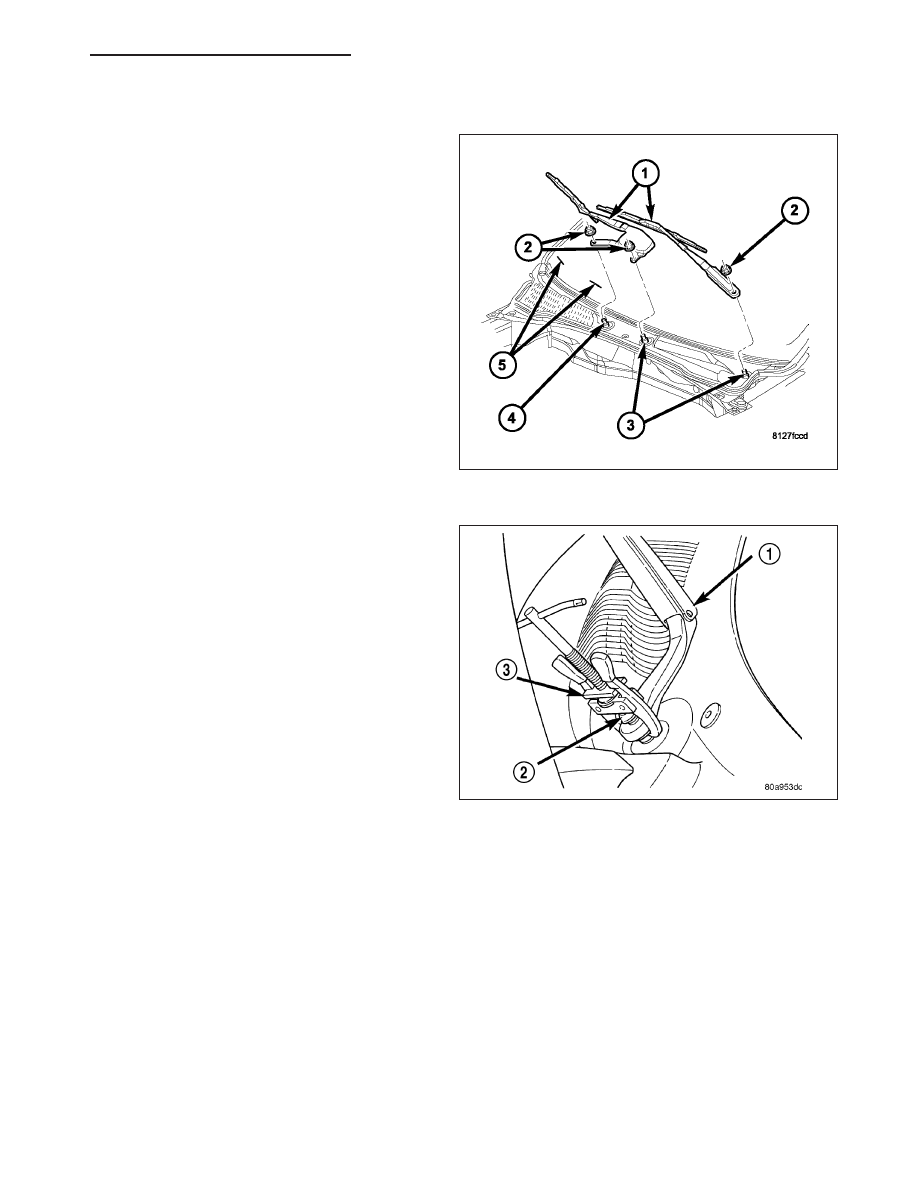

1. Lift the front wiper arm to its over-center position to

hold the wiper blade off of the glass and relieve the
spring tension on the wiper arm to wiper pivot shaft
connection.

2. Remove the nut or nuts (2) that secure the front

wiper arm (1) or links to the pivot shaft or shafts (3
& 4).

3. If necessary, use a suitable battery terminal puller

(3) to disengage the front wiper arm (1) or links
from the pivot shaft (2) or shafts.

4. Remove the wiper arm pivot end or links from the

pivot shaft or shafts.

INSTALLATION

NOTE: Be certain that the wiper motor is in the park position before attempting to install the front wiper
arms. Turn the ignition switch to the On position and move the multi-function switch control knob to its Off
position. If the wiper pivots move, wait until they stop moving, then turn the ignition switch back to the Off
position. The front wiper motor is now in its park position.

HB

FRONT WIPERS/WASHERS - SERVICE INFORMATION

8R - 41

1. The front wiper arms (1) must be indexed to the

pivot shafts (3 & 4) with the front wiper motor in the
park position to be properly installed. Position the
wiper arm pivot end or links onto the pivot shafts
so that the lower edge of the wiper blade is aligned
with the wiper alignment lines (5) concealed in the
upper margin of the lower windshield blackout
area.

2. Once the wiper blade is aligned, lift the front wiper

arm away from the windshield slightly to relieve the
spring tension on the pivot end or links and push
the arm or links down over the pivot shaft or shafts.

3. Install and tighten the nut or nuts (2) that secure

the wiper arm or links to the pivot shaft or shafts.
Tighten the nuts to 35 N·m (26 ft. lbs.).

4. Wet the windshield glass, then operate the front

wipers. Turn the wiper switch to the Off position,
then check for the correct wiper arm position and
readjust as required.

BLADE-WINDSHIELD WIPER

DESCRIPTION

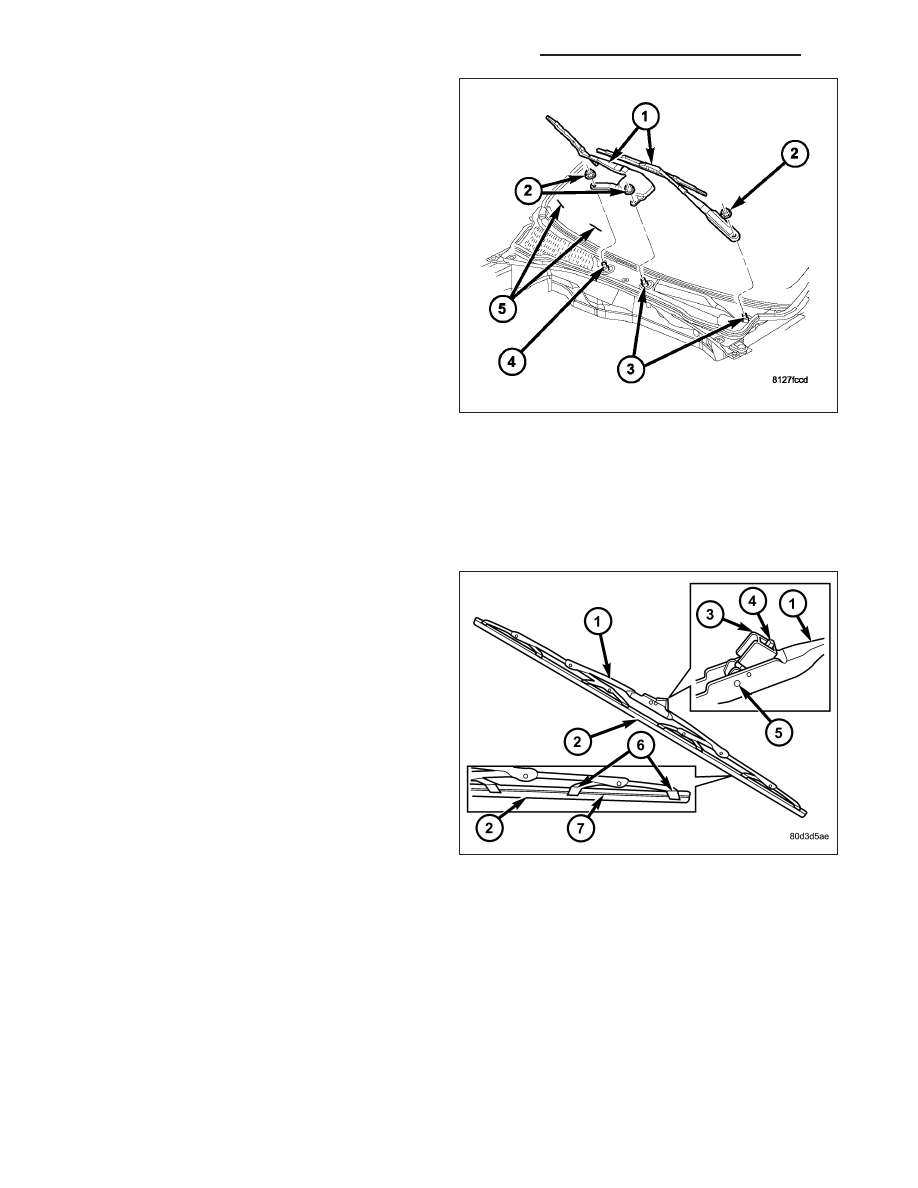

Each front wiper blade is secured by an integral latch-
ing pivot block (3) to the hook formation on the tip of
each wiper arm, and rests on the glass near the base
of the windshield when the wipers are not in opera-
tion. The wiper blade consists of the following compo-
nents:

Superstructure (1) - The superstructure includes
several stamped steel bridges and links with
claw formations that grip the wiper blade ele-
ment. Also included in this unit is the latching,
molded plastic pivot block that secures the
superstructure to the wiper arm. All of the metal
components of the wiper blade have a satin
black finish applied.

Element (2) - The wiper element or squeegee is
the resilient rubber member of the wiper blade
that contacts the glass.

Flexor (7) - The flexor is a rigid metal component running along the length of each side of the wiper element
where it is gripped by the claws (6) of the superstructure.

The right wiper blade is 53.00 centimeters (20.87 inches) long, and the left blade is 65.09 centimeters (25.63
inches) long. Both have non-replaceable rubber elements (squeegees). The wiper blades cannot be adjusted or
repaired. If faulty, worn, or damaged the entire wiper blade unit must be replaced.

OPERATION

The wiper blades are moved back and forth across the glass by the wiper arms when the wipers are being oper-
ated. The wiper blade superstructure is the flexible frame that grips the wiper blade element and evenly distributes
the force of the spring-loaded wiper arm along the length of the element. The combination of the wiper arm force
and the flexibility of the superstructure makes the element conform to and maintain proper contact with the glass,
even as the blade is moved over the varied curvature that may be encountered across the glass surface.

8R - 42

FRONT WIPERS/WASHERS - SERVICE INFORMATION

HB
