Dodge Durango (HB). Manual - part 382





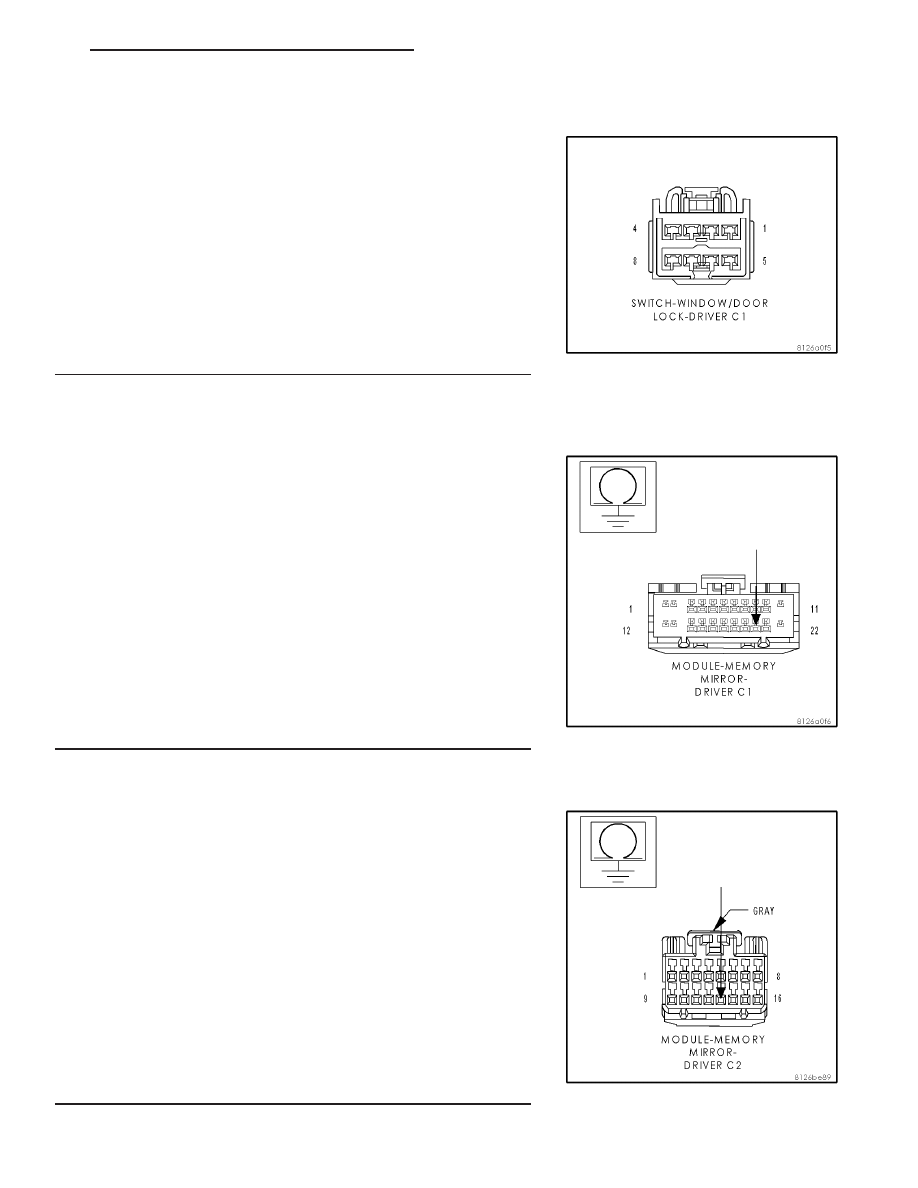

5.

DRIVER DOOR LOCK SWITCH SHORTED TO GROUND

With the scan tool, erase DTC’s.

Disconnect the Driver Window/Door Lock Switch connector.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display DOOR LOCK/UNLOCK SWITCH CIR-
CUIT STUCK LOCK?

No

>> Replace the Driver Window/Door Lock Switch.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go to 6

6.

(G161) DRIVER DOOR LOCK SWITCH MUX WIRE SHORT TO
GROUND

Disconnect the Driver Memory Mirror Module C1 connector.

Measure the resistance between ground and the (G161) Driver Door
Lock Switch Mux circuit in the Memory Mirror Module connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G161) Driver Door Lock Switch Mux circuit for

a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Go to 7

7.

MEMORY SELECT MUX WIRE SHORT TO GROUND

Disconnect the Driver Memory Mirror Module C2 connector.

Measure the resistance between ground and the Memory Select
Switch Mux circuit.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the Memory Select Switch Mux wire for a short to

ground.

Perform the BODY VERIFICATION TEST - VER 1.

No

>> Go to 8

HB

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 41

B1803, B1808 DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK LOCK – MEMORY MIRROR MODULE — (CONTINUED)

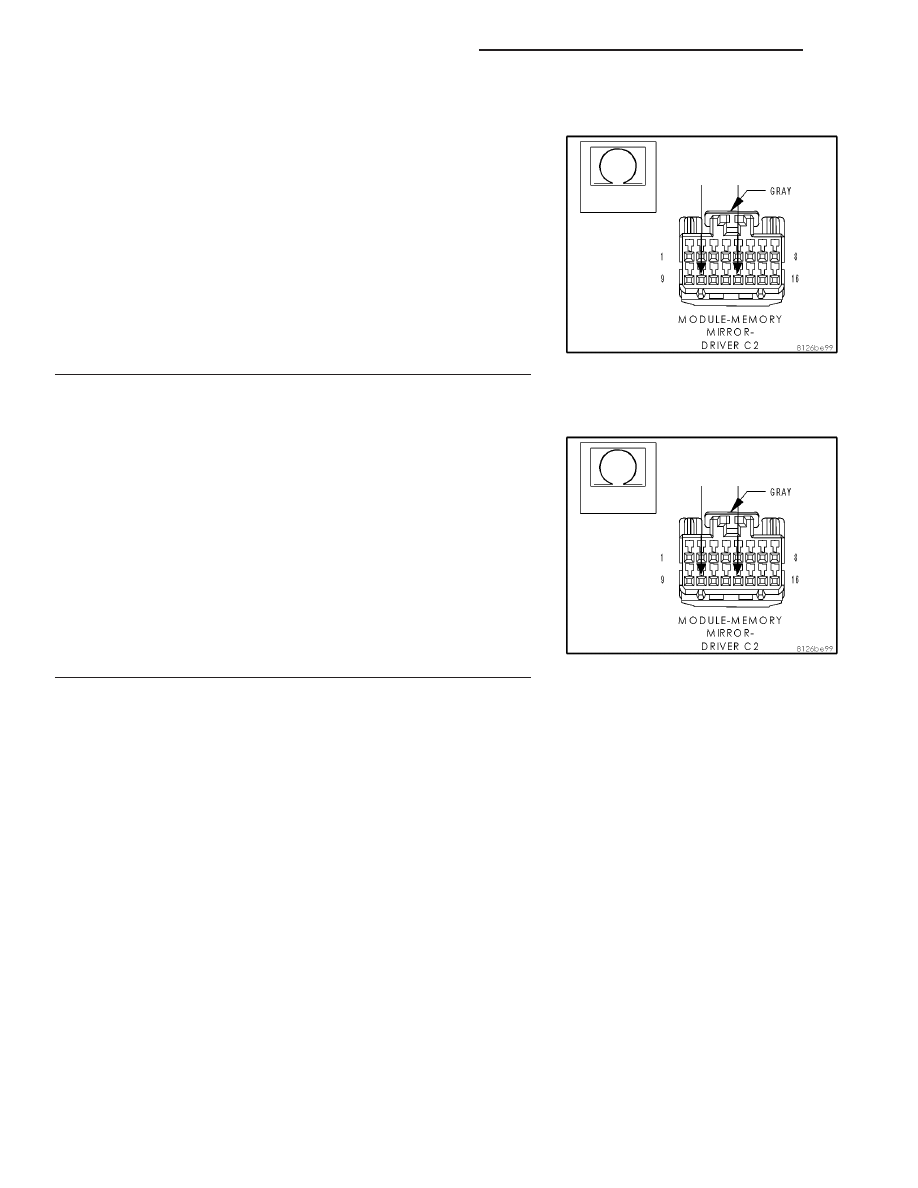

8.

MEMORY SELECT SWITCH MUX CIRCUIT SHORTED

Measure the resistance between the Memory Select Switch Mux cir-
cuit and the Memory Select Switch Return circuit in the Driver Memory
Mirror Module C2 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Go to 9

No

>> Replace the Driver Memory Mirror Module.

Perform BODY VERIFICATION TEST - VER 1.

9.

MEMORY SELECTOR SWITCH SHORTED

Disconnect the Memory Selector Switch connector.

Measure the resistance between the (P339) Memory Select Switch
Mux circuit and the (G920) Memory Select Switch Return circuit in the
Driver Memory Mirror Module C2 connector.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (P339) Memory Select Switch Mux circuit for a

short to the (G920) Memory Select Switch Return circuit.

Perform the BODY VERIFICATION TEST - VER 1.

No

>> Replace the Memory Selector Switch.

Perform BODY VERIFICATION TEST - VER 1.

8N - 42

POWER LOCKS - ELECTRICAL DIAGNOSTICS

HB

B1803, B1808 DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK LOCK – MEMORY MIRROR MODULE — (CONTINUED)

HB

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 43

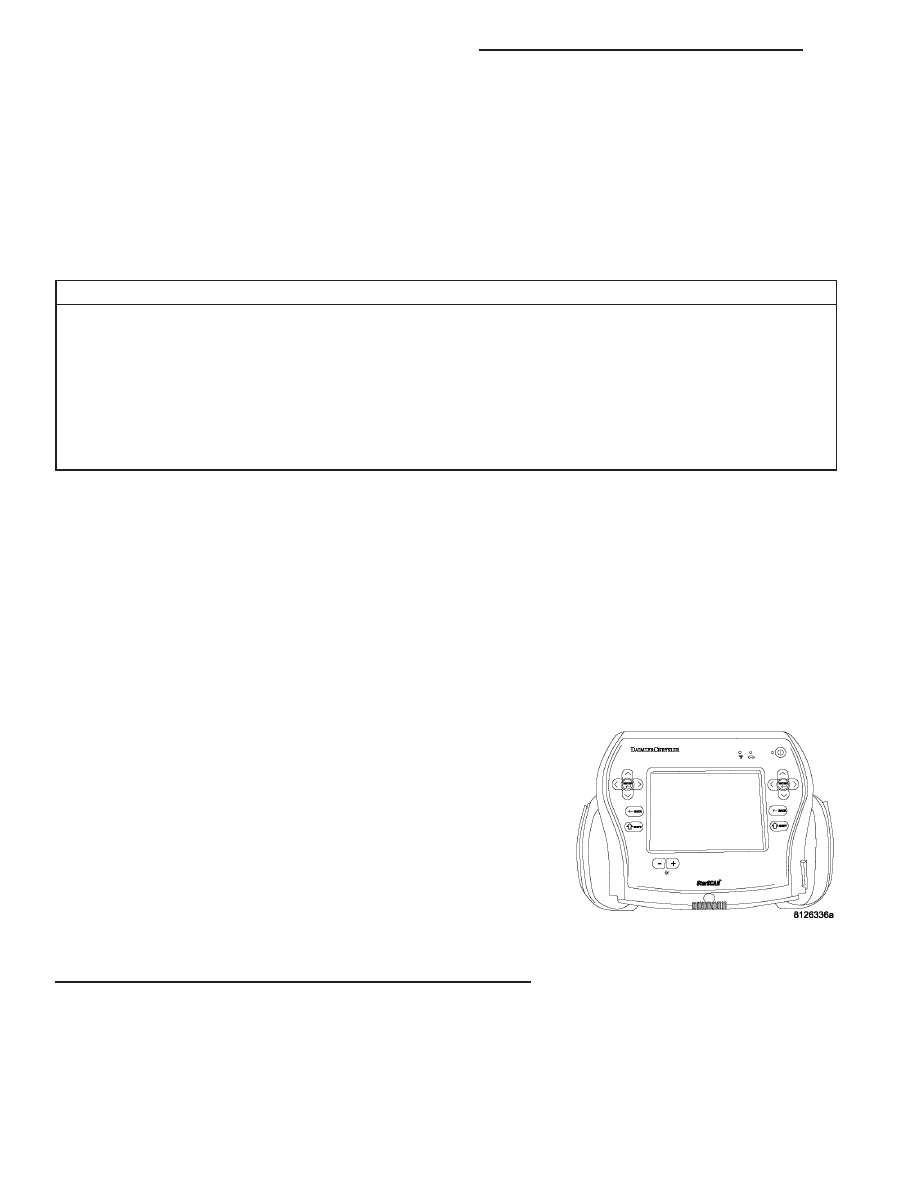

B1804, B1809 DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – MEMORY MIRROR MODULE

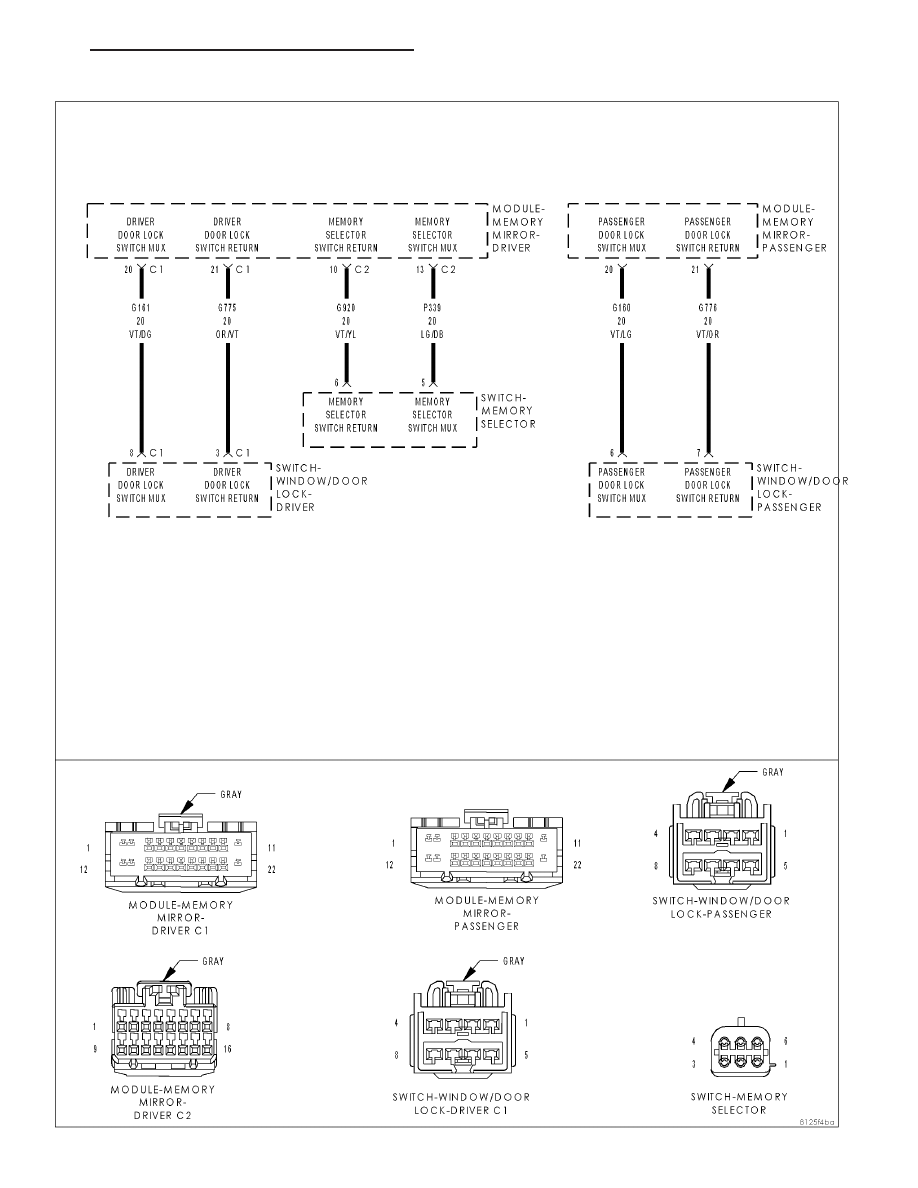

For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Door Lock Switch Mux circuit is under 1.5 volts for over 30 seconds.

Possible Causes

(G161) DRIVER DOOR LOCK SWITCH MUX WIRE PARTIAL SHORT TO GROUND

(P339) MEMORY SELECT SWITCH MUX WIRE PARTIAL SHORT TO GROUND

(P339) MEMORY SELECT SWITCH MUX CIRCUIT SHORTED TO THE (G920) MEMORY SELECT SWITCH
RETURN CIRCUIT

MEMORY SELECTOR SWITCH

WINDOW/DOOR LOCK SWITCH STUCK

MEMORY MIRROR MODULE

Theory of Operation

This code will only set in vehicles that have the Memory System. The supply circuit for the Memory Mirrors are
supplied by the Memory Mirror Module, therefore both the Memory Select Switch Mux or the Door Lock Switch Mux
circuits can cause this DTC.

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Operate the Door Lock Switch from the side this DTC was set in. Put
the switch in both positions several times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

Does the scan tool display DOOR LOCK/UNLOCK SWITCH CIR-
CUIT STUCK UNLOCK?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

8N - 44

POWER LOCKS - ELECTRICAL DIAGNOSTICS

HB

B1804, B1809 DOOR LOCK/UNLOCK SWITCH CIRCUIT STUCK UNLOCK – MEMORY MIRROR MODULE — (CONTINUED)
