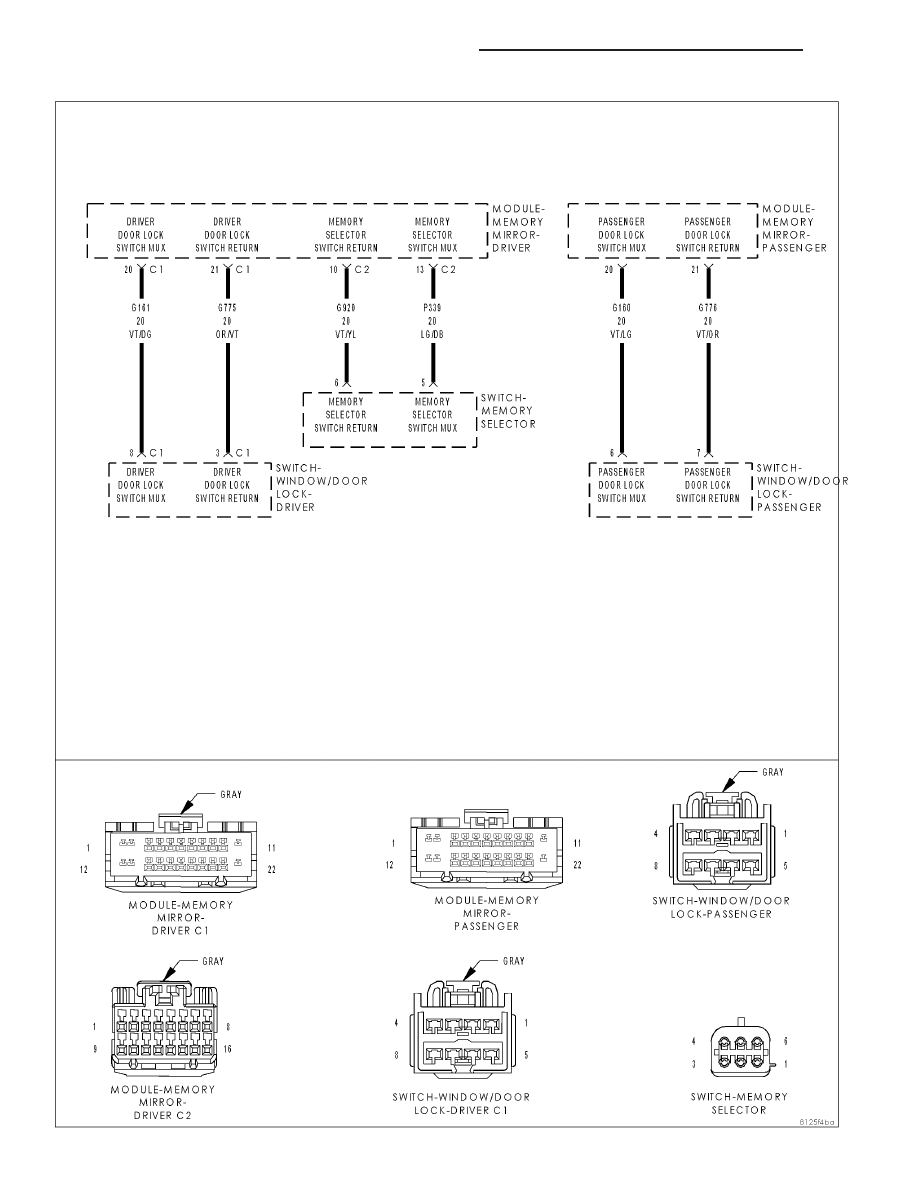

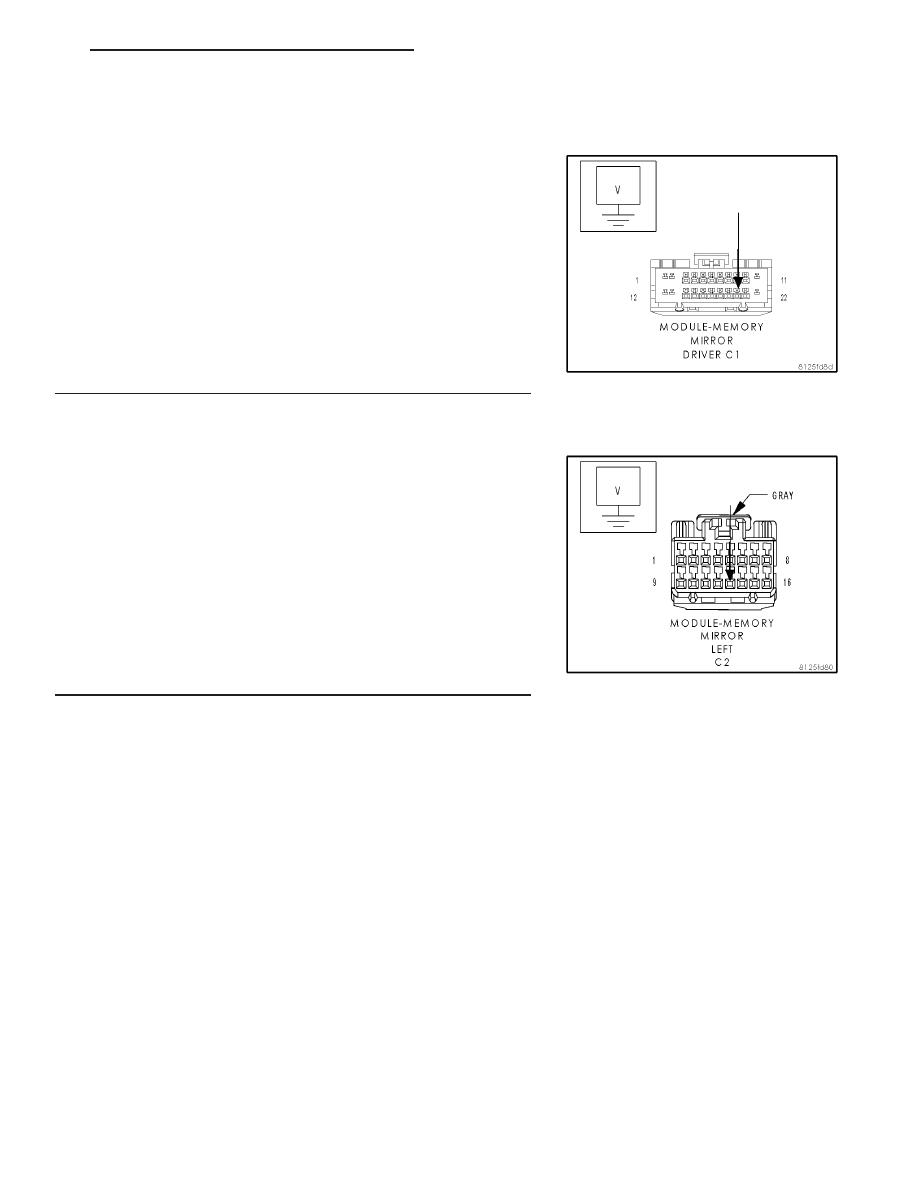

5. (G161) DRIVER DOOR LOCK SWITCH MUX WIRE SHORT TO Disconnect the Driver Memory Mirror Module C1 connector. Measure the voltage of the (G161) Driver Door Lock Switch Mux cir- Is there any voltage present? Yes >> Repair the (G161) Driver Door Lock Switch Mux circuit for a short to voltage. Perform BODY VERIFICATION TEST - VER 1. No >> Go to 6 6. MEMORY SELECT MUX WIRE SHORT TO VOLTAGE Disconnect the Driver Memory Mirror Module C2 connector. Measure the voltage of the Memory Select Switch Mux circuit. Is there any voltage present? Yes >> Repair the Memory Select Switch Mux wire for a short to voltage. Perform the BODY VERIFICATION TEST - VER 1. No >> Replace the Driver Memory Mirror Module. Perform BODY VERIFICATION TEST - VER 1. HB POWER LOCKS - ELECTRICAL DIAGNOSTICS 8N - 37 B1802, B1807 DOOR LOCK/UNLOCK SWITCH CIRCUIT HIGH – MEMORY MIRROR MODULE — (CONTINUED) |
