GAP AND FLUSH MEASUREMENTS

DIMENSION

LOCATION

GAP

FLUSH

1

HEADLAMP TO FENDER

3.0 ± 2.5

HEADLAMP

OVERFLUSH

0.9 ± 2.25

2

GRILLE TO HOOD

8.0 ± 2.75

PARALLEL WITHIN

4.0

—

3

HOOD TO FENDER

4.5 ± 1.25

PARALLEL WITHIN

2.0

0.0 ± 1.25 (REAR)

OVERFLUSH

2.0 ± 1.25

(FRONT/MIDDLE)

4

FRONT DOOR TO ROOF

—

OVERFLUSH

0.25 ±1.25

5

REAR DOOR TO ROOF

—

0.0 ± 1.25

6

FUEL FILLER DOOR TO QUARTER PANEL

3.2 ± 1.25

0.0 ± 1.25

7

FRONT DOOR TO REAR DOOR

4.5 ± 1.25

PARALLEL WITHIN

1.0

0.0 ± 2.5

8

FRONT DOOR TO FENDER

4.5 ± 1.25

PARALLEL WITHIN

1.0

0.0 ± 1.25

9

FRONT FASCIA TO FENDER

12.8 ± 3.0

PARALLEL WITHIN

2.5

0.0 ± 2.5

10

HEADLAMP TO FASCIA

13.0 ± 3.0

PARALLEL WITHIN

2.5

—

11

HEADLAMP TO GRILLE

6.3 ± 3.0

—

12

GRILLE TO FENDER

6.4 ± 3.0

—

13

FRONT FASCIA TO GRILLE

13.0 ± 3.0

PARALLEL WITHIN

2.5

—

14

TAILLAMP TO LIFTGATE

4.5 ± 2.0

OVERFLUSH

1.4 ± 2.5

15

LIFTGATE TO ROOF

8.0 ± 1.5

PARALLEL WITHIN

1.0

0.0 ± 1.5

16

LIFTGATE TO APERTURE

4.5 ± 1.25

PARALLEL WITHIN

1.0

0.0 ± 1.25

17

TAILLAMP TO APERTURE – TOP

2.0 ± 1.5

0.0 ± 1.5

18

REAR DOOR TO QUARTER PANEL

4.5 ± 1.25

PARALLEL WITHIN

1.0

0.0 ± 1.25

19

TAILLAMP TO APERTURE – MIDDLE

1.5 ± 1.5

0.0 ± 1.5

20

REAR FASCIA TO APERTURE

13.5 ± 3.0

PARALLEL WITHIN

2.5

—

HB

BODY STRUCTURE

23 - 241

DIMENSION

LOCATION

GAP

FLUSH

21

REAR FASCIA TO TAILLAMP

13.5 ± 3.0

PARALLEL WITHIN

2.5

—

22

REAR FASCIA TO LIFTGATE

13.5 ± 3.0

PARALLEL WITHIN

2.5

—

OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS

Index

DESCRIPTION

FIGURE

ENGINE COMPARTMENT/FRONT STRUCTURE

1

WINDSHIELD OPENING

2

DOOR OPENINGS

3

QUARTER WINDOW OPENING

4

BACKLITE OPENING

5

LIFTGATE OPENING

6

23 - 242

BODY STRUCTURE

HB

Fig.

1

ENGINE

COMP

AR

TMENT/FRONT

STRUCTURE

HB

BODY STRUCTURE

23 - 243

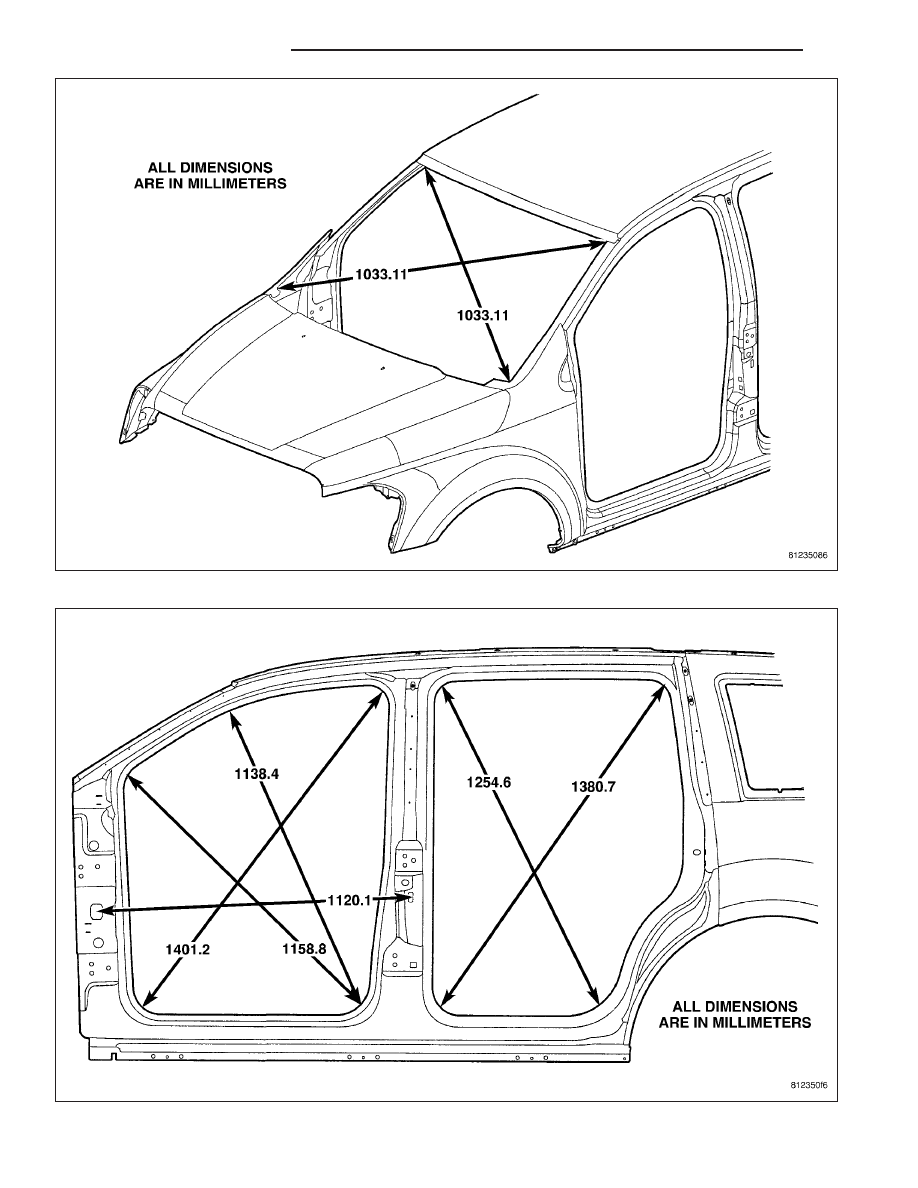

Fig. 2 WINDSHIELD OPENING

Fig. 3 DOOR OPENINGS
