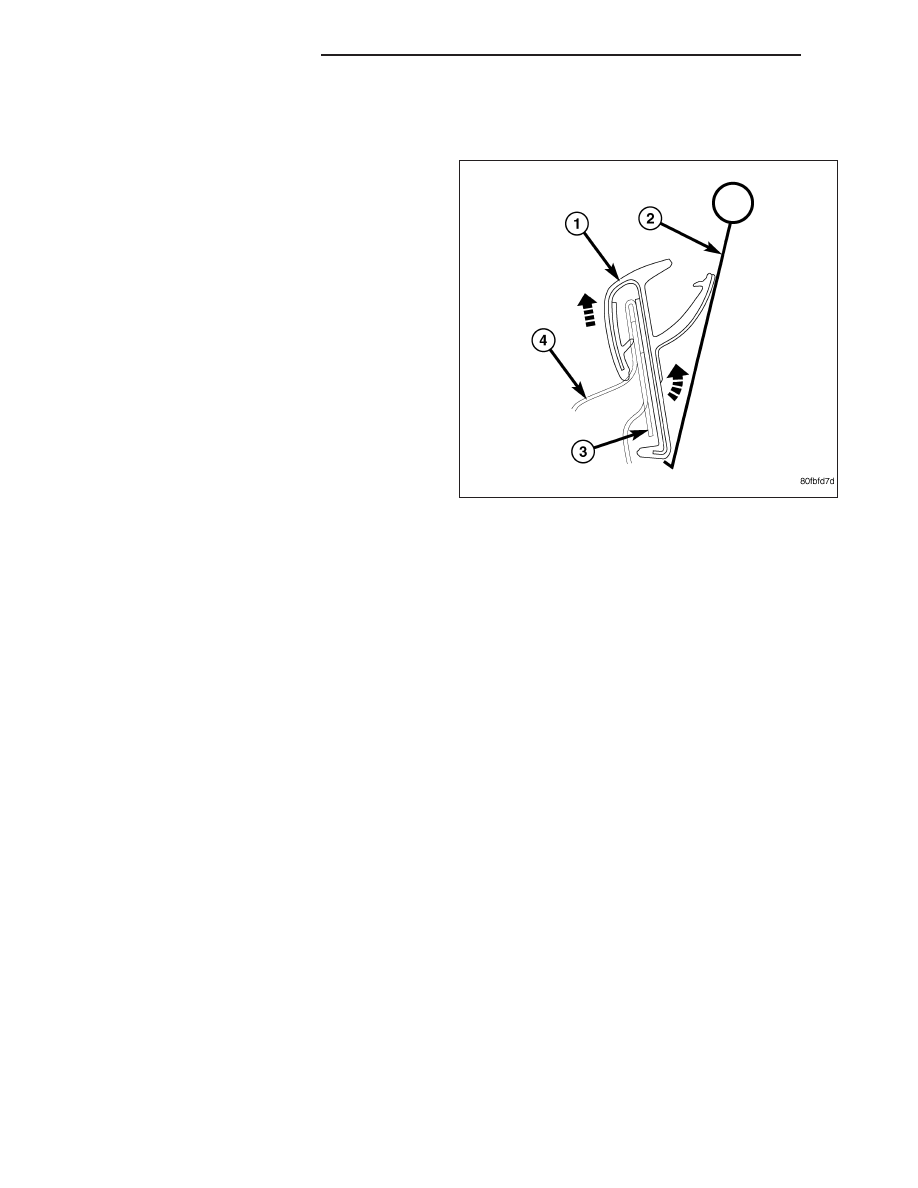

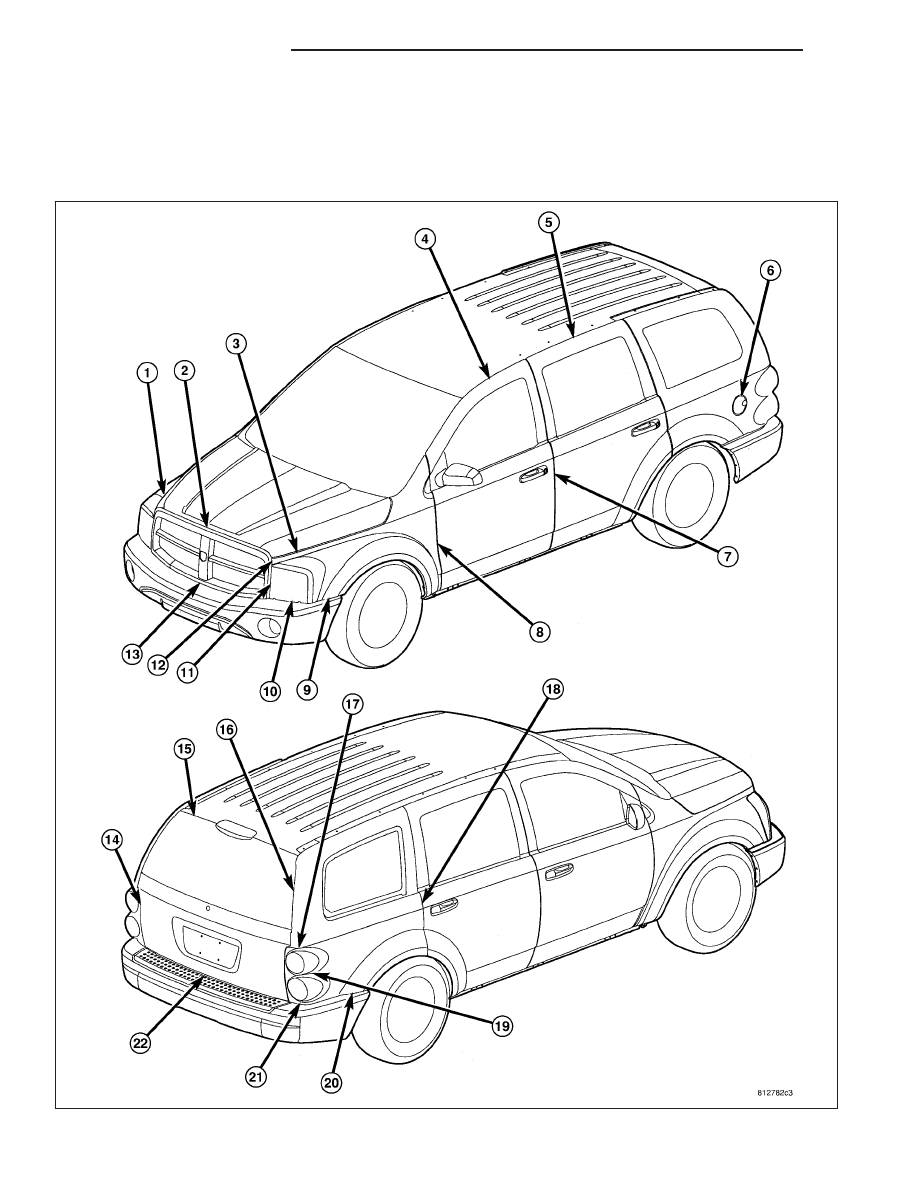

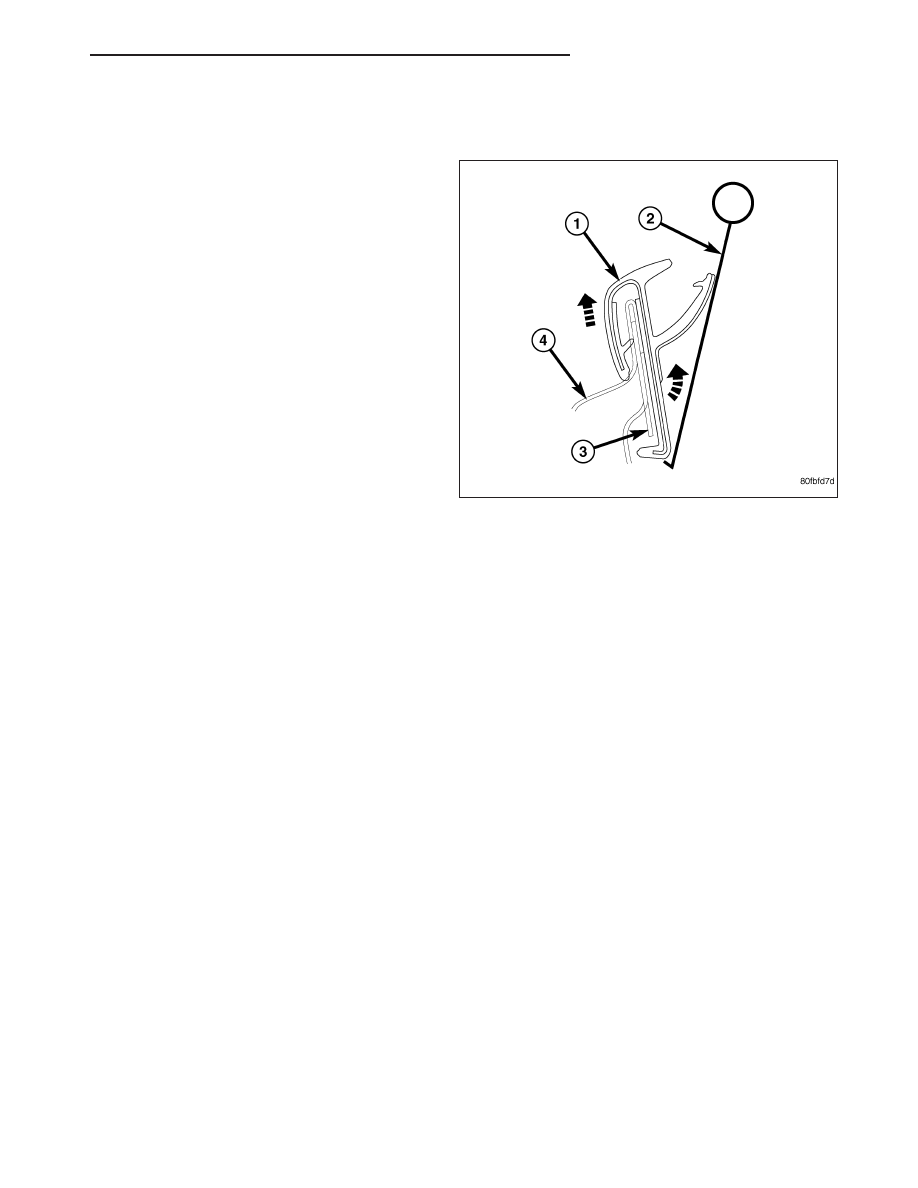

WEATHERSTRIP-FRONT DOOR BELT OUTER REMOVAL 1. Insert special tool #9093 (2) between the outer belt molding (1) and glass at the rear. 2. Push down on outer belt molding (1) and rotate upper part of tool (2) outward from vehicle then lift NOTE: Typical outer belt molding design shown. 3. Slide molding out from under the side view mirror and remove. INSTALLATION 1. Position the outer belt molding onto the door and position forward under the side view mirror. Seat the molding fully. WEATHERSTRIP-REAR DOOR GLASS RUN REMOVAL 1. Remove the glass run channels. (Refer to 23 - BODY/DOORS - REAR/GLASS RUN CHANNEL - REMOVAL) 2. Separate the quarter glass from the weatherstrip. INSTALLATION 1. Position the quarter glass into the weatherstrip and rear run channel. 2. Install the run channels. (Refer to 23 - BODY/DOORS - REAR/GLASS RUN CHANNEL - INSTALLATION) WEATHERSTRIP-REAR DOOR BELT INNER REMOVAL 1. Remove trim panel. (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - REMOVAL) 2. Pull weatherstrip from inner door panel. INSTALLATION 1. Position weatherstrip on inner door panel. 2. Press into place. 3. Install trim panel. (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - INSTALLATION) HB WEATHERSTRIP/SEALS 23 - 237 |
