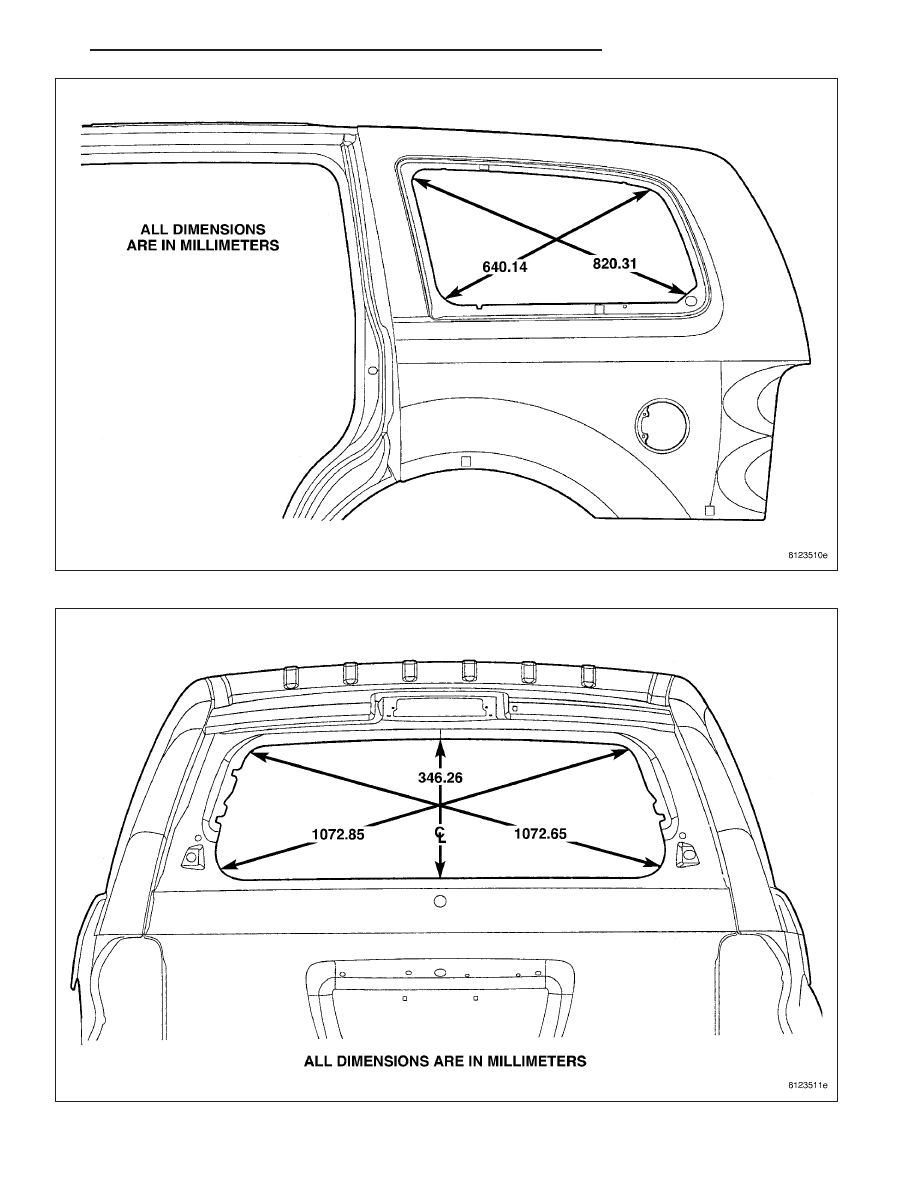

Fig. 4 QUARTER WINDOW OPENING

Fig. 5 BACKLITE OPENING

HB

BODY STRUCTURE

23 - 245

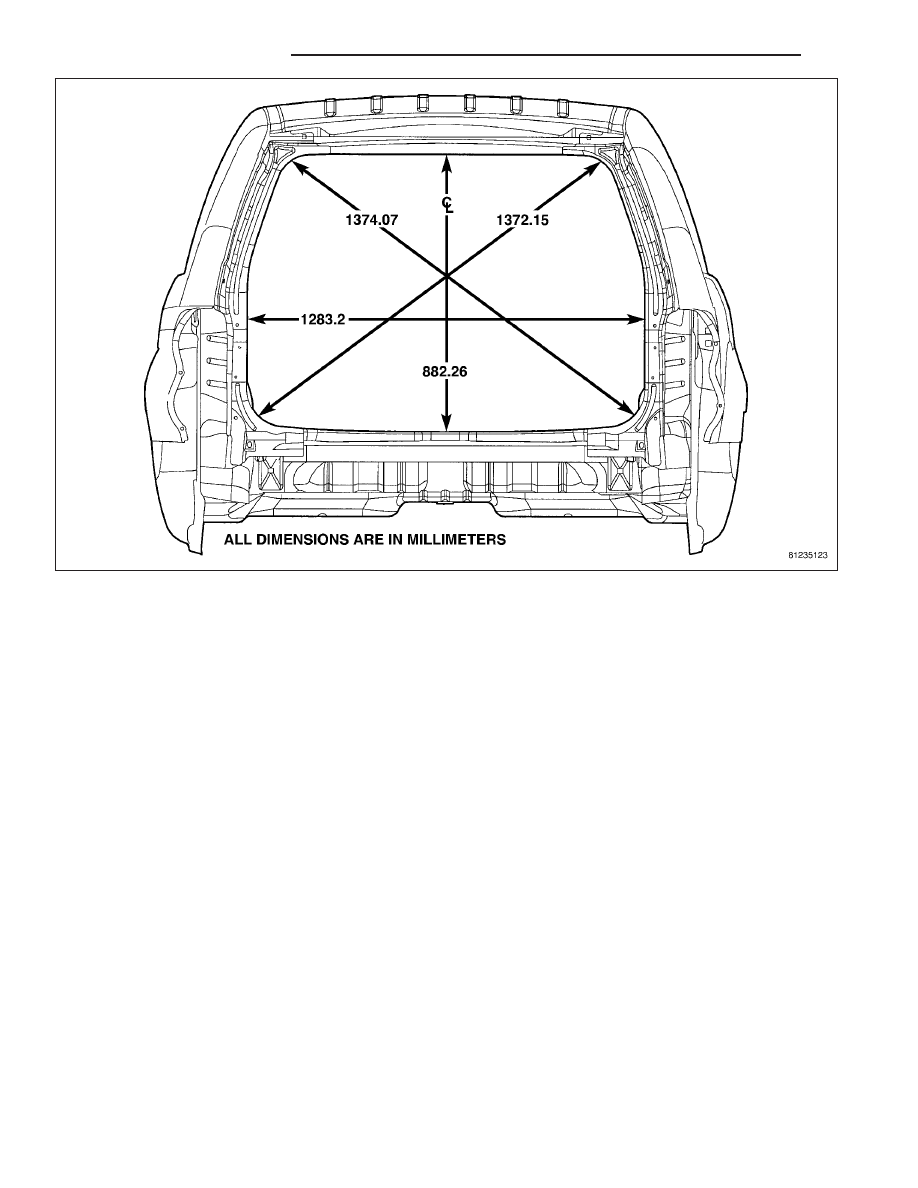

Fig. 6 LIFTGATE OPENING

23 - 246

BODY STRUCTURE

HB

SEALER LOCATIONS

SPECIFICATIONS

BODY SEALING LOCATIONS

Index

DESCRIPTION

FIGURE

APPLICATION METHODS

7

COWL BAR PLUGS

8

A-PILLAR/COWL BAR

9

LOWER PLENUM, DASH PANEL, COWL SIDE AND FLOOR PAN

10

ROOF/BODY SIDE APERTURE

11

STEERING COLUMN REINFORCEMENT

12

B-PILLAR - INNER SILL

13

FLOOR PAN

14

FLOOR PAN - SEALER PLUGS

15

FLOOR PAN - SEALER TAPE

16

D-PILLAR - EXPANDABLE SEALER PATCH

17

WHEELHOUSE/REAR FLOOR PAN

18

REAR INNER QUARTER PANEL/REAR FLOOR PAN

19

LIFTGATE OPENING/D-PILLAR/REAR FLOOR PAN

20

WHEELHOUSE TAPPING PLATE

21

LIFTGATE OPENING/BODY SIDE APERTURE

22

ROOF HEADER/LIFTGATE

23

HB

BODY STRUCTURE

23 - 247

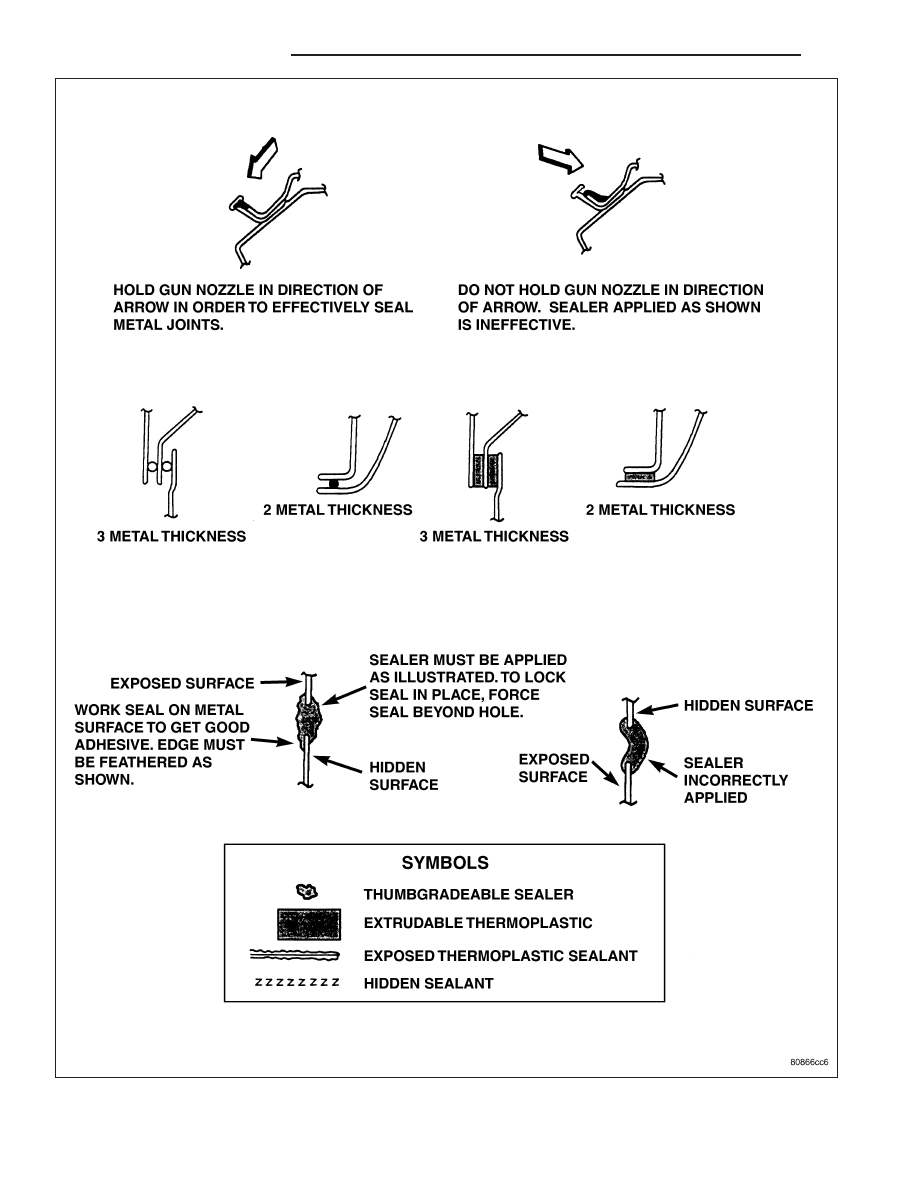

Fig. 7 APPLICATION METHODS

23 - 248

BODY STRUCTURE

HB
