BODY WIRING SYSTEM  9A-23

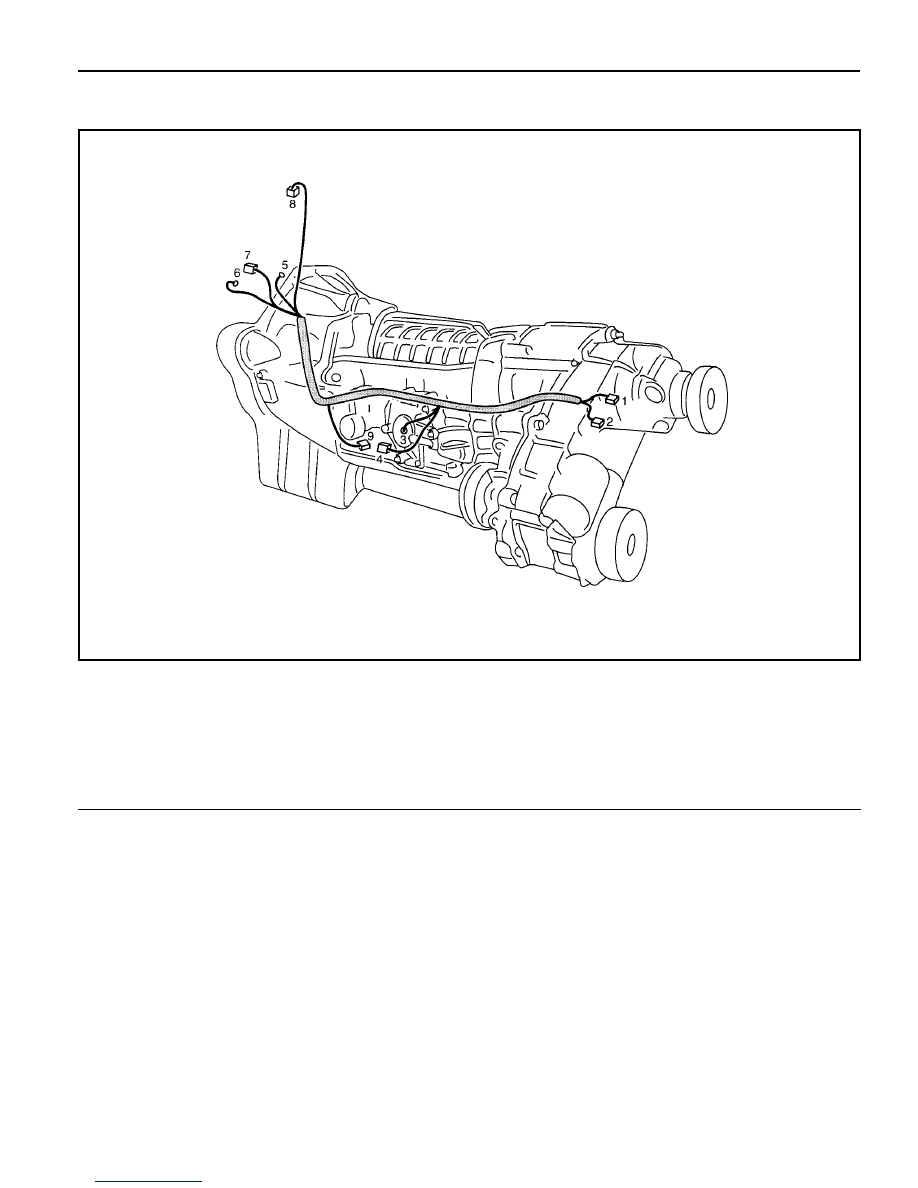

MANUAL TRANSMISSION

1 Main Wiring Connector ...................... Diesel E/G
2 Main Wiring Connector .................. Gasoline E/G
3 Main Wiring Connector ......................... Gasoline

(E32, E23) E/G

4 Back Up Switch

5 Oil Pressure Switch
6 Start Motor Solenoid
7 Micro Switch
8 Speed Sensor (Turbo Diesel Engine Only)

9A-24  BODY WIRING SYSTEM

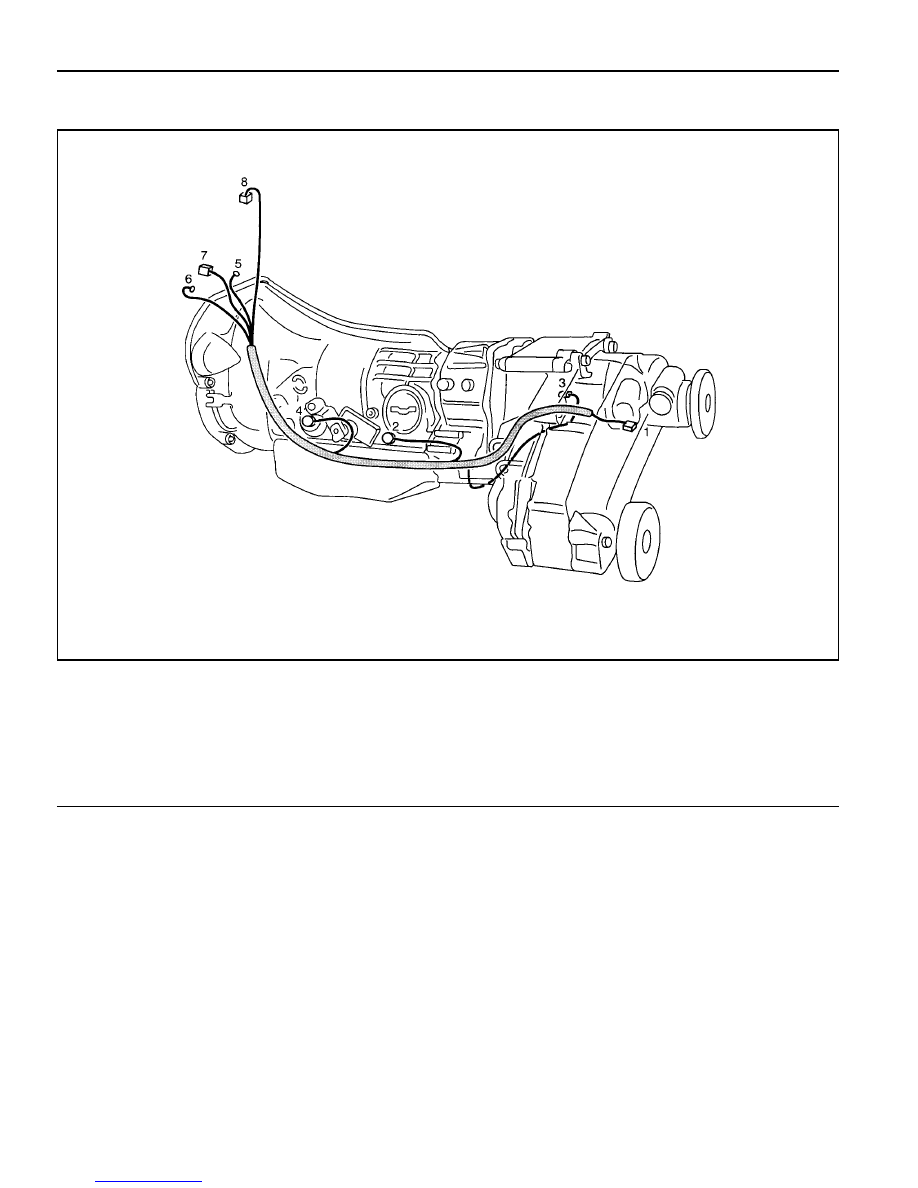

AUTOMATIC TRANSMISSION (BENZ)

1 Main Wiring Connector
2 Start Lock Switch
3 Automatic Transmission Change Over Valve
4 Transmission Overload

Protection Switch ........................... Gasoline E/G

5 Oil Pressure Switch
6 Start Solenoid
7 Micro Switch ....................................... Diesel E/G
8 Speed Sensor .......................... Turbo Diesel E/G

BODY WIRING SYSTEM  9A-25

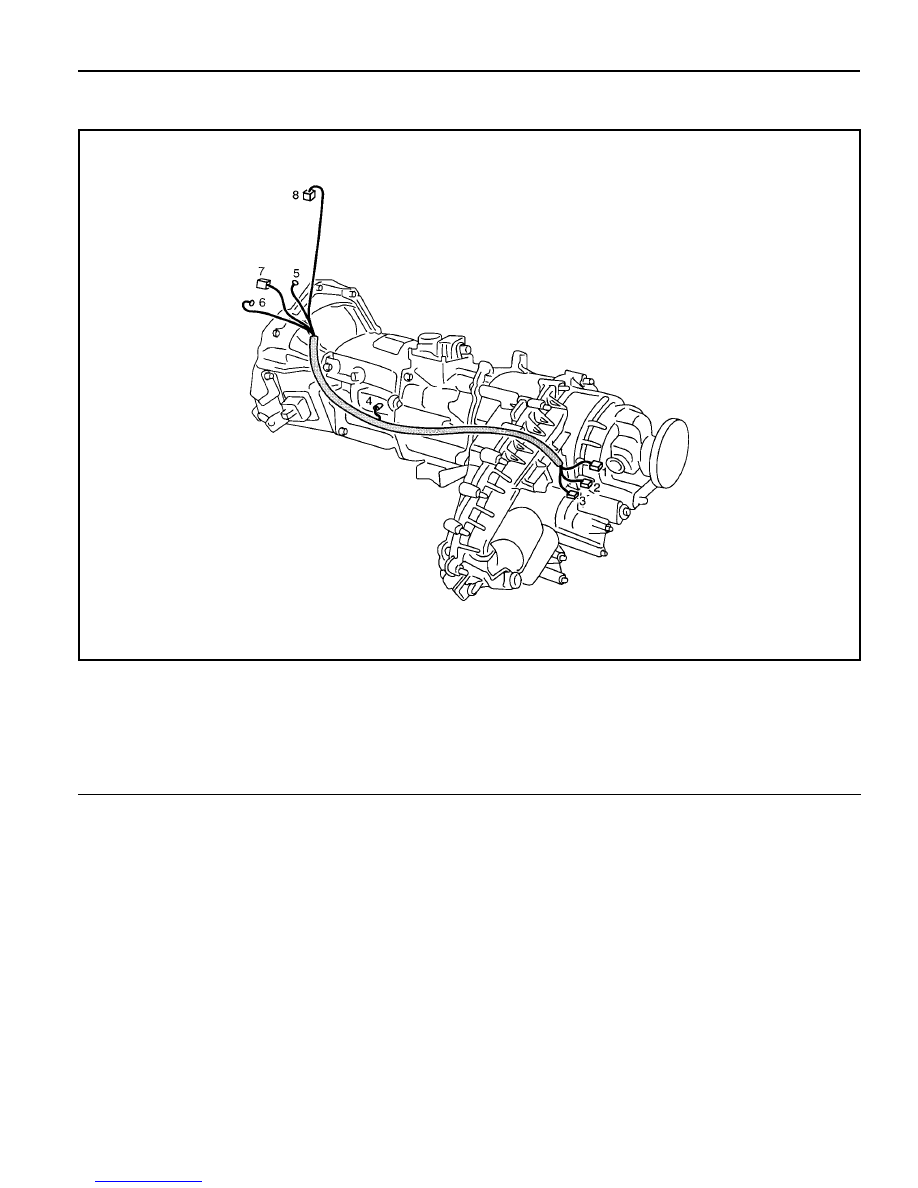

AUTOMATIC TRANSMISSION (BTRA)

1 Main Wiring Connector
2 Main Wiring Connector
3 Transmission
4 Transmission Lever
5 Oil Pressure Switch ............................ Diesel E/G

6 Start Motor Solenoid
7 Throttle Position Sensor .................... Diesel E/G
8 Speed Sensor .......................... Turbo Diesel E/G
9 Inhibitor Switch

9A-26  BODY WIRING SYSTEM

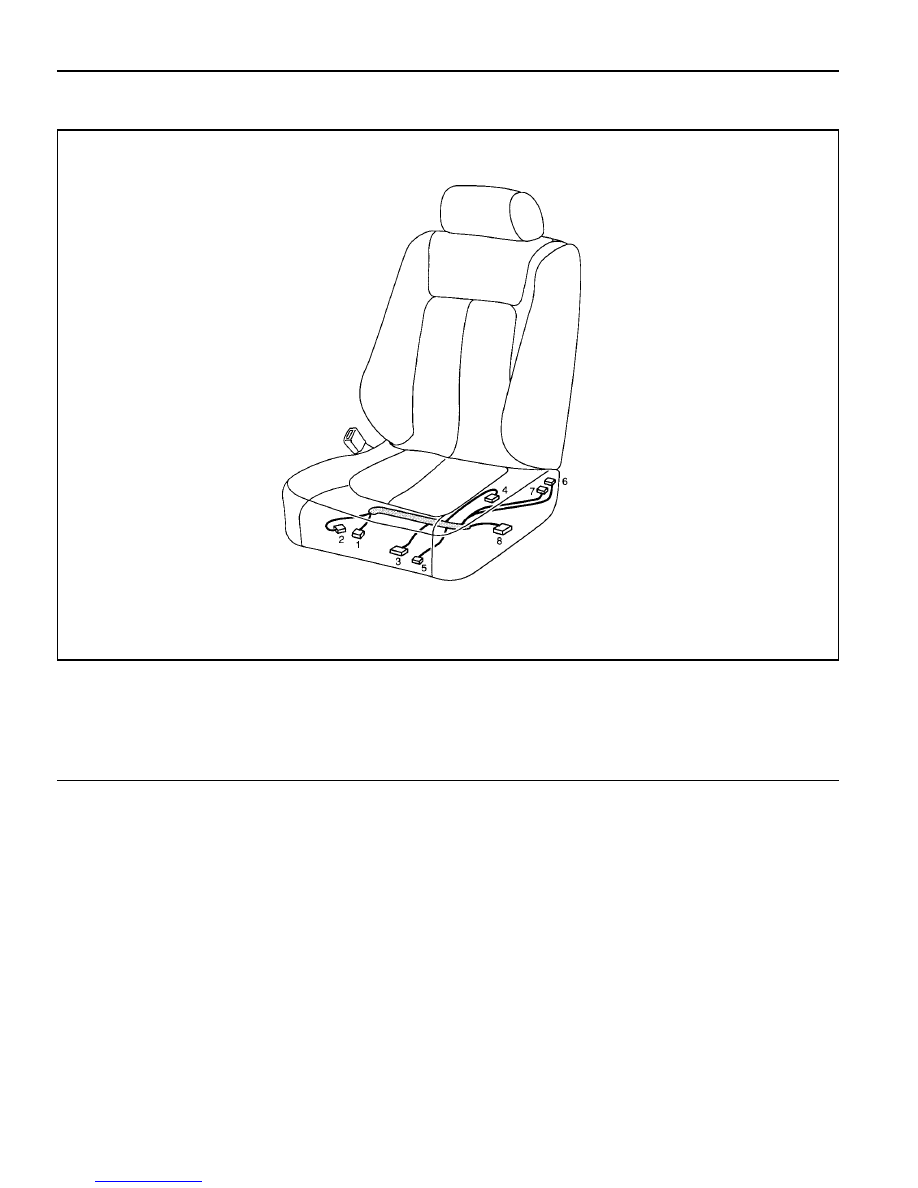

DRIVER'S SEAT

1 Main Wiring Connector
2 Tilt Motor
3 Heater Control Unit
4 Height Motor

5 Slide Motor
6 Back Seat Wiring Connector
7 Seat Heater
8 Driver Seat Switch
