Daewoo Musso. Manual - part 336
Low (Philips H4)
Tail Lamp
Brake Lamp
High Mounted Stop Lamp
Reverse Lamp
Fog Lamp*
Turn Signal Lamp
Position Lamp
Front Lamp
Rear Lamp
Luggage Lamp
Door Courtesy Lamp
SECTION 9B
LIGHTING SYSTEM
Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a
tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable
will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise
noted.
TABLE OF CONTENTS
SPECIFICATIONS
BULB USAGE CHART
Head Lamp
Rear
Front
Interior
Application
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 9B-1
Bulb Usage Chart . . . . . . . . . . . . . . . . . . . . . . 9B-1
Schematic and Routing Diagrams . . . . . . . . 9B-2

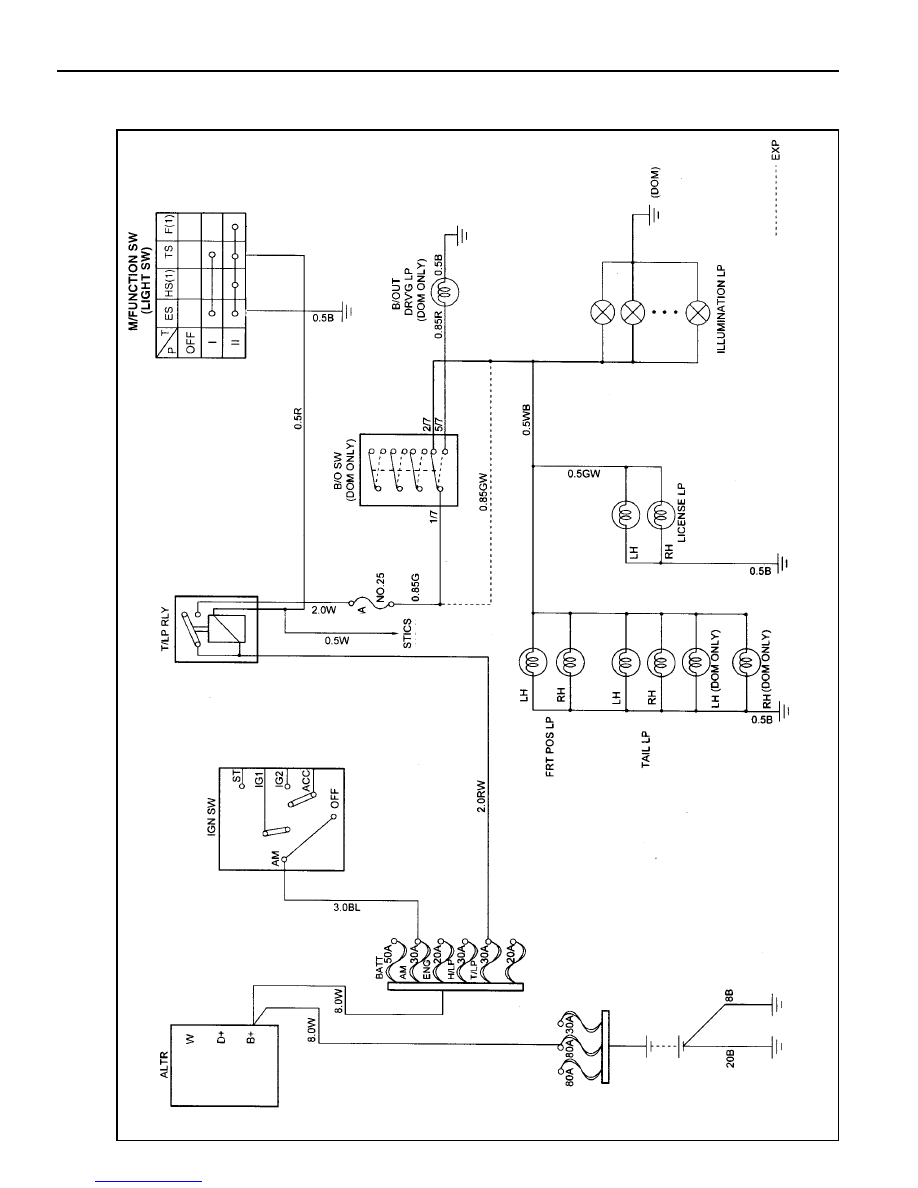

Tail Lamp & B/O Lamp . . . . . . . . . . . . . . . . . . 9B-2

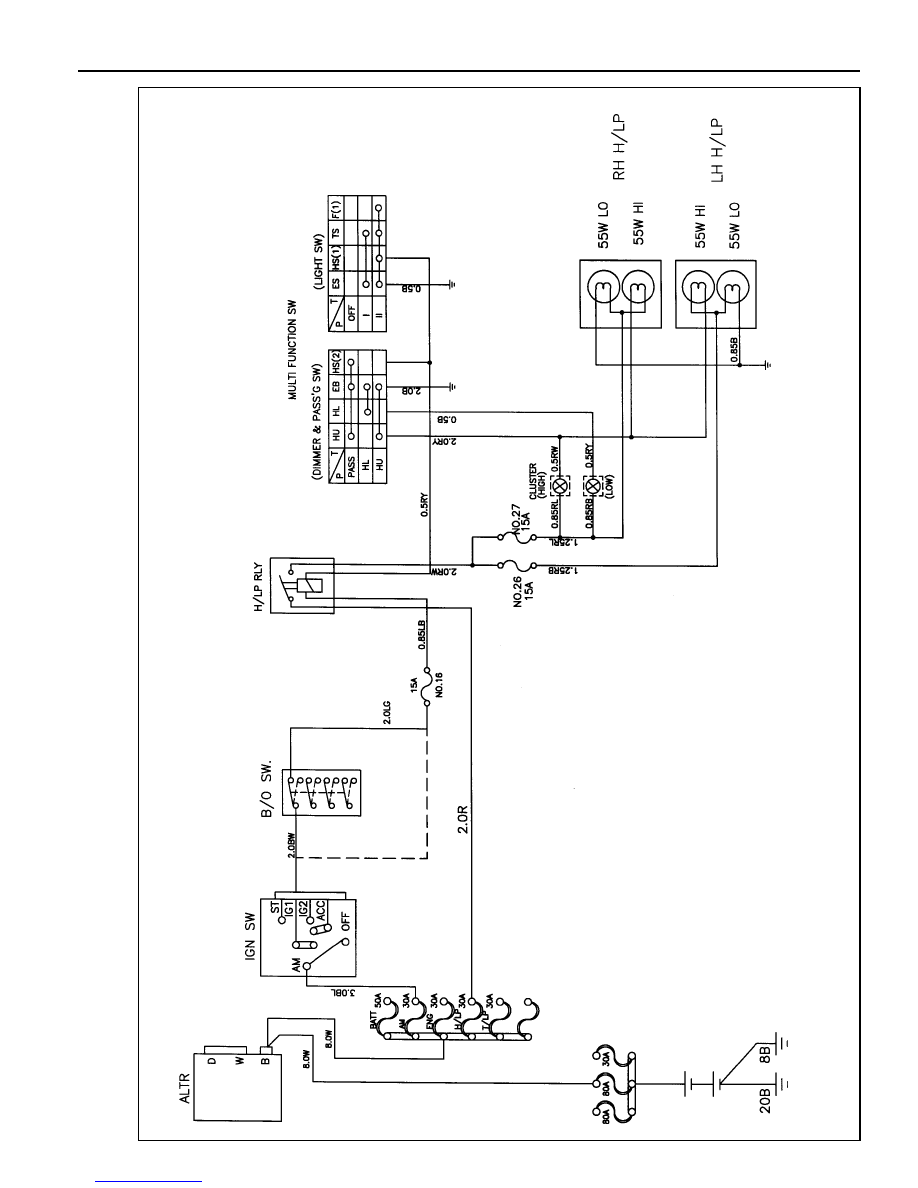

Head Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 9B-3

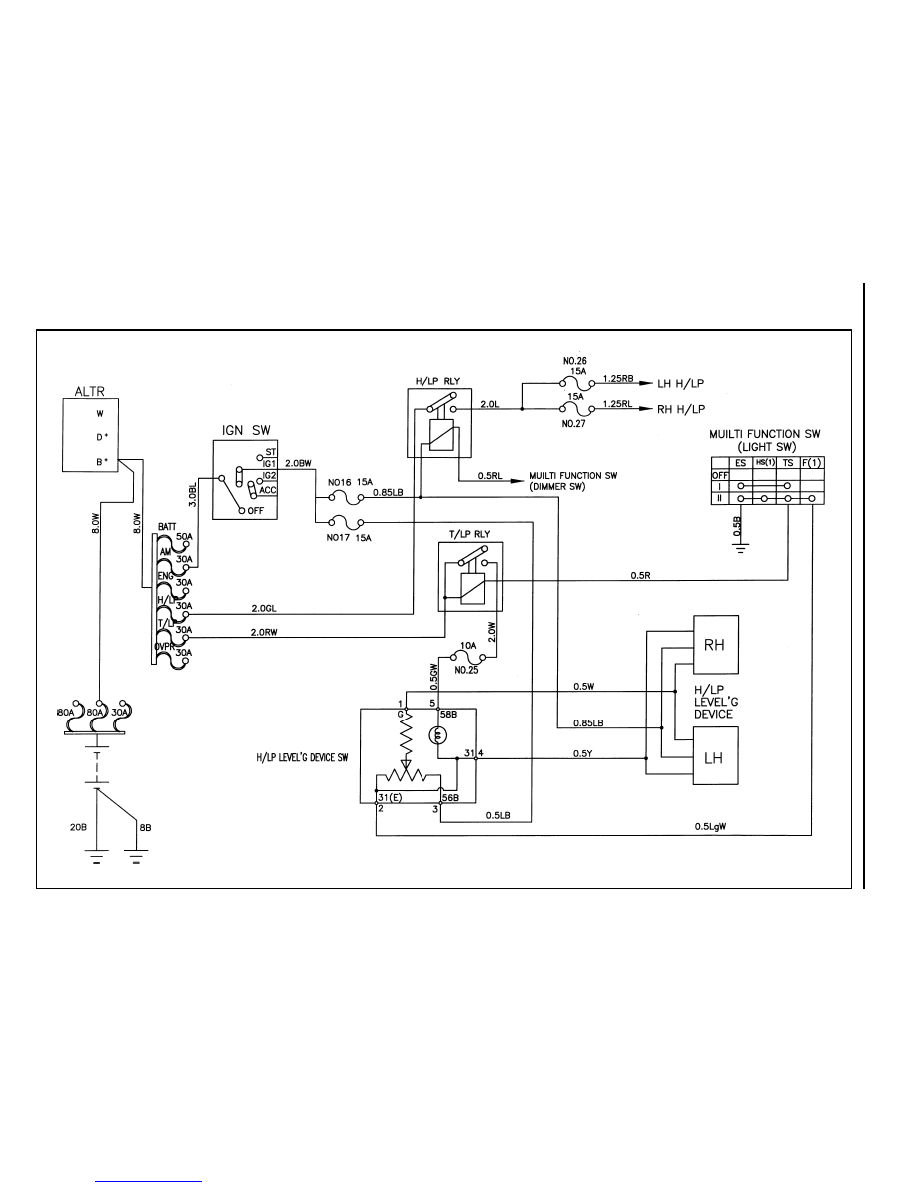

Head Lamp Leveling Device . . . . . . . . . . . . . . 9B-4
Turn Signal Lamp and Hazard Lamp . . . . . . . . 9B-5
Back-Up Lamp and Stop Lamp . . . . . . . . . . . . 9B-6
Front and Rear Fog Lamp . . . . . . . . . . . . . . . 9B-7
Room Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 9B-8
Maintenance and Repair . . . . . . . . . . . . . . . 9B-9
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 9B-9
Front and Rear Lamps . . . . . . . . . . . . . . . . . . 9B-9
Hi
(Philips H1)
Hi
Low
Watt/Quantity
55W / 2
55W / 2
55W / 2
5W / 4
21W / 4
21W / 1
21W / 2
55W / 2
21W / 2
5W / 2
8W / 2
10W / 1
8W / 1
5W / 4
