BODY WIRING SYSTEM  9A-19

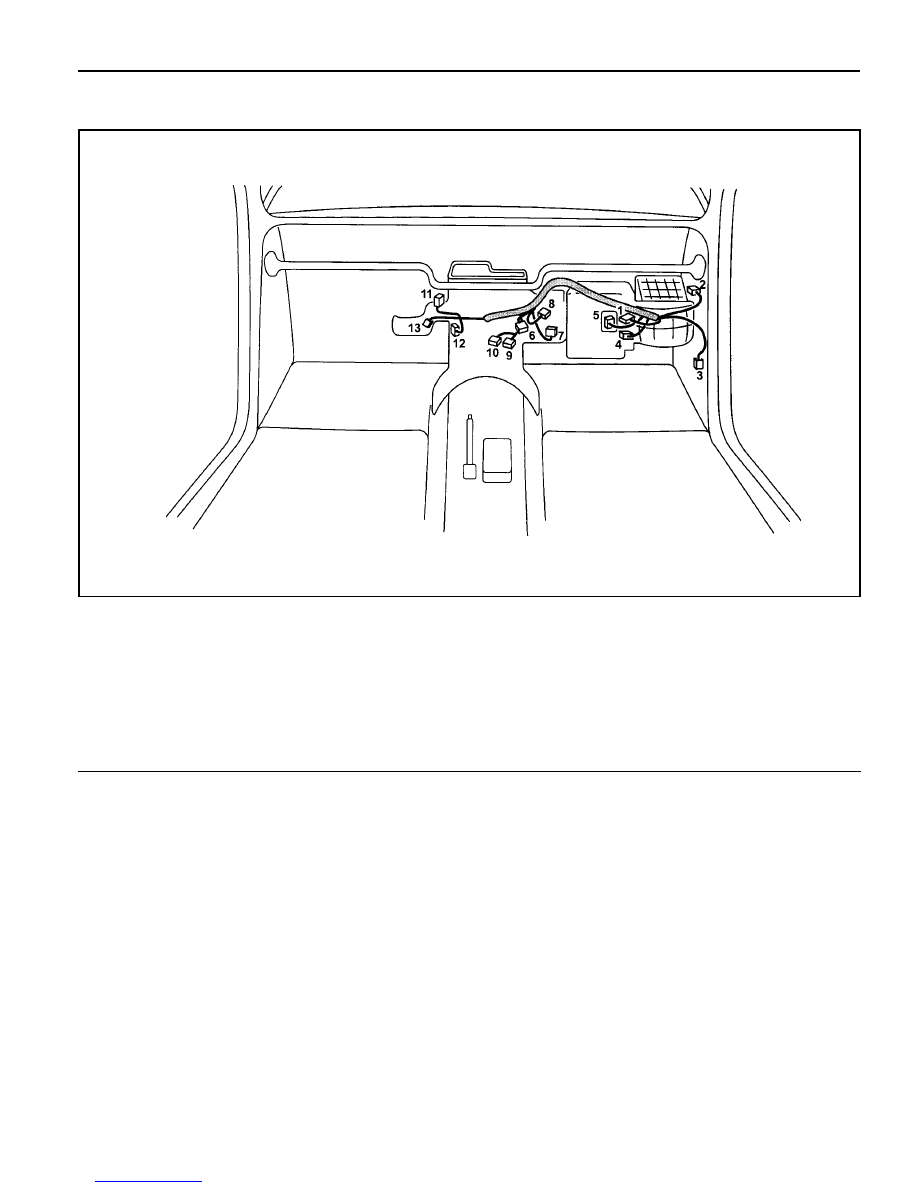

FULL AUTOMATIC AIR CONDITIONER

1 Main Connector
2 Intake Actuator
3 Blower Relay
4 HI Relay
5 Power TR
6 Water Temperature Sensor
7 Temp Actuator

8 Blower Relay
9 Control (A)

10 Control (B)

11 Sun Sensor

12 Mode Actuator
13 In Car Sensor

9A-20  BODY WIRING SYSTEM

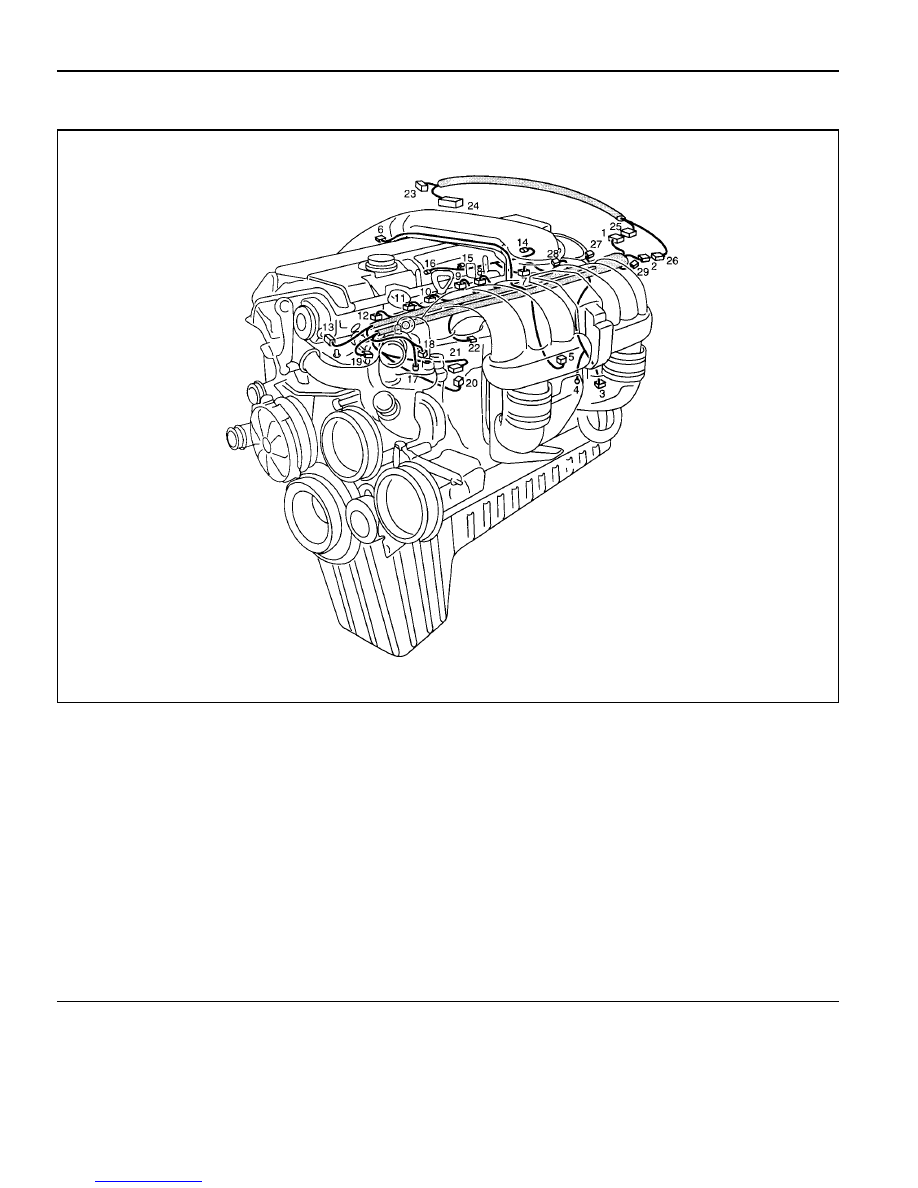

GASOLINE ENGINE (MSE)

1 ECU Main Wiring Connector
2 ECU Main Wiring Connector
3 Crankshaft Position Sensor
4 Oil Pressure Switch
5 Knock Sensor 2
6 Hot-Film Air Mass Sensor
7 Injector 6
8 Injector 5
9 Injector 4

10 Injector 3

11 Injector 2

12 Injector 1
13 Camshaft Adjustment Magnet

14 Ignition Coil 3
15 Ignition Coil 2
16 Ignition Coil 1
17 Temperature Sensor (Gauge)
18 Double Sensor
19 Camshaft Position Sensor
20 Knock Sensor 1
21 Throttle Regulating Unit
22 Resonance Flap
23 Main Wiring Connector
24 ECU
25 ECU Engine Wiring Connector
26 ECU Engine Wiring Connector

BODY WIRING SYSTEM  9A-21

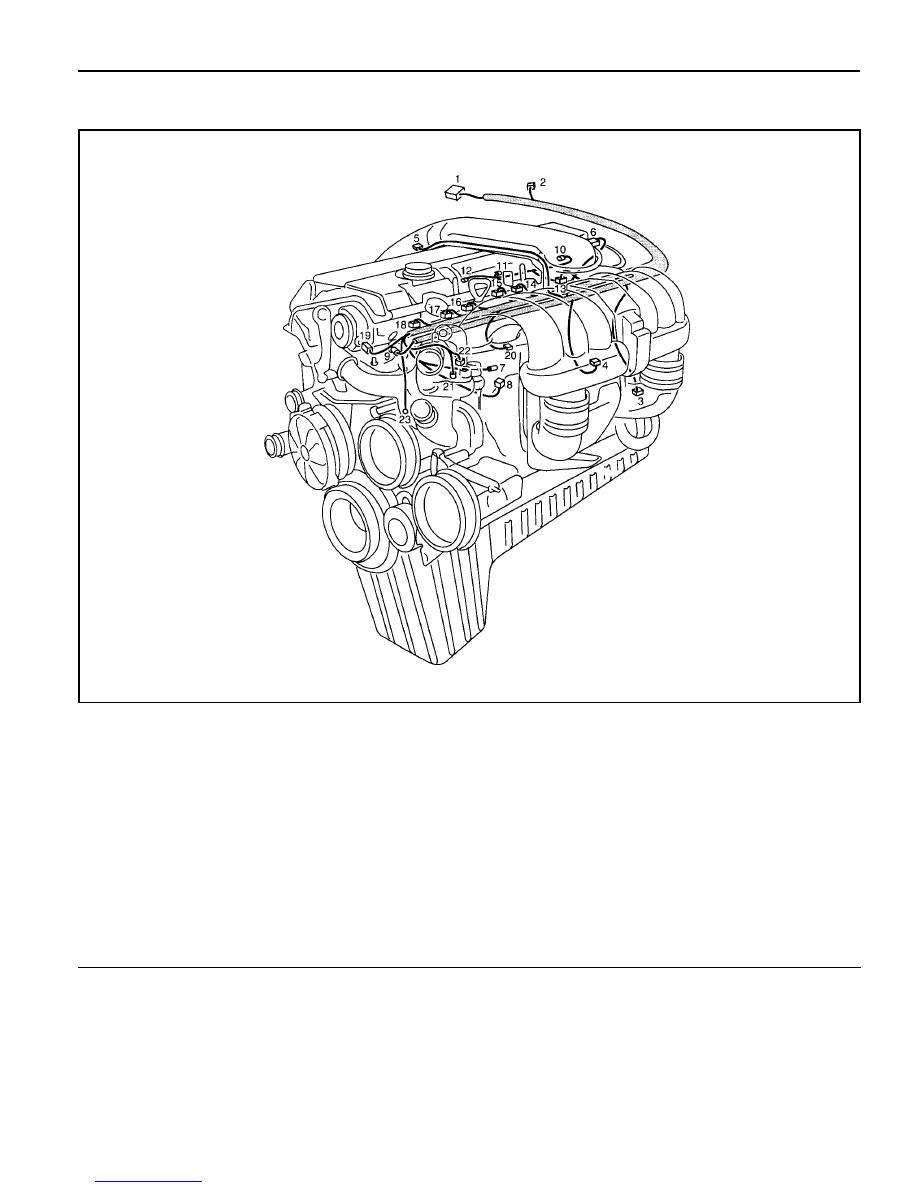

GASOLINE ENGINE (HFM)

1 ECU
2 Main Wiring Connector
3 Crankshaft Position Sensor
4 Knock Sensor
5 Hot-Film Air Mass Sensor
6 Aspiration Sensor
7 Throttle Regulating Unit
8 Knock Sensor
9 Camshaft Position Sensor

10 Ignition Coil 3

11 Ignition Coil 2

12 Ignition Coil 1

13 Injector 6
14 Injector 5
15 Injector 4
16 Injector 3
17 Injector 2
18 Injector 1
19 Camshaft Adjustment Magnet
20 Resonance Flap
21 Temperature Sensor (Gauge)
22 Double Sensor
23 Ground

9A-22  BODY WIRING SYSTEM

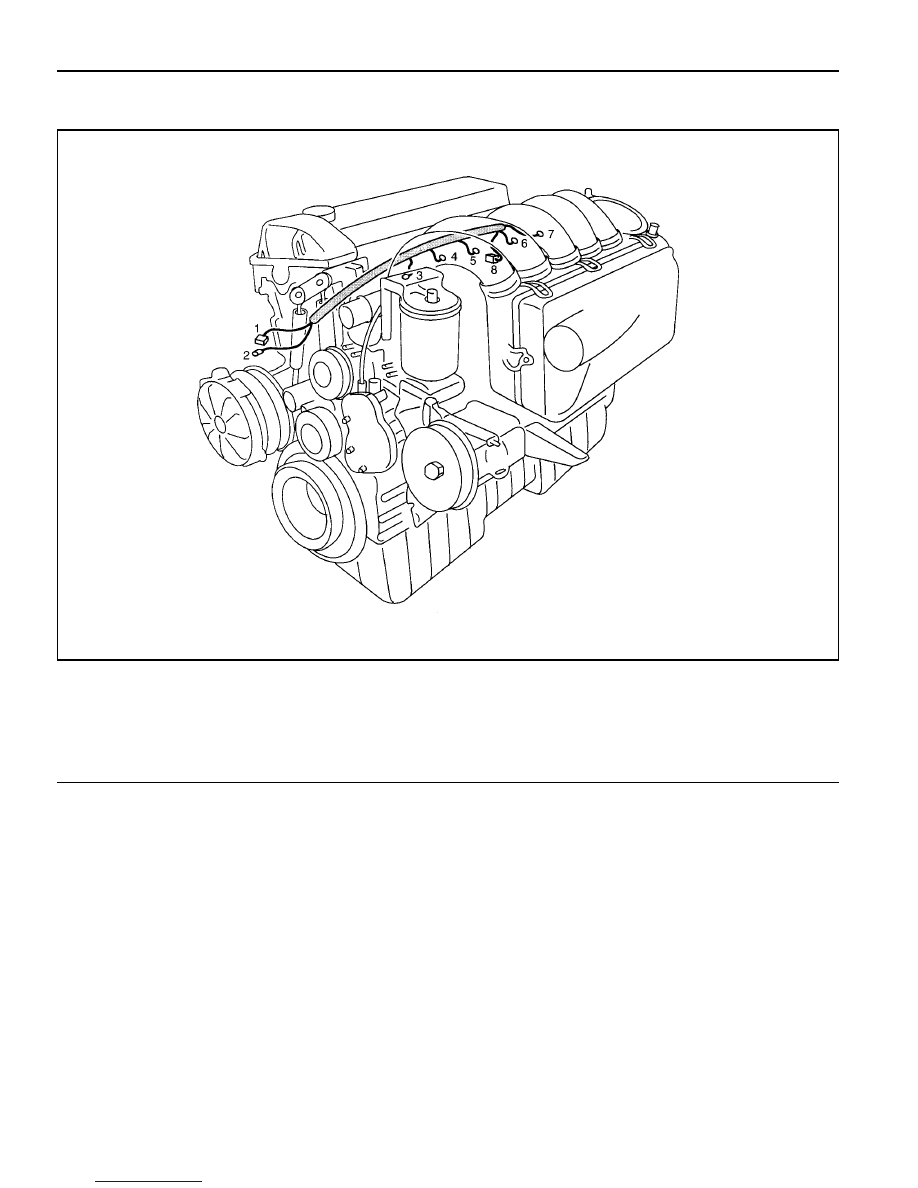

DIESEL ENGINE

1 Preheating Unit
2 Main Wiring Connector
3 Glow Plug 1
4 Glow Plug 2

5 Glow Plug 3
6 Glow Plug 4
7 Glow Plug 5
8 Water  Temperature Sensor (Gauge)
