BODY WIRING SYSTEM  9A-15

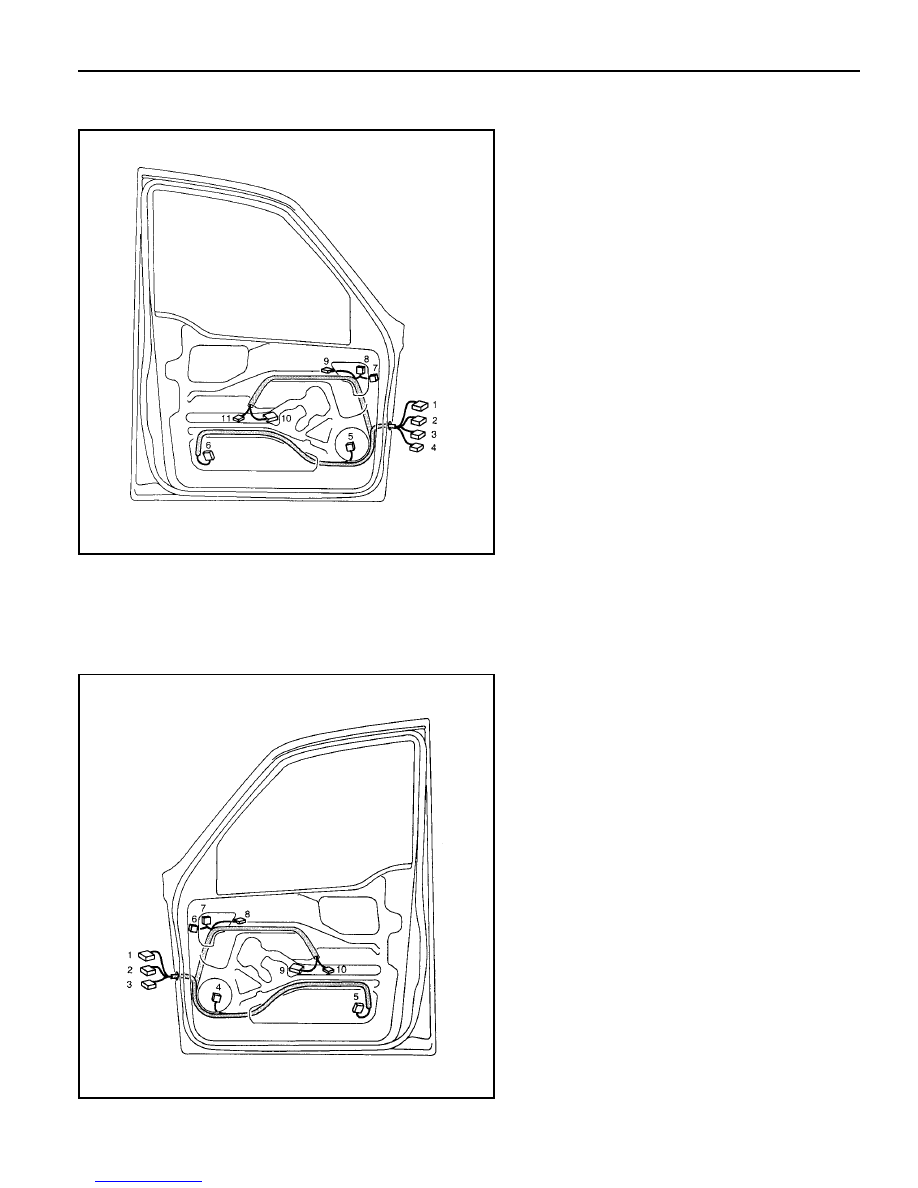

DRIVER'S DOOR

1 Main Wiring Connector
2 Main Wiring Connector
3 Main Wiring Connector
4 Main Wiring Connector
5 Speaker
6 Door Lock Actuator
7 Outside Mirror Motor
8 Tweeter Speaker Wiring Connector
9 Power Window Motor

10 Power Window Switch

11 Door Courtesy Lamp

PASSENGER'S DOOR

1 Main Wiring Connector
2 Main Wiring Connector
3 Floor Wiring Connector
4 Speaker
5 Door Lock Actuator
6 Outside Mirror Motor
7 Tweeter Speaker Wiring Connector
8 Power Window Motor
9 Power Window Switch

10 Door Courtesy Lamp

9A-16  BODY WIRING SYSTEM

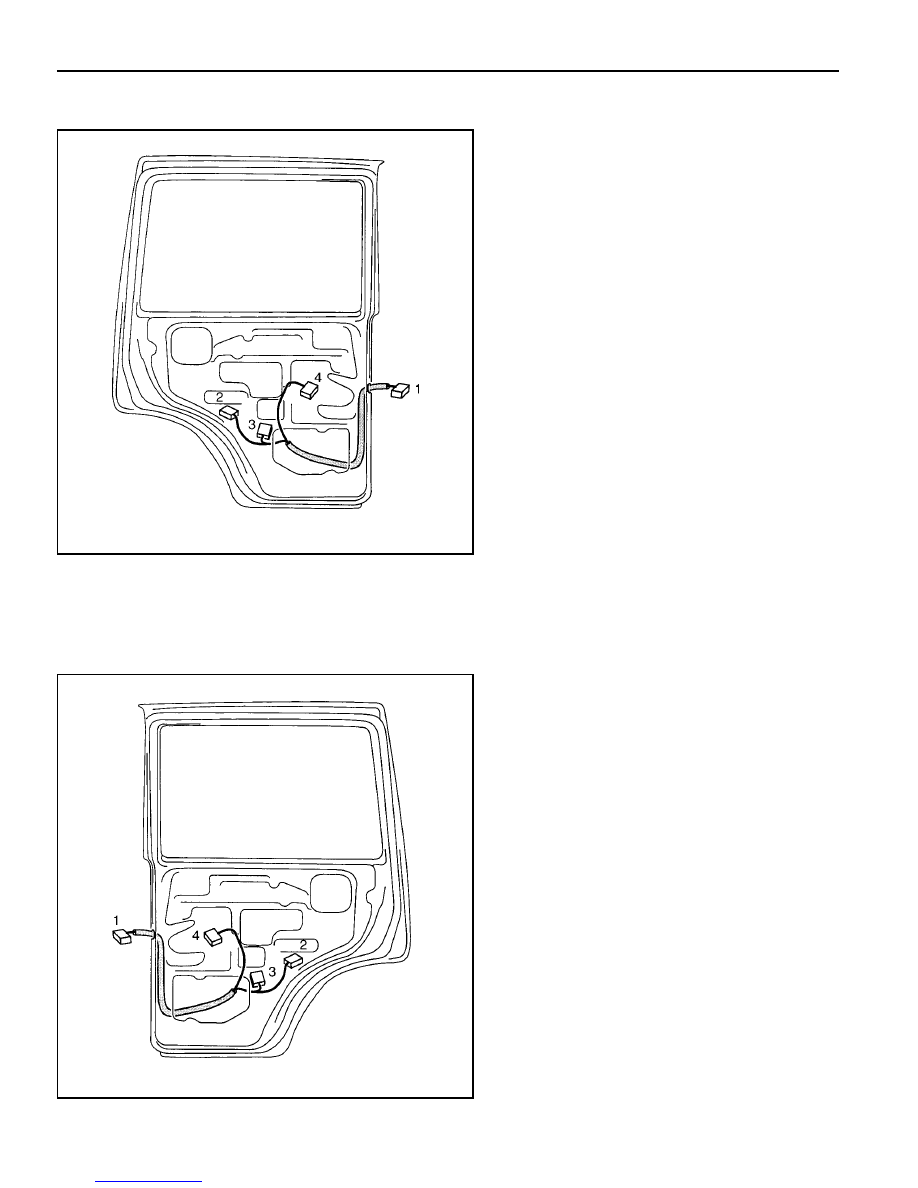

REAR LEFT DOOR

REAR RIGHT DOOR

1 Floor Wiring Connector
2 Door Lock Actuator
3 Power Window Motor
4 Power Window Switch

1 Floor Wiring Connector
2 Door Lock Actuator
3 Power Window Motor
4 Power Window Switch

BODY WIRING SYSTEM  9A-17

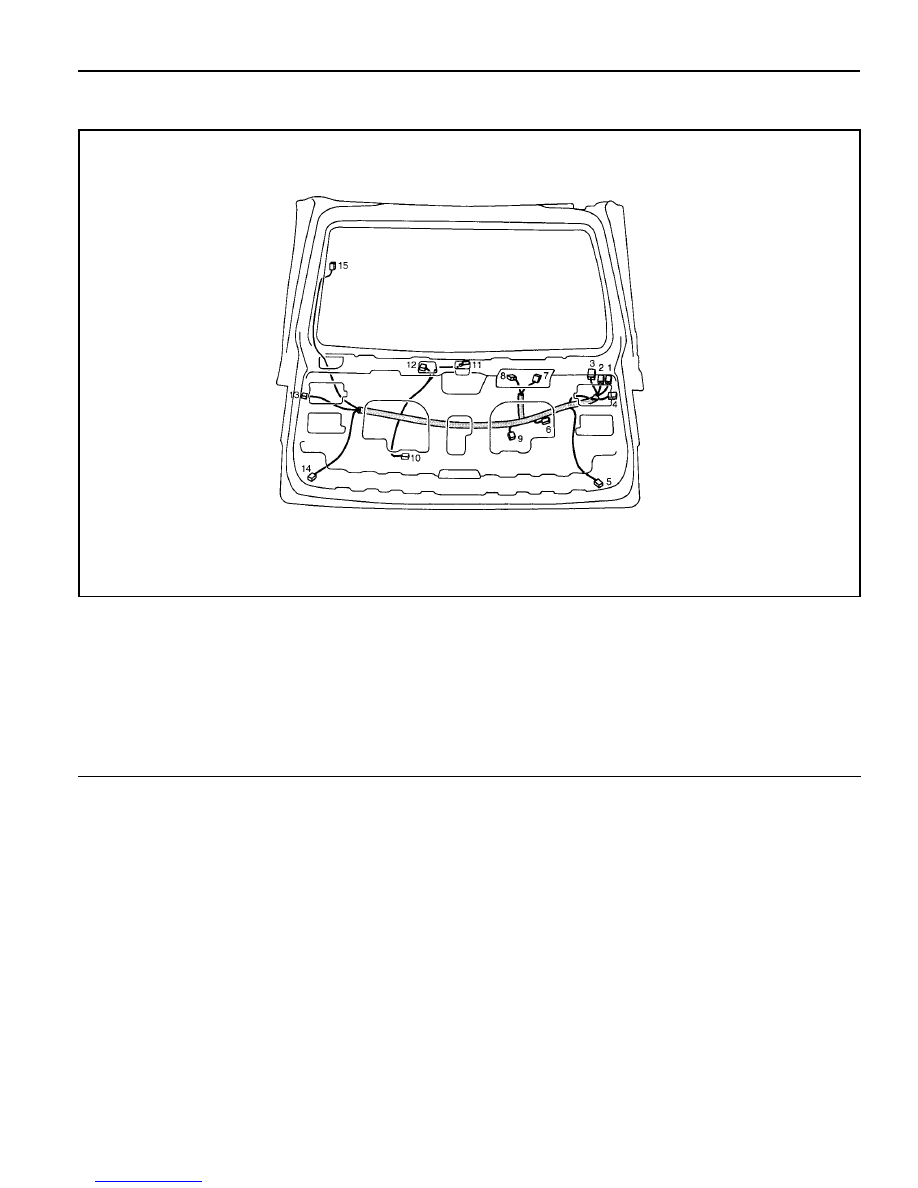

TAIL GATE

1 Floor Wiring Connector
2 Floor Wiring Connector
3 Floor Wiring Connector
4 LH Rear Combination Lamp
5 LH Rear Fog Lamp
6 Joint Connector (Ground)
7 Rear Wiper Motor
8 LH License Lamp

9 Tail Gate Switch

10 Door Lock Actuator

11 High Mounted Stop Lamp

12 RH License Lamp
13 RH Rear Combination Lamp
14 RH Rear Fog Lamp
15 Rear Heated

9A-18  BODY WIRING SYSTEM

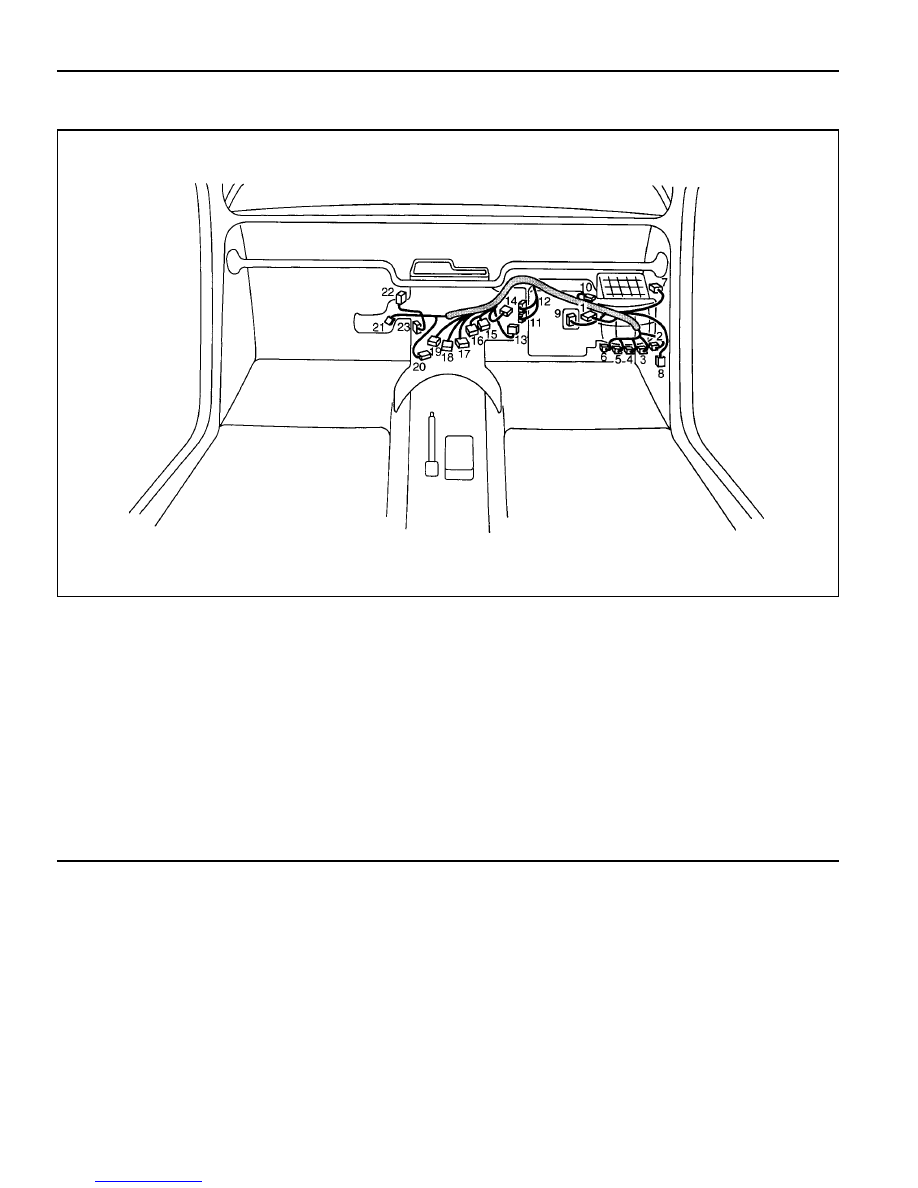

SEMI AUTOMATIC AIR CONDITIONER

1 Main Connector
2 Air Conditioner Relay 2
3 LO Relay
4 ML Relay
5 MH Relay
6 HI Relay
7 Intake Actuator
8 Blower Motor
9 Resistor

10 Diode

11 Amplifier

12 Amplifier

13 Temp Actuator
14 Blower Relay
15 Water Temperature Sensor
16 Air Conditioner Switch
17 Fan Switch (Auto)
18 PTC
19 Control
20 Mode Switch
21 In Car Sensor
22 Sun Sensor
23 Mode Actuator
