BODY WIRING SYSTEM  9A-11

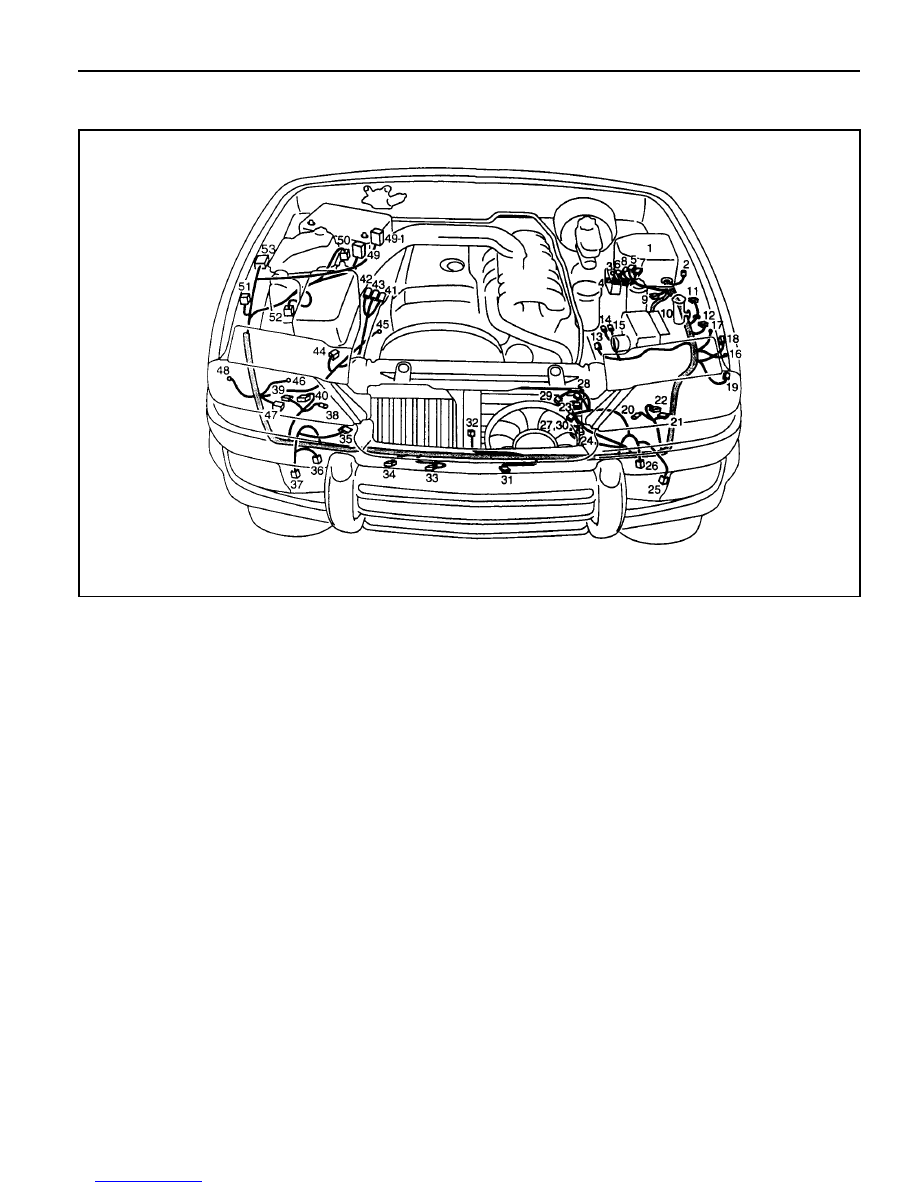

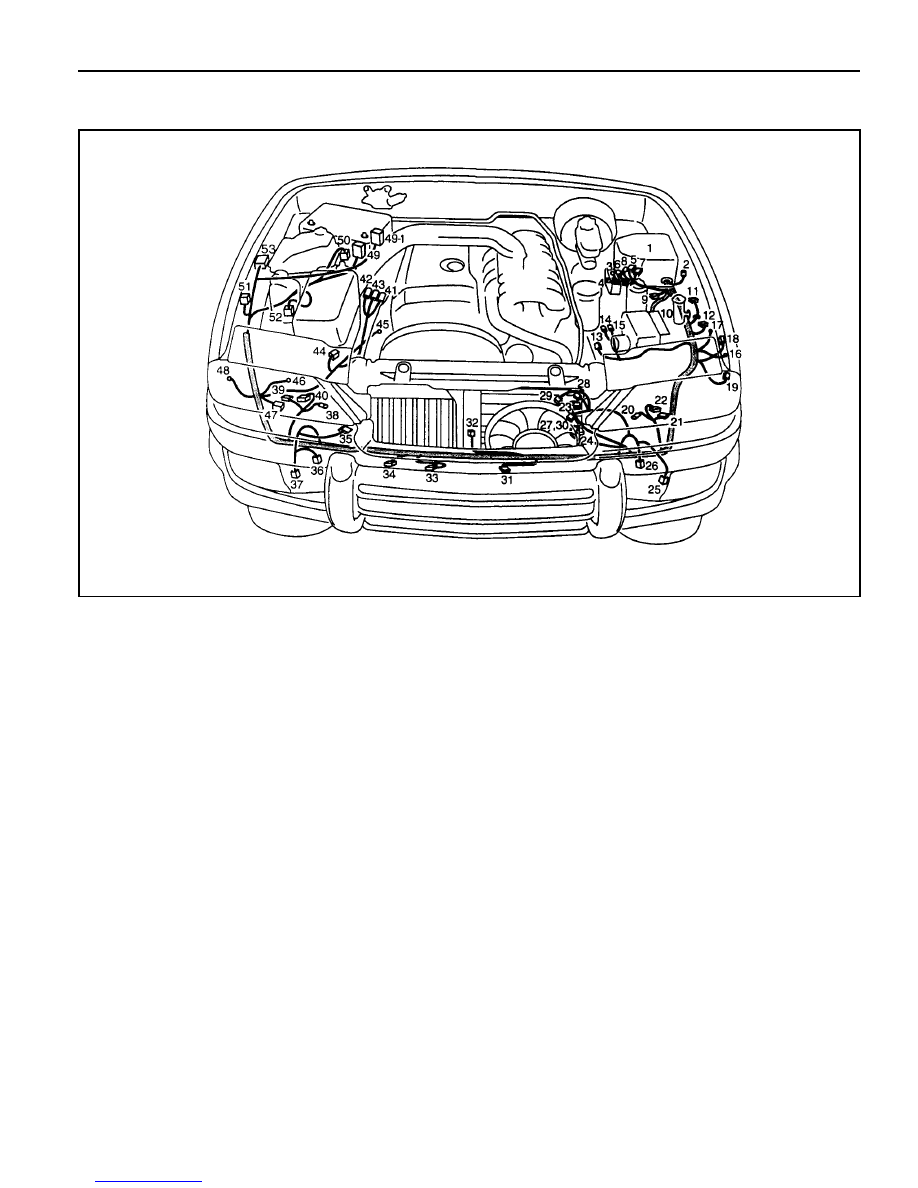

ENGINE ROOM

1 Engine Room Relay Box

1.1 Main Wiring Connector
1.2 Main Wiring Connector
1.3 Main Wiring Connector ........................................ Gasoline E/G
1.4 Joint
1.5 Compressor, Condenser Fan Relay ..................... Diesel E/G
1.6 Condenser Fan Relay 2
1.7 Air Conditioner Relay
1.8 Resistor with Diode .............................................. Gasoline E/G
1.9 Front Fog Lamp Relay

1.10 Condenser Fan Relay 1

1.11 Tail Lamp Relay

1.12 Horn Relay

2 Octane Selector ................................................... Gasoline E/G with HFM
3 Preheating Unit .................................................... Diesel E/G
4 Preheating Timer Unit .......................................... Diesel E/G
5 ECS Main Wiring Connector ................................ ECS
6 Brake Leveling Fluid Sensor
7 ABD Main Wiring Connector ................................ ABD 5.0

7-1 ABS Main Wiring Connector ................................ ABD 5.0

8 ABD main Wiring Connector ................................ ABD 5.0
9 Engine Temperature Sensor ................................ Diesel E/G

10 ABS 5.0 ECU ....................................................... ABS 5.0

10-1 ABD 5.0 Modulator ............................................... ABD 5.0

11 Front Washer Motor ............................................. Diesel E/G

12 Head Lamp Relay
13 Compressor ......................................................... Air Conditioner
14 Wheel Speed Sensor ........................................... ABS 5.0 or ABD 5.0

9A-12  BODY WIRING SYSTEM

15 LH Damper ........................................................... ECS
16 Ground 1
17 Ground 2
18 Locking Hub Solenoid
19 Condenser Fan Relay ......................................... Gasoline E/G
20 LH Position Lamp
21 LH Head Lamp
22 LH Head Lamp Leveling Device ........................... Leveling Device
23 Thermo Switch 2 .................................................. Gasoline E/G with HFM
24 Thermo Switch 3 .................................................. Gasoline E/G with HFM & Air Conditioner
25 LH Front Fog Lamp
26 LH Horn ............................................................... Black Out Driving Lamp (Domestic)
27 Condenser Fan Motor ......................................... Diesel E/G
28 Black Out Driving Lamp ....................................... Black Out Driving Lamp (Domestic)
29 LH Horn ............................................................... Leveling Device
30 LH Condenser Fan Motor .................................... Gasoline E/G with Air Conditioner
31 Thermo Switch 1 .................................................. Diesel E/G or Gasoline E/G with HFM
32 Resistor ............................................................... Gasoline E/G with Air Conditioner
33 Thermo Switch 4 .................................................. Gasoline E/G with HFM & Air Conditioner
34 Ambient Censor ................................................... Air Conditioner
35 RH Condenser Fan Motor .................................... Gasoline E/G
36 RH Horn
37 RH Front Fog Lamp
38 RH Position Lamp
39 RH Head Lamlp
40 RH Head Lamp Leveling Device .......................... Leveling Device
41 Wheeling Sensor ................................................. ECS
42 Wheel Speed Sensor (FR) .................................. ABS 5.0, 5.3 or ABD 5.0, 5.3
43 RH Damper .......................................................... ECS
44 Alternator Extension Connector ........................... Gasoline E/G
45 Alternator ............................................................. Gasoline E/G
46 Alternator Extension Joint box .............................. Diesel E/G
47 Alternator Extension Connector ........................... Diesel E/G
48 Ground 3
49 Fusible Link Box................................................... Gasoline E/G

49-1 Fusible Link Box................................................... Diesel E/G

50 Receiver Dryer ..................................................... Gasoline E/G with Air Conditioner

50-1 Receiver Dryer ..................................................... Diesel E/G with Air Conditioner

51 Hood Switch ......................................................... Diesel E/G with Black Out Driving Lamp
52 Front Washer Motor ............................................. Gasoline E/G
53 Main Wiring Connector

BODY WIRING SYSTEM  9A-13

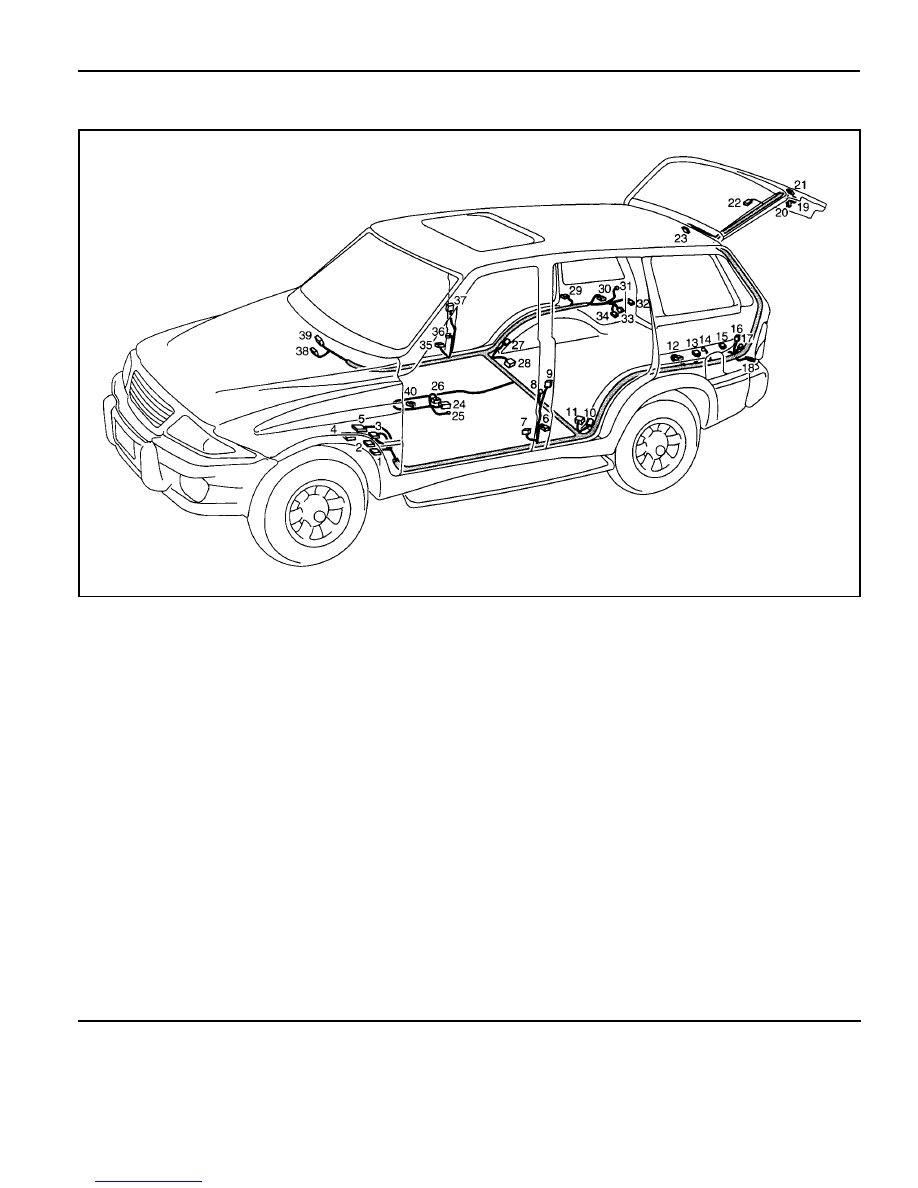

FLOOR

1 ECS Main Wiring Connector ........................ ECS
2 Main Wiring Connector
3 Main Wiring Connector
4 Main Wiring Connector
5 ABD Main Wiring Connector ........................ ABD
6 LH Front Door Switch
7 LH Tension Reducer
8 Ground 1
9 LH Rear Door Wiring Connector

10 Wheel Speed Sensor (RL) .................. ABD, ABS

11 Damper (RL) ................................................ ECS

12 LH Rear Door Switch
13 LH Rear Speaker
14 Ground 2
15 Power Socket
16 Power Antenna
17 Diode
18 LH Rear Combination Lamp
19 Tail Gate Wiring Connector
20 Tail Gate Wiring Connector

21 Tail Gate Wiring Connector
22 Rear Heated
23 Luggage Lamp
24 ABD ECU ..................................................... ABD
25 Ground 4 ..................................................... ABD
26 ECS ............................................................. ECS
27 Wheel Speed Sensor (RR) ................. ABD, ABS
28 Damper (RR) ............................................... ECS
29 RH Rear Door Switch
30 RH Rear Speaker
31 Ground 3
32 RH Rear Combination Lamp
33 Trailer Connector
34 Rear Washer Motor
35 RH Tension Reducer
36 RH Front Door Switch
37 RH Rear Door Wiring Connector
38 RH Front Door Wiring Connector
39 Wheel Speed Sensor (RR) ................. ABD, ABS
40 Acceleration Sensor ..................................... ABD

9A-14  BODY WIRING SYSTEM

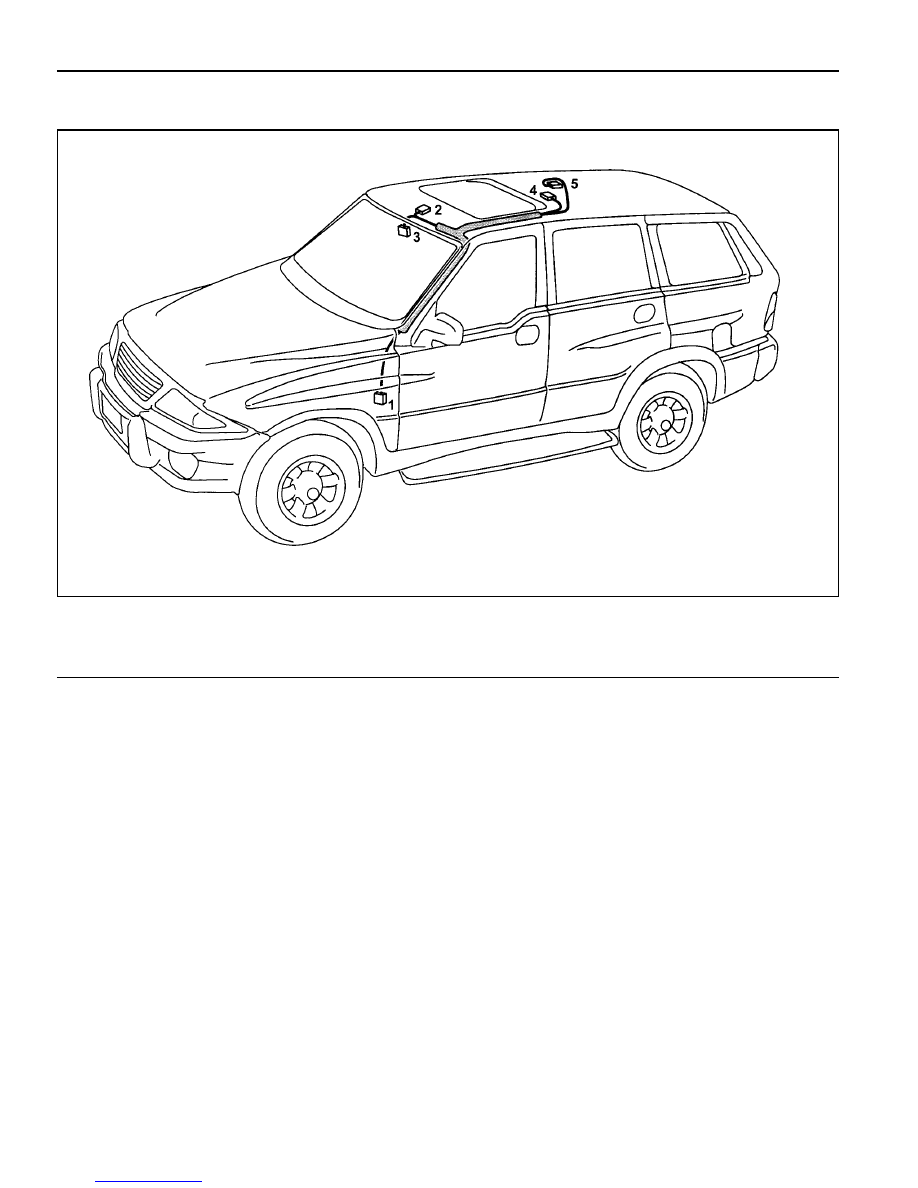

ROOF

1 Main Wiring Connector
2 Room Lamp
3 Inside Mirror

4 Sun Roof Motor
5 Map Lamp
