1B1-96  M162 ENGINE MECHANICAL

3  Oil  Filler  Cap
4  Dipstick  Gauge

9. Fill up engine oil through the engine oil filler opening (3).

10. Check for oil leaks at normal engine temperature after

starting the engine.

11. Stop the engine and wait 5 minutes.

Check the oil level and fill up as specified if necessary.

M162 ENGINE MECHANICAL  1B1-97

OIL FILTER

Preceding Work : Removal of starter motor

Removal of upper intake manifold

1 Coolant Line
2 O-ring .................................................... Replace
3 Clip
4 Hose

5 Bolt ........................................................... 23 Nm
6 Oil Filter
7 Gasket ................................................... Replace

1B1-98  M162 ENGINE MECHANICAL

Tightening Torque

23 Nm

Notice

Replace the oil filter gasket.

4. Installation should follow the removal procedure in the

reverse order.

5. Check engine oil level.

6. Run the engine at idle and check the engine for leaks.

3. Remove the oil filter bolt and then remove the oil filter.

Installation Notice

Removal & Installation Procedure

1. Drain the coolant from the crank case.

2. Remove the each coolant line and hose.

M162 ENGINE MECHANICAL  1B1-99

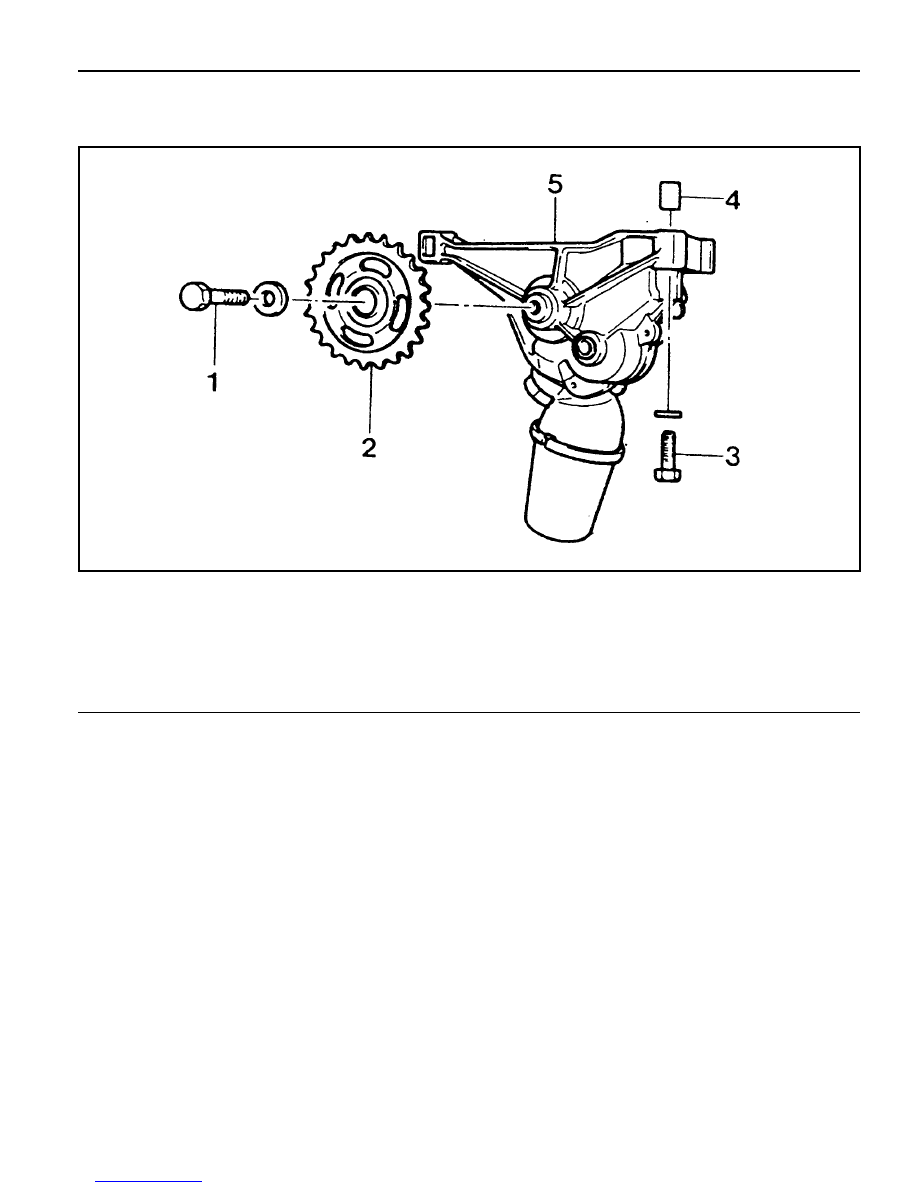

1 Bolt (M8 x 20, 1 piece) ......................... 29-35 Nm
2 Sprocket (Oil Pump Drive)
3 Bolt (M8 x 35, 3 pieces) ................. 22.5-27.5 Nm

OIL PUMP

Preceding Work : Removal of oil pan

4 Spring Pin
5 Oil Pump
