9G – 12  INTERIOR TRIM

D109E562

4. Remove the rear parcel side shelf. Refer to “Rear

Parcel Side Shelf” in this section.

5. Remove the rear seatback.

6. Remove the rear seat belt bolt on the C–pillar trim

panel. Refer to Section 8A, Seat Belts.

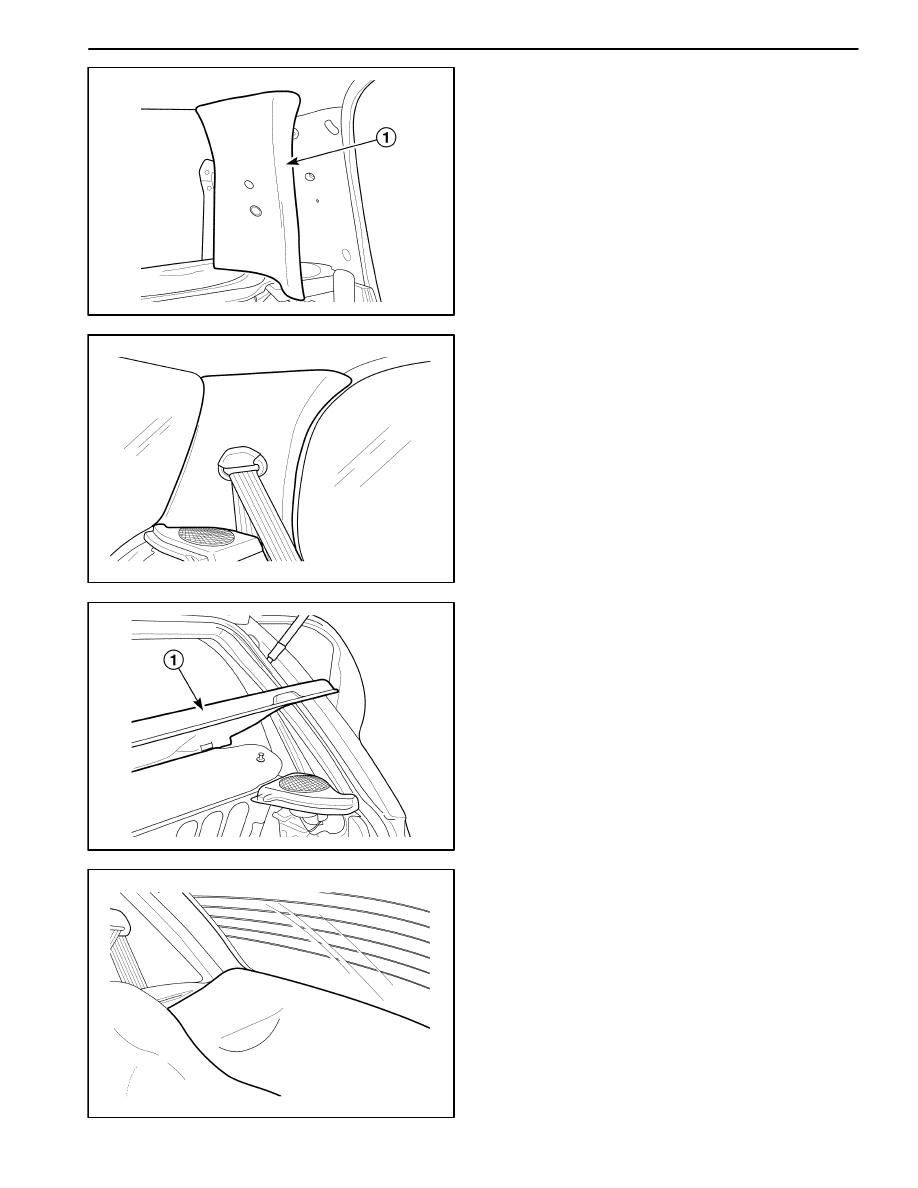

7. Pry off the C–pillar trim panel.

D

Pry off the C–pillar trim panel by hands (1).

D109E563

Installation Procedure

1. Install the C–pillar trim panel.

2. Install the rear seat belt bolt on the C–pillar trim panel.

Refer to Section 8A, Seat Belts.

3. Install the rear seatback.

4. Install the rear parcel side shelf. Refer to “Rear Parcel

Side Shelf” in this section.

5. Connect the rear speaker connector.

6. Connect the negative battery cable.

D109E564

REAR PARCEL SHELF

Removal Procedure

1. Open the tailgate.

2. Remove the rear parcel shelf (1).

D109E565

Installation Procedure

1. Install the rear parcel shelf.

INTERIOR TRIM  9G – 13

D109E566

REAR PARCEL SIDE SHELF

Removal Procedure

1. Disconnect the negative battery cable.
2. Open the tailgate.
3. Remove the seatback.
4. Remove the rear seat parcel shelf. Refer to “Rear

Parcel Shelf” in this section.

5. Remove the rear speaker from the rear parcel shelf.

Refer to Section 9F, Audio Systems.

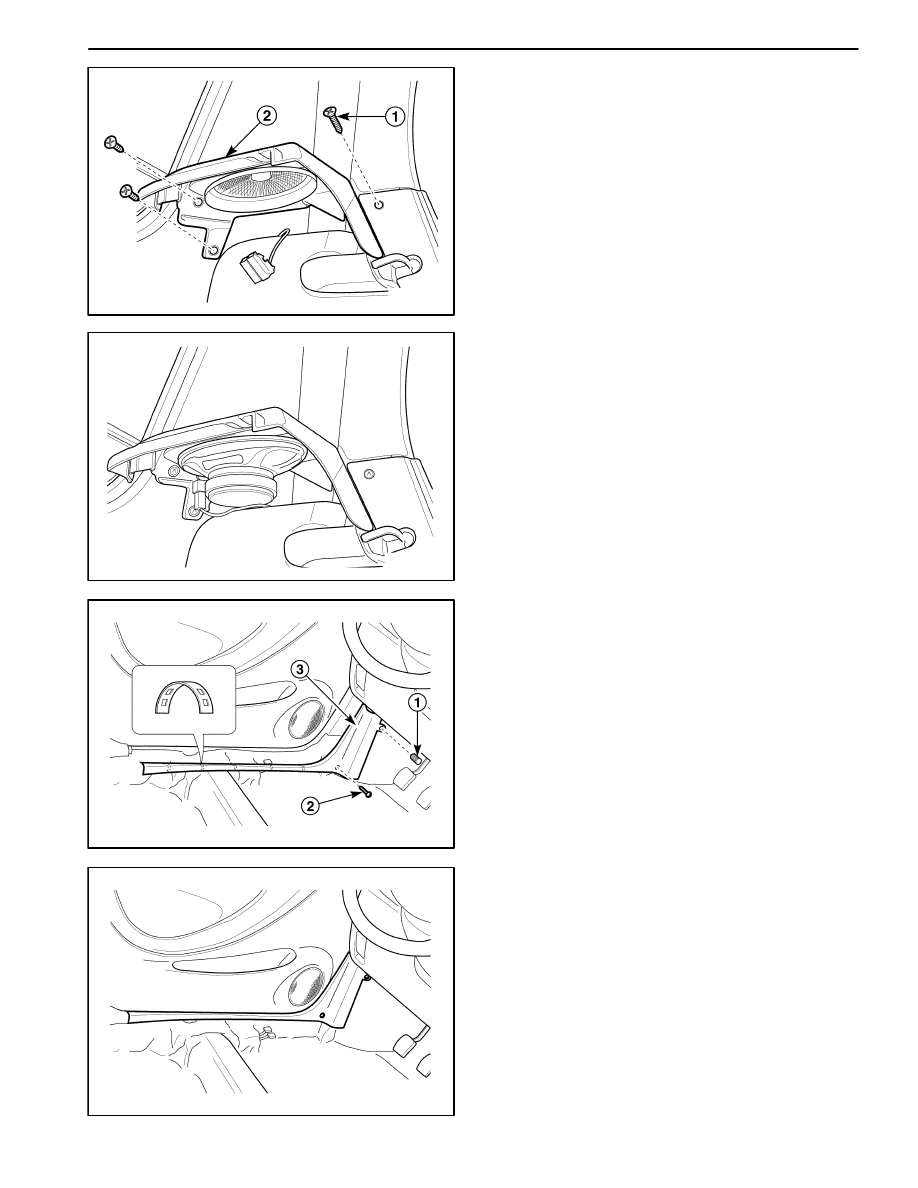

6. Remove the rear parcel side shelf.

D

Remove the screws (1).

D

Remove the rear parcel side shelf (2).

D109E567

Installation Procedure

1. Install the rear parcel side shelf with the screw.

2. Install the rear speaker to the rear parcel shelf. Refer

to Section 9F, Audio Systems.

3. Install the rear parcel shelf. Refer to “Rear Parcel

Shelf” in this section.

4. Install the seatback.

5. Connect the negative battery cable.

D109E568

FRONT ROCKER TRIM PANEL

Removal Procedure

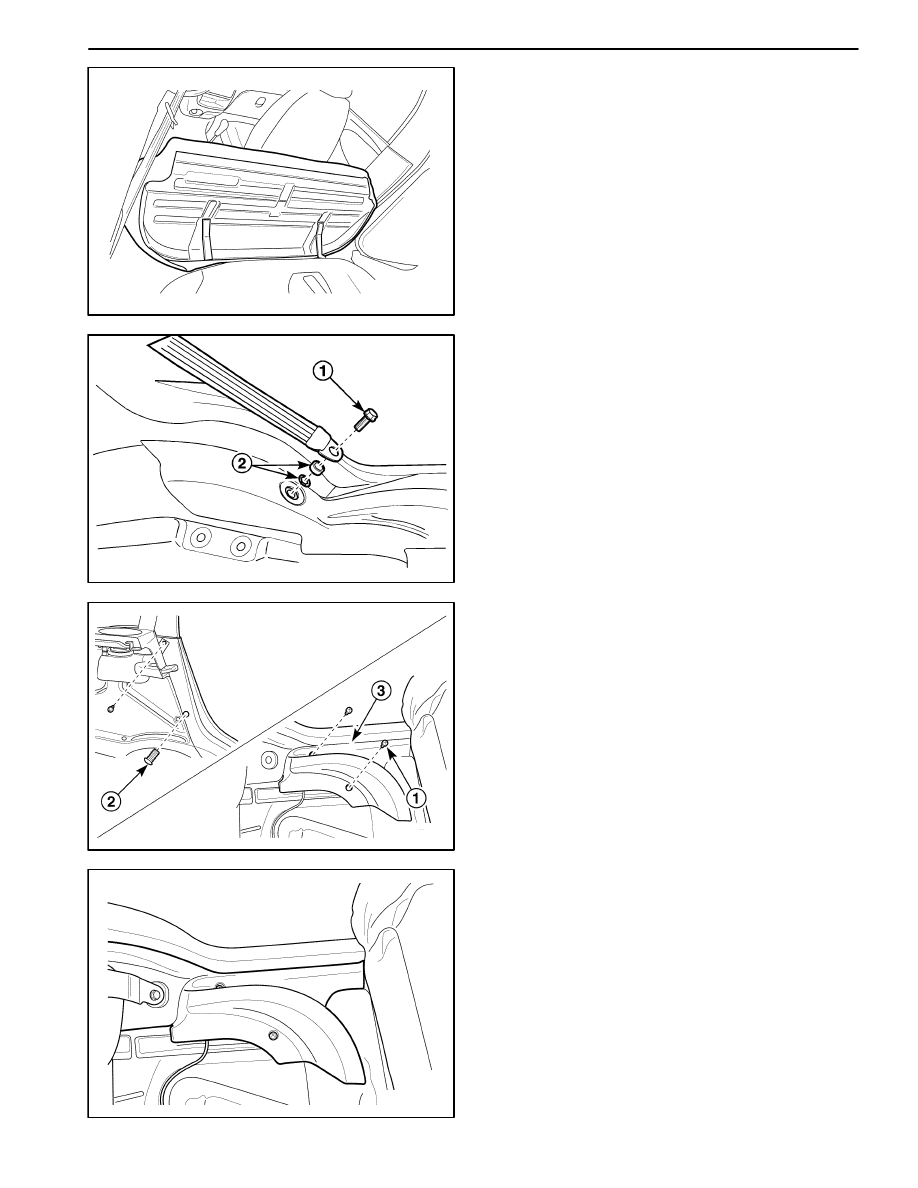

1. Pry off the rocker trim panel.

D

Remove the clip (1).

D

Remove the screw (2).

D

Pry off the rocker trim panel (3).

D109E569

Installation Procedure

1. Install the rocker trim panel with the clip and the

screw.

9G – 14  INTERIOR TRIM

D109E570

REAR ROCKER TRIM PANEL

Removal Procedure

1. Remove the rear seat cushion.

D110A508

2. Remove the rear seat belt bolt on the floor.

D

Remove the bolt (1).

D

Remove the spacer and the spring washer (2).

D

Remove the plastic protector from the seat belt an-
chor.

D109E571

3. Pry off the rear rocker trim panel.

D

Remove the screws securing the rear rocker trim
panel (1).

D

Remove the clip (2).

D

Pry off the rear rocker trim panel (3).

D109E572

Installation Procedure

1. Install the rear rocker trim panel with the screws and

the clip.

2. Install the rear seat belt bolt on the floor.

3. Install the rear seat cushion.

INTERIOR TRIM  9G – 15

D19E573A

FLOOR CONSOLE

Removal Procedure

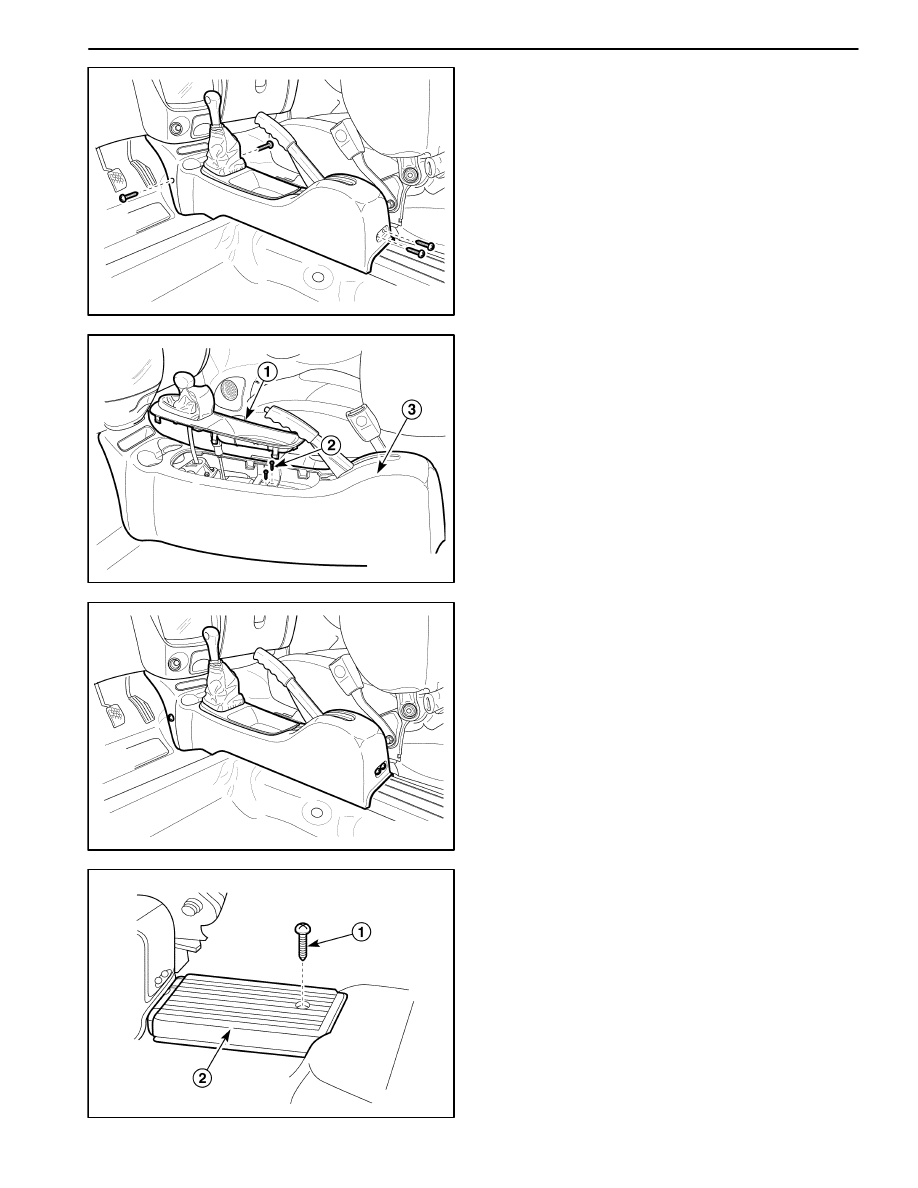

1. Remove the floor console screws.

D19E575A

2. Remove the gear shift lever boot cover and the floor

console.

D

Remove the gear shift lever boot cover (1).

D

Remove the screws (2).

D

Remove the floor console (3).

D19E576A

Installation Procedure

1. Install the floor console.

2. Install the gear shift lever boot cover to the floor con-

sole.

3. Tighten the floor console screws.

D109E577

PARKING BRAKE CABLE COVER

Removal Procedure

1. Remove the parking brake cable cover.

D

Remove the screw (1).

D

Remove the cable cover (2).
