9G – 16  INTERIOR TRIM

D109E578

Installation Procedure

1. Install the parking brake cable cover with the screw.

D109E581

FLOOR CARPET

(Left–Hand Drive Shown, Right–Hand
Drive Similar)

Removal Procedure

 1. Disconnect the negative battery cable.

 2. Remove the front seats. Refer to Section 9H, Seats.

 3. Remove the rear seat cushion. Refer to Section 9H,

Seats.

 4. Remove the floor console. Refer to “Floor Console”

in this section.

 5. Pry off the front rocker trim panel. Refer to “Front

Rocker Trim Panel” in this section.

 6. Pry off the rear rocker trim panel. Refer to “Rear

Rocker Trim Panel” in this section

 7. Pry off the lower B–pillar trim panel. Refer to “Lower

B–pillar Trim Panel” in this section.

 8. Remove the parking brake cable cover. Refer to

“Parking Brake Cable Cover” in this section.

 9. Remove the clips under the front seats.

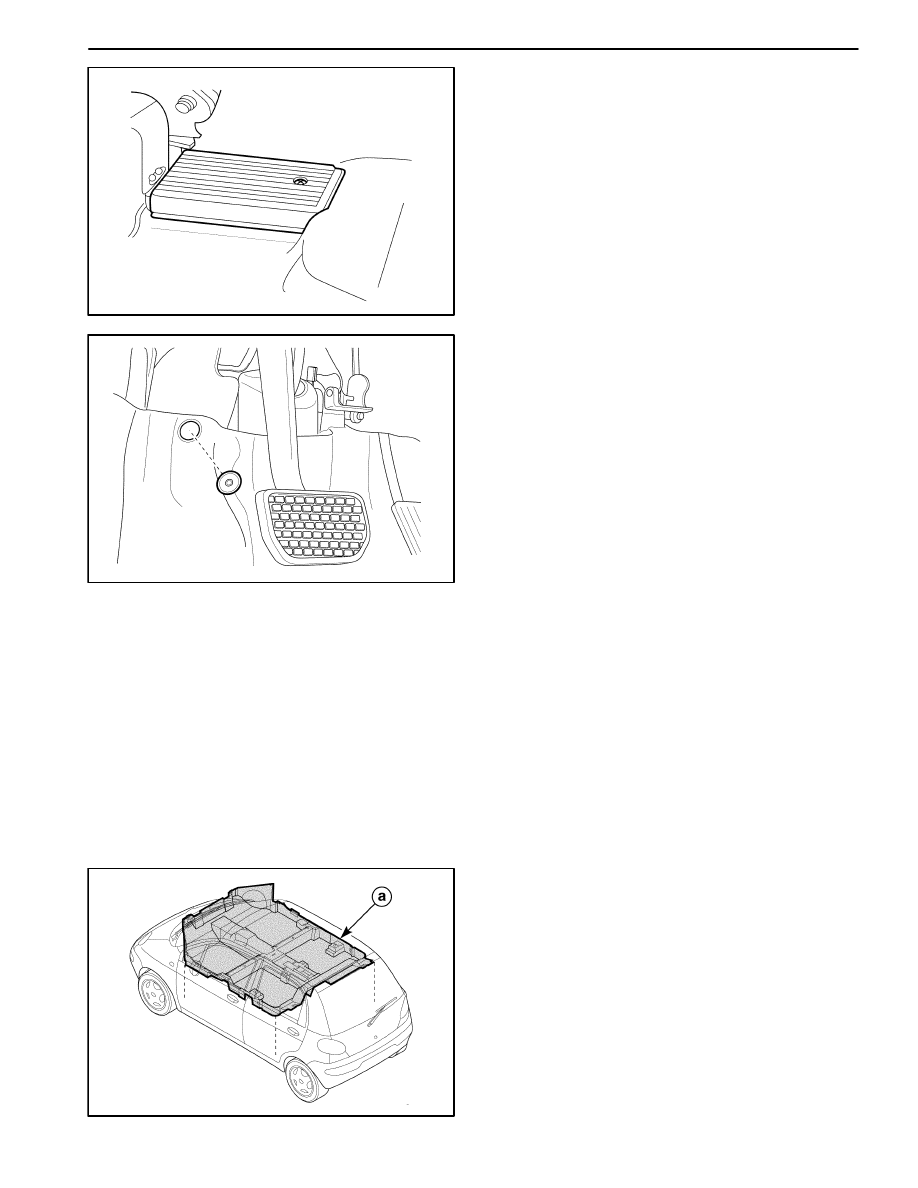

D109E582

11. Remove the floor carpet.

a. Floor carpet.

INTERIOR TRIM  9G – 17

D109E583

Installation Procedure

 1. Install the floor carpet.

 2. Install the clips.

 3. Install the parking brake cable cover. Refer to “Park-

ing Brake Cable Cover” in this section.

 4. Install the lower B–pillar trim panel. Refer to “Lower

B–pillar Trim Panel” in this section.

 5. Install the rear rocker trim panel. Refer to “Rear

Rocker Trim Panel” in this section.

 6. Install the front rocker trim panel. Refer to “Front

Rocker Trim Panel” in this section.

 7. Install the floor console. Refer to “Floor Console” in

this section.

 8. Install the rear seat cushion. Refer to Section 9H,

Seats.

 9. Install the front seats. Refer to Section 9H, Seats.

10. Connect the negative battery cable.

D109E584

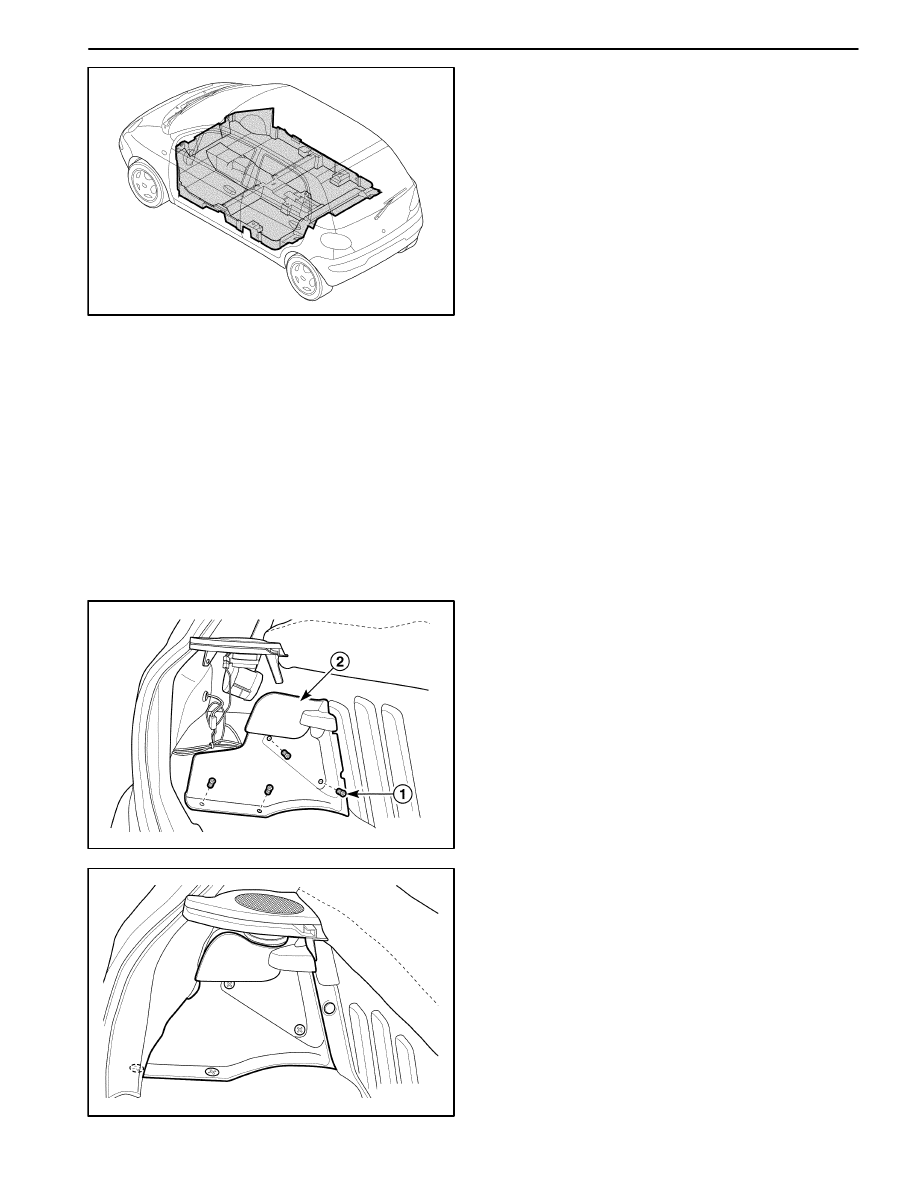

LUGGAGE COMPARTMENT
WHEELHOUSE TRIM PANEL

Removal Procedure

1. Pry off the luggage compartment wheel house trim

panel.

D

Remove the screws (1).

D

Pry off the trim panel (2).

D109E585

Installation Procedure

1. Install the luggage compartment wheelhouse trim

panel with the plastic screws.

9G – 18  INTERIOR TRIM

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

D109E101

KM-475-B

Trim Remover
