9G – 4  INTERIOR TRIM

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D109E532

FRONT DOOR TRIM PANEL
(STANDARD)

Tool Required

KM 475–B Trim Remover.

Removal Procedure

1. Remove the door pull from the front door.

D

Remove the screws (1).

D

Remove the door pull (2).

D109E533

2. Remove the inside door handle.

D

Remove the screw (1).

D

Disconnect the inside door handle rod (2).

D

Pry off the inside door handle (3).

D109E534

3. Remove the window regulator handle from the front

door.

D

Using a cloth, pull out the clip (1).

D

Remove the regulator handle (2).

INTERIOR TRIM  9G – 5

D109E535

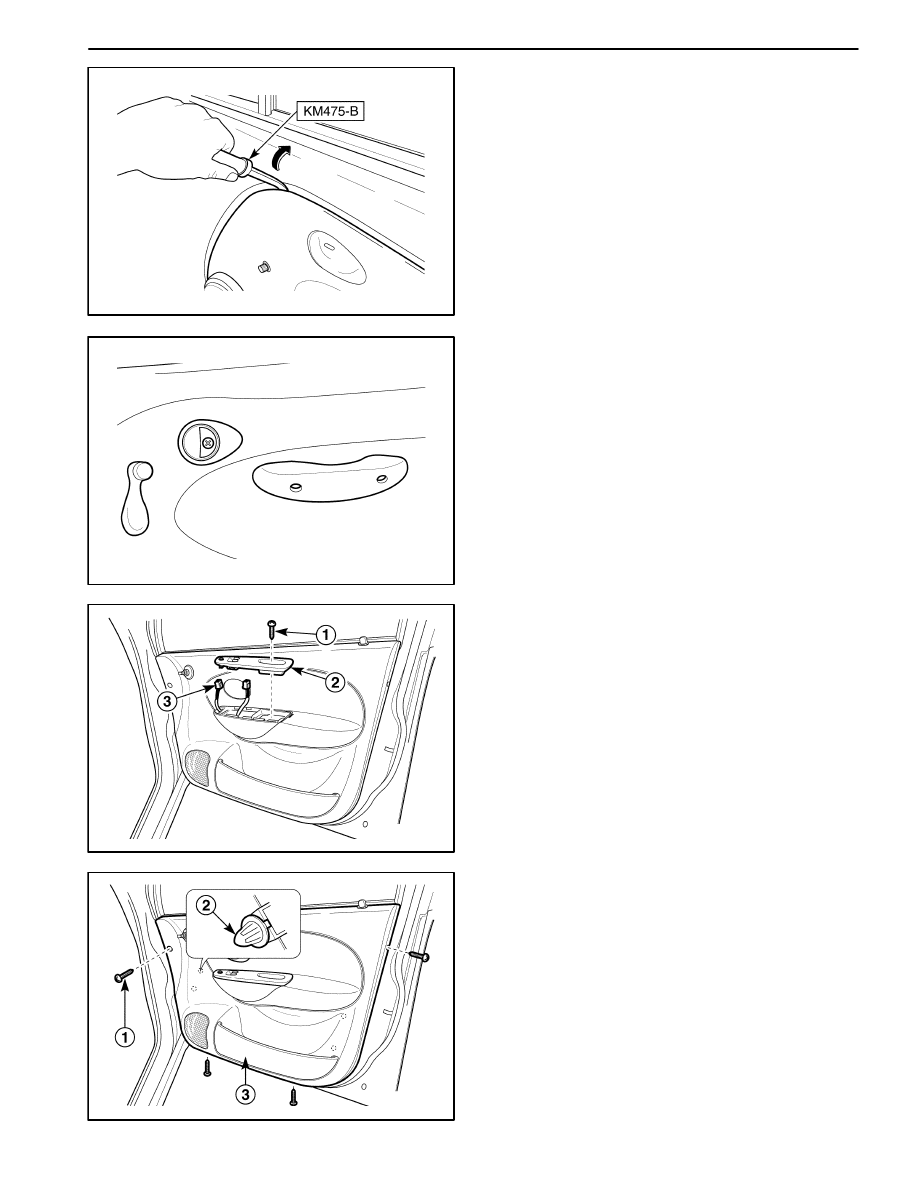

4. Pry off the trim panel using a trim remover KM 475–B.

Notice:  Make sure to cover the remover with cloth to
prevent the paint damage of the door.

D109E536

Installation Procedure

1. Install the trim panel.

2. Install the window regulator handle with the clip.

3. Install the inside door handle and the door pull with

the screws.

D19E537A

FRONT DOOR TRIM PANEL
(DELUXE)

Removal Procedure

1. Remove the inside door handle. Refer to Section 9P,

Doors.

2. Remove the power window/mirror control switch as-

sembly from the front door.

D

Remove the screws (1).

D

Remove the power window/mirror control switch
assembly (2).

D

Disconnect the electrical connectors (3).

D19E538A

3. Remove the trim panel.

D

Remove the screws (1).

D

Remove the clips (2).

D

Remove the trim panel (3).

9G – 6  INTERIOR TRIM

D109E539

4. Remove the inside channel weatherstrip. Refer to

Section 9P, Doors.

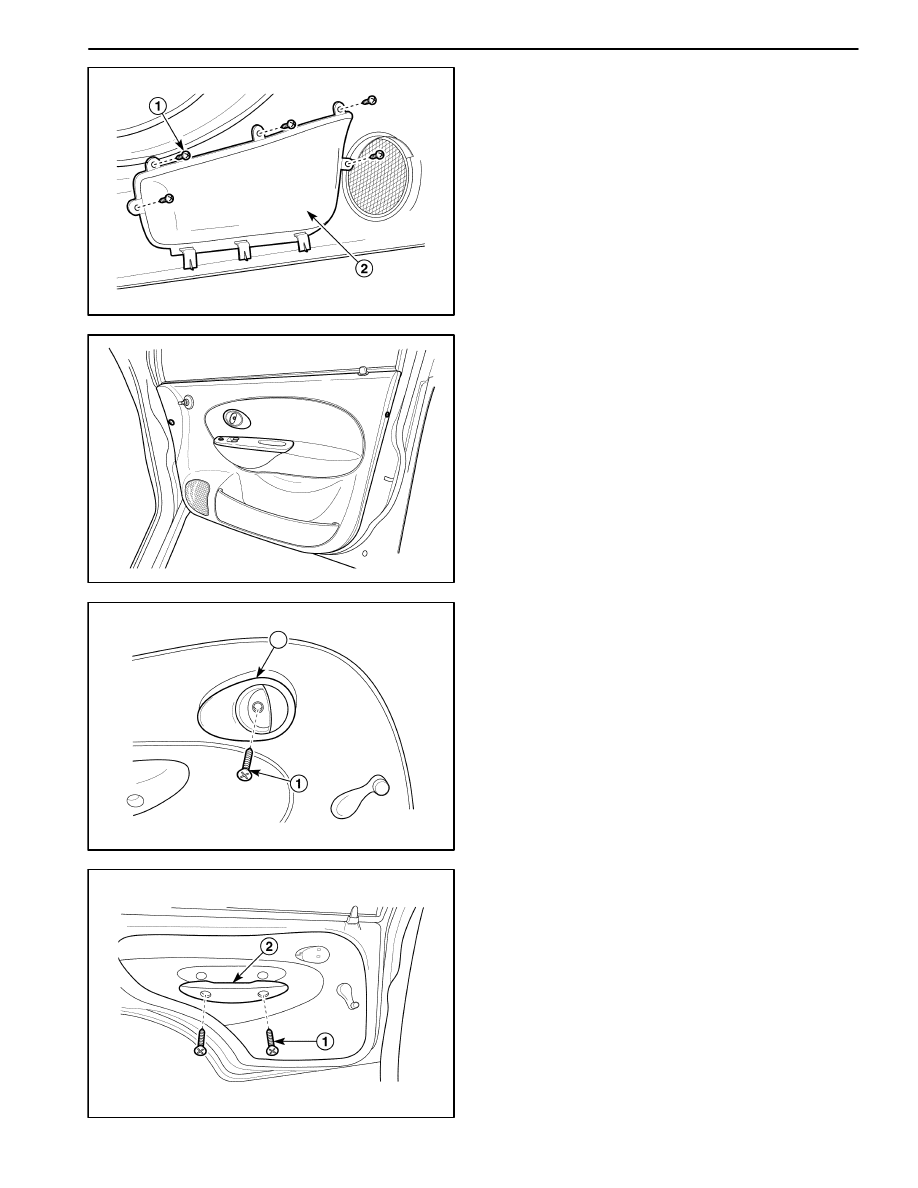

5. Remove the map pocket from the door trim.

D

Remove the screws (1).

D

Remove the map pocket (2).

D19E540A

Installation Procedure

1. Install the map pocket to the door trim with the

screws.

2. Install the inside channel weatherstrip. Refer to Sec-

tion 9P, Doors.

3. Install the door trim panel with the screws and the

clips.

4. Install the power window/mirror control switch assem-

bly  with the screw.

5. Install the inside door handle. Refer to Section 9P,

Doors.

D109E541

2

REAR DOOR TRIM PANEL
(STANDARD)

Tool Required

KM 475–B Trim Remover.

Removal Procedure

1. Remove the inside door handle.

D

Remove the screw (1).

D

Disconnect the inside door handle rod.

D

Pry off the inside door handle (2).

D109E542

2. Remove the door pull.

D

Remove the screws (1).

D

Remove the door pull (2).

INTERIOR TRIM  9G – 7

D109E543

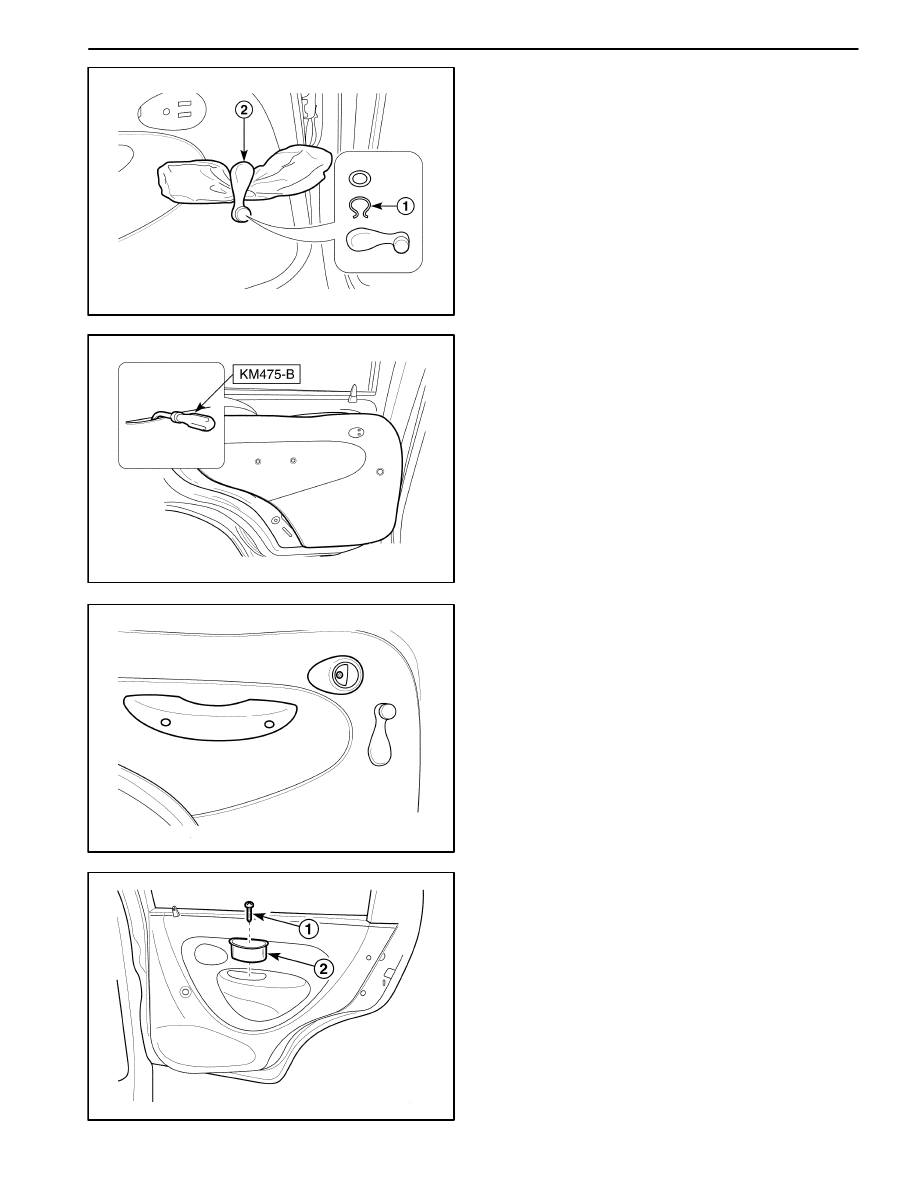

3. Remove the window regulator handle from the rear

door.

D

Using a cloth, pull out the clip (1).

D

Remove the regulator handle (2).

D109E544

4. Pry off the trim panel using a trim remover KM 475–B.

Notice:  Make sure to cover the remover with cloth to
prevent the paint damage of the door.

D109E545

Installation Procedure

1. Install the trim panel.

2. Install the window regulator handle with the clip.

3. Install the inside door handle and the door pull with

the screws.

D109E546

REAR DOOR TRIM PANEL (DELUXE)

Removal Procedure

1. Remove the inside door handle. Refer to Section 9P,

Doors.

2. Remove the window regulator handle from the rear

door. Refer to Section 9P, Doors.

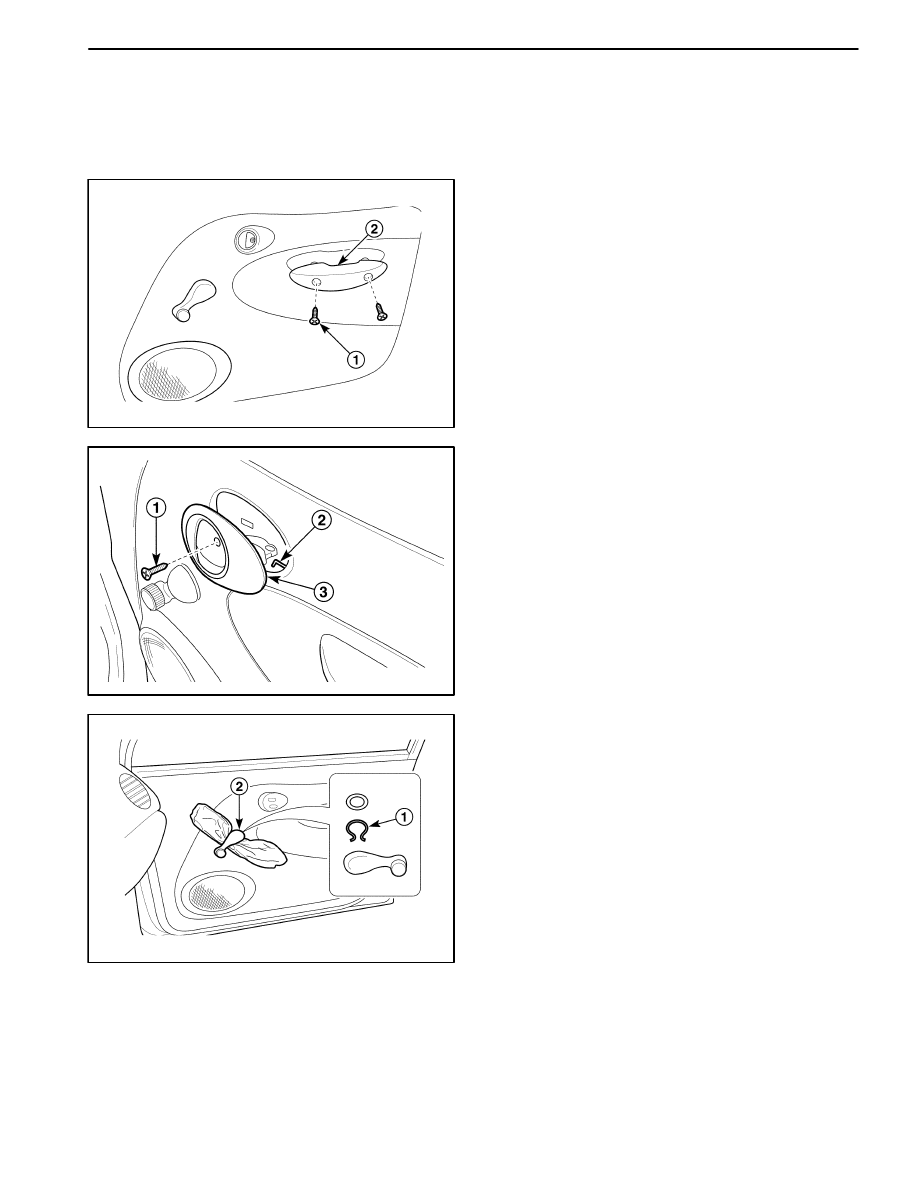

3. Remove the door pull.

D

Remove the screw (1).

D

Remove the door pull (2).
